Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

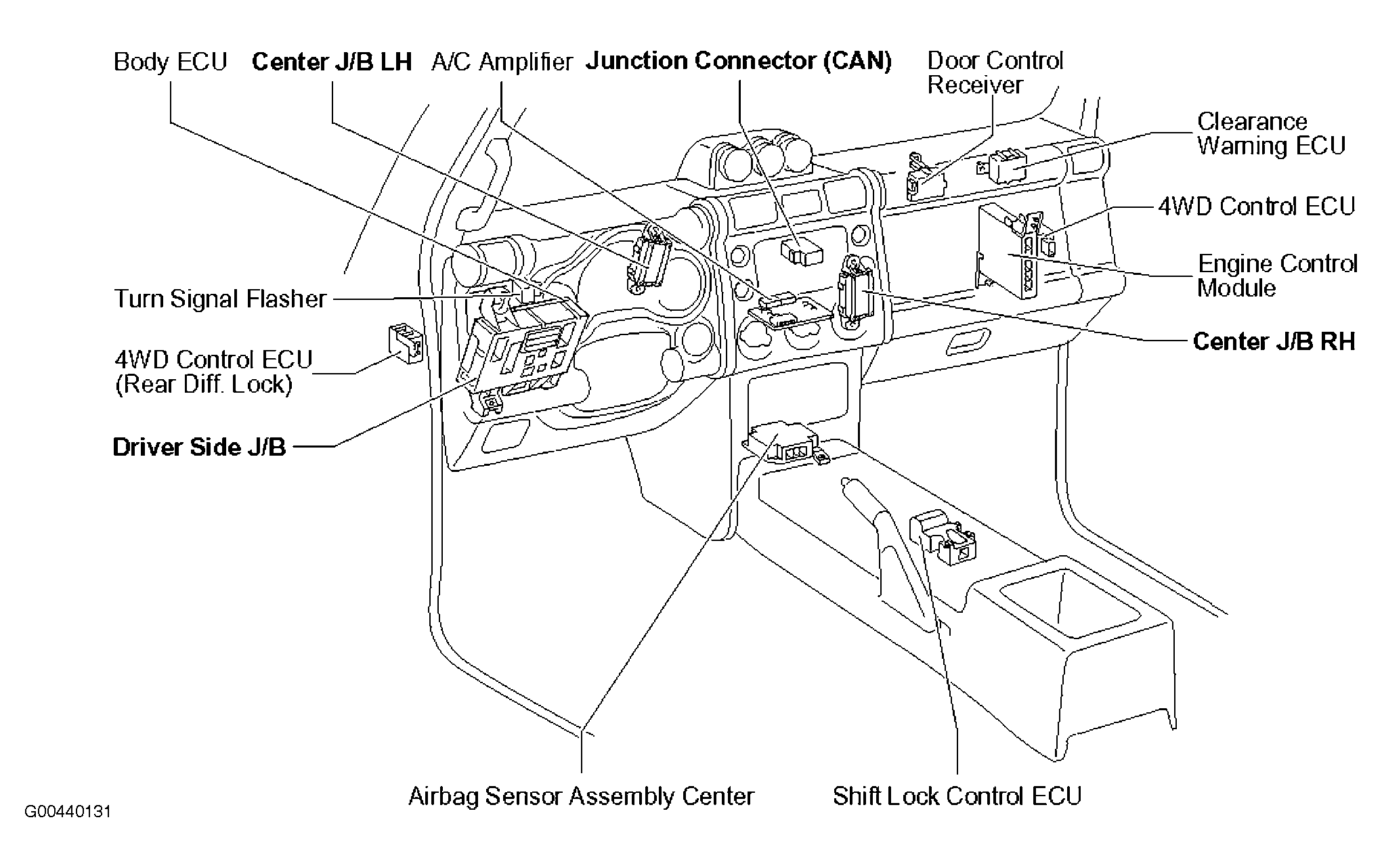

| Airbag Sensor Assembly Center | Center of dash. See Figure. |
| Body ECU | Left side of dash. See Figure. |

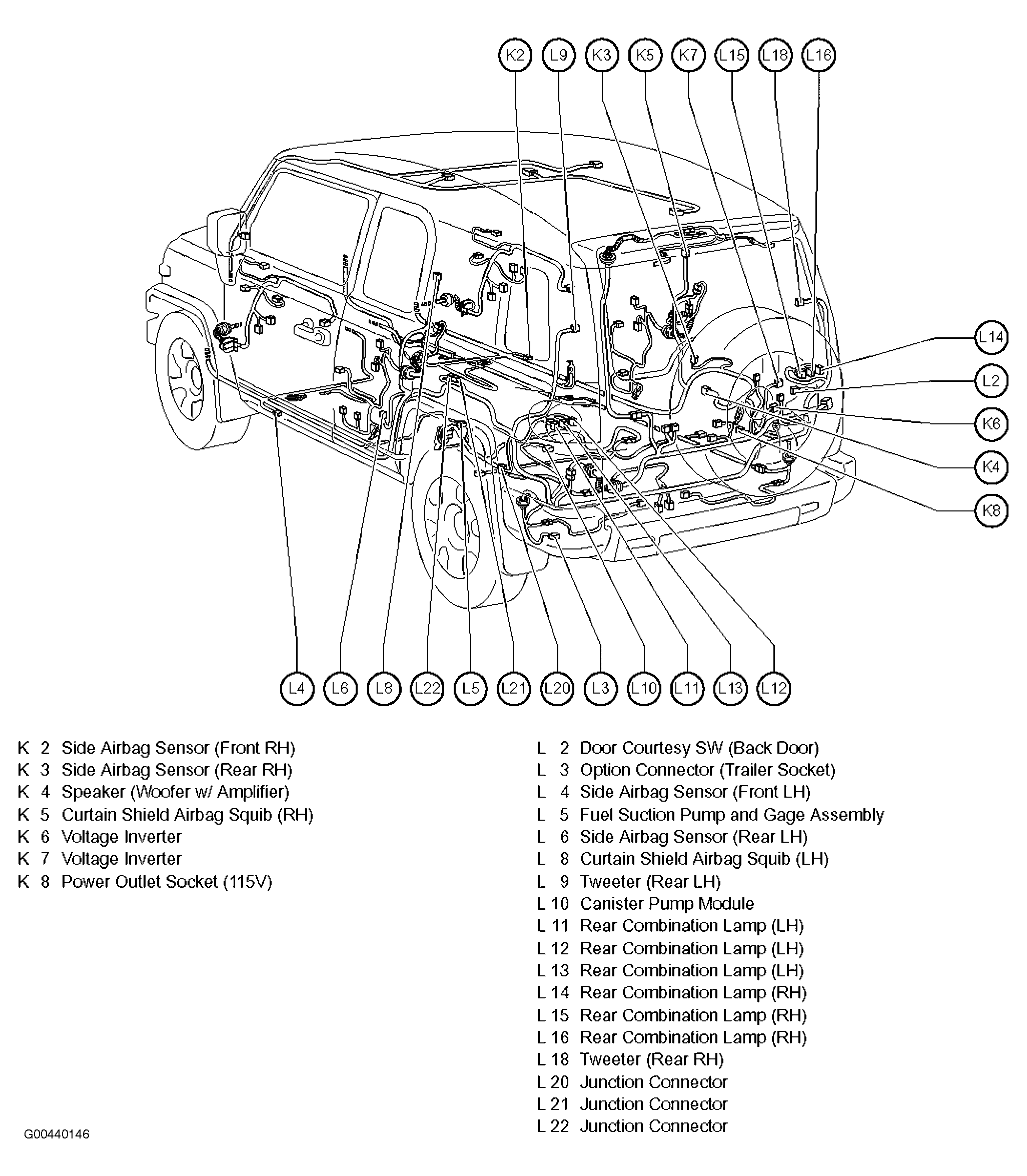

| Canister Pump Module | Left rear of vehicle. See Figure. |
| Clearance Warning ECU | Right side of dash. See Figure. |
| Door Control Receiver | Right side of dash. See Figure. |

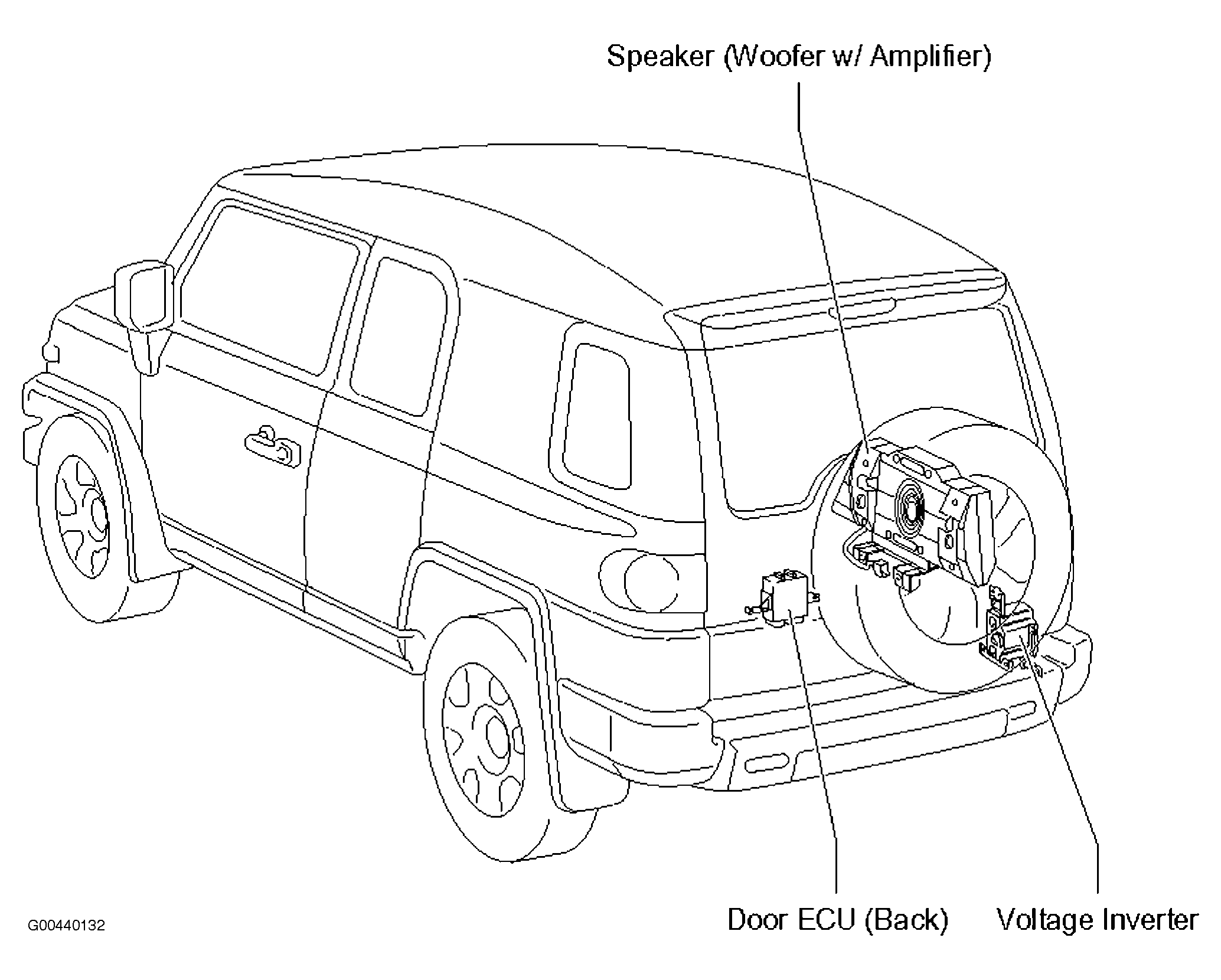

| Door ECU (Back) | Lower left of back door. See Figure. |
| Engine Control Module | Right side of engine compartment. See Figure. |

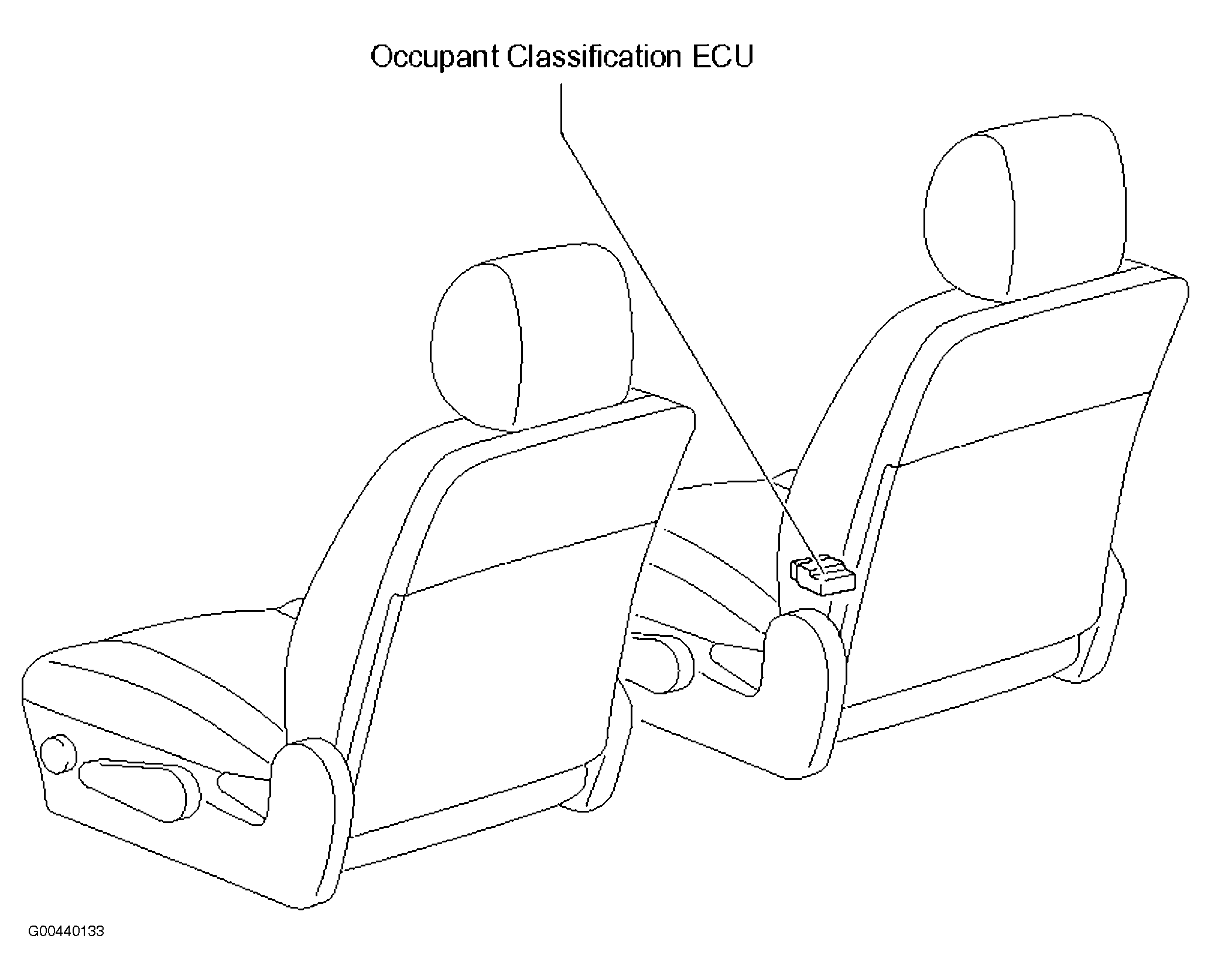

| Occupant Classification ECU | In front passenger's seat. See Figure. |
| Shift Lock Control ECU | Under center floor console. See Figure. |

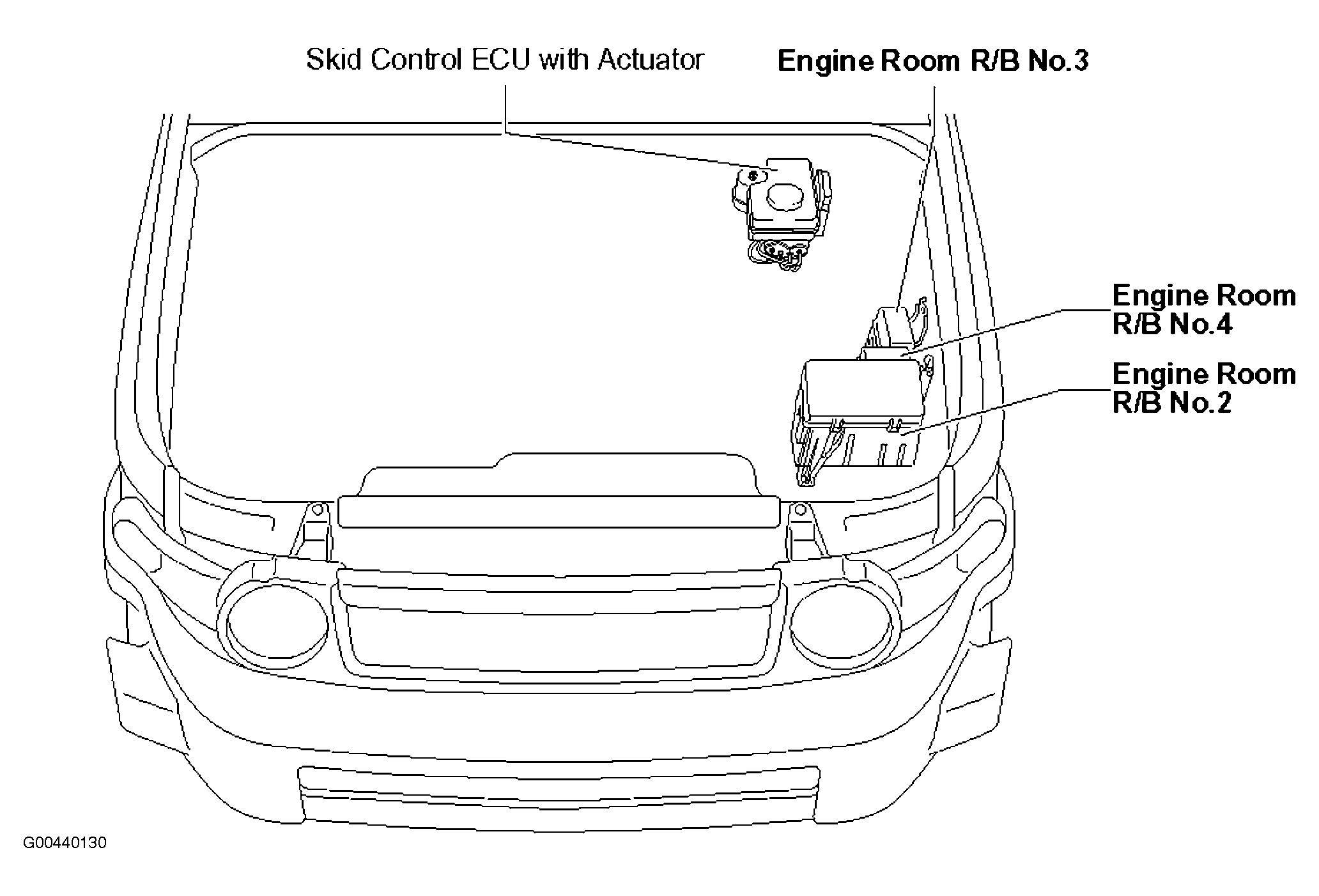

| Skid Control ECU W/Actuator | Left rear of engine compartment. See Figure. |
| 4WD Control ECU | Right side of dash. See Figure. |
| 4WD Control ECU (Rear Diff. Lock) | Left side of dash. See Figure. |
