Vehicle Identification And Serial Numbers

  1. VEHICLE IDENTIFICATION NUMBER
    1. The vehicle identification number is stamped on the vehicle body and on the certification label, as shown in Fig 1.

      A: Vehicle Identification Number

      B: Certification Label

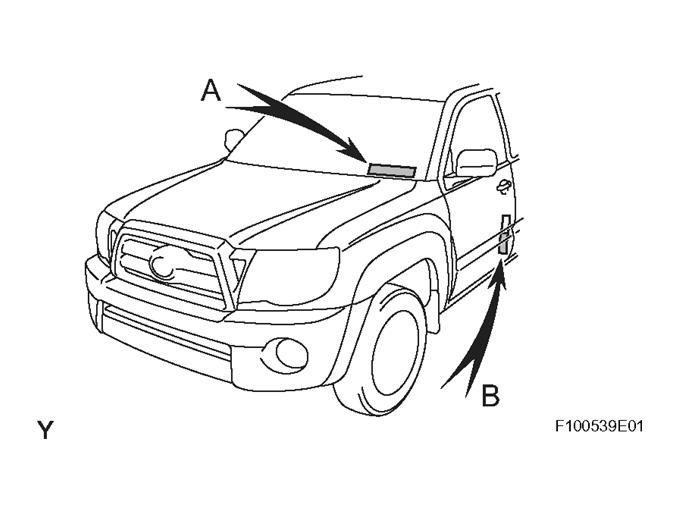

      Fig 1: Identifying Vehicle Identification Number
      G04406279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. ENGINE SERIAL NUMBER AND TRANSMISSION SERIAL NUMBER
    1. The engine serial number is stamped on the cylinder block of the engine and the transmission serial number is stamped on the housing as shown in Fig 2.

      A: Engine Serial Number

      B: Transmission Serial Number

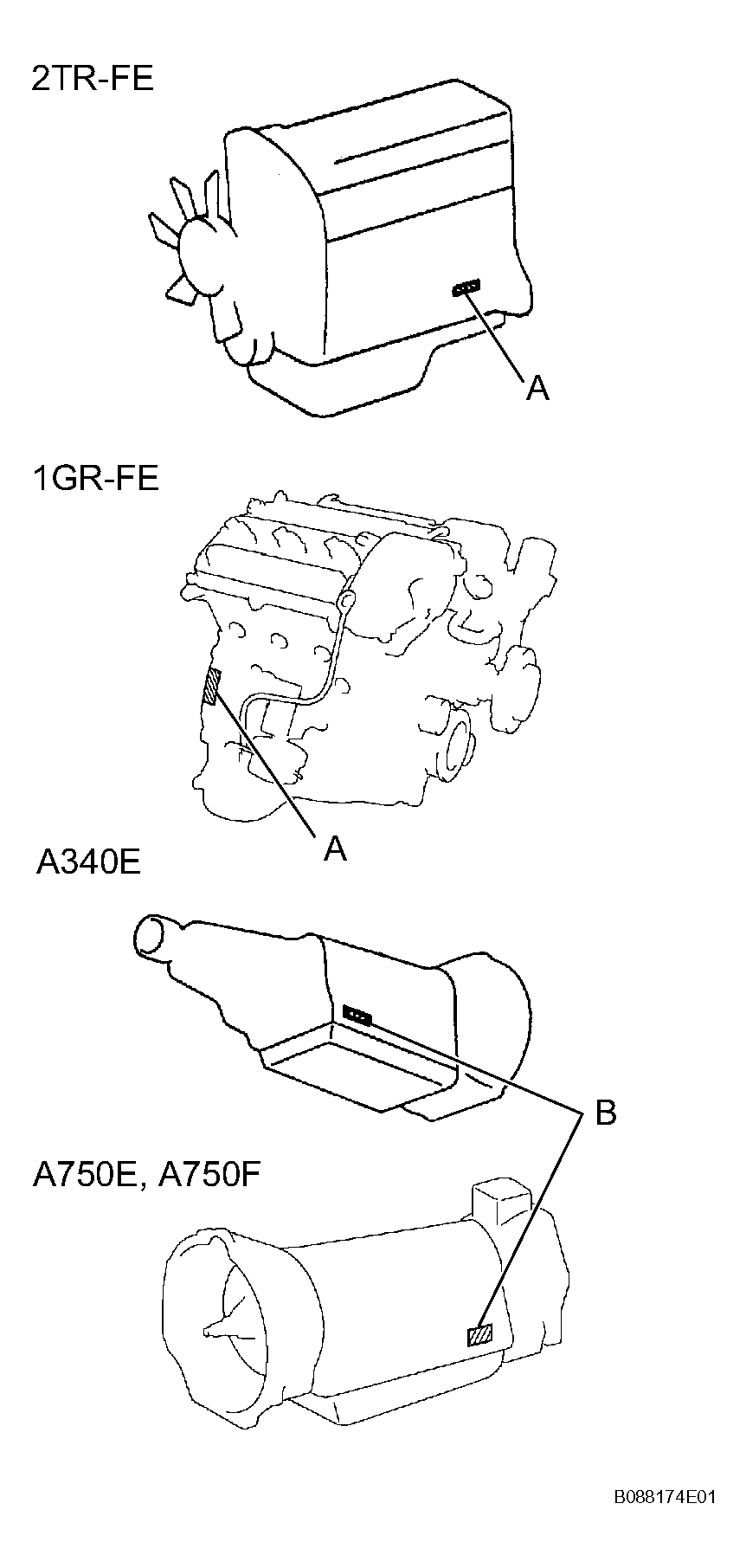

      Fig 2: Identifying Engine Serial Number
      G04406280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
