Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

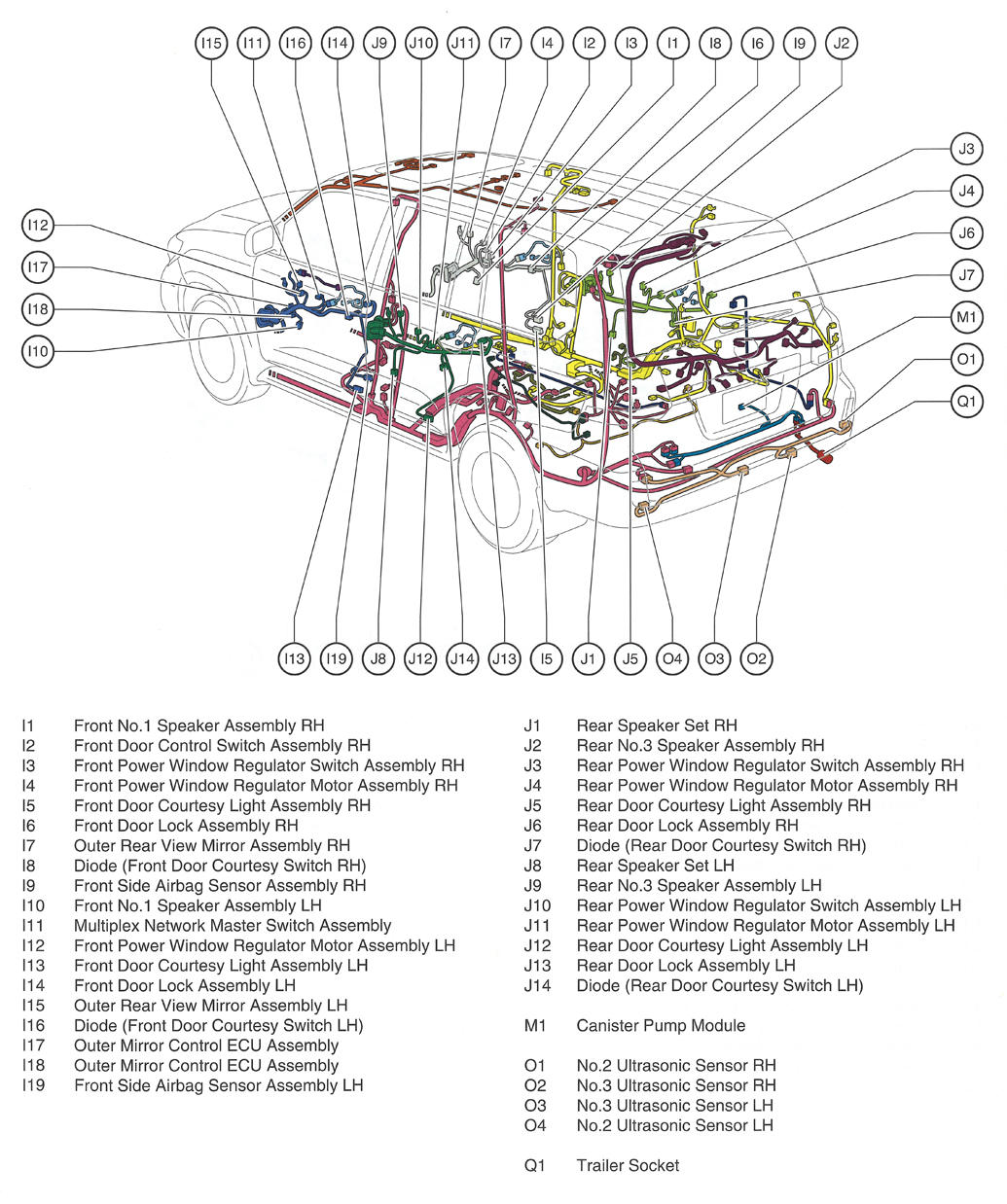

| Canister Pump Module | Under rear of vehicle. See Figure. |

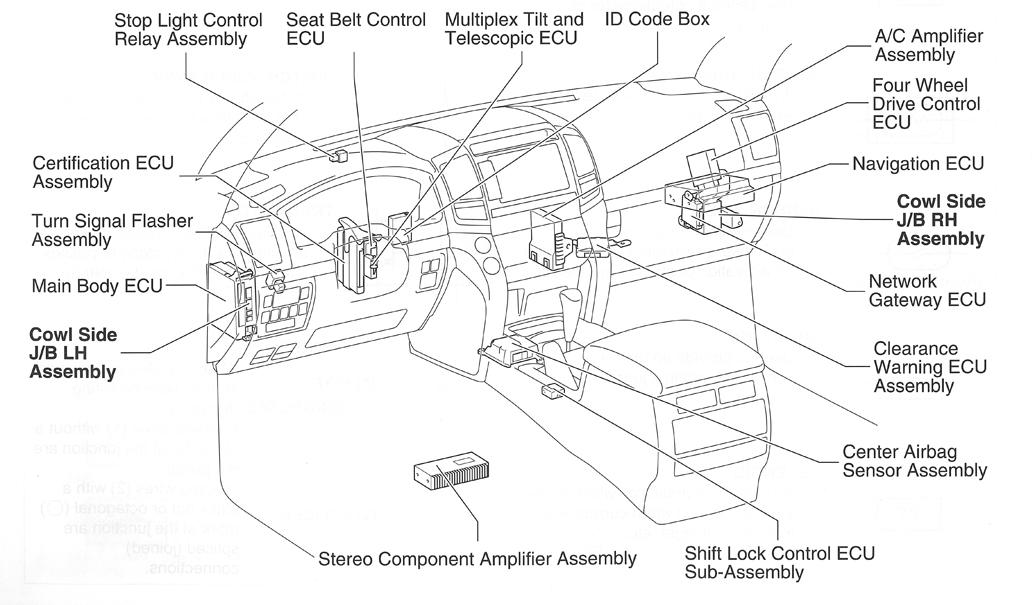

| Certification ECU | Under left side of dash. See Figure. |
| Clearance Warning ECU | Center of dash. See Figure. |
| Engine Control Module | Behind right side of dash. See Figure. |
| Fuel Pump Control ECU | Under center of vehicle. See Figure. |
| Gateway ECU | Right side of dash. See Figure. |

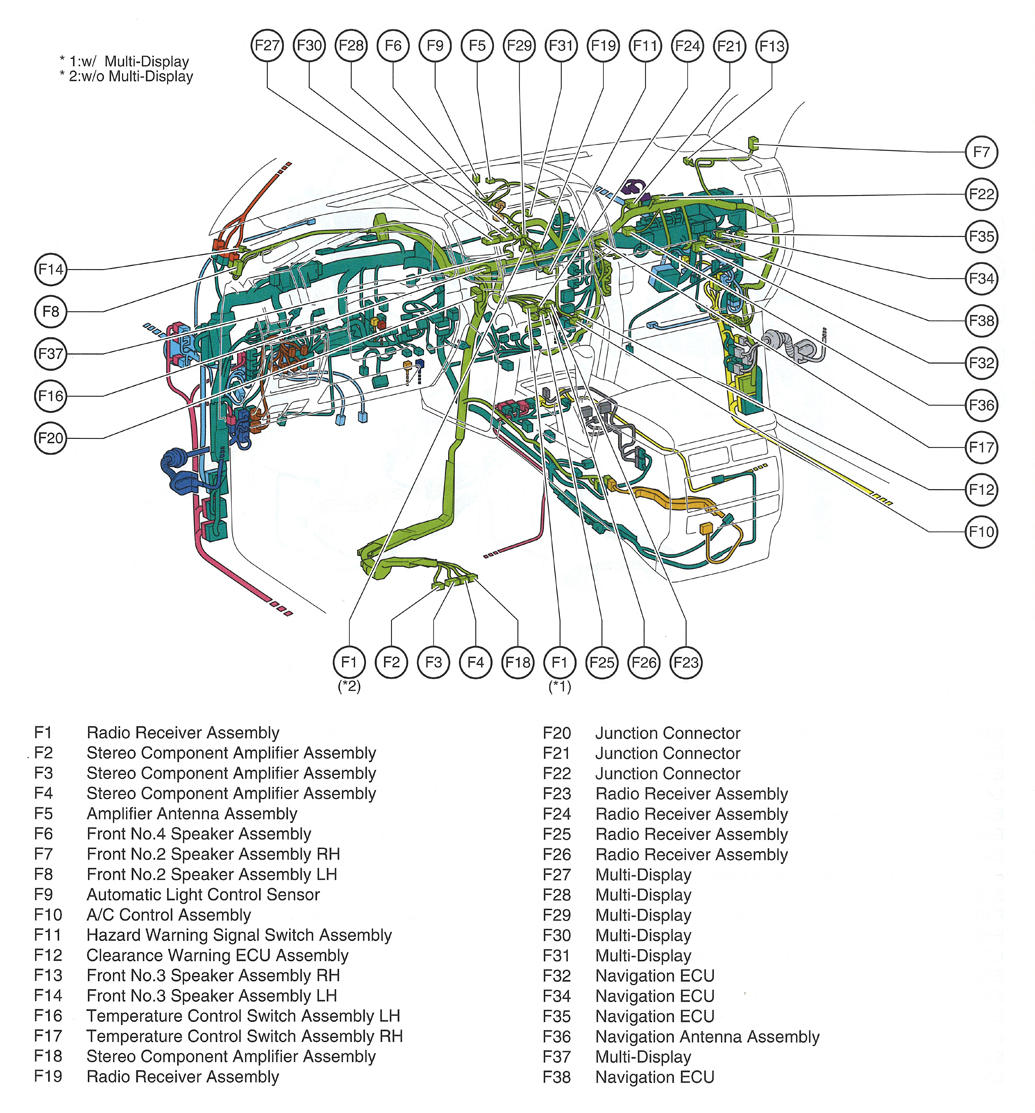

| Navigation ECU | Right side of dash. See Figure. |
| Navigation ECU | Right side of dash. See Figure. |

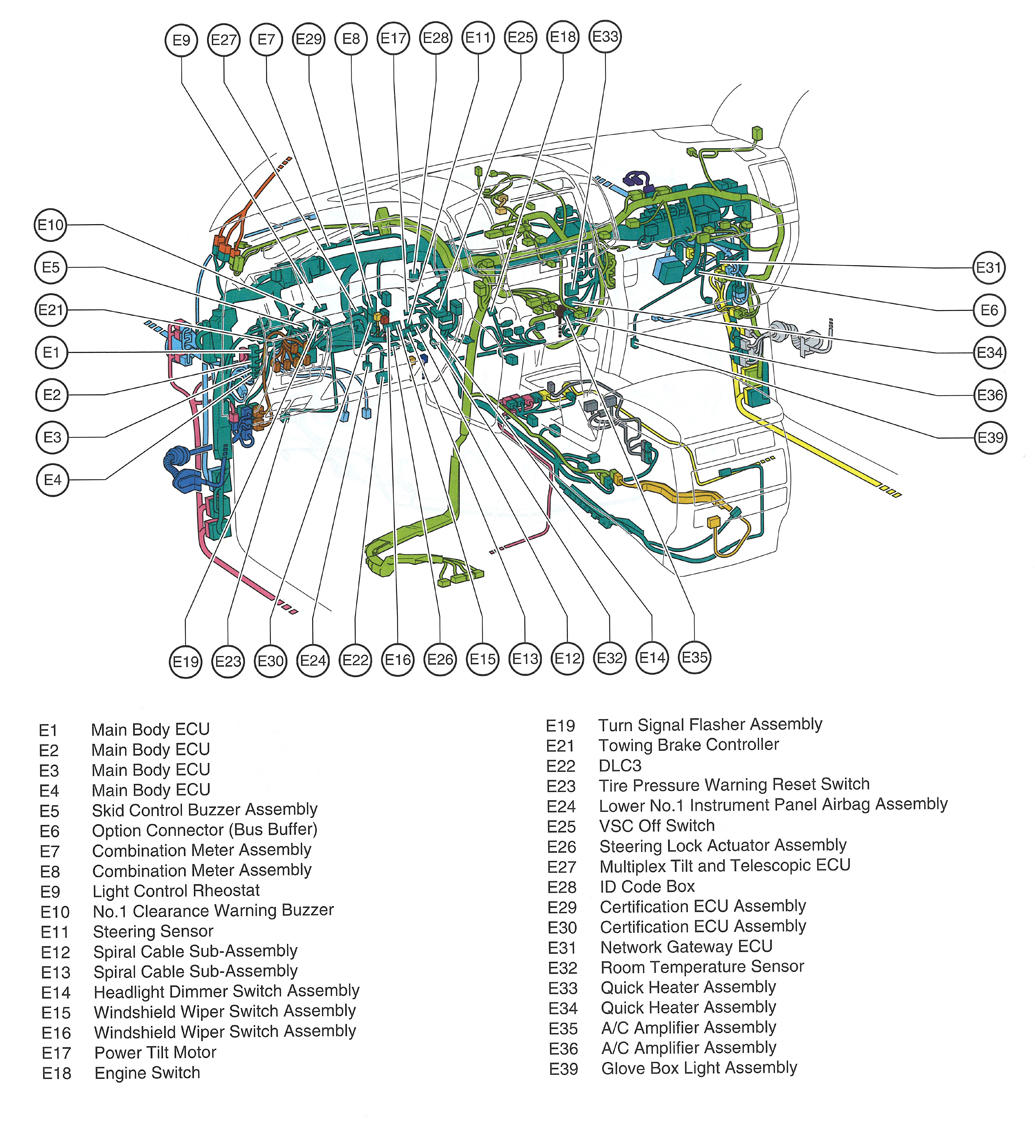

| Network Gateway ECU | Right side of dash. See Figure. |

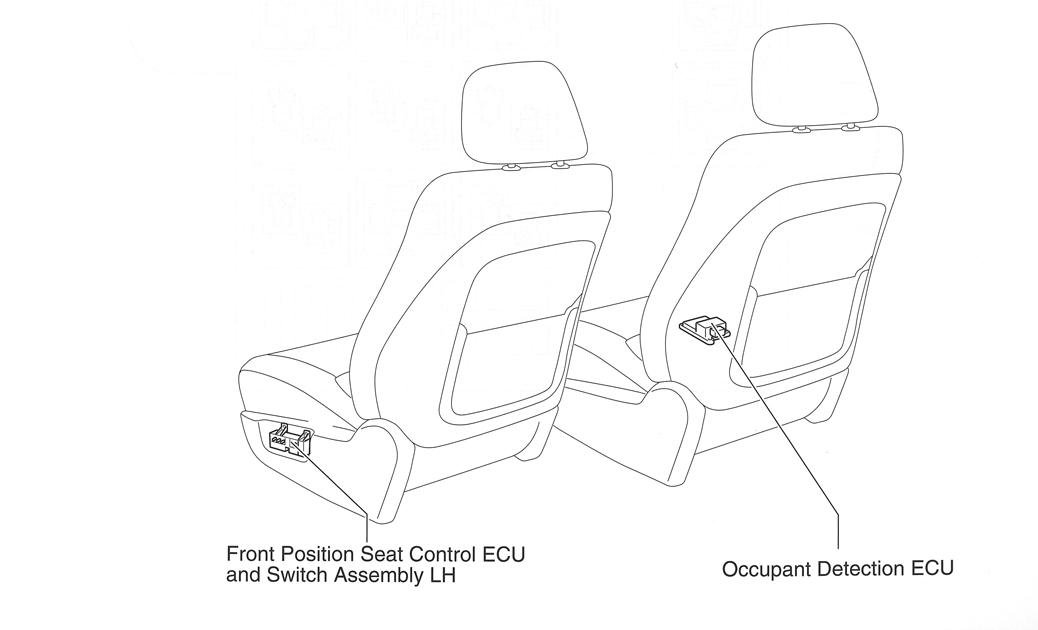

| Occupant Detection ECU | Under passenger seat. See Figure. |
| Overhead Module | In front headliner. See Figure. |

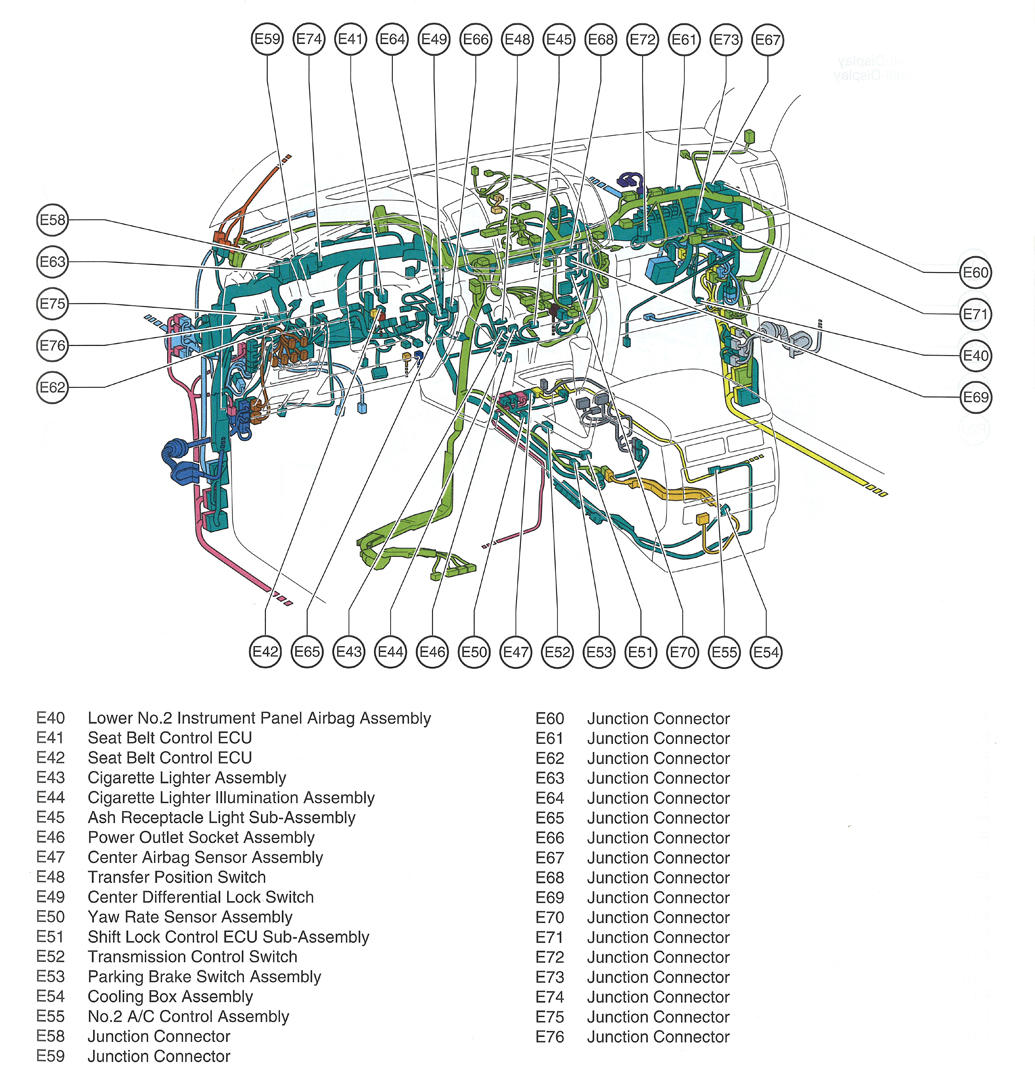

| Seat Belt Control ECU | Under left side of dash. See Figure. |
| Seat Control ECU | Side of drivers seat. See Figure. |
| Shift Lock Control ECU | Below center console. See Figure. |
| Shift Lock Control ECU | Center of dash. See Figure. |

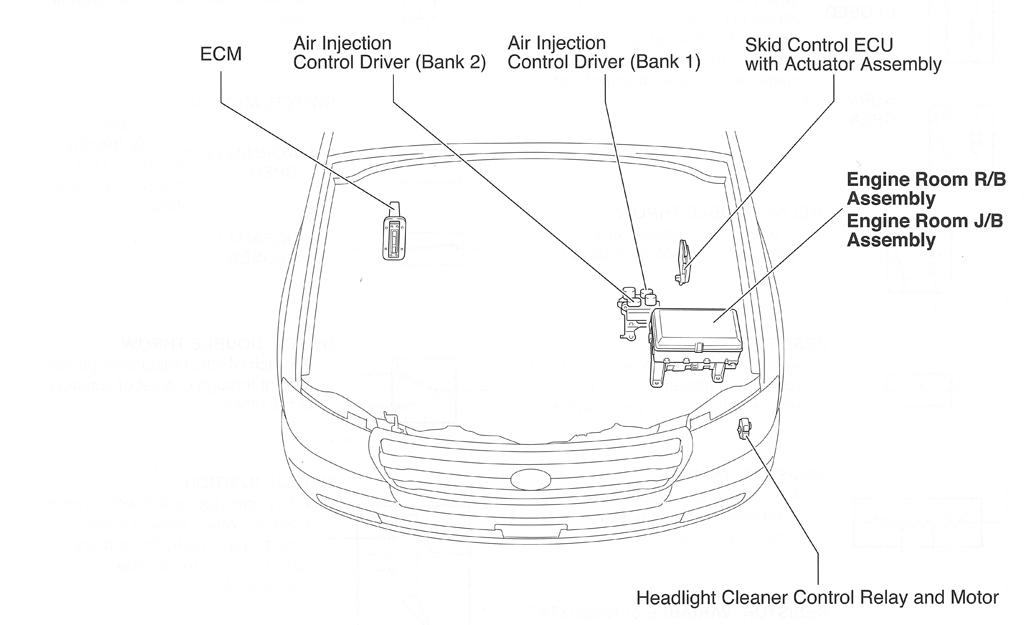

| Skid Control ECU | Left front engine compartment. See Figure. |

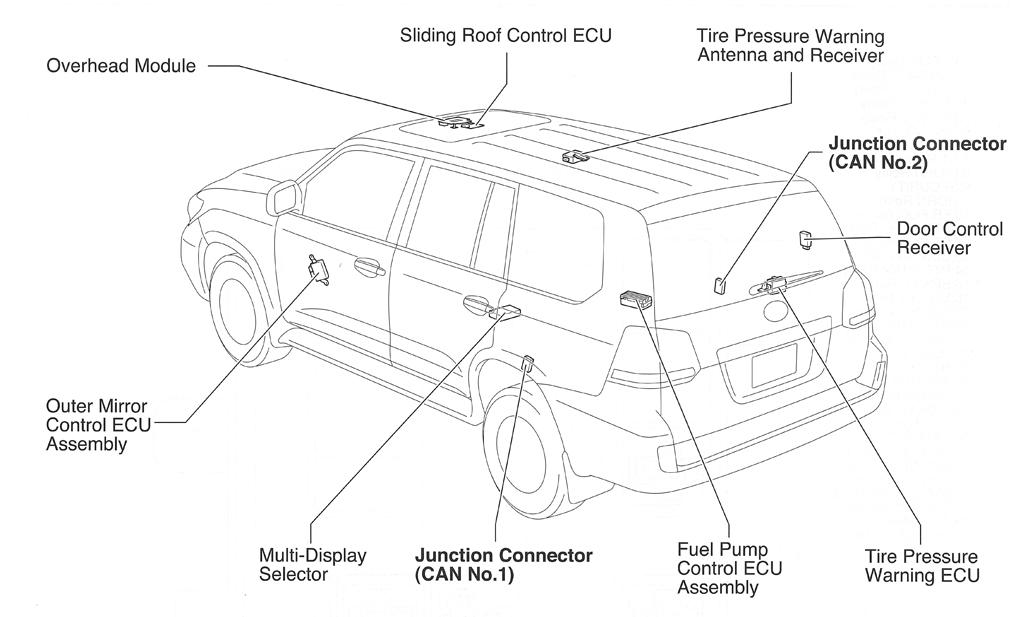

| Sliding Roof Control ECU | In front headliner. See Figure. |
| Telescopic ECU | Under left side of dash. See Figure. |
| Tilt & Telescopic ECU | Behind left side of dash. See Figure. |
| Tire Pressure Warning ECU | In rear hatch. See Figure. |
| 4 Wheel Drive ECU | Right side of dash. See Figure. |
