Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

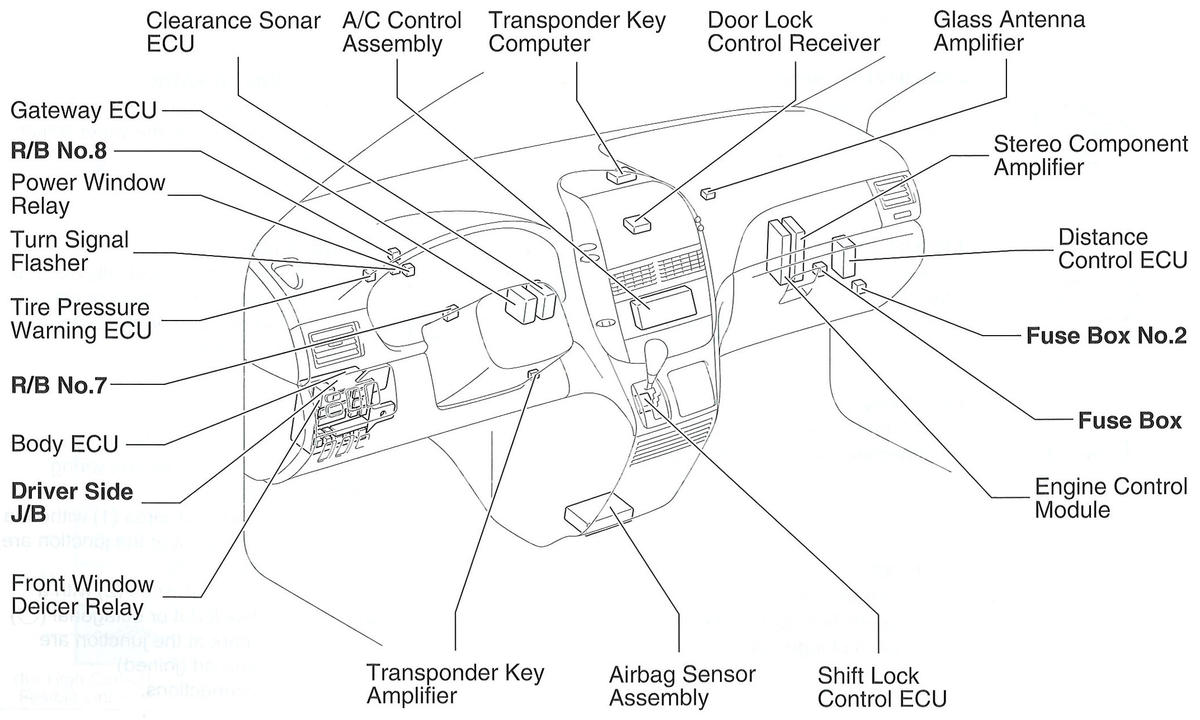

| Airbag Sensor Assembly | Center of dash. See Figure. |

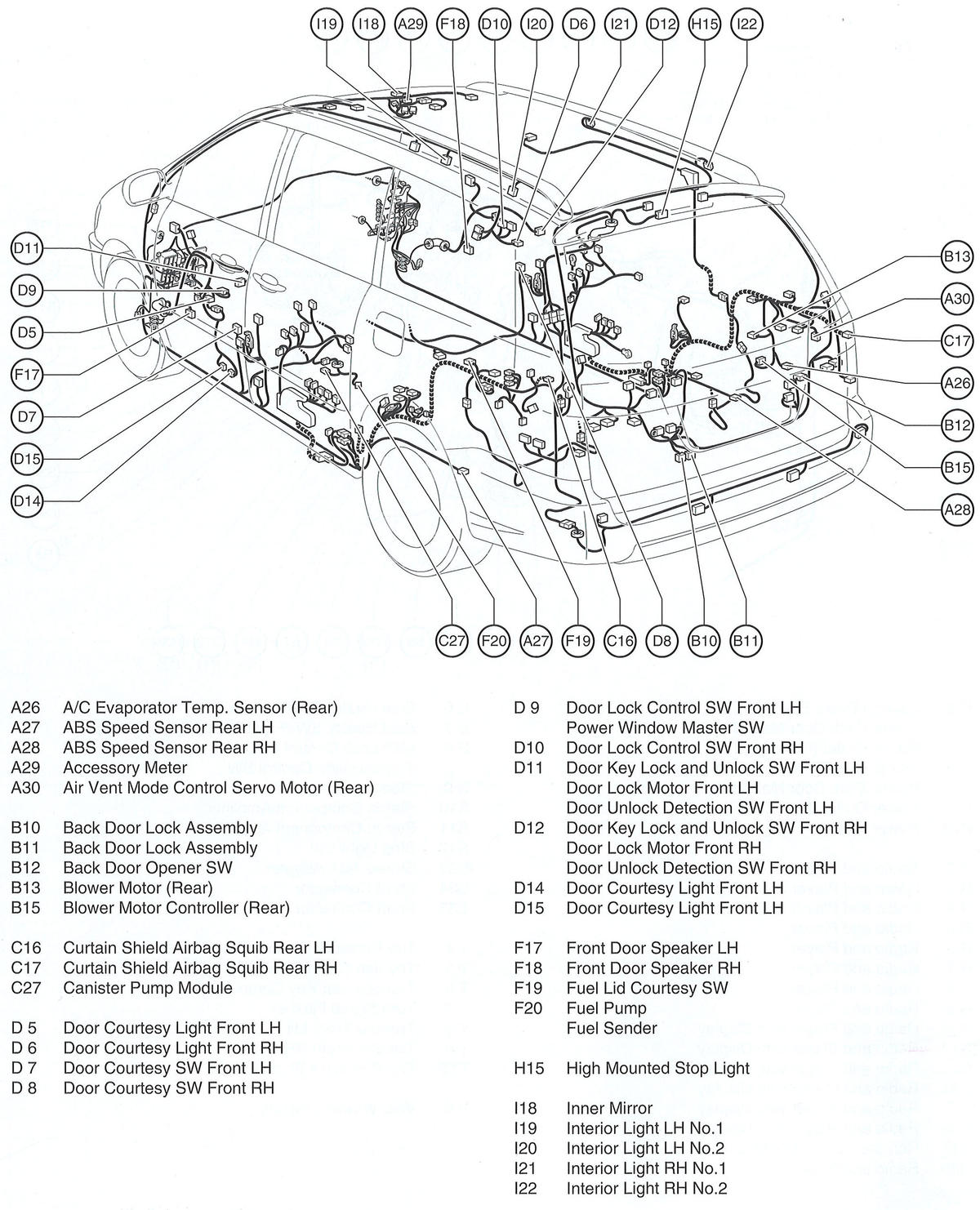

| Blower Motor Controller (Rear) | Right rear quarterpanel. See Figure. |
| Body ECU | Left side of dash. See Figure. |
| Clearance Sonar ECU | Center of dash. See Figure. |
| Cooling Fan ECU | Center front of engine compartment. See Figure. |
| Distance Control ECU | Right side of dash. See Figure. |
| Door Lock Control Receiver | Center of dash. See Figure. |
| Engine Control Module | Right side of dash. See Figure. |
| Gateway ECU | Left side of dash. See Figure. |
| Headlight Control ECU LH | Behind left headlight. See Figure. |
| Headlight Control ECU RH | Behind right headlight. See Figure. |
| Moon Roof Control ECU | Center front of roof. See Figure. |

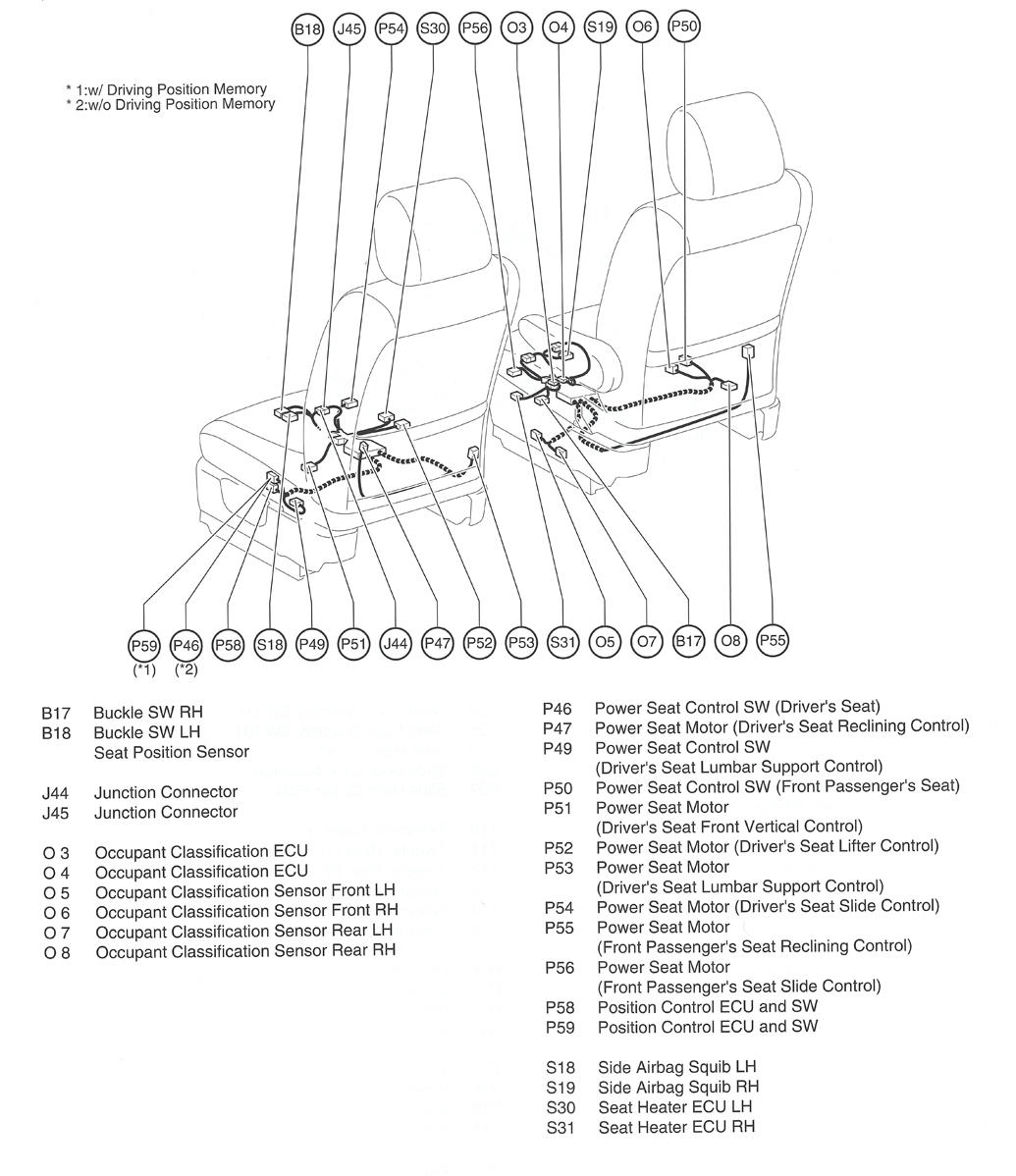

| Occupant Classification ECU | Under front passenger's seat. See Figure. |
| Outer Mirror Control ECU LH | Driver's door. See Figure. |
| Outer Mirror Control ECU RH | Front passenger's door. See Figure. |
| Position Control ECU & SW | Under driver's seat. See Figure. |
| Power Back Door ECU | Left rear quarterpanel. See Figure. |
| Power Rear No. 2 Seat ECU LH | Left rear seat No. 2 seat back. See Figure. |
| Power Rear No. 2 Seat ECU RH | Right rear seat No. 2 seat back. See Figure. |
| Power Slide Door ECU LH | Left siding door. See Figure. |
| Power Slide Door ECU RH | Right sliding door. See Figure. |
| Seat Heater ECU LH | Under driver's seat. See Figure. |
| Seat Heater ECU RH | Under front passenger's seat. See Figure. |
| Shift Lock Control ECU | Base of shifter assembly. See Figure. |
| Skid Control ECU With Actuator | Left rear of engine compartment. See Figure. |
| Slide Door Attachment Control LH | Center of left sliding door. See Figure. |
| Slide Door Attachment Control RH | Center of right sliding door. See Figure. |
| Slide Door Closer ECU | Left rear door assembly. See Figure. |
| Tire Pressure Warning Antenna & Receiver | Front center of headliner. See Figure. |
| Tire Pressure Warning ECU | Left side of dash. See Figure. |
| Transponder Key Amplifier | Left side of dash. See Figure. |
| Transponder Key Computer | Center of dash. See Figure. |
