Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Canister Pump Module | Under rear of vehicle. See Figure. |

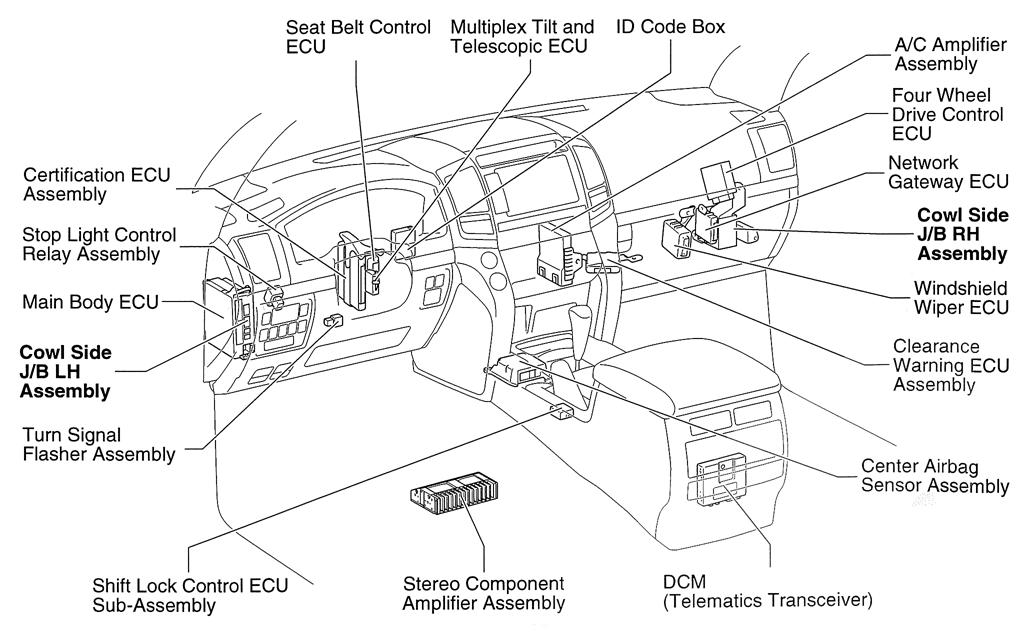

| Certification ECU | Under left side of dash. See Figure. |
| Clearance Warning ECU | Center of dash. See Figure. |
| DCM (Telematics Transceiver) | Rear of center console. See Figure. |

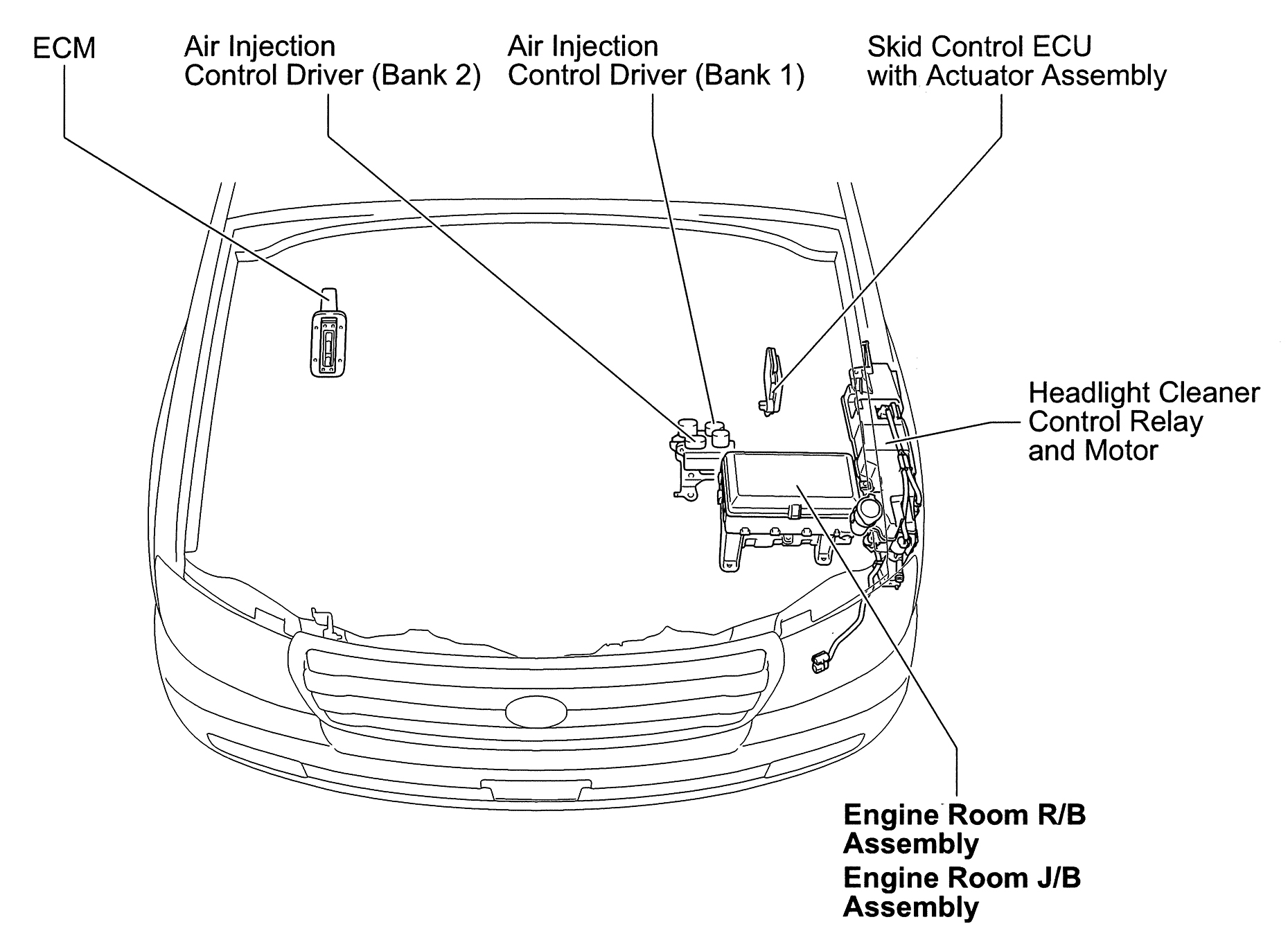

| Engine Control Module | Right rear of engine compartment. See Figure. |

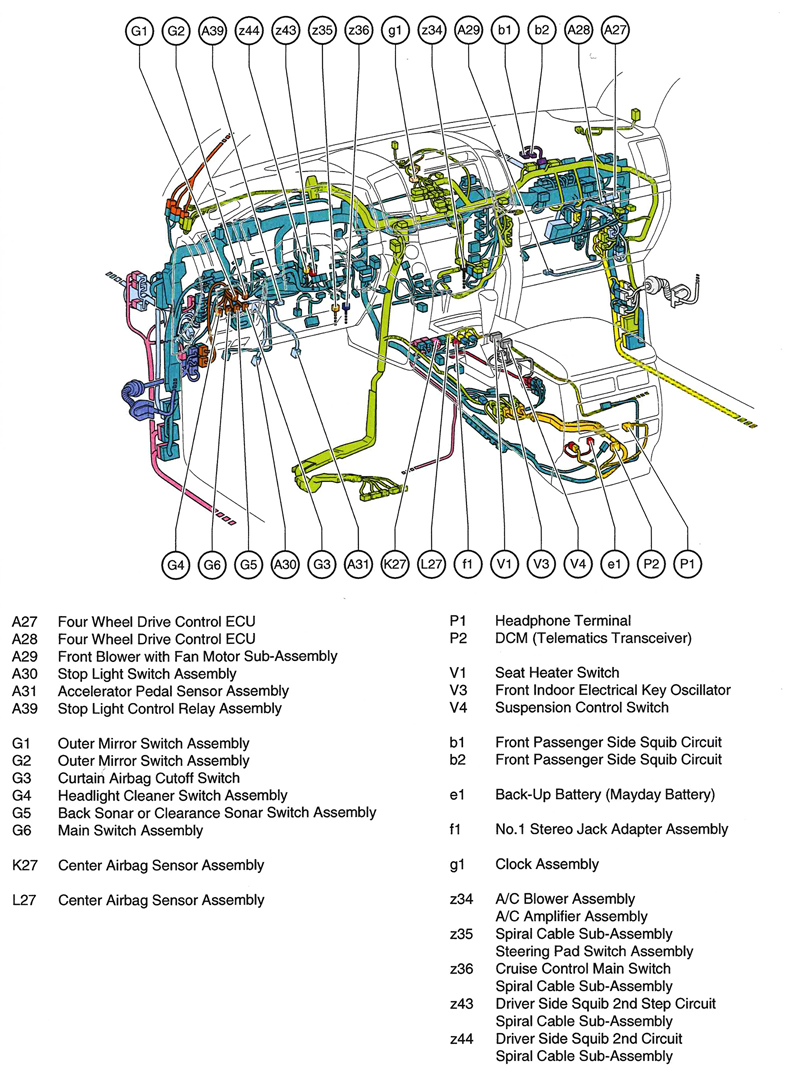

| Four Wheel Drive Control ECU | Right end of dash. See Figure. |

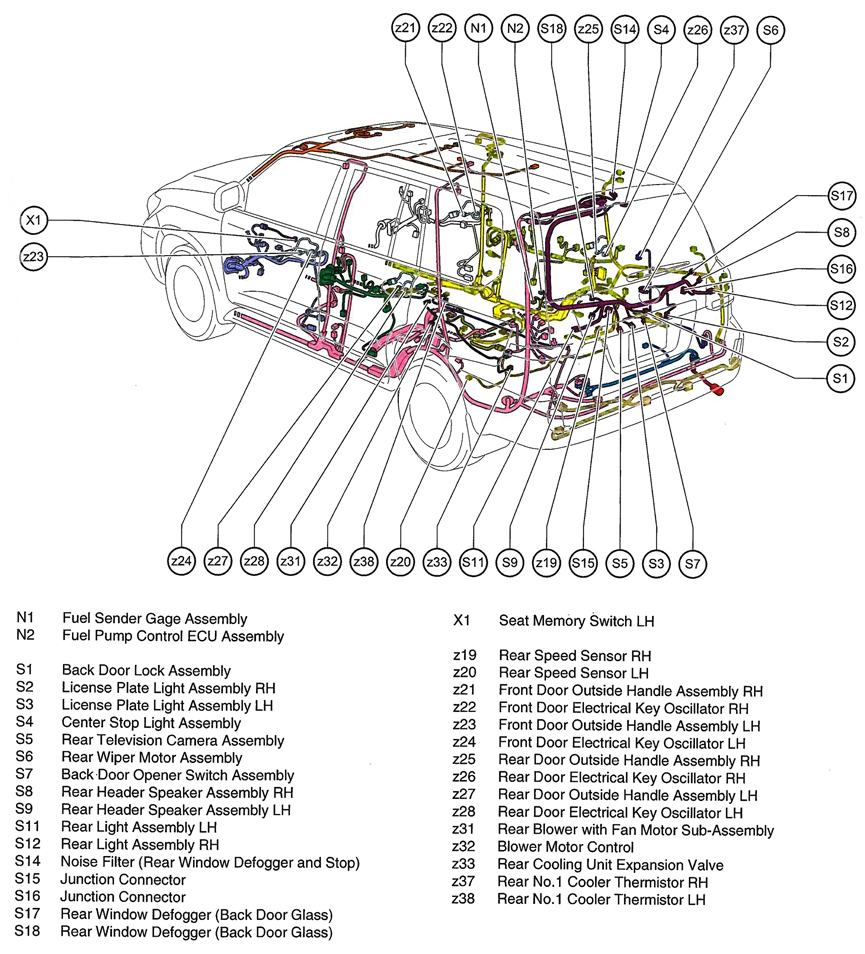

| Fuel Pump Control ECU | Under center of vehicle. See Figure. |
| Gateway ECU | Right side of dash. See Figure. |
| Main Body ECU | Left end of dash. See Figure. |

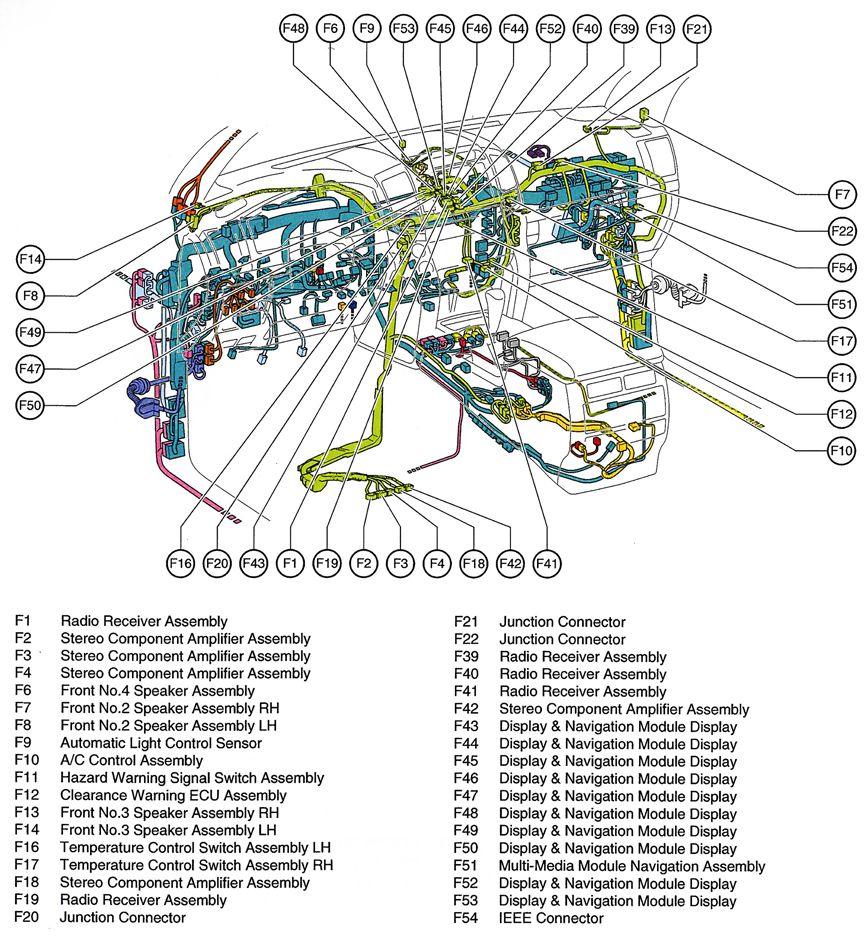

| Multi-Media Module Navigation Assembly | Right end of dash. See Figure. |
| Multiplex Tilt & Telescopic ECU | Behind left side of dash. See Figure. |
| Navigation ECU | Right side of dash. See Figure. |
| Network Gateway ECU | Right side of dash. See Figure. |
| Occupant Detection ECU | Under passenger's seat. See Figure. |
| Outer Mirror Control ECU | Driver's door. See Figure. |
| Overhead Module | Front headliner. See Figure. |

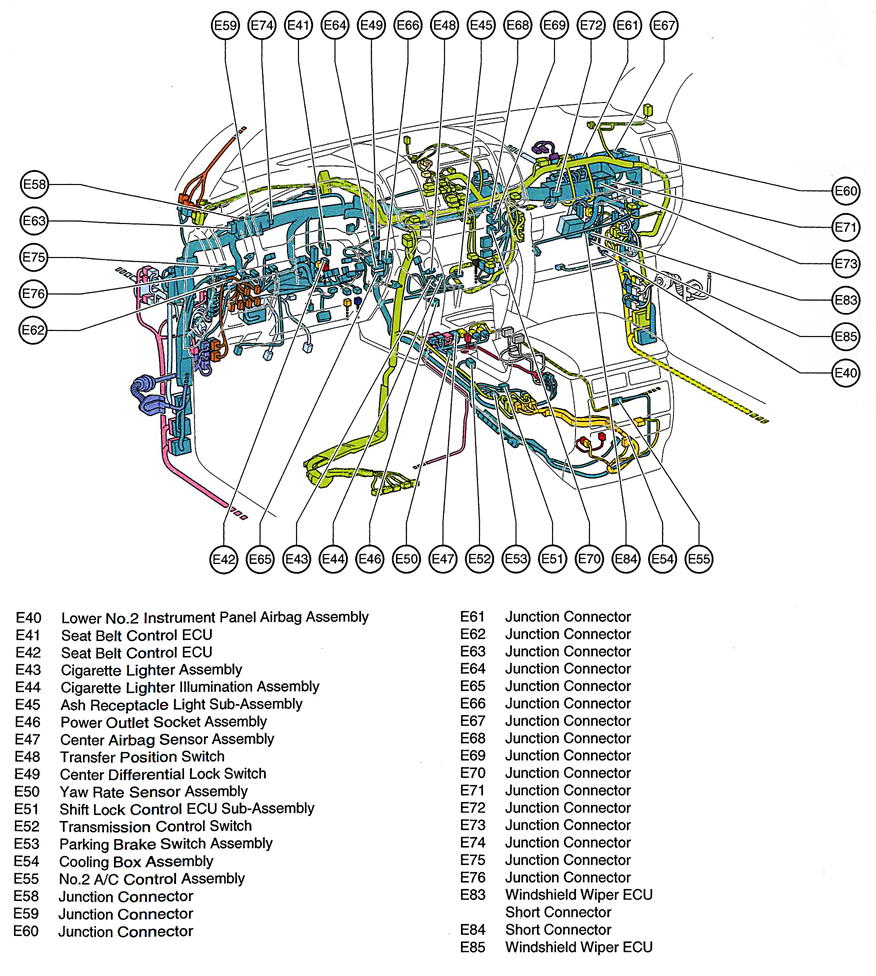

| Seat Belt Control ECU | Under left side of dash. See Figure. |
| Seat Control ECU | Side of driver's seat. See Figure. |
| Shift Lock Control ECU | Center of dash. See Figure. |
| Skid Control ECU | Left rear engine compartment. See Figure. |
| Sliding Roof Control ECU | Front headliner. See Figure. |
| Telescopic ECU | Under left side of dash. See Figure. |
| Towing Brake Controller | Left side of dash. See Figure. |
| Windshield Wiper ECU | Right side of dash. See Figure. |
| 4 Wheel Drive ECU | Right side of dash. See Figure. |
