Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

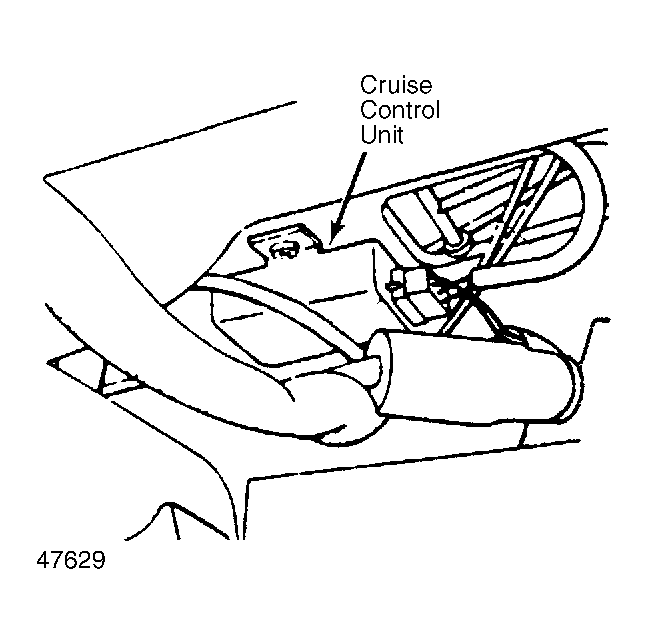

| Cruise Control Unit (Scirocco) | Under right side of dash. See Figure . |
| Dynamic Oil Pressure Control Unit | On back of instrument cluster. |
| Fuel Injection Control Unit (8-Valve) | Under right side of dash, behind glove box. |

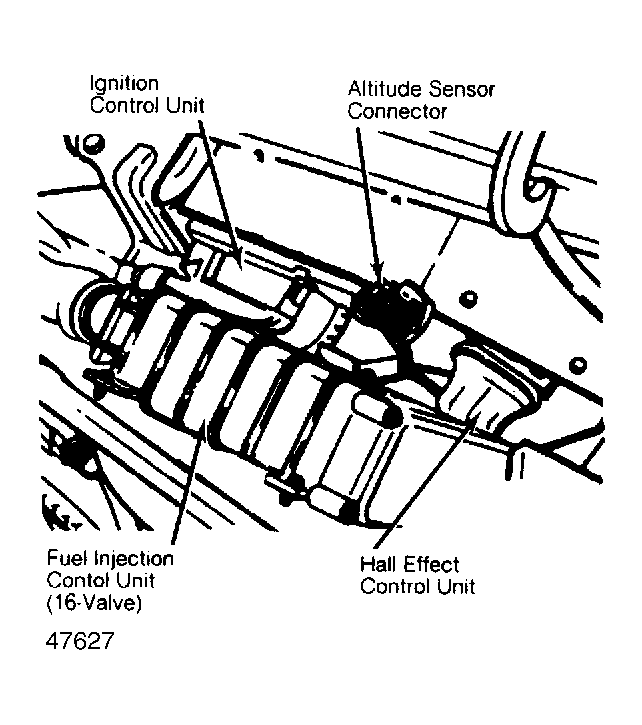

| Fuel Injection Control Unit (16-Valve) | In tray are, at left rear of engine compartment. See Figure . |
| Hall Effect Control Unit | In tray area, at left rear of engine compartment. See Figure . |
| Idle Stabilizer Control Unit | In tray area, at left rear of engine compartment. See Figure . |
| Ignition Control Unit | In tray area, at left rear of engine compartment. See Figure . |
| Oxygen Sensor Control Unit (8-Valve Engine) | Under right side of dash, behind glove box. |
| Oxygen Sensor Control Unit (16-Valve Engine) | In tray area, at left rear of engine compartment. |
