Wheel Alignment Specifications

NOTE: Wheel alignment specifications for this vehicle will depend on the group designation of the vehicle. See MODEL IDENTIFICATION  .
CAUTION: At the start of production, a number of vehicles were delivered without an identification of the alignment group number. These vehicles are in Group 1.

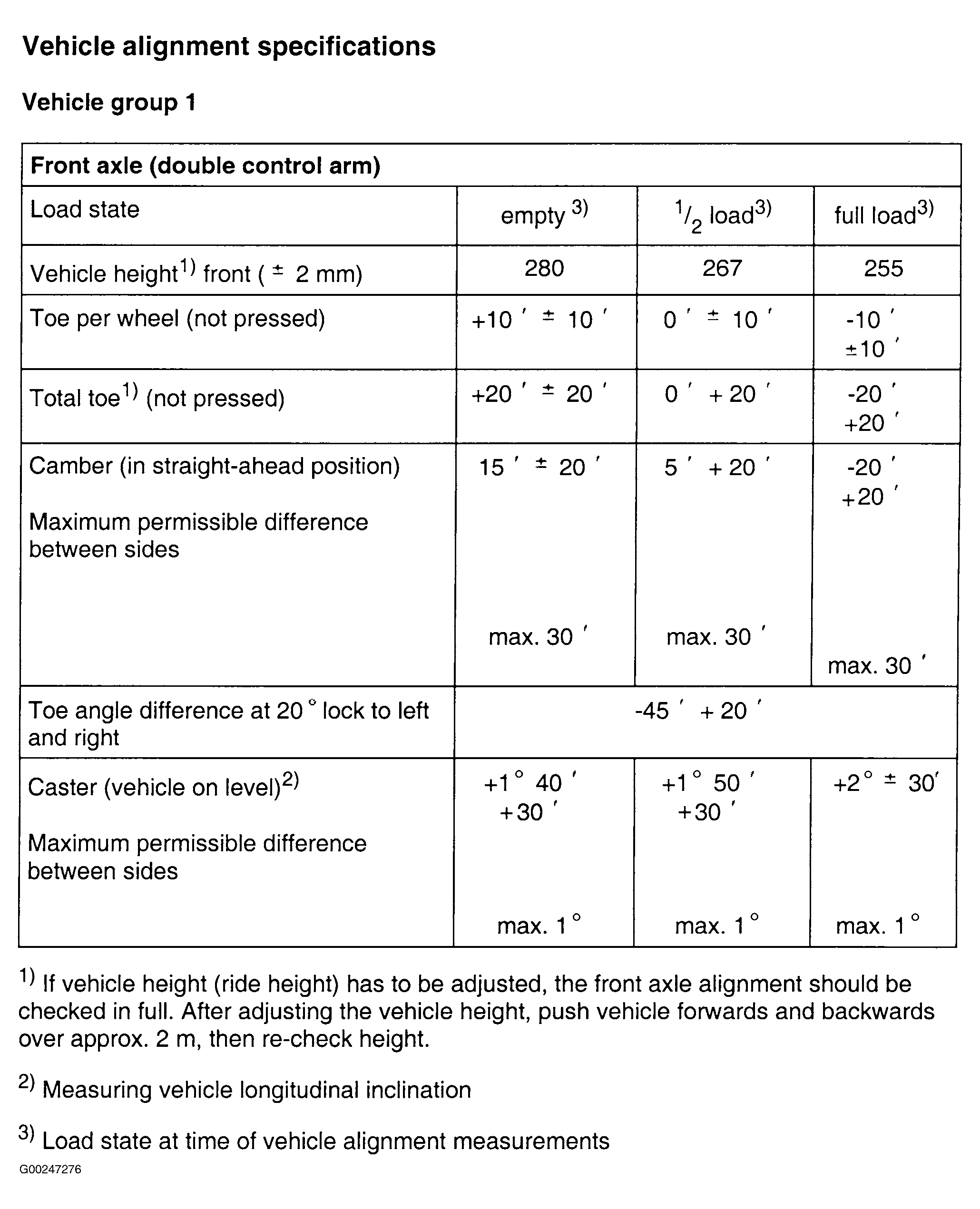

Fig 1: Group 1 Alignment Specifications (Front Axle - Double Control Arm)
G00247276Courtesy of VOLKSWAGEN UNITED STATES, INC.

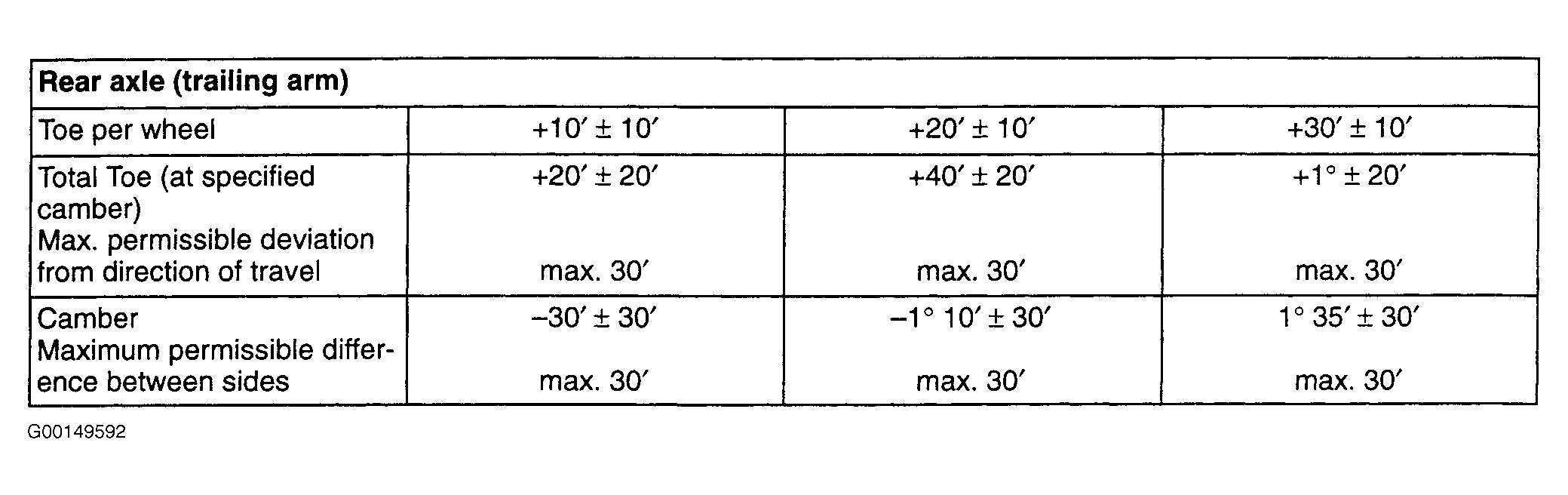

Fig 2: Group 1 Alignment Specifications (Rear Axle)
G00149592Courtesy of VOLKSWAGEN UNITED STATES, INC.

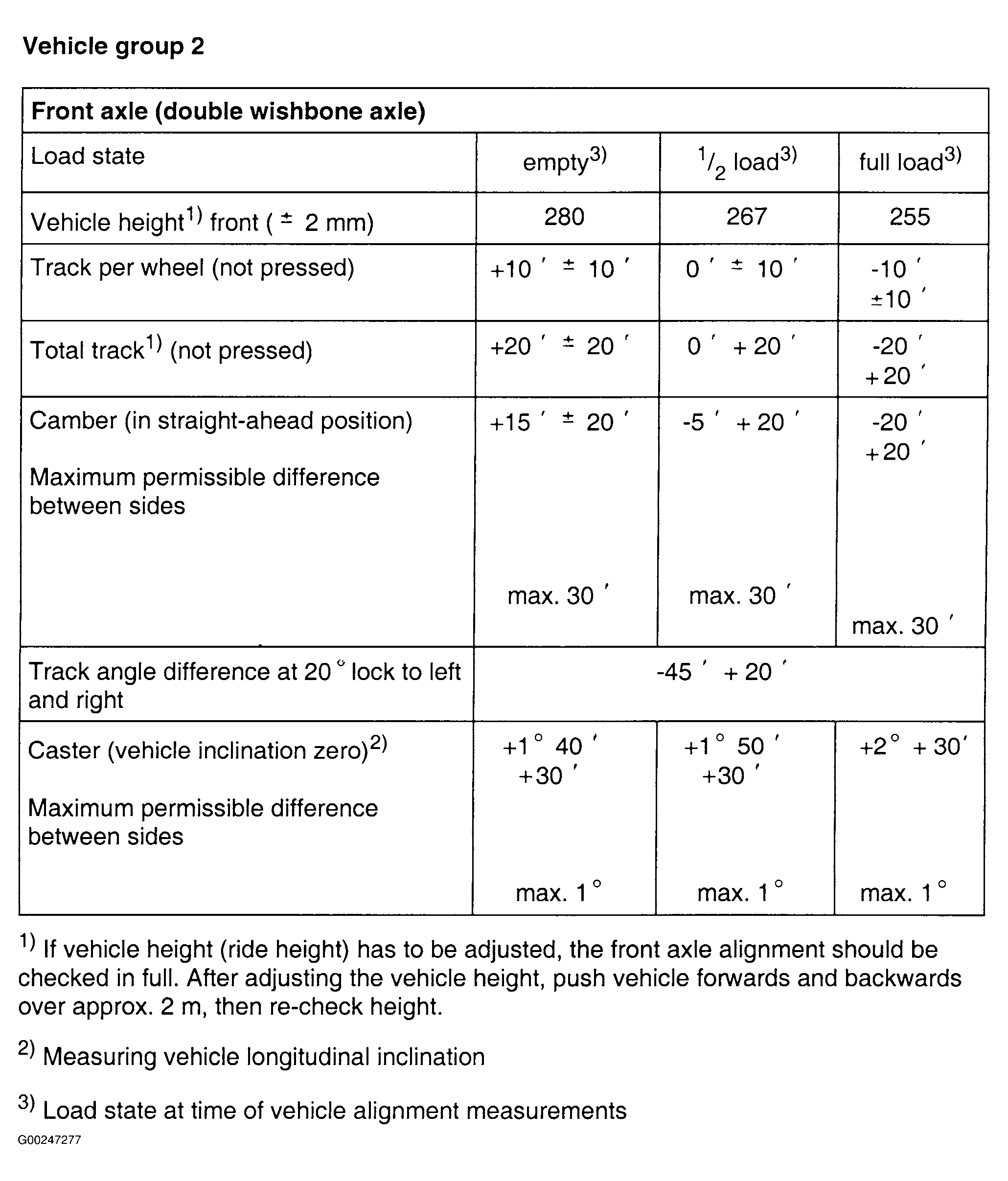

Fig 3: Group 2 Alignment Specifications (Front Axle - Double Wishbone Axle)
G00247277Courtesy of VOLKSWAGEN UNITED STATES, INC.

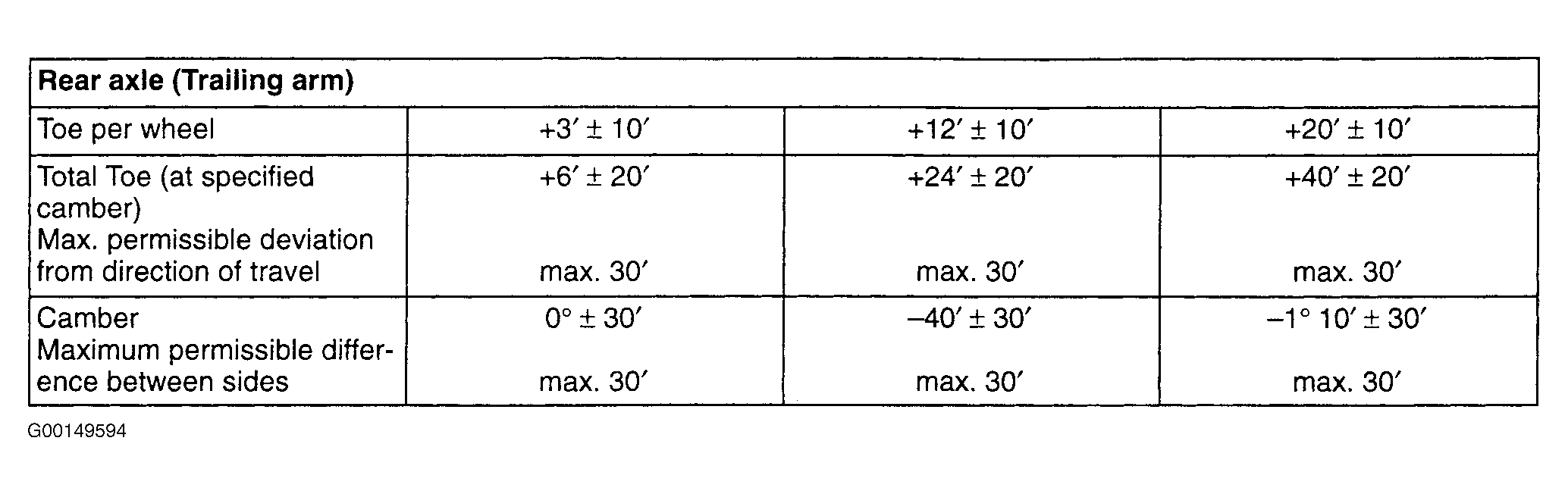

Fig 4: Group 2 Alignment Specifications (Rear Axle)
G00149594Courtesy of VOLKSWAGEN UNITED STATES, INC.

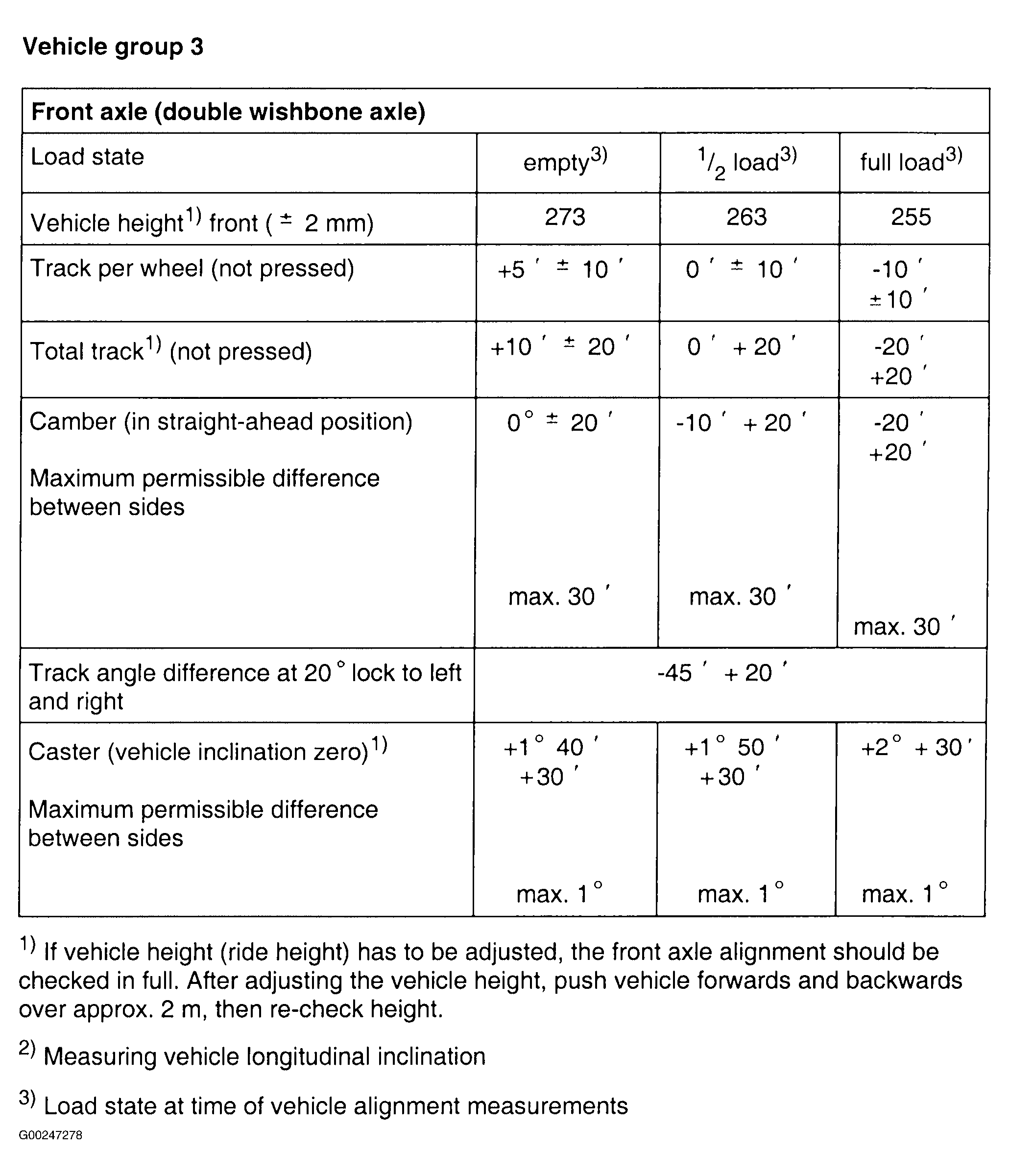

Fig 5: Group 3 Alignment Specifications (Front Axle - Double Wishbone Axle)
G00247278Courtesy of VOLKSWAGEN UNITED STATES, INC.

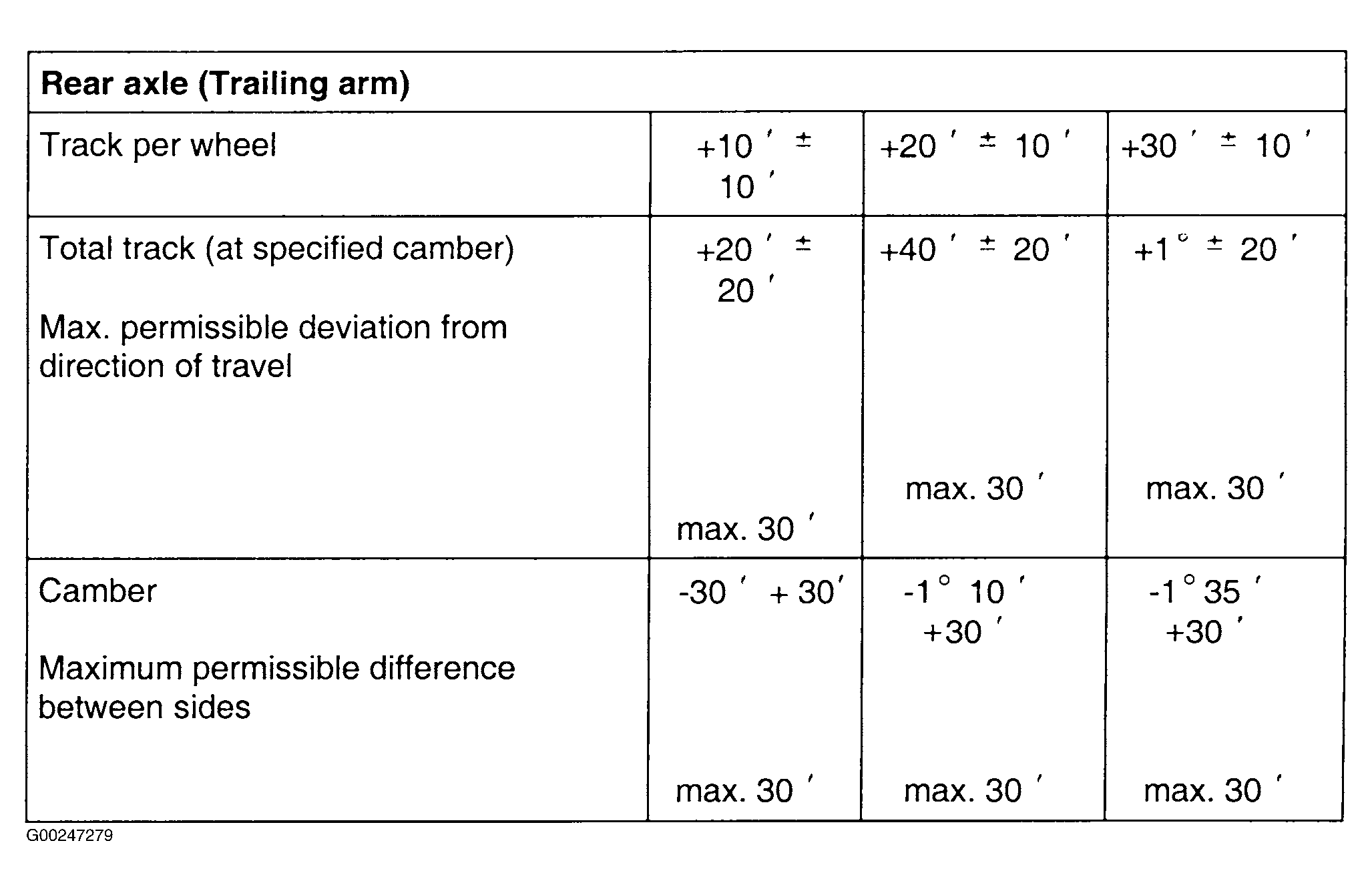

Fig 6: Group 3 Alignment Specifications (Rear Axle)
G00247279Courtesy of VOLKSWAGEN UNITED STATES, INC.

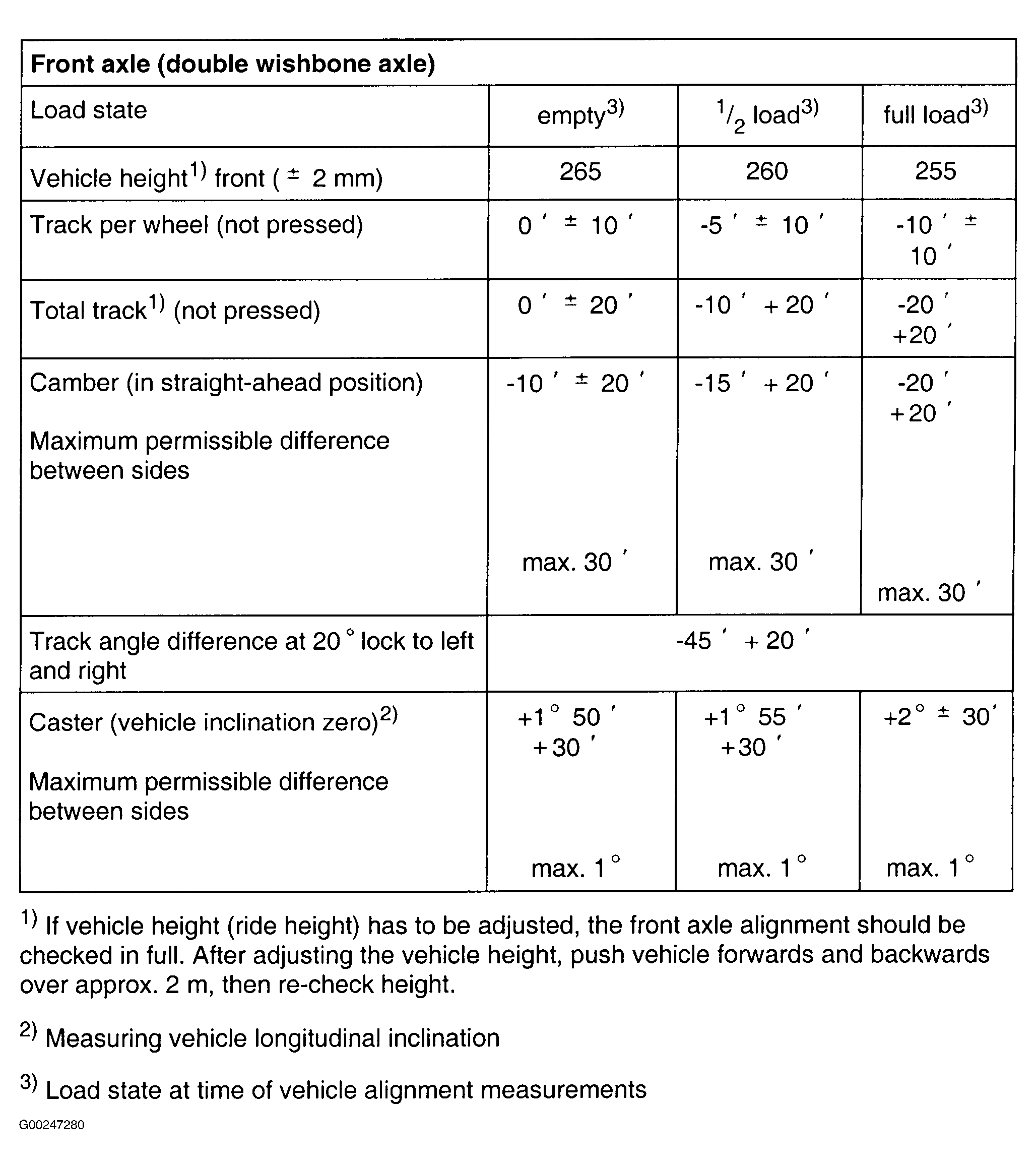

Fig 7: Group 4 Alignment Specifications (Front Axle - Double Wishbone Axle)
G00247280Courtesy of VOLKSWAGEN UNITED STATES, INC.

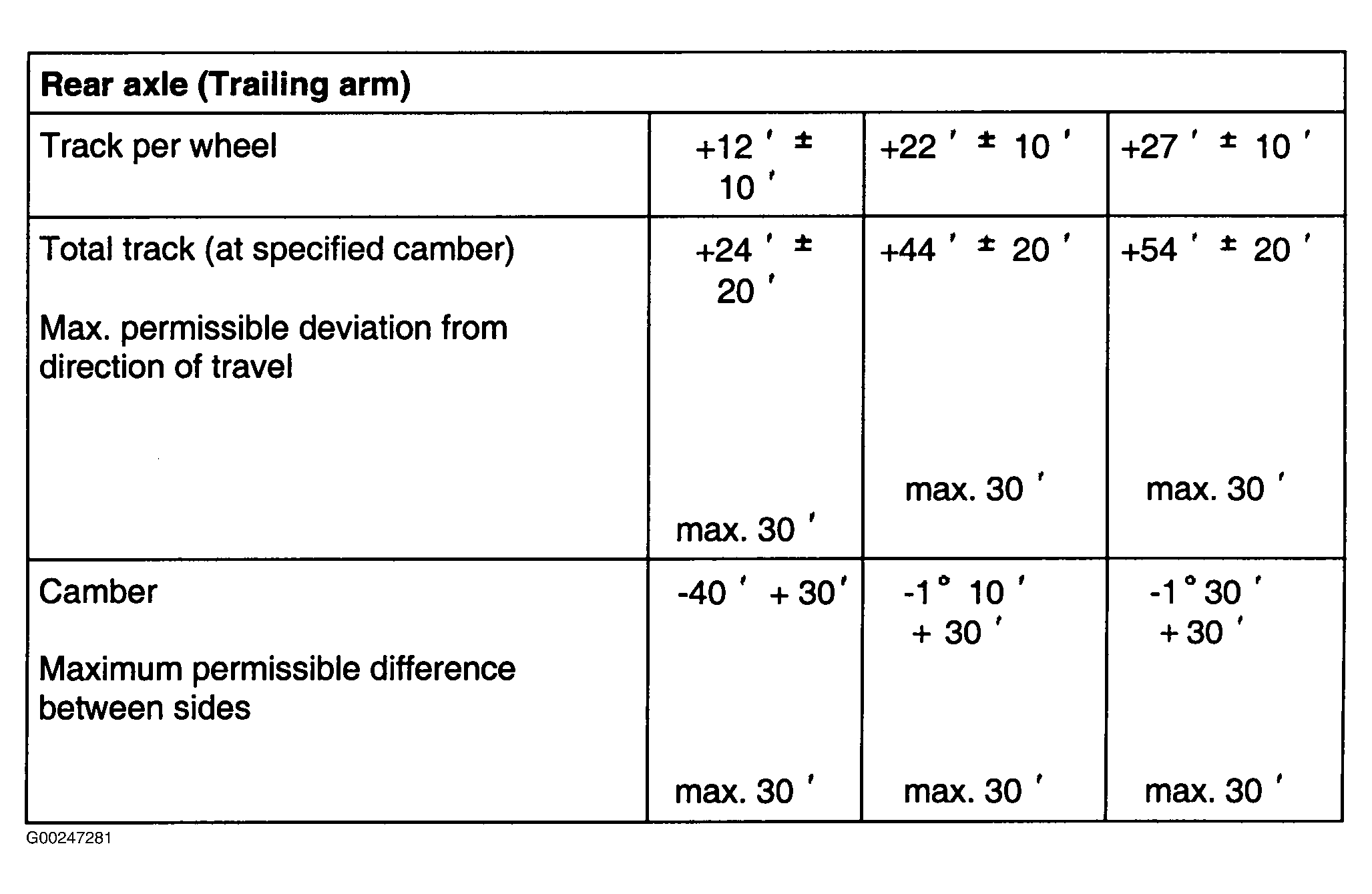

Fig 8: Group 4 Alignment Specifications (Rear Axle)
G00247281Courtesy of VOLKSWAGEN UNITED STATES, INC.
