Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| ABS Control Module (1995) | Below rear seat. |
| ABS Control Module (1996) | Left side of engine compartment. |
| Alarm System Control Module | Behind left side of dash, above fuse/relay panel. |
| Automatic Glow Time Control Module | On auxiliary relay panel. |
| Central Locking System Pump/Control Module (Sedan) | On left side of luggage compartment, behind trim panel. |
| Central Locking System Pump/Control Module (Wagon) | In luggage compartment, near spare wheelwell. |
| Coolant Fan Control Unit | Left side of engine compartment, on suspension strut. |
| Cruise Control, Control Module | Under center console. |

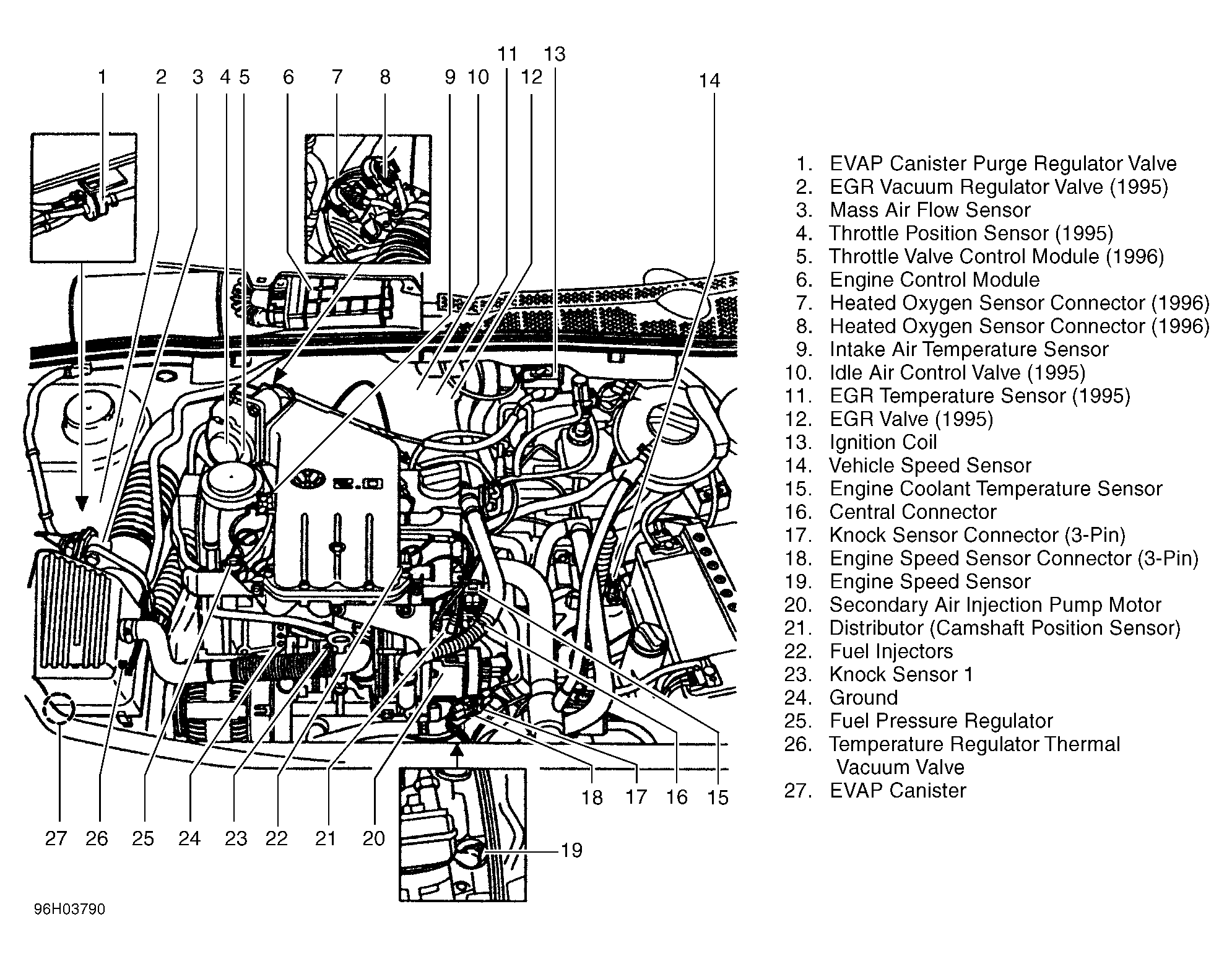

| Engine Control Module (2.0L) | In engine compartment, on center of plenum. See Figure . |

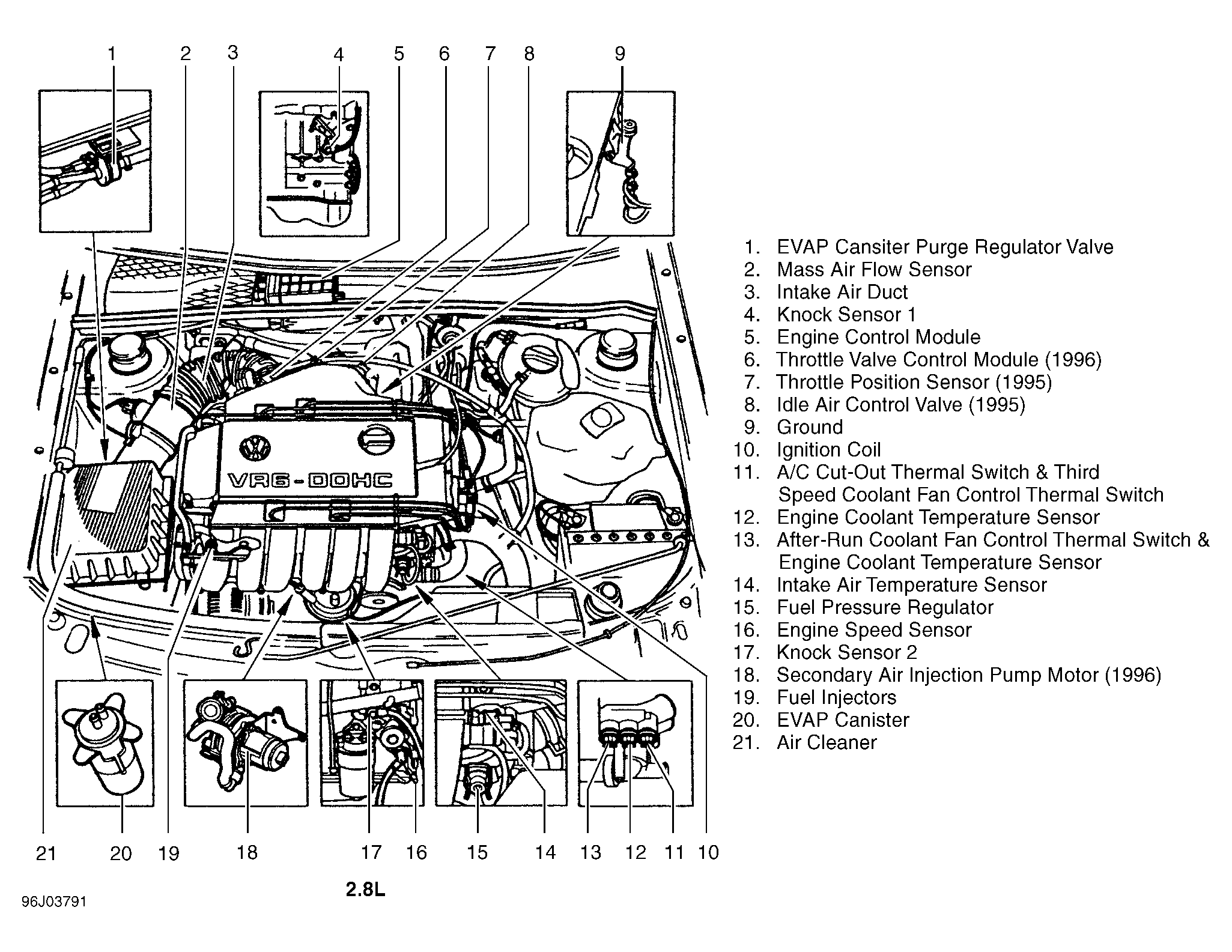

| Engine Control Module (2.8L) | In engine compartment, on center of plenum. See Figure . |

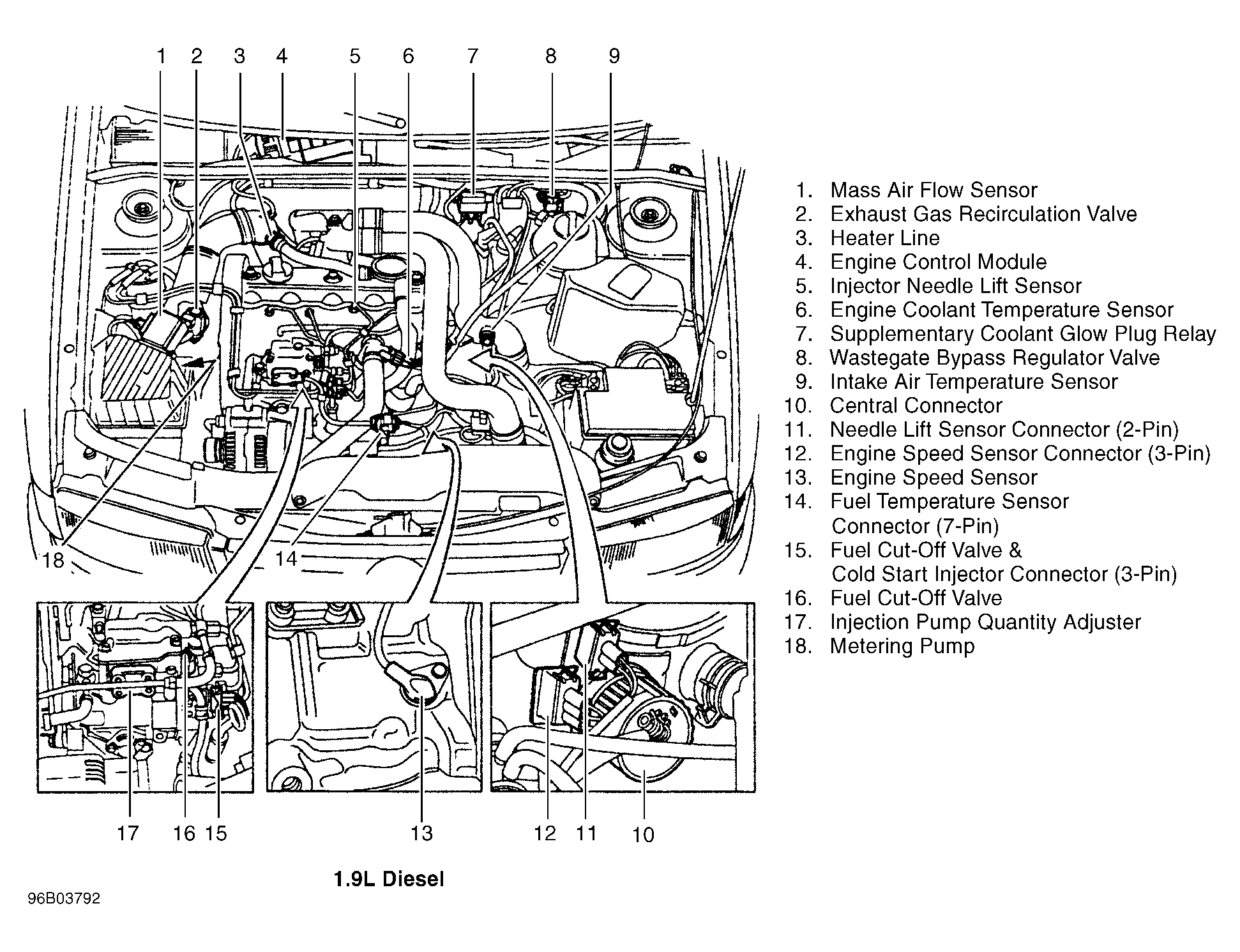

| Engine Control Module (Diesel) | In engine compartment, on center of plenum. See Figure . |
| Throttle Valve Control Module (2.0L) (1996) | Right rear side of engine compartment. See Figure . |
| Throttle Valve Control Module (2.8L) (1996) | Right rear side of engine compartment. See Figure . |
| Transmission Control Module | Below rear seat. |
