Home >> Volkswagen >> 1998 >> Jetta TDI, Automatic >> Repair and Diagnosis >> Engine Performance >> Vacuum Diagrams >> Introduction >> PASSAT >> Diesel

Vacuum Diagrams: Introduction: PASSAT: Diesel

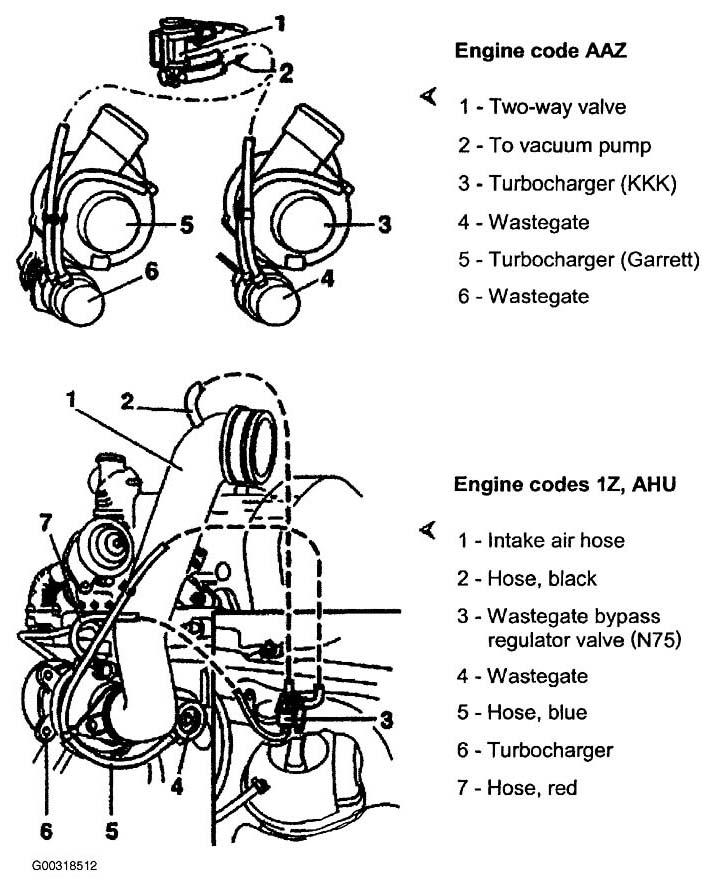

NOTE: For Passat 1.9L Turbo Diesel, see Figure .
