Ignition System
>>
Firing Order
Firing Order
FIRING ORDER
Application
Firing Order
EuroVan
(1)
1-5-3-6-2-4
(1)
System uses a Distributorless Ignition System (DIS) with one ignition coil assembly. See
Fig 1
.

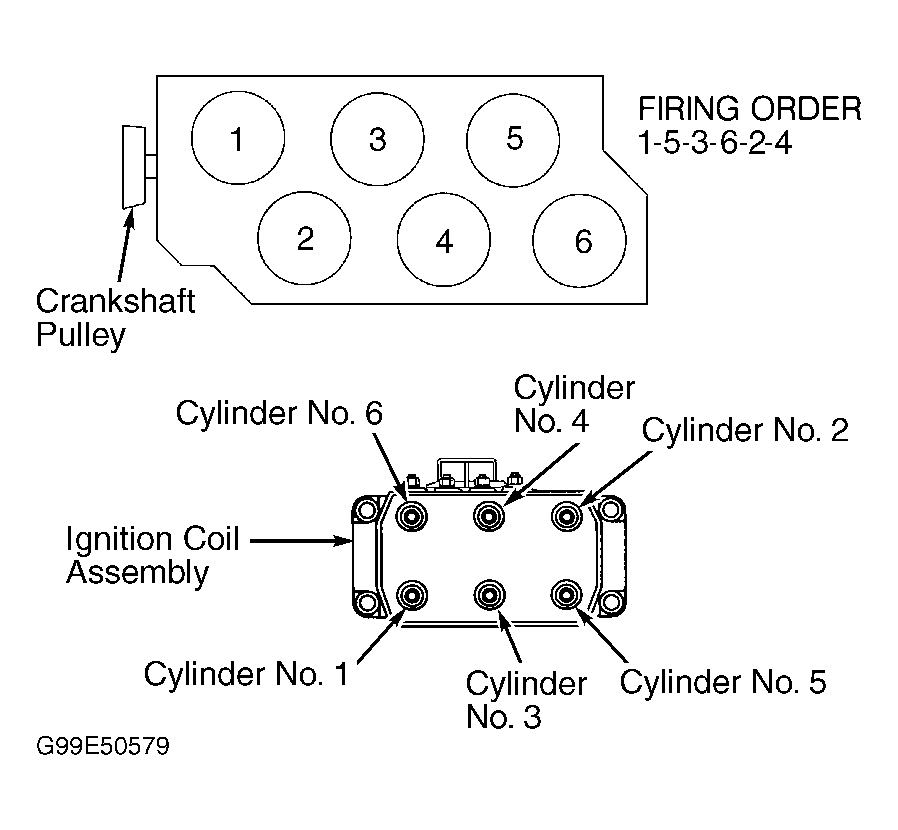

Fig 1: Identifying Cylinder Numbers & Firing Order (EuroVan With Engine Code AFP)
Courtesy of VOLKSWAGEN UNITED STATES, INC.
