External Multimedia Device Interface -R215- Overview

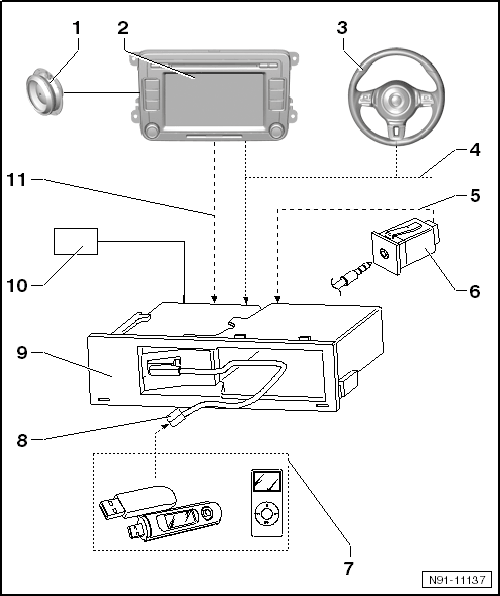

Fig 1: Identifying External Multimedia Device Interface Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1. Radio and Radio/Navigation System Speaker System
2. Radio Or Radio/Navigation System
3. Multifunction Steering Wheel
4. CAN Bus
5. LF Line
   • The audio signal from the unit connected to the AUX IN socket runs through this wire and into the external multimedia device interface.
6. AUX IN Socket
   • For additional information regarding the AUX IN socket, refer to EXTERNAL AUDIO SOURCE CONNECTION -R199- .
7. Input Units For Connecting To The External Multimedia Device Interface
   • MP3-Player
   • Memory drives
   • iPod player
   • Connection to the external multimedia device interface via the USB port.
8. Wire Connection To The External Multimedia Device Interface
   • In the form of specific adapter cables depending on the unit to be connected.
9. External Multimedia Device Interface -R215-
   • Removing and installing, refer to EXTERNAL MULTIMEDIA DEVICE INTERFACE -R215- .
10. Positive and Negative Voltage Supply Connection For The External Multimedia Device Interface
11. LF Line
    • The audio signal of the unit connected to the AUX IN socket runs from the multimedia interface into the AUX input of the radio or radio/navigation system.
