Multimedia Control Module, Overview

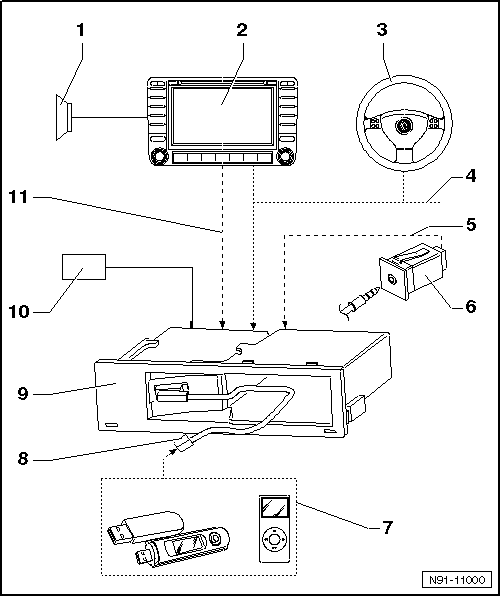

Fig 1: Multi Media Control Module -J650- Overview
GWWN91-11000Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Radio and Radio/Navigation System Speaker System
  2. Radio or Radio/Navigation System
  3. Multifunction Steering Wheel
  4. CAN Bus
  5. LF Line
    • The audio signal from the unit connected to the AUX IN socket runs through this wire and into the multi media control module.
  6. AUX IN socket
  7. Input Unites for Connecting The Multimedia Control Module
    • mp3 Player
    • Memory sticks
    • iPod player
    • Connection to the multimedia control module via the USB port
  8. Wire Connection to Multimedia Control Unit
    • In the form of specific adapter cables depending on the unit to be connected
  9. Multimedia Control Module -J650-
  10. Voltage Supply Connection for Multimedia Control Module
  11. LF Line
    • The audio signal of the unit connected to the AUX IN socket runs from the multi media control module into the AUX input of the radio or radio/navigation system.
