Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|
| Circuit Breaker No. 1 | On passenger compartment fuse box. See Figure . |
| Circuit Breaker No. 2 | On passenger compartment fuse box. See Figure . |

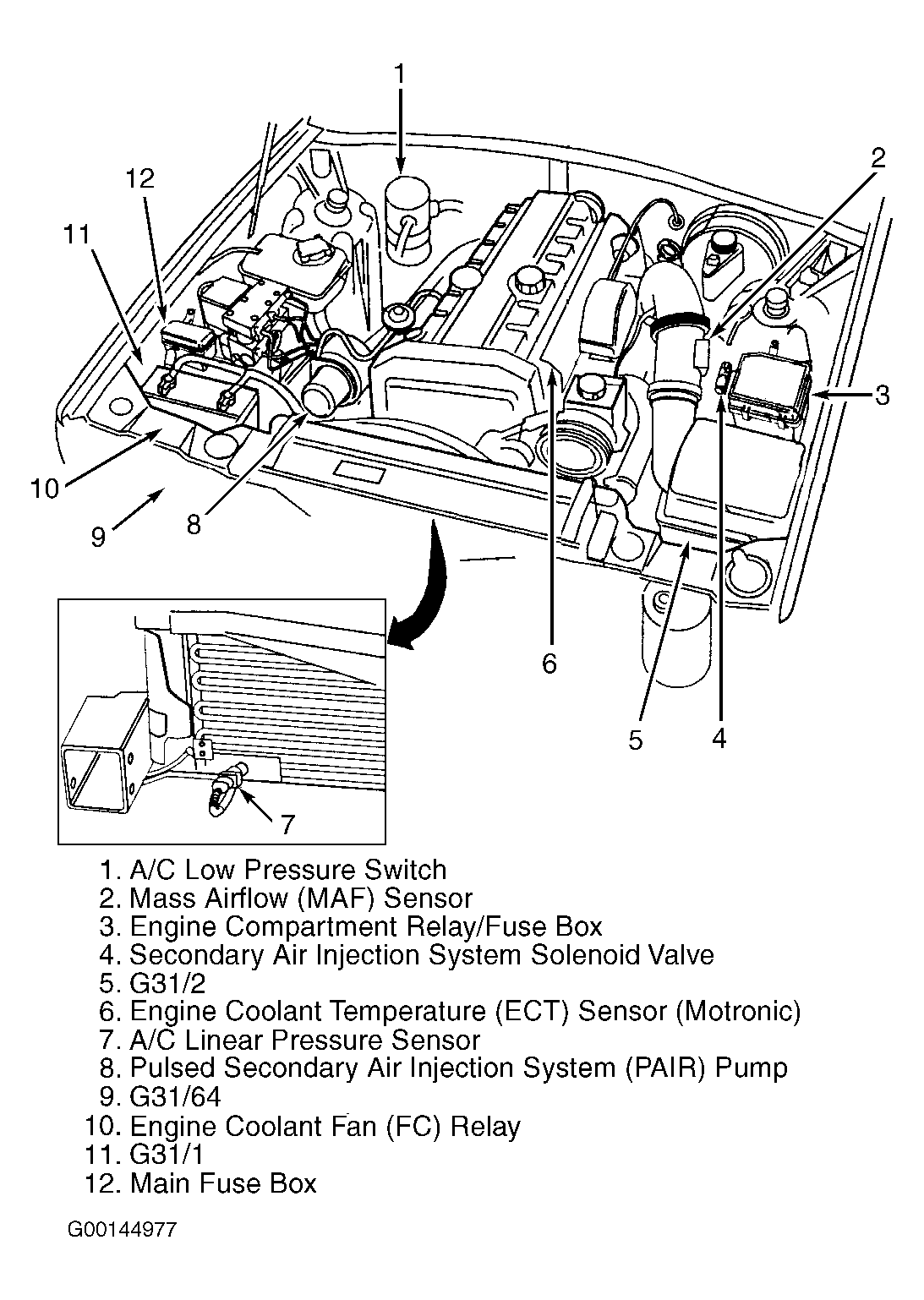

| Engine Compartment Relay/Fuse Box | On left side of engine compartment. See Figure . |
| Main Fuse Box | On right side of engine compartment, near battery. See Figure . |
| Passenger Compartment Central Relay Module | Near front of center console. |
| Passenger Compartment Fuse Box | On left end of dash. |
