Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| ABS Control Module | Behind right side of dash. |
| ABS Modulator | On right side of engine compartment, behind main fuse box. |
| Blower Fan Motor Control Module | Behind right side of dash, near blower motor. |

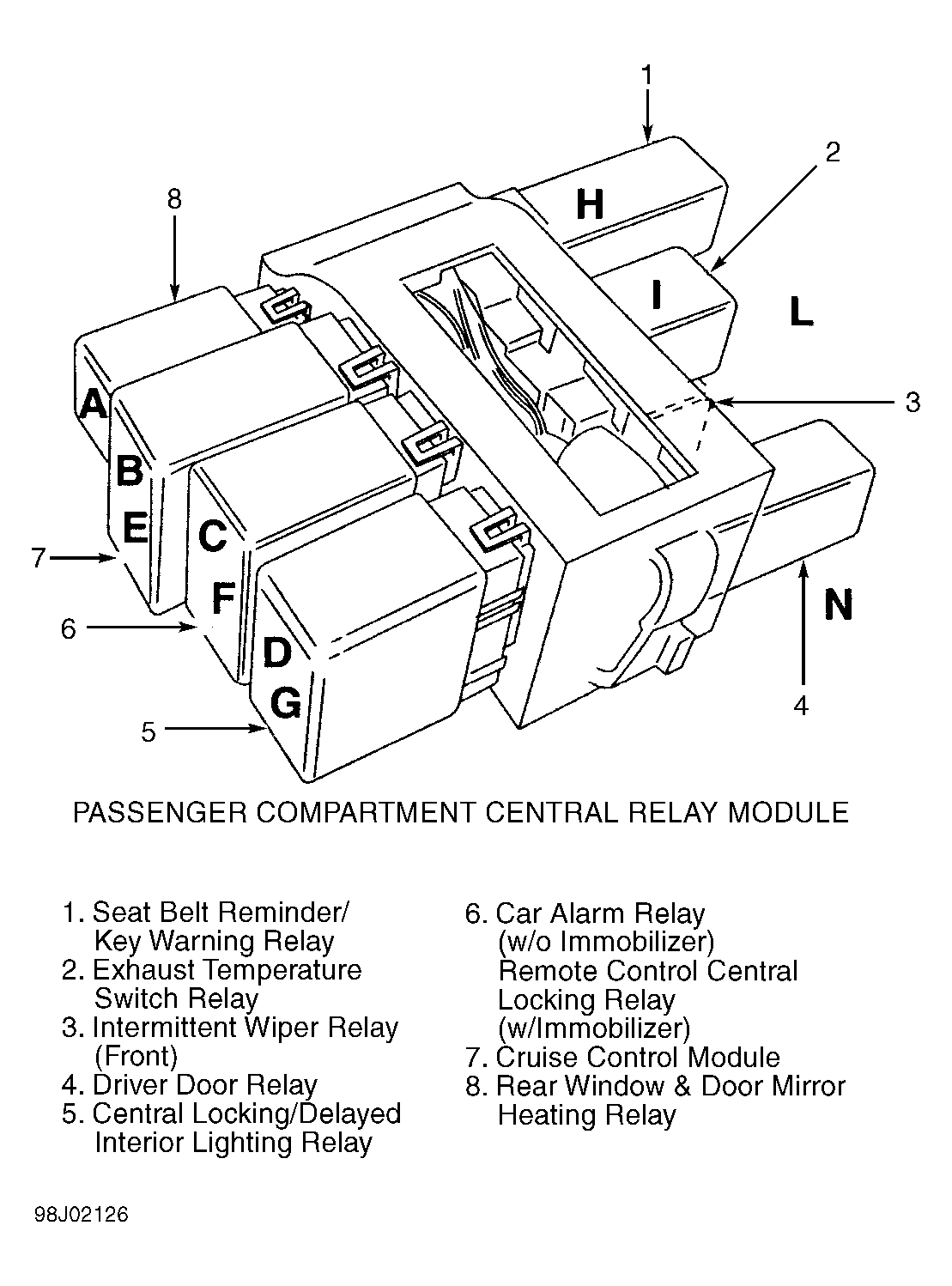

| Cruise Control Module | On passenger compartment central relay module. See Figure . |
| ECC Climate Control Module | Integrated with A/C control panel. |
| Electronic Park/Neutral Position (PNP) Switch Control Module | Under left side of dash. |
| Engine Control Module (ECM) | Behind left side of dash. |

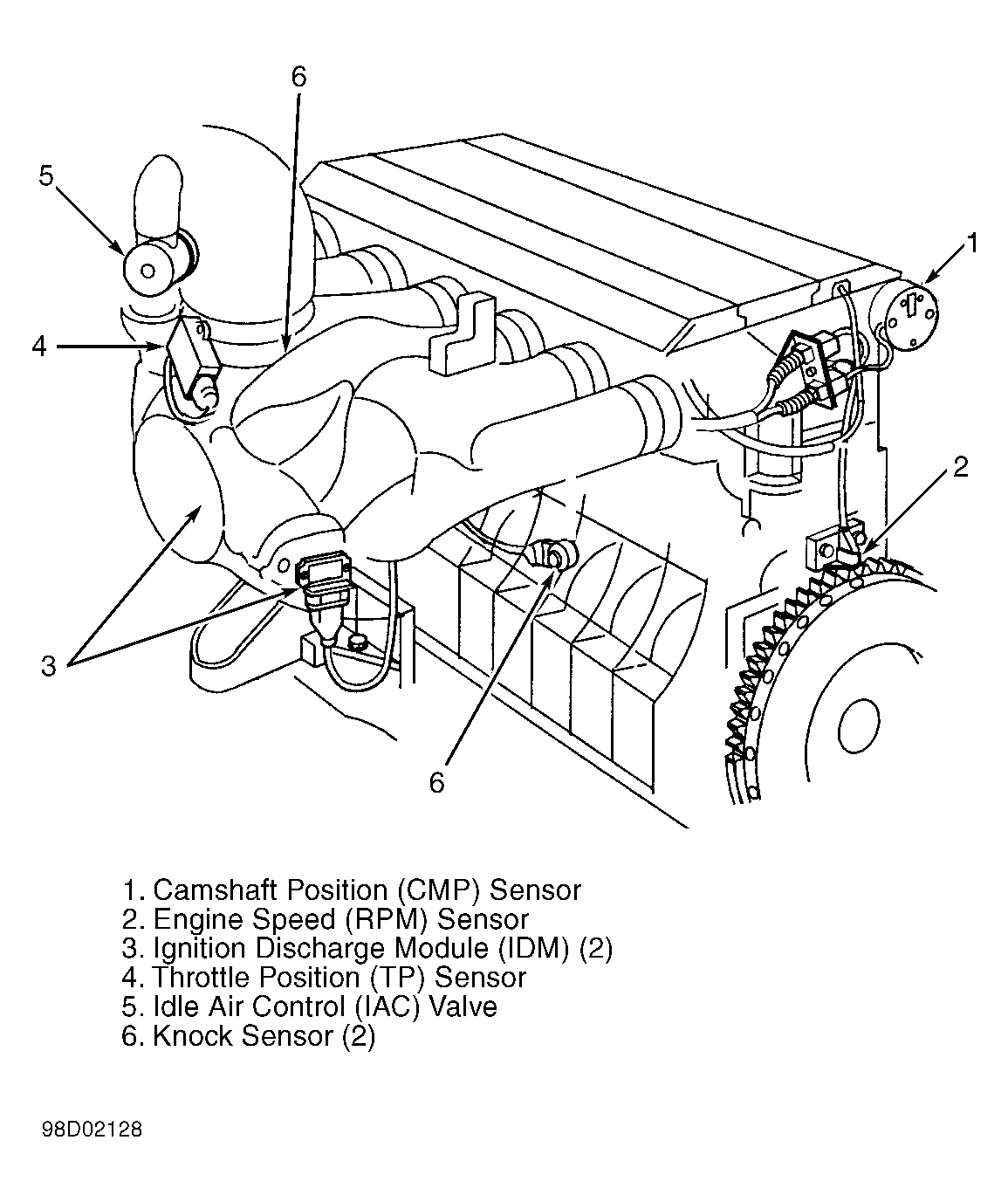

| Ignition Discharge Module (IDM) (2) | On side of intake manifold, near throttle position sensor. See Figure . |
| Power Memory Seat Control Module | Under driver's seat. |
| Transmission Control Module | Behind left side of dash. |
