Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| ABS Control Module | At left rear of engine compartment. |
| Accessory Electronic Module | At right rear corner of trunk. |
| Central Electronic Module | Behind left side of dash. |
| Communication Module | Under right front seat. |
| Cooling Fan Control Module | At right front of engine compartment. |
| Electronic Throttle Module | On left side of engine. |

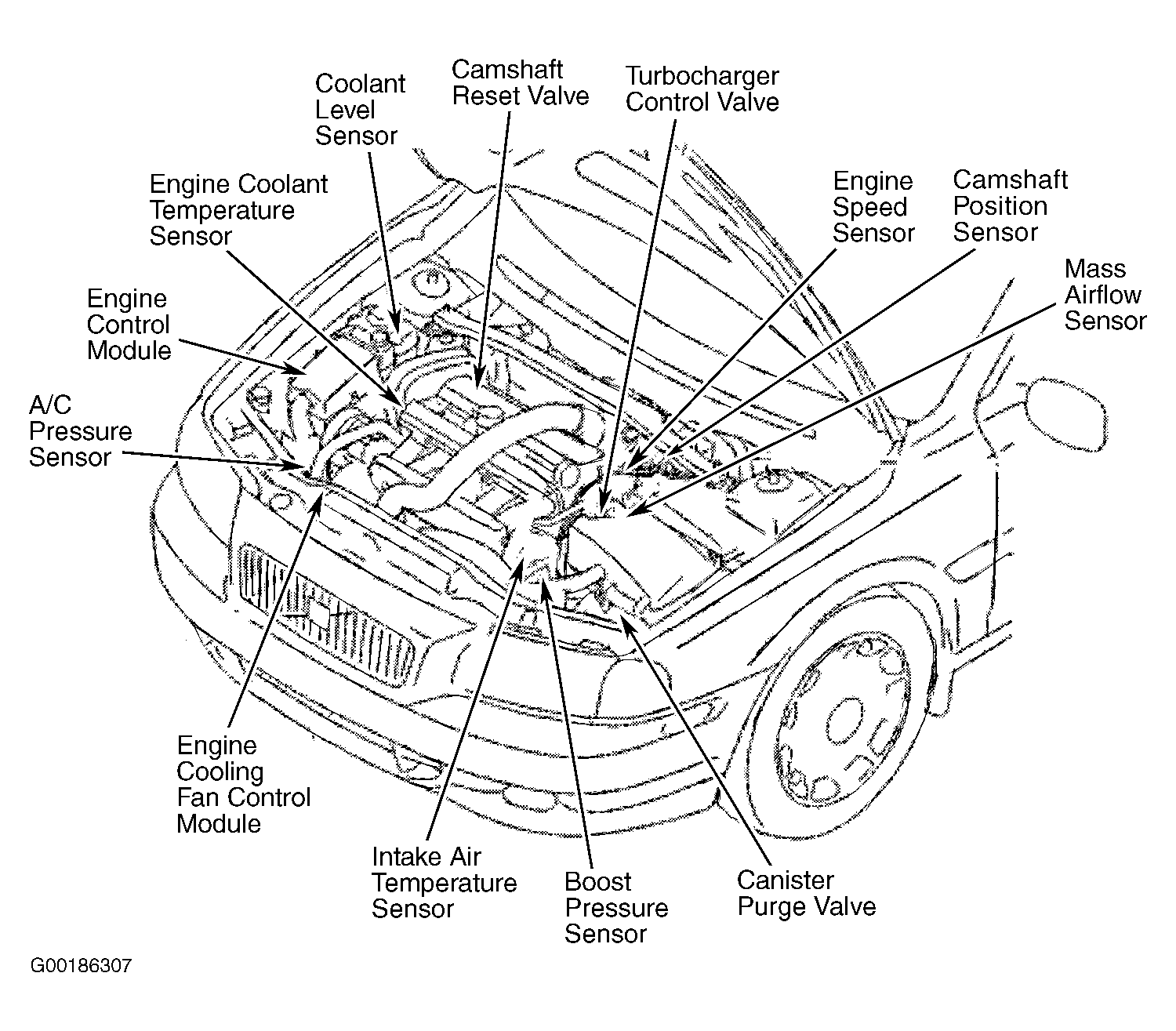

| Engine Cooling Fan Control Module | Right front of engine compartment. See Figure . |
| Engine Control Module | At right side of engine compartment, forward of strut tower. See Figure . |
| Fan Control Module | Behind right side of dash, near blower fan. |
| Rear Electronic Module | At left rear corner of trunk. |
| RTI Control Module | At left side of trunk. |
| Steering Wheel Angle Sensor Control Unit | On side of passenger compartment relay box. |
| Sun Roof Control Module | Forward of sun roof opening. |
| Supplementary Restraints System Control Module | Below rear of center console. |
| Transmission Control Module | At right side of engine compartment, forward of strut tower. |
| Upper Electronic Module | Above center of windshield, on rearview mirror. |
