Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| ABS Control Unit | Behind left rear seat. See Figure . | |
| A/T Electronic Control Unit | Integrated with PGM-FI control unit. See Figure . | |
| A/T Interlock Control Unit | Behind left side of dash. See Figure . | |
| Anti-Theft Control Unit | Behind left side of dash, to right of steering column. See Figure . | |
| Climate Control Unit | In center of dash, integral of A/C control panel. | |
| Cooling Fan Control Unit | Under carpeting and cover, next to PGM-FI control unit. See Figure . | |
| Cooling Fan Timer Unit | Behind right side kick panel. See Figure . | |
| Cruise Control Unit | Behind right side kick panel. See Figure . | |

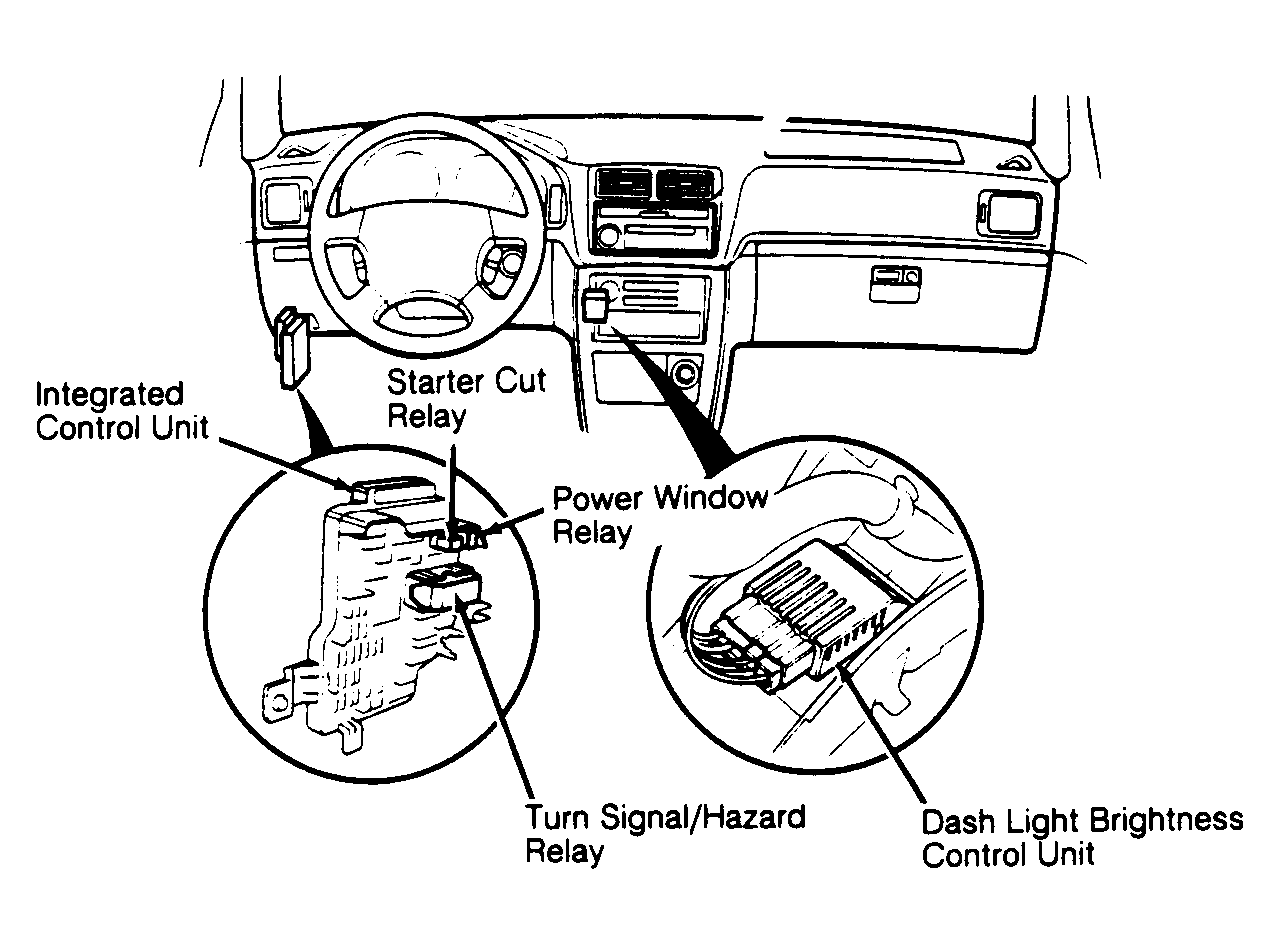

| Dash Light Brightness Control Unit | Behind center of dash. See Figure . | |
| Integrated Control Unit | Mounted behind passenger compartment, fuse/relay block. See Figure . | |
| PGM-FI Electronic Control Unit | ||
| Passenger Compartment Passenger's Side | Under carpeting and cover, in passenger's footwell. See Figure . | |
| Passenger Compartment View from Passenger's Side | Under carpeting and cover, in passenger's footwell. See Figure . | |
| Power Door Lock Control Unit | Behind left side of dash, to right of steering column. See Figure . | |
| Power Window Control Unit | Built into driver's side window control panel. See Figure . | |
| Power Seat Control Unit | Under driver's seat. | |
| SRS Control Unit | Under center console. See Figure . | |
