Component Locations

For component locations, refer to illustration. See Fig 1 . For ground locations, see Fig 2 and Fig 3 .

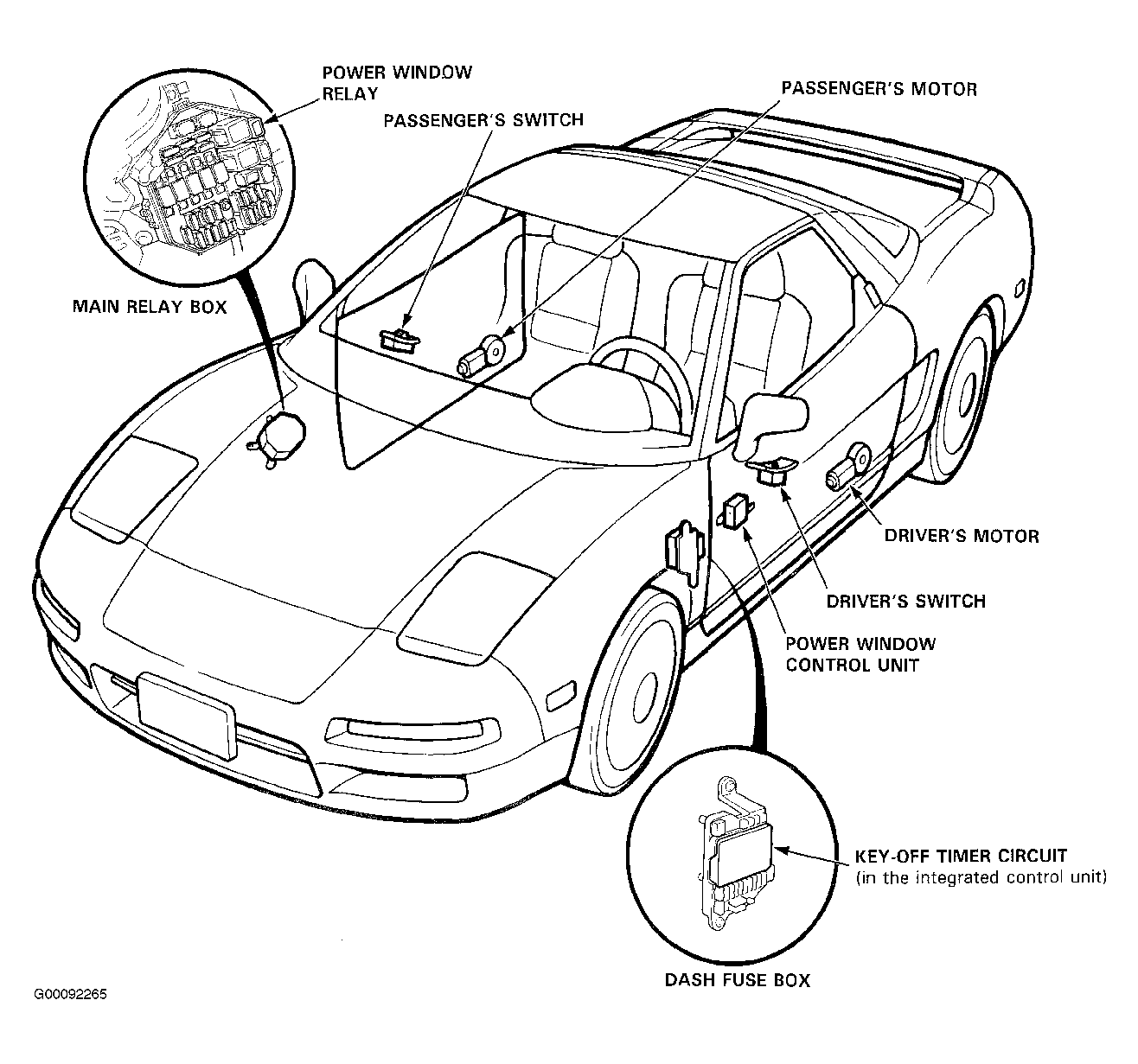

Fig 1: Locating Power Window Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.

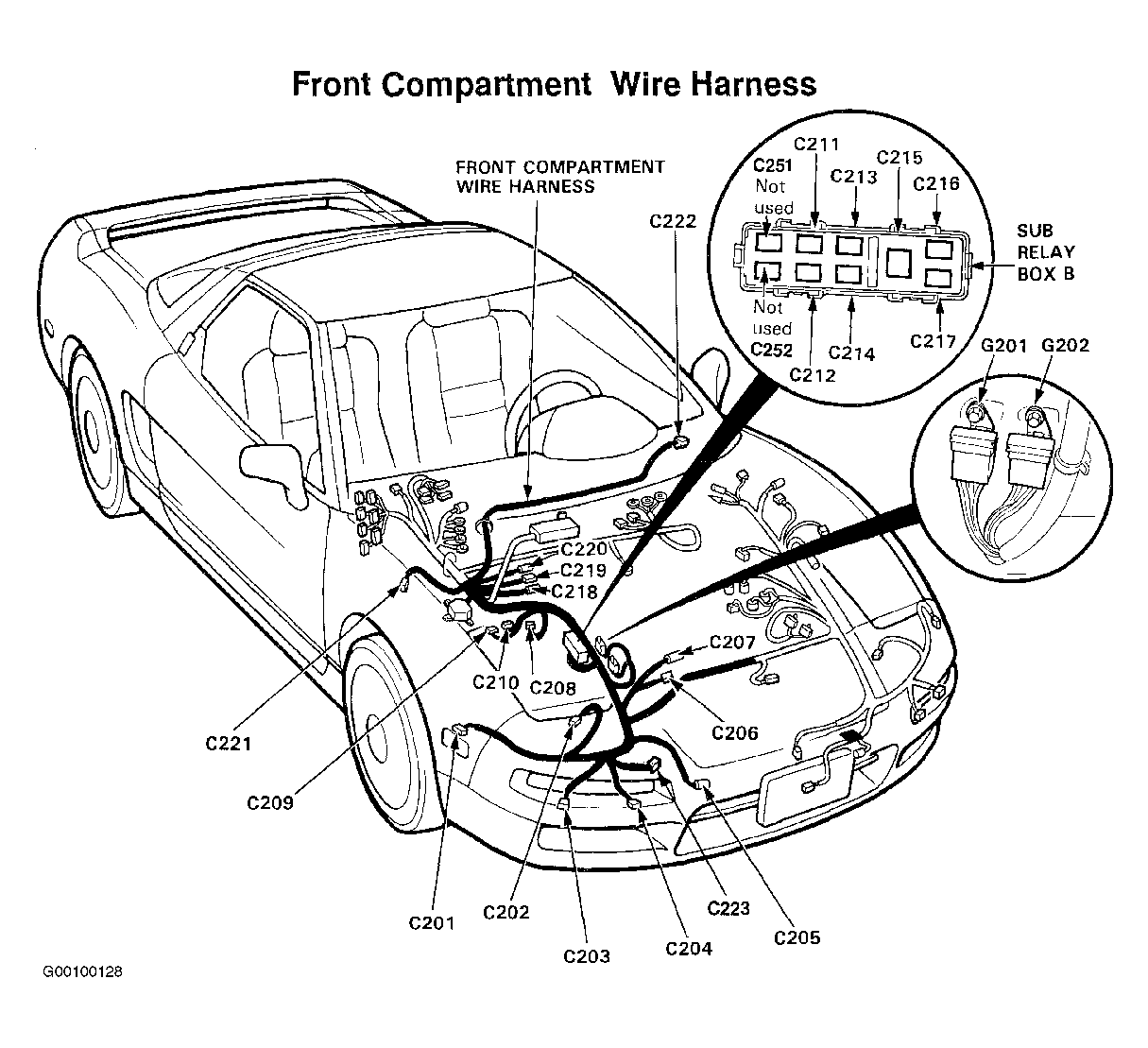

Fig 2: Locating Grounds G201 & G202

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Locating Ground G401

Courtesy of AMERICAN HONDA MOTOR CO., INC.
