Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| ABS Control Unit | Behind glove box, on back of bracket. See Figure . |
| ABS Modulator Unit | Right rear corner of engine compartment. |

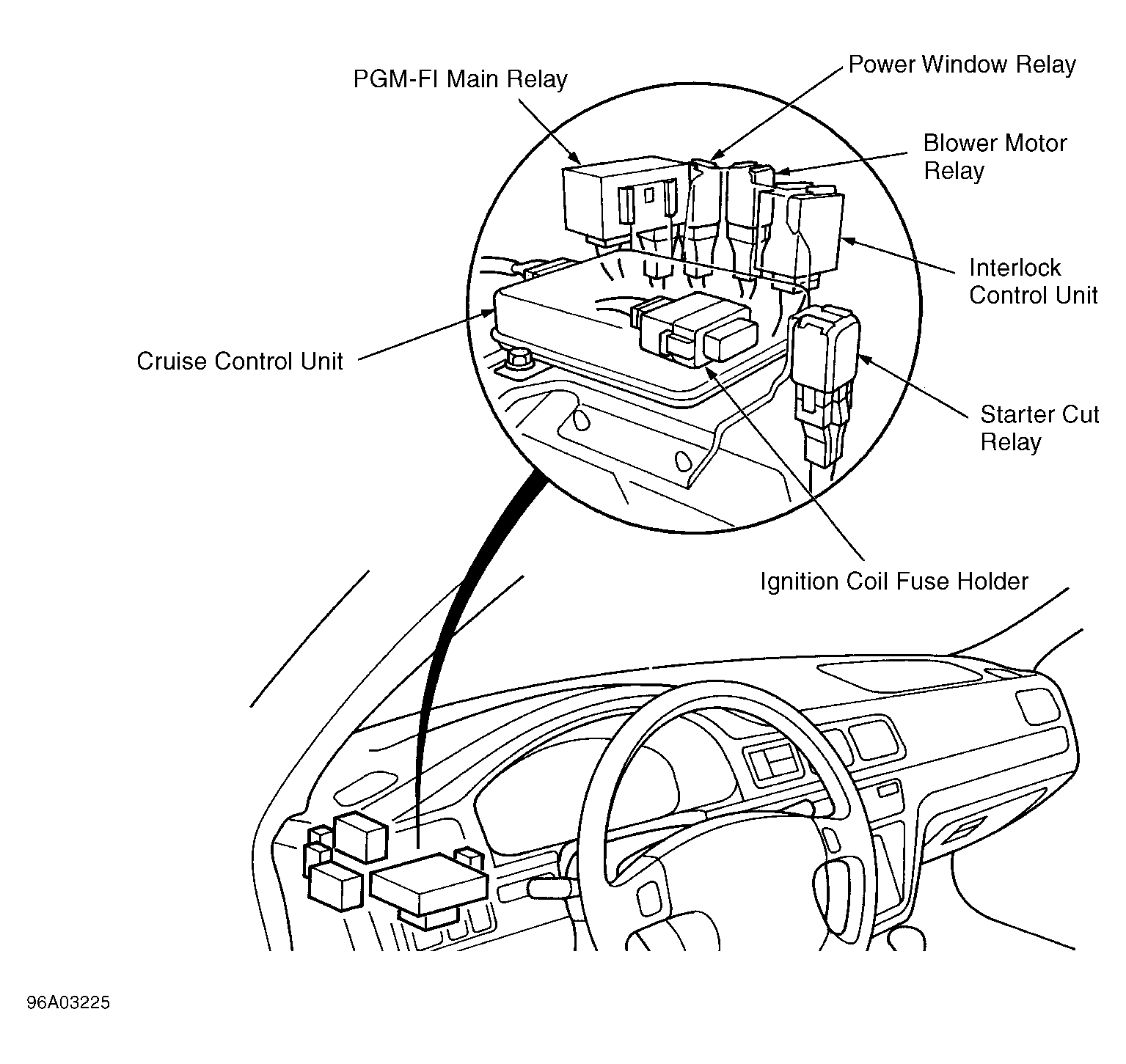

| Cruise Control Unit | Behind dash, left of steering column. See Figure . |
| Daytime Running Lamps (DRL) Control Unit | Behind dash, above right kick panel. |

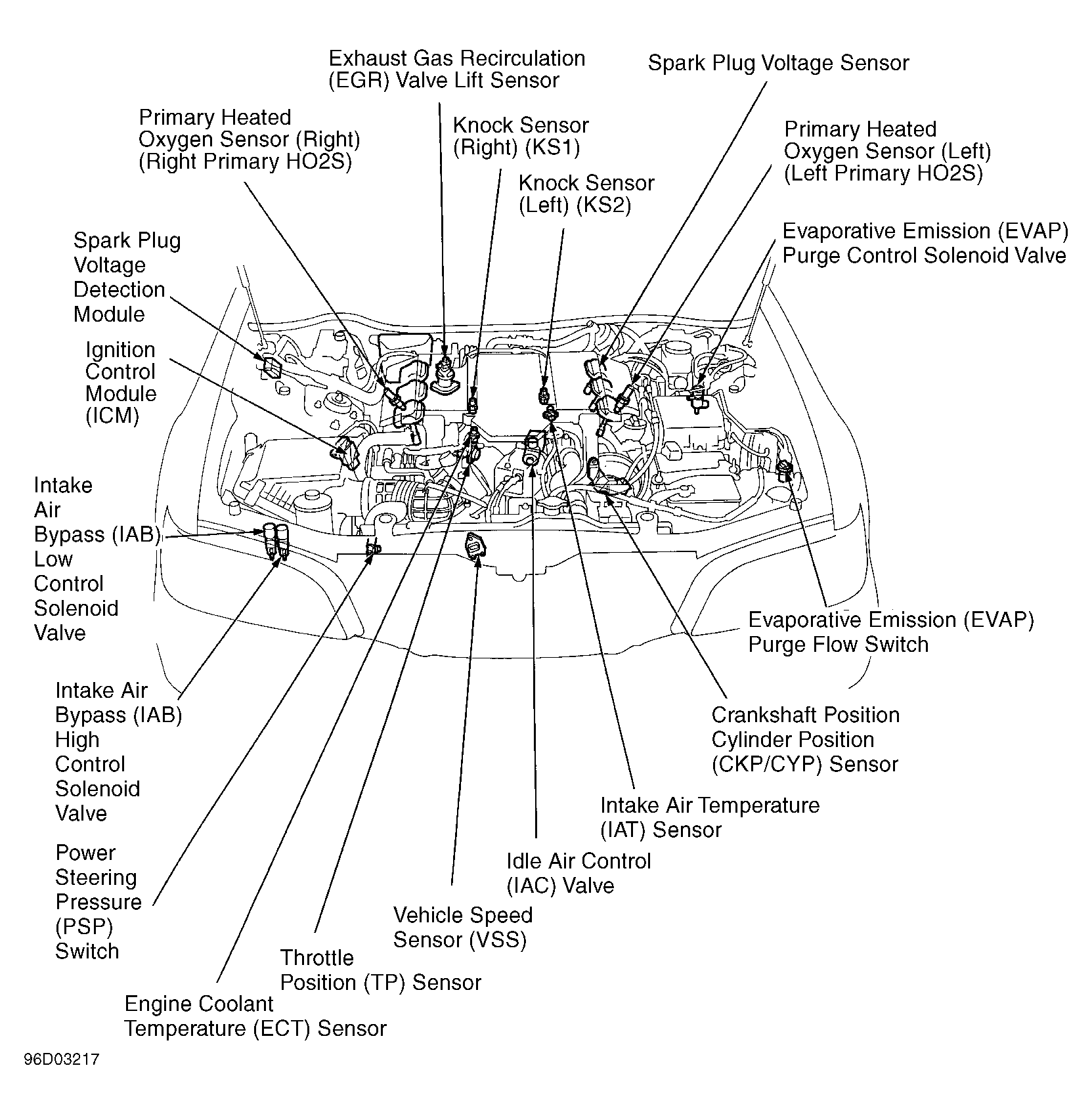

| Ignition Control Module (ICM) | Right side of engine. See Figure . |
| Integrated Control Unit | Behind left kick panel, on top of under-dash fuse/relay box. See Figure . |
| Interlock Control Unit | Behind dash, left of steering column, on bracket. See Figure . |
| Keyless Door Lock Control Unit | Behind glove box. See Figure . |
| Powertrain Control Module (PCM) | Underside of front passenger's footrest. See Figure . |
| Radiator Fan Control Module | Behind right side of dash, on bracket. See Figure . |
| Security Control Unit | Behind right side of dash. See Figure . |
| Spark Plug Voltage Detection Module | Right rear corner of engine compartment. See Figure . |
| SRS Unit | Behind center of dash, below radio. See Figure . |
| TCS Control Unit | Behind right side of dash, behind ABS control unit. See Figure . |
