Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| ABS Modulator Control Unit | In right front of engine compartment. |

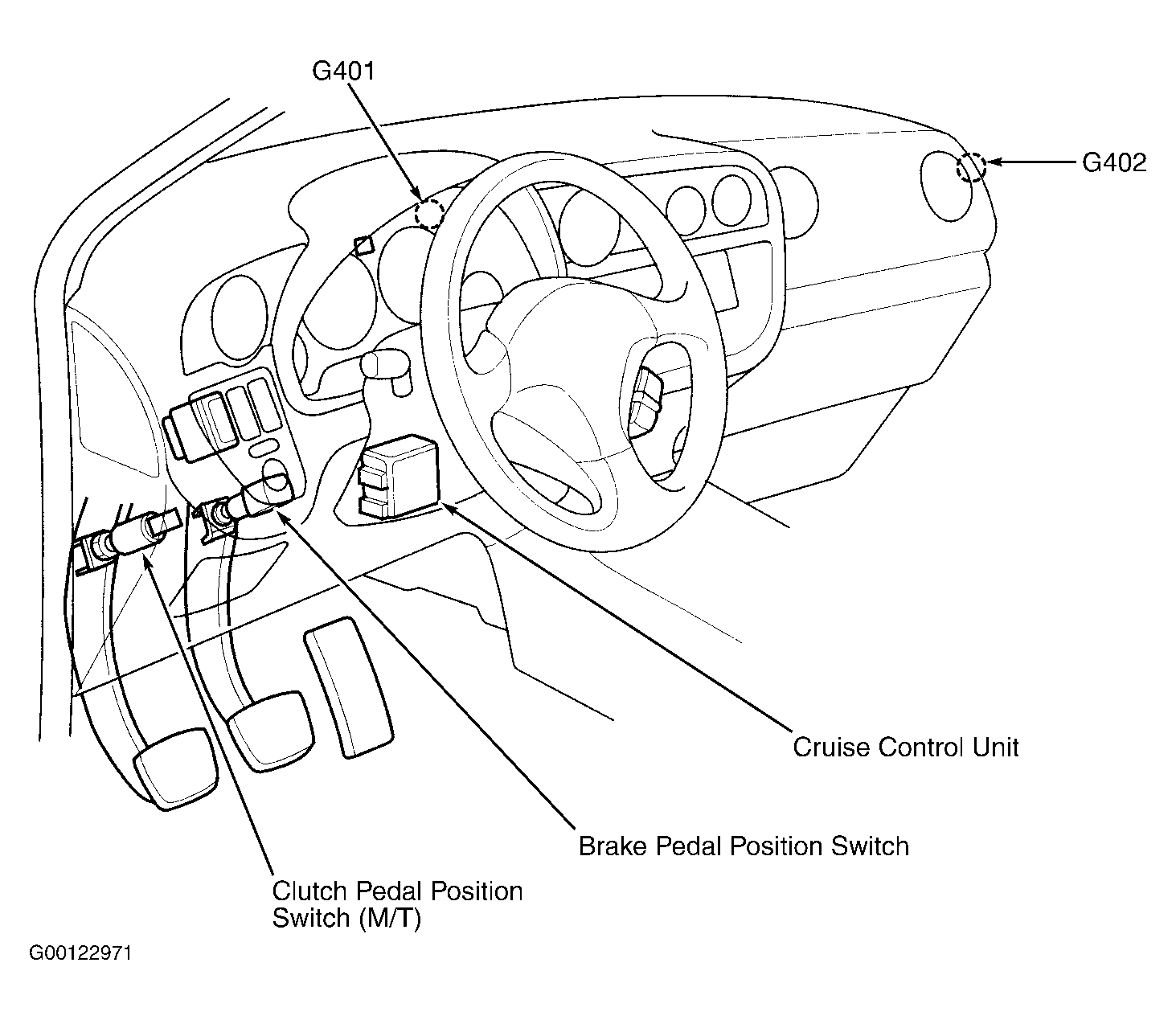

| Cruise Control Unit | Under left center side of dash. See Figure . |
| Daytime Running Lights Control Unit (Canada) | Behind left side of dash, above underdash fuse/relay box. |

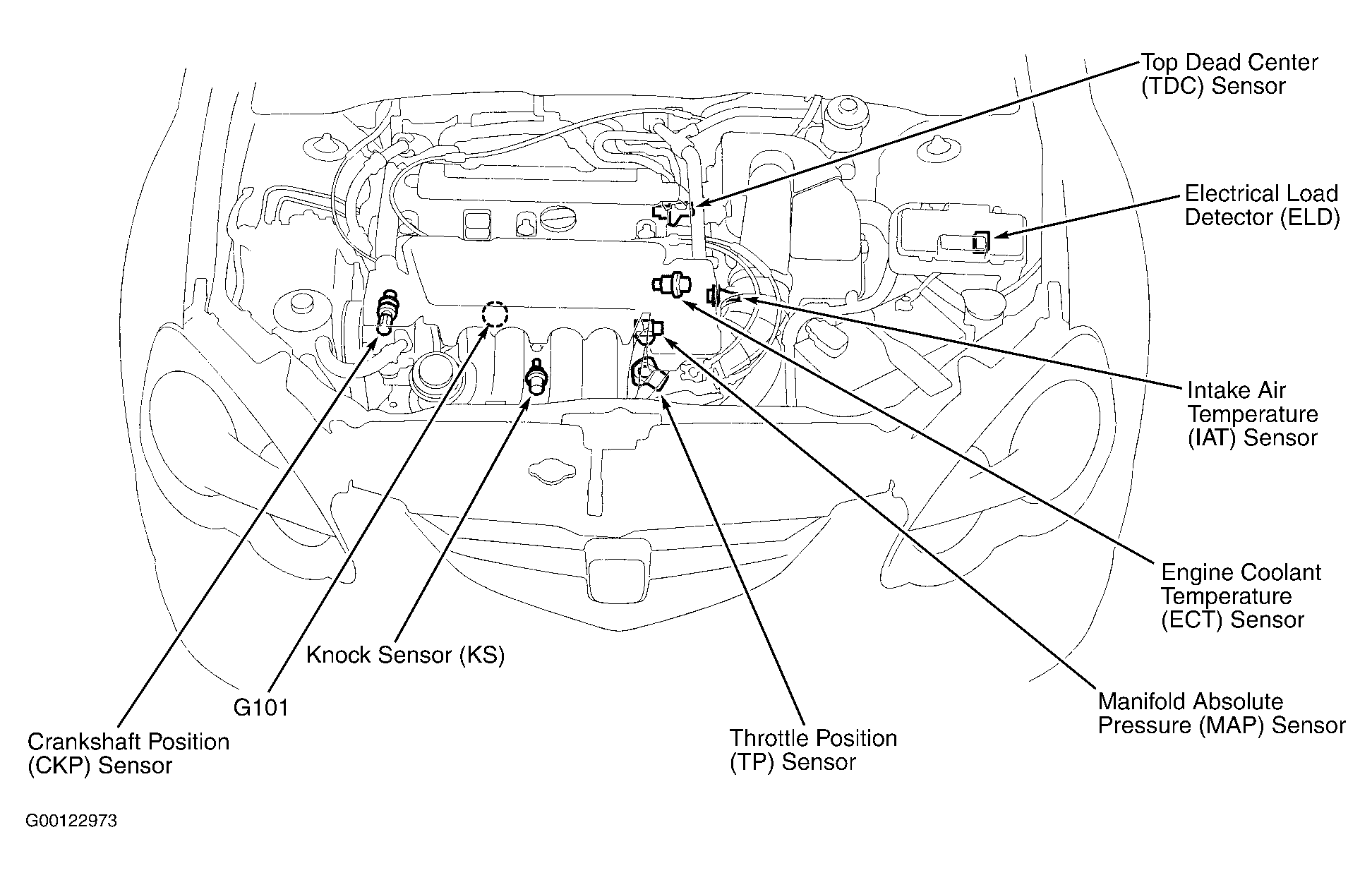

| Electrical Load Detector (ELD) | In rear of underhood fuse/relay box. See Figure . |
| Engine Control Module/Powertrain Control Module (ECM/PCM) | Under right side of dash, behind glove box. |
| Immobilizer Control Unit (Receiver) | On steering column, near lock cylinder. |
| Keyless Receiver Unit | Left side of dash, to right of steering column. |
| Multiplex Control Unit | Left side of dash, built into underdash fuse/relay box. |
| OPDS Unit | In seat back. See Figure . |
| Security Control Unit | Behind left side of dash lower cover, left of steering column. |

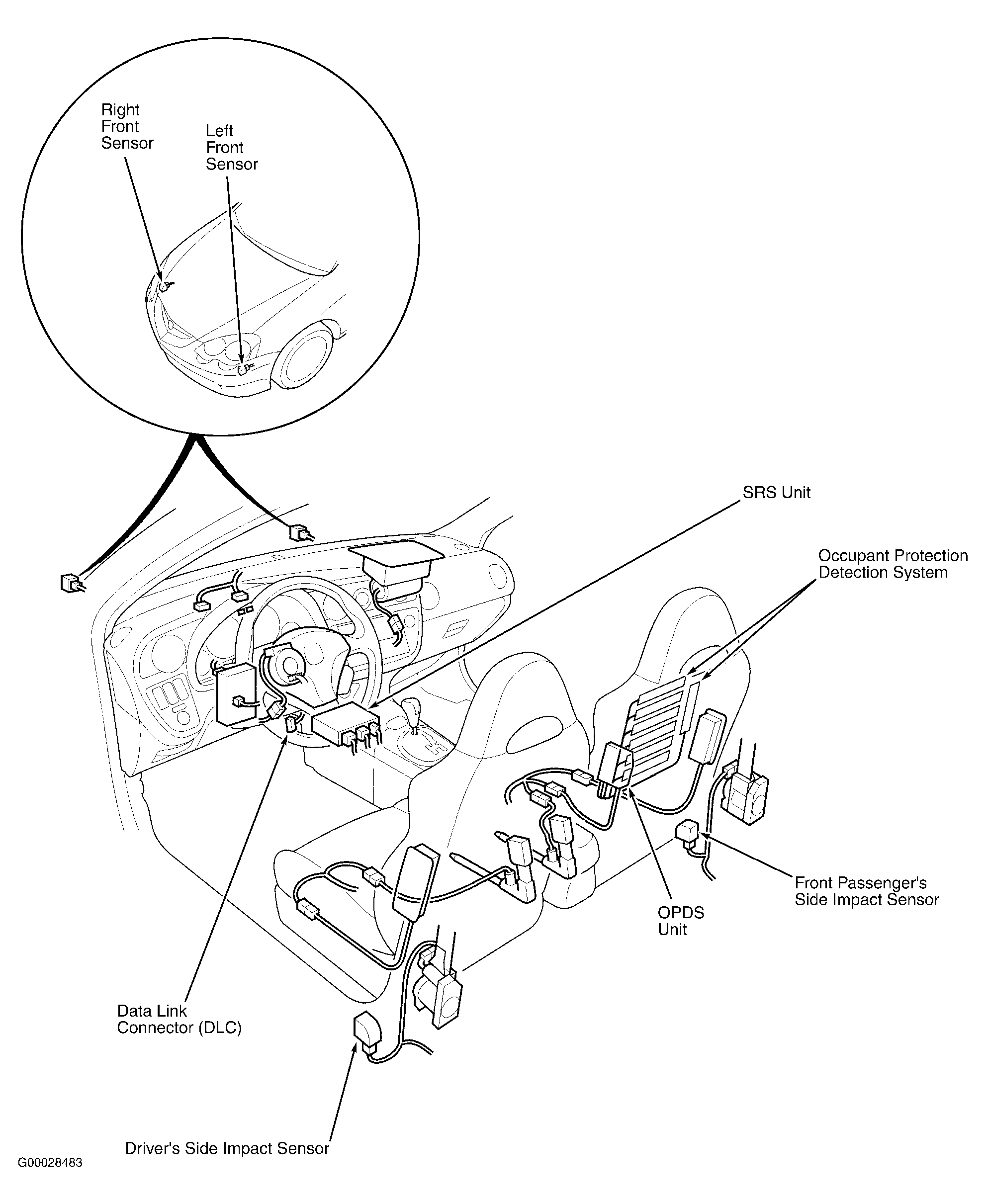

| SRS Unit | Below center of dash, left of heater unit. See Figure . |
