Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

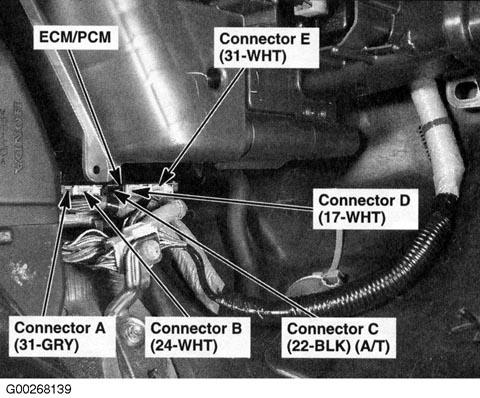

| ECM/PCM | Under middle of dash. See Figure. |

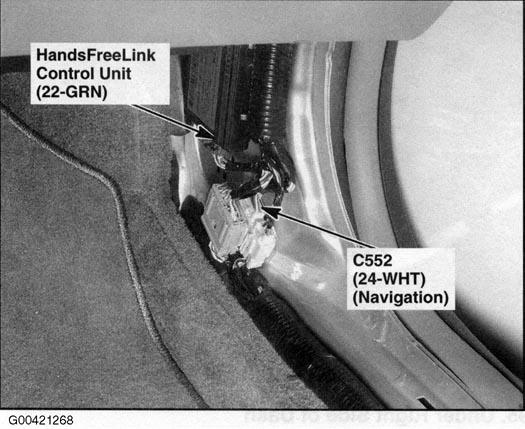

| HandsFreeLink Control Unit | Behind right kick panel. See Figure. |

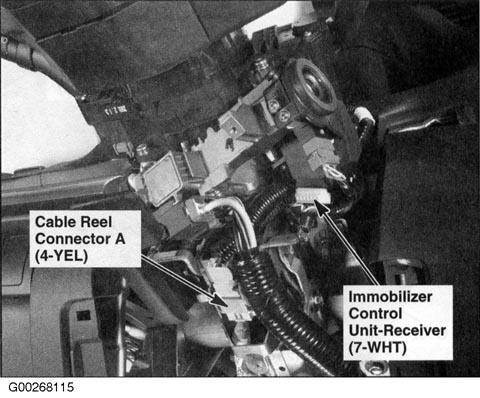

| Immobilizer Control Unit-Receiver | Under steering column cover. See Figure. |

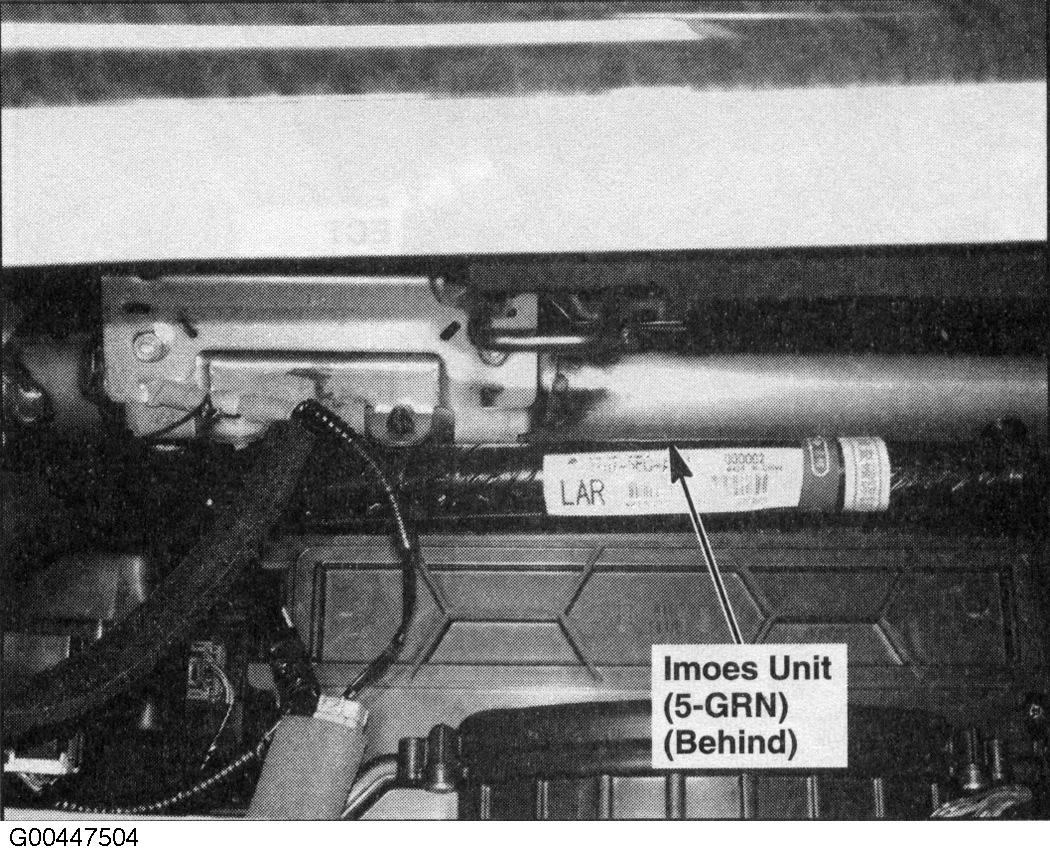

| Imoes Unit | Behind glove box. See Figure. |

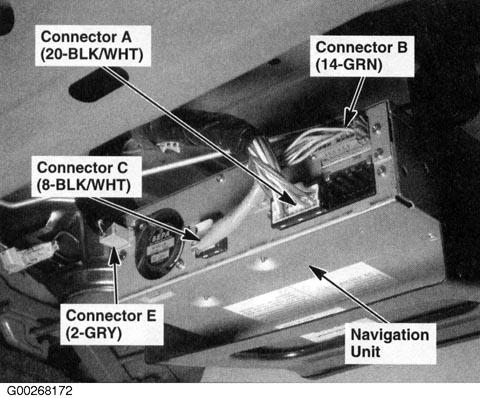

| Navigation Unit | In trunk, under right side of rear shelf. See Figure. |

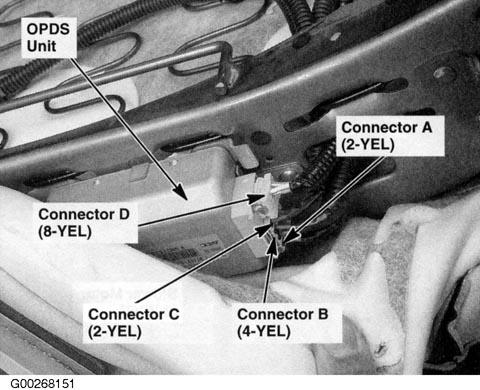

| OPDS Unit | In front passenger's seat back. See Figure. |

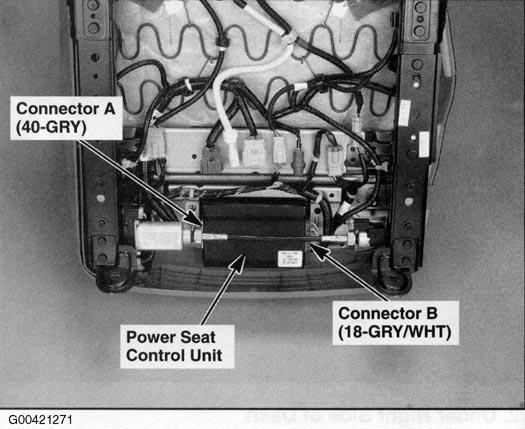

| Power Seat Control Unit | Under driver's seat. See Figure. |

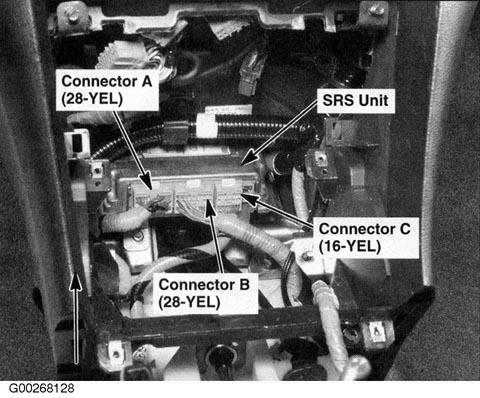

| SRS Unit | Behind middle of dash. See Figure. |

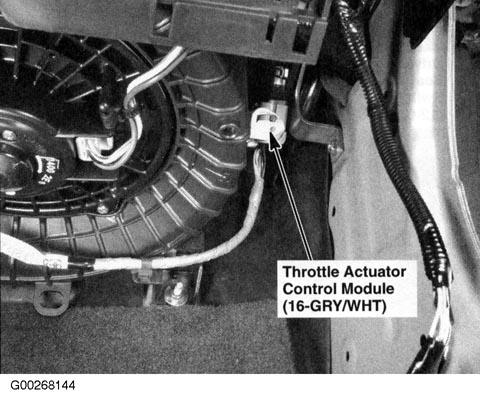

| Throttle Actuator Control Module | Under right side of dash. See Figure. |

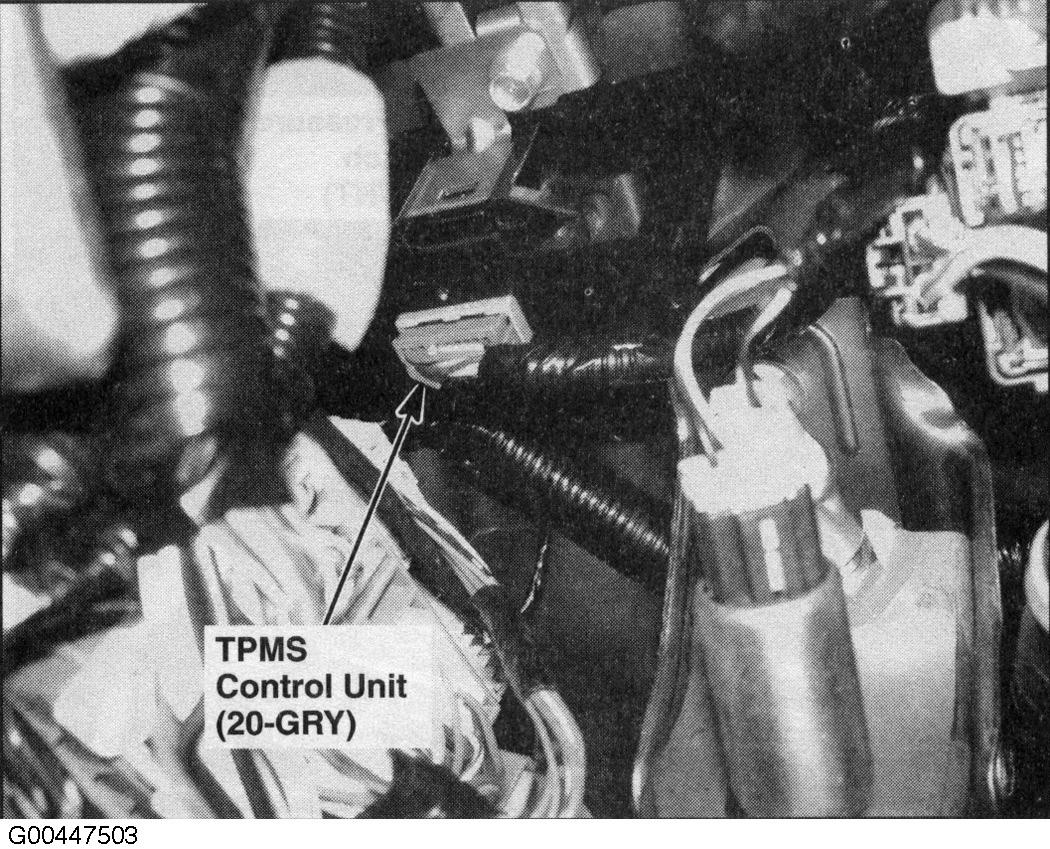

| TPMS Control Unit | Under left side of dash. See Figure. |

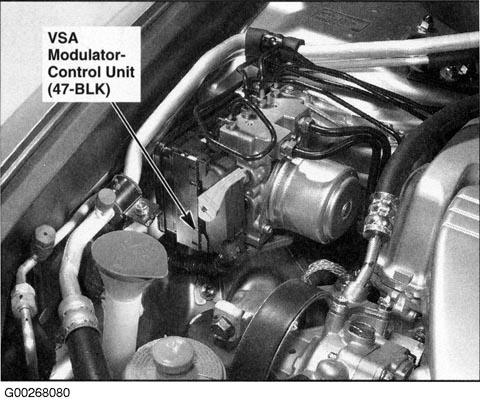

| VSA Modulator-Control Unit | At right side of engine compartment. See Figure. |
