Control Units

CONTROL UNITS LOCATION

Component Location

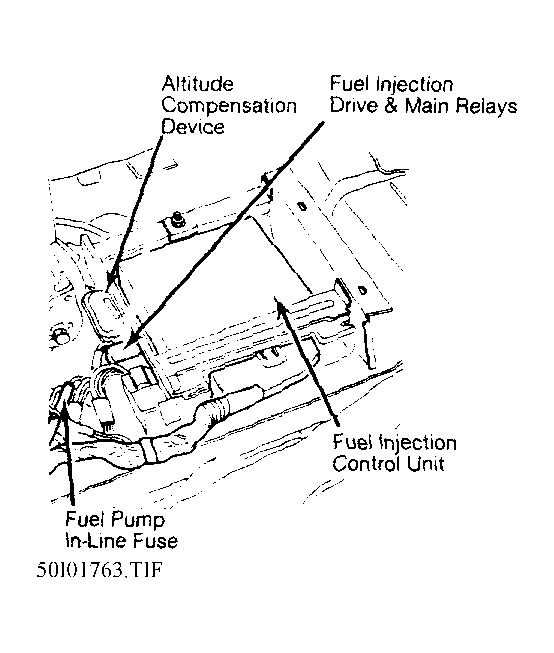

Fuel Injection Control Unit Under floor panel, behind passenger's seat. See Figure .

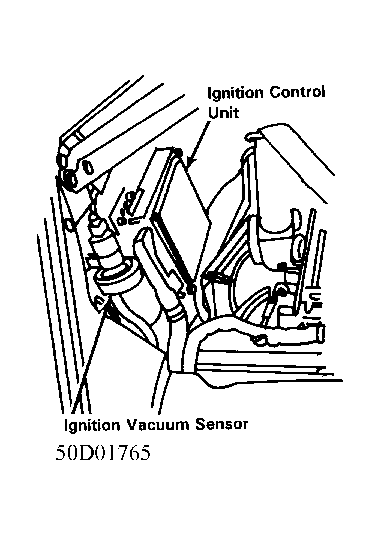

Ignition Control Unit Behind passenger's door, on rear inner side panel. See Figure .
