Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| ABS Control Unit | Under left rear passenger seat. |
| A/C Compressor Clutch Control Unit | In auxiliary relay panel. |
| A/C Fresh Air Fan Control Unit | Behind glove box. |
| A/C Programmer | Behind glove box. |

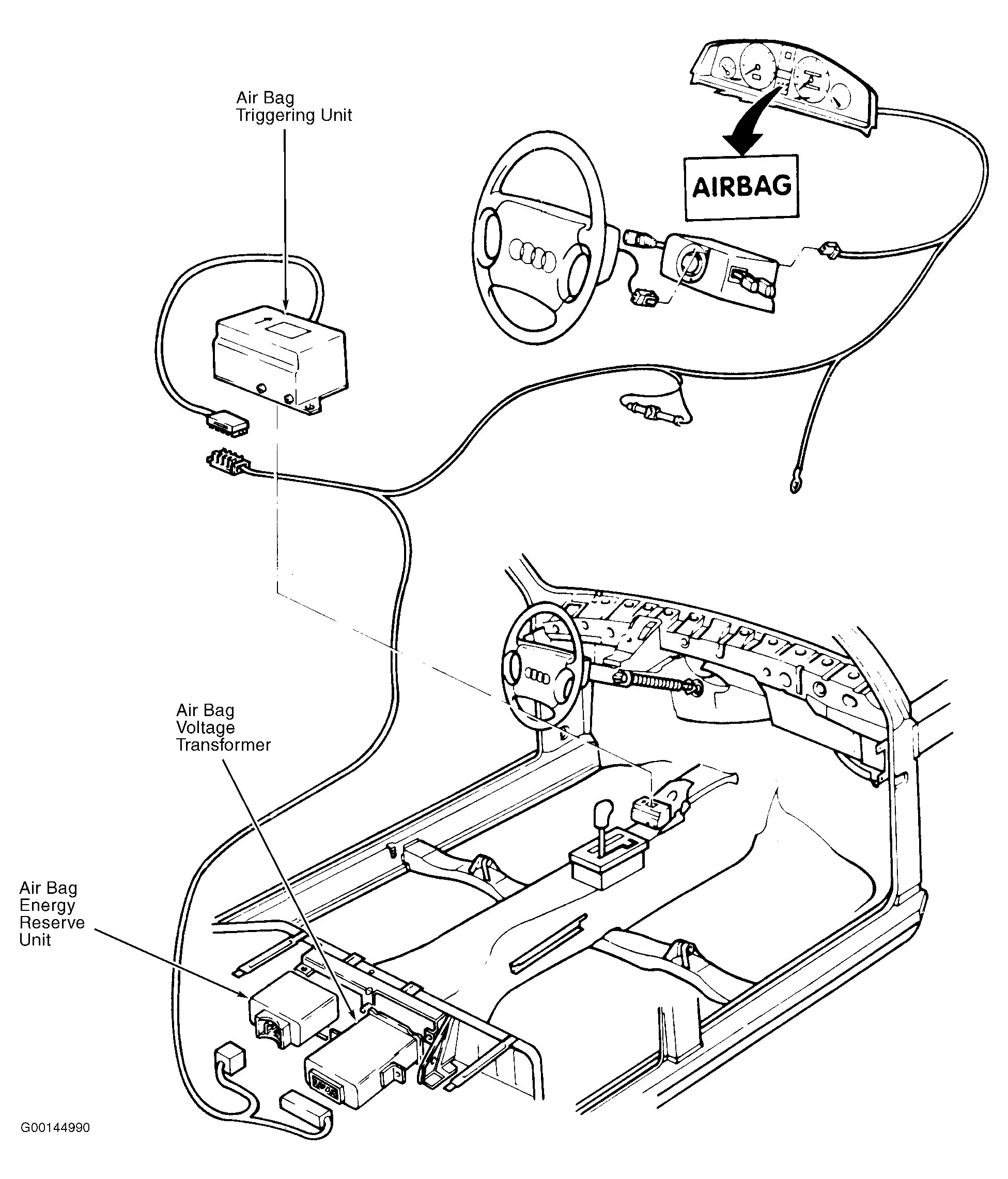

| Air Bag Triggering Unit | Behind center console. See Figure . |

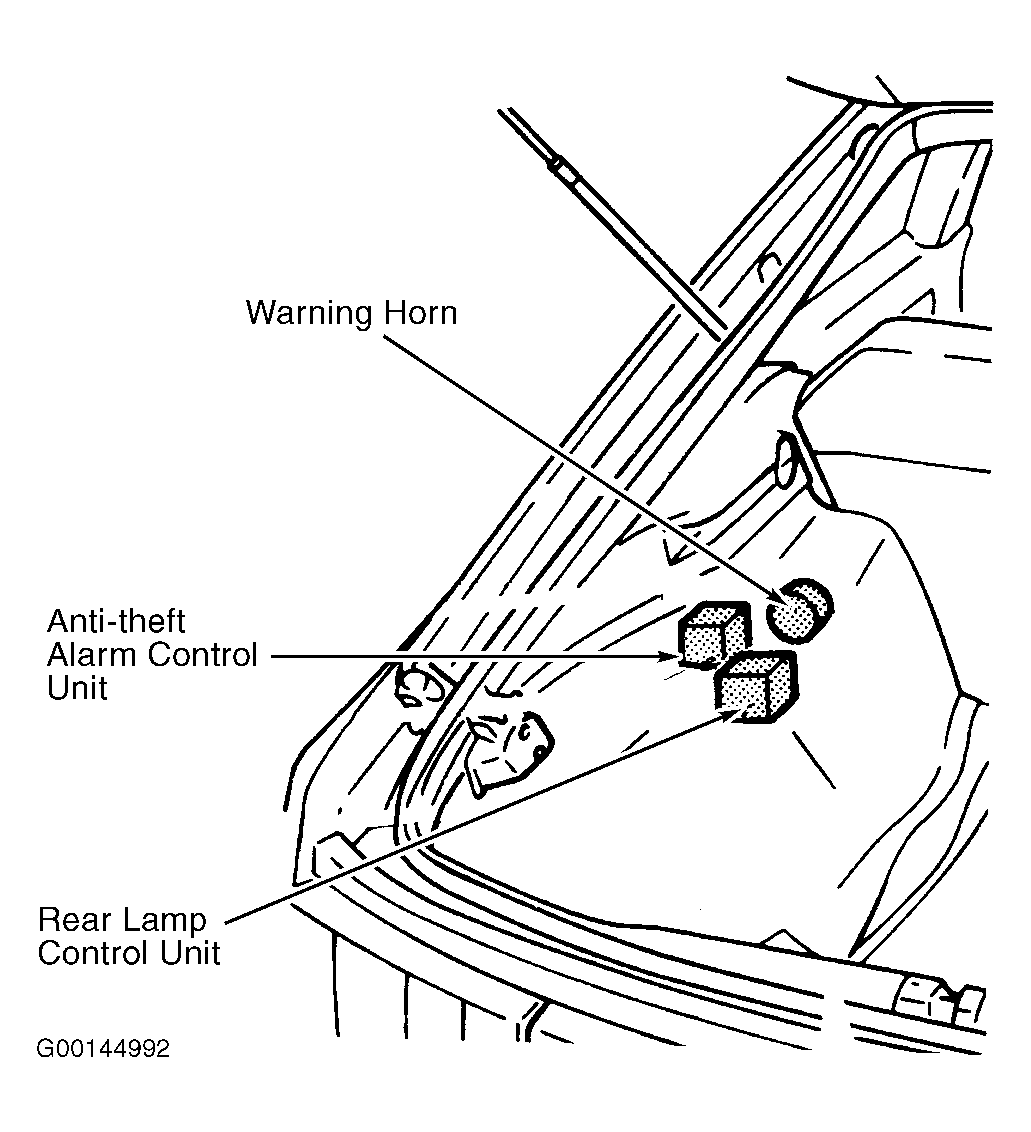

| Anti-Theft Alarm Control Unit | At left center of luggage compartment. See Figure . |

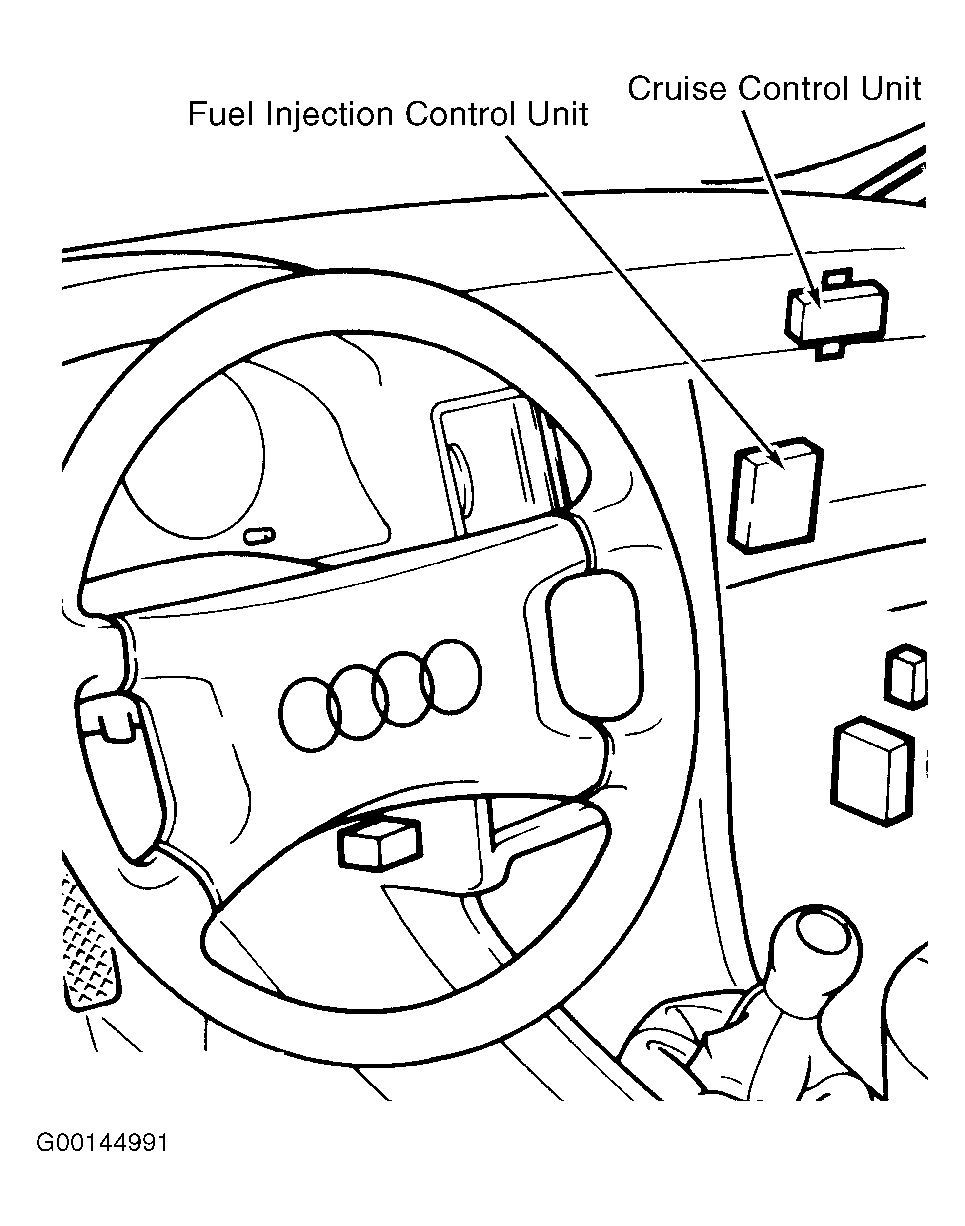

| Cruise Control, Control Unit | Behind glove box. See Figure . |
| Differential Lock Control Unit | Under center of rear seat. |
| Front Light Control Unit | In auxiliary relay panel. |
| Fuel Injection Control Unit | Behind A/C evaporator. See Figure . |
| Heated Lock Control Unit | At lower rear of respective doors. |
| Heated Seat Control Units | In auxiliary relay panel. |
| Interior Light Delay Control Unit | In auxiliary relay panel. |
| Power Seat Control Unit | Under left front seat. |
| Power Window/Sun Roof Control Unit | In auxiliary relay panel. |
| Radiator Cooling Fan After-Run Control Unit | In main fuse/relay panel. |
| Rear Lamp Control Unit | At left middle side of luggage compartment. See Figure . |
| Seat Belt Warning Control Unit | In auxiliary relay panel. |
