Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

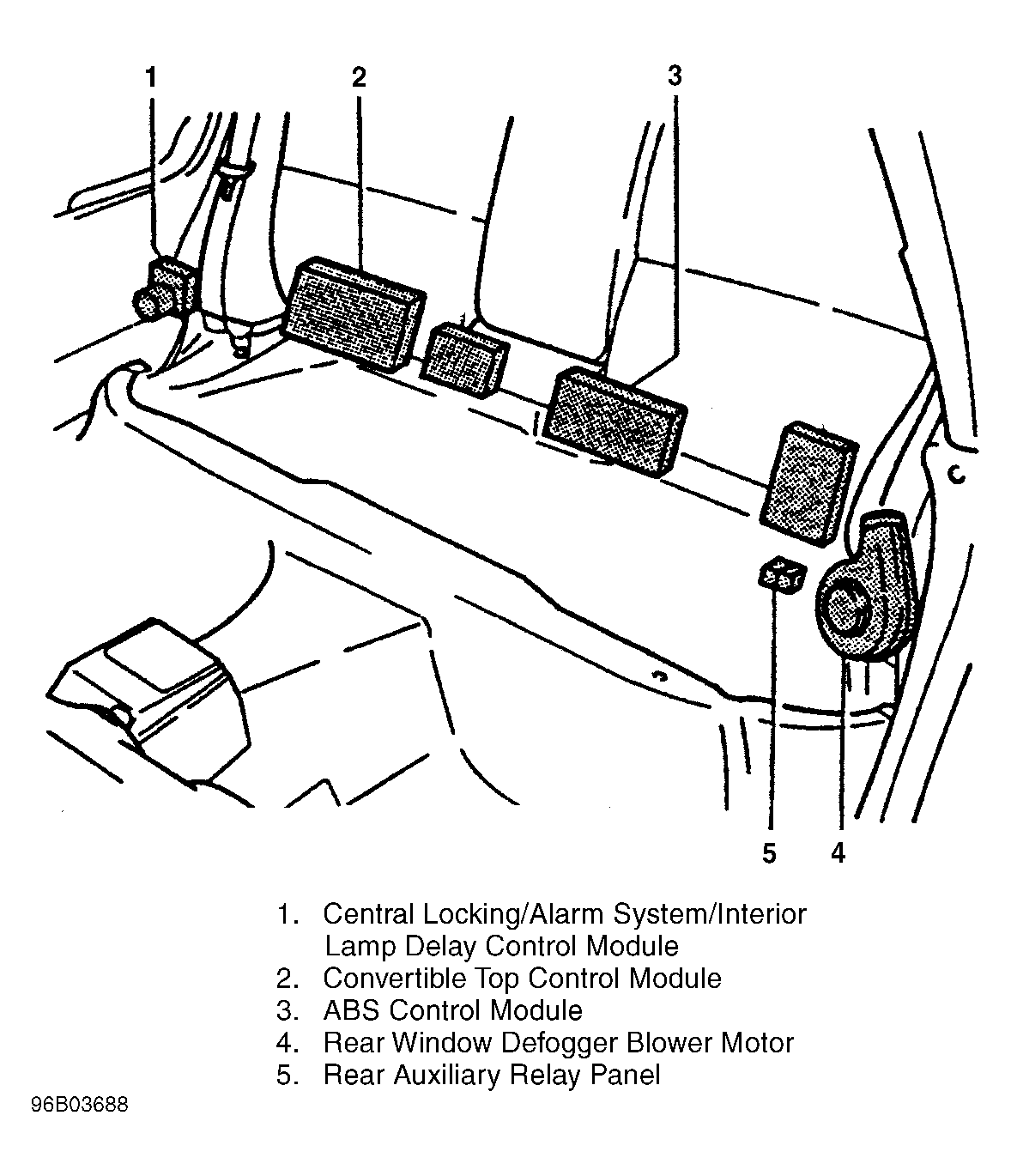

| ABS Control Module | Behind center of rear seat. See Figure . |

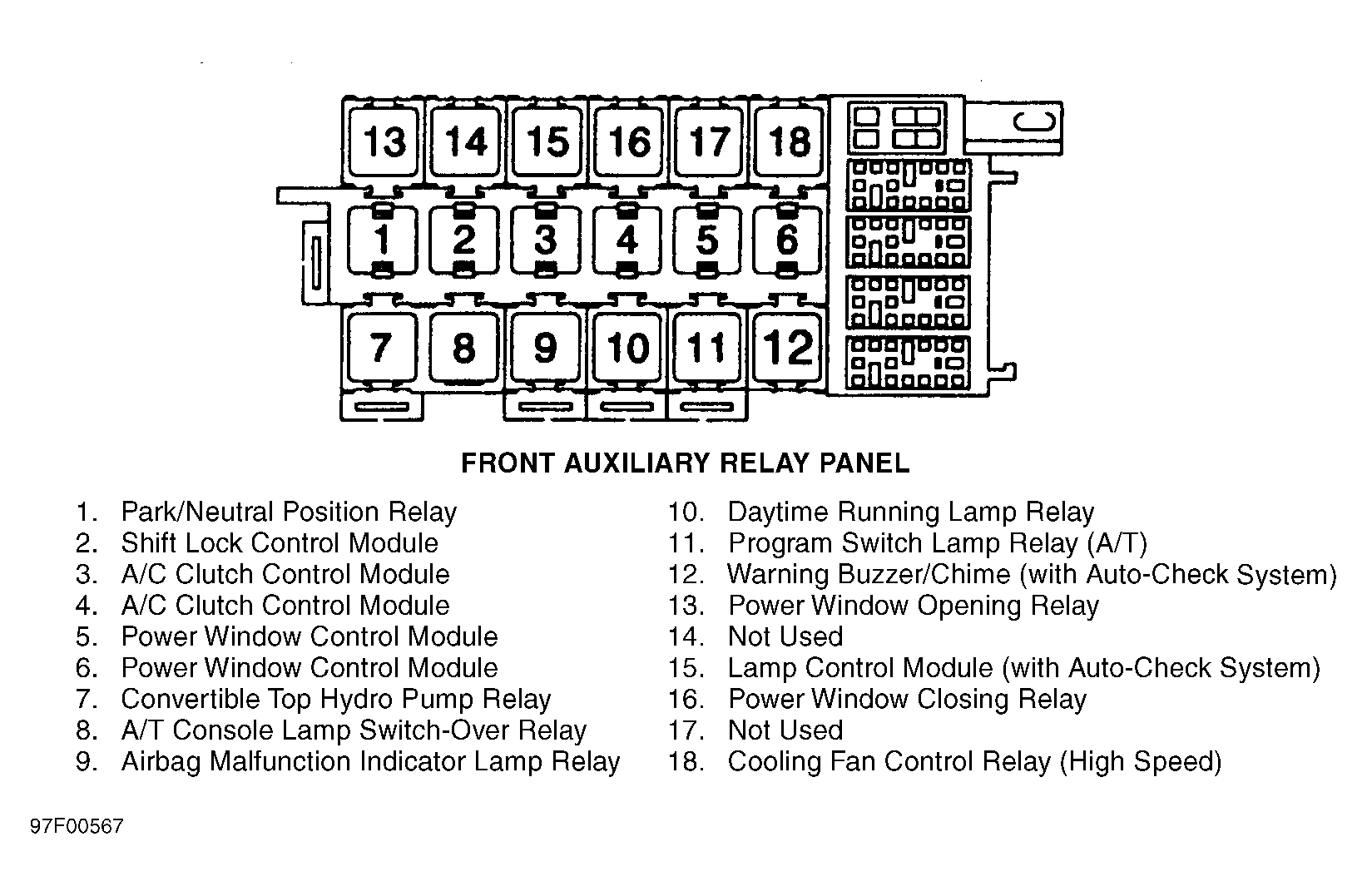

| A/C Clutch Control Module | On front auxiliary relay panel, positions No. 3 & No. 4. See Figure . |
| Convertible Top Control Module | Behind right side of rear seat. See Figure . |

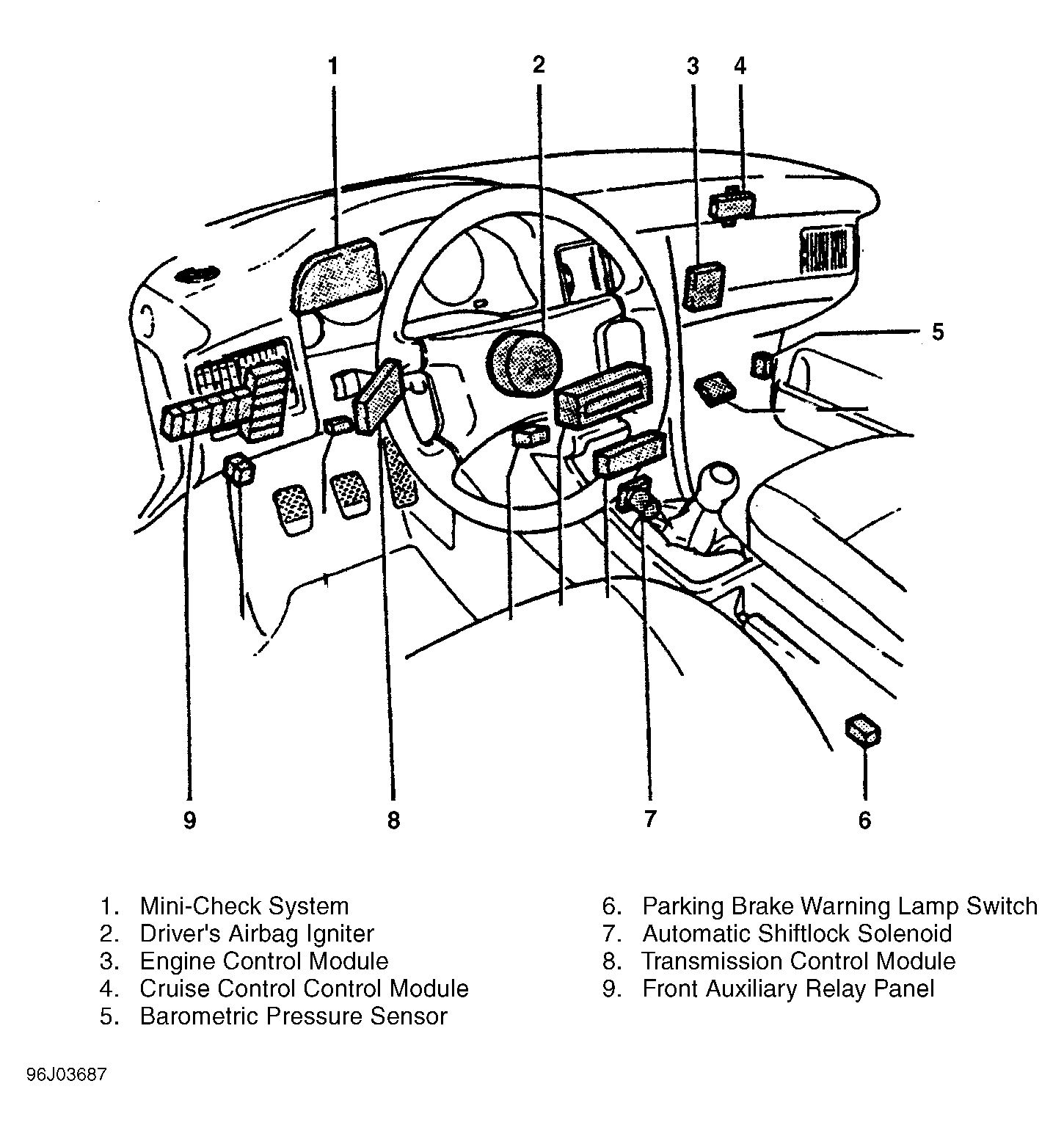

| Cruise Control, Control Module | Upper right side of dash. See Figure . |
| Engine Control Module | Right side of dash, behind glove box. See Figure . |
| Lamp Control Module (With Auto-Check System) | On front auxiliary relay panel, position No. 15. See Figure . |
| Central Locking/Alarm System/Interior Lamp Delay Control Module | Behind right side of rear seat. See Figure . |
| Power Window Control Module | On front auxiliary relay panel, positions No. 5 & 6. See Figure . |
| Shift Lock Control Module | On front auxiliary relay panel, position No. 2. See Figure . |
| Transmission Control Module | Behind left side of dash. See Figure . |
