Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| ABS Control Module | In left rear corner of engine compartment. |
| Air Bag Control Module | Beneath center of dash, near accelerator pedal. |
| All-Wheel Drive Control Module | On haldex coupling, on rear differential. |
| Central Locking Control Module | Behind side trim side. - Coupe On partition wall between backrest and hood compartmen, behind the front passenger seat. - Roadster See Figure. |
| Coolant Fan Control (FC) Control Module | In lower left front corner of engine compartment. |
| Fresh Air Blower Control Module | Behind right end of dash, on HVAC housing. |
| Headlight Range Control Module (Coupe) | Beneath left side of rear seat. |
| Headlight Range Control Module (Roadster) | Behind trim panel, in luggage compartment |
| Heated Door Lock Control Module (Left) | Inside of left door. |
| High Intensity Gas Discharge Lamp Control Module (Left/Right) | Below respective headlight, on frame rail. |

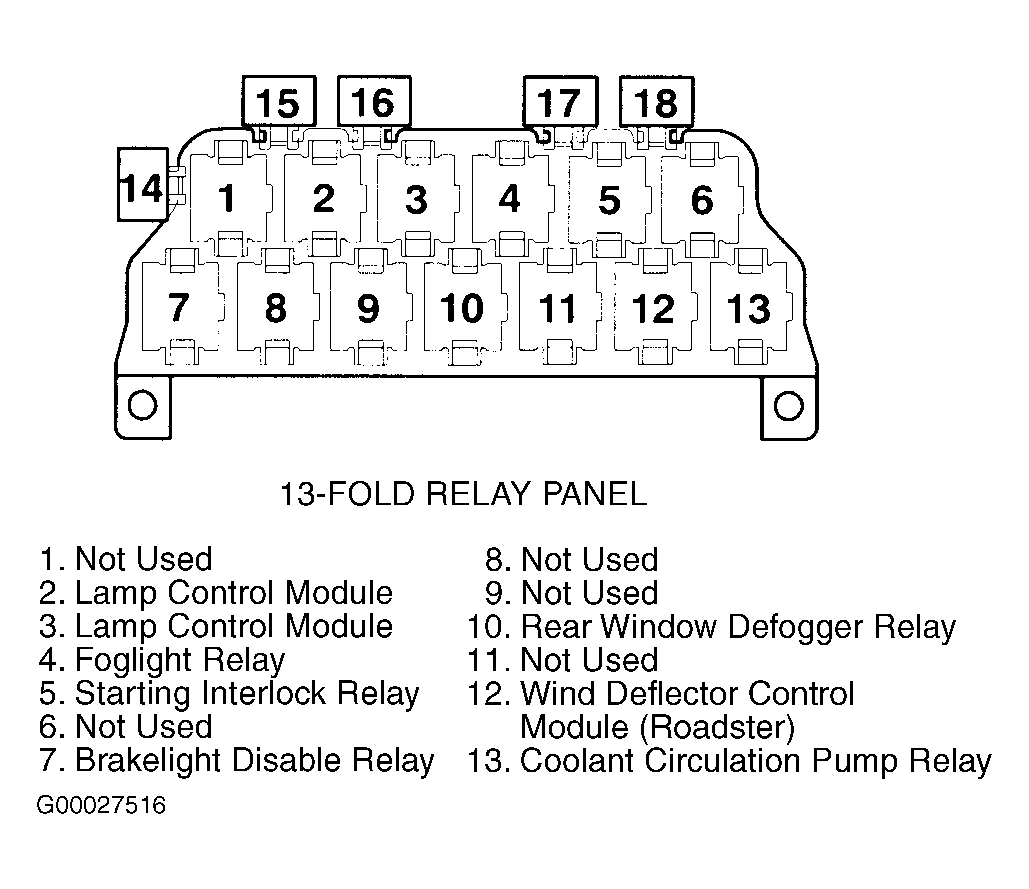

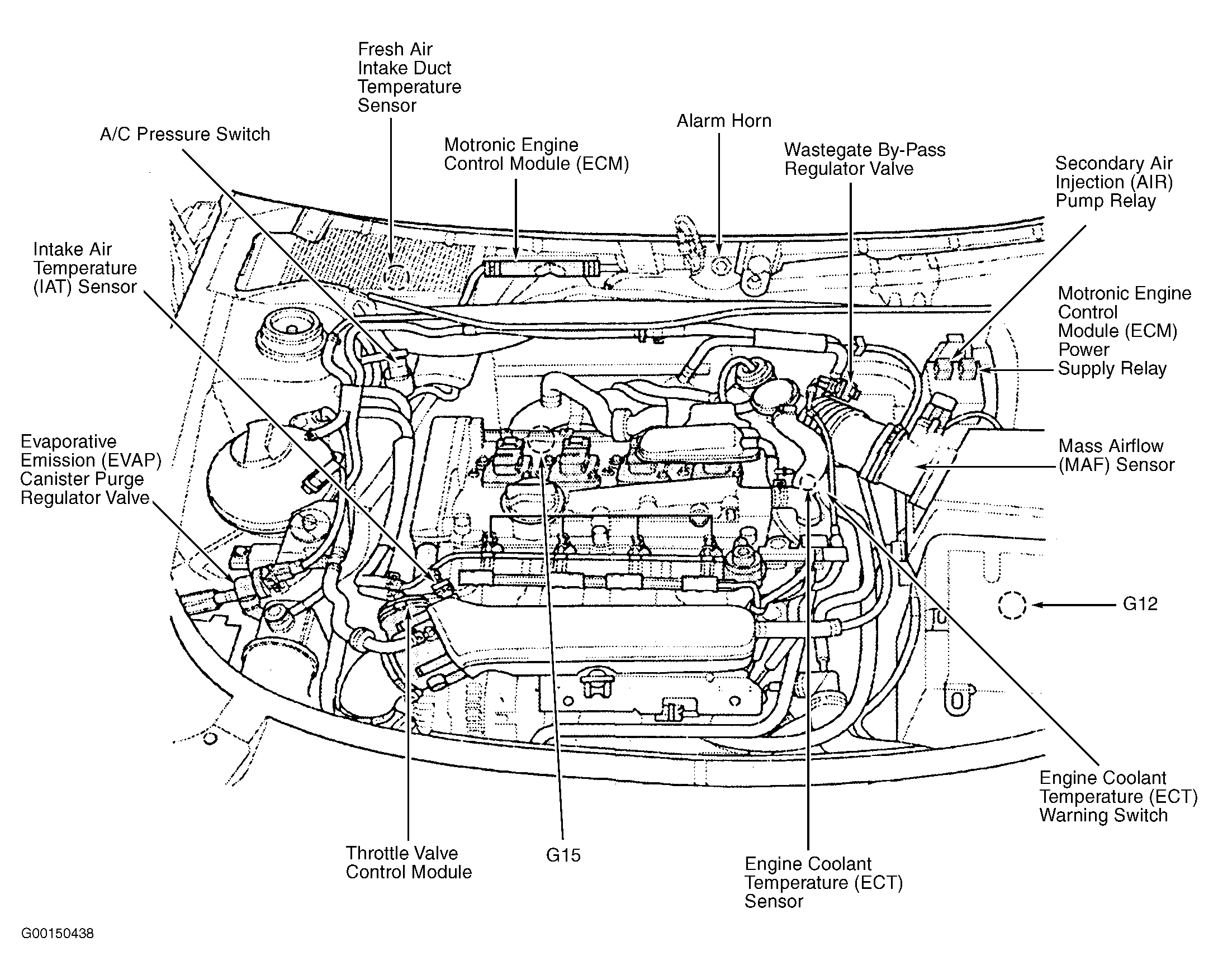

| Lamp Control Module (2) | On 13-fold relay panel. See Figure. |
| Motronic Engine Control Module (ECM) | In center of plenum, between firewall and windshield base. See Figure. |
| Operating Electronics & Telephone Control Module (Coupe) | Below left rear seat area. |
| Operating Electronics & Telephone Control Module (Roadster) | Behind subwoofer, on rear compartment wall. |
| Power Window Control Module (Left/Right) | In respective door, integral with power window motor unit. |
| Throttle Valve Control Module | On throttle body, on left front of engine. See Figure. |
| Wind Deflector Control Module (Roadster) | On 13-fold relay panel. See Figure. |
