Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

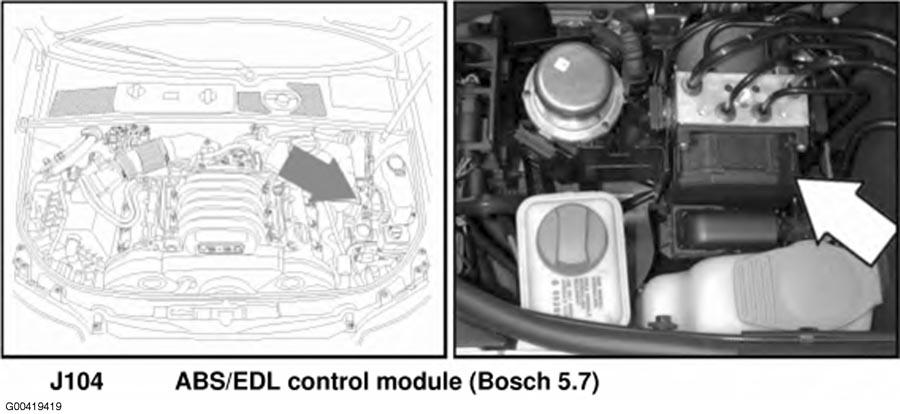

| ABS/EDL Control Module | At left side of engine compartment. See Figure . |

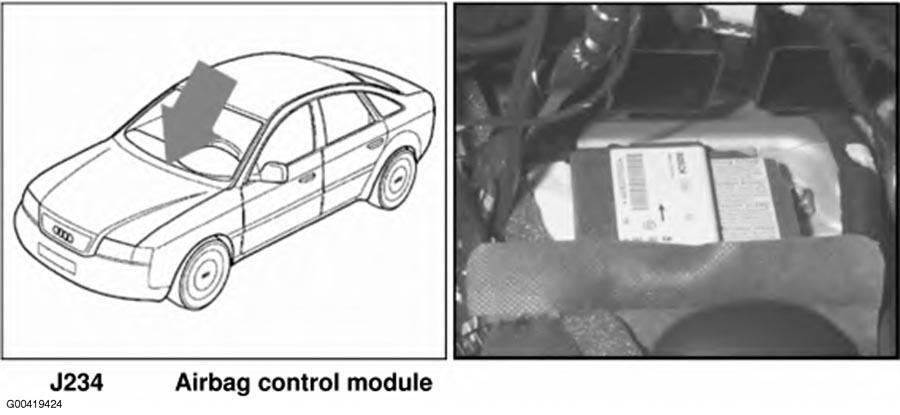

| Air Bag Control Module | Below center of dash, on transmission tunnel. See Figure . |

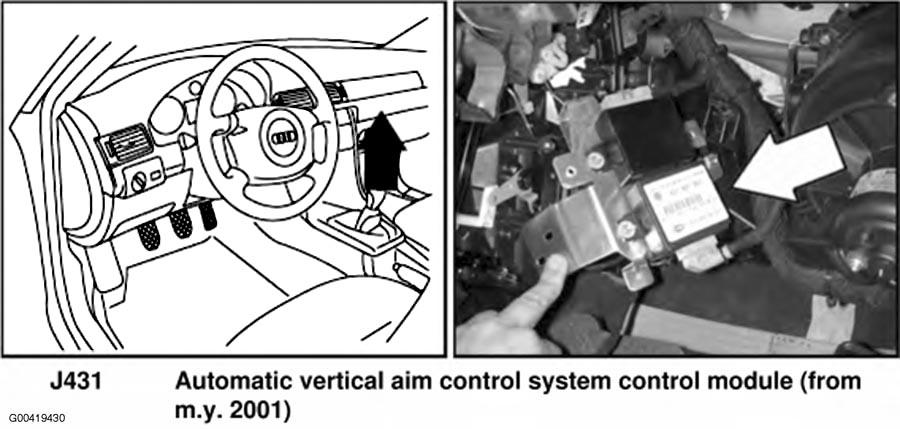

| Automatic Vertical Aim Control System Control Module | Behind right side of dash. See Figure . |

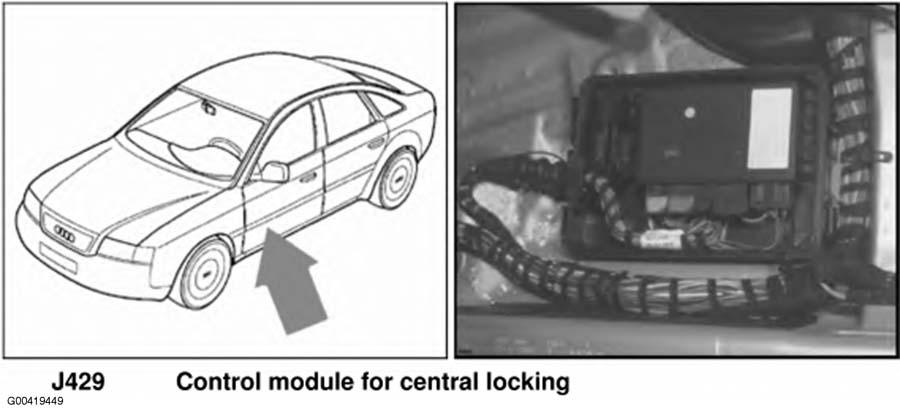

| Central Locking Control Module | Under driver's seat. See Figure . |

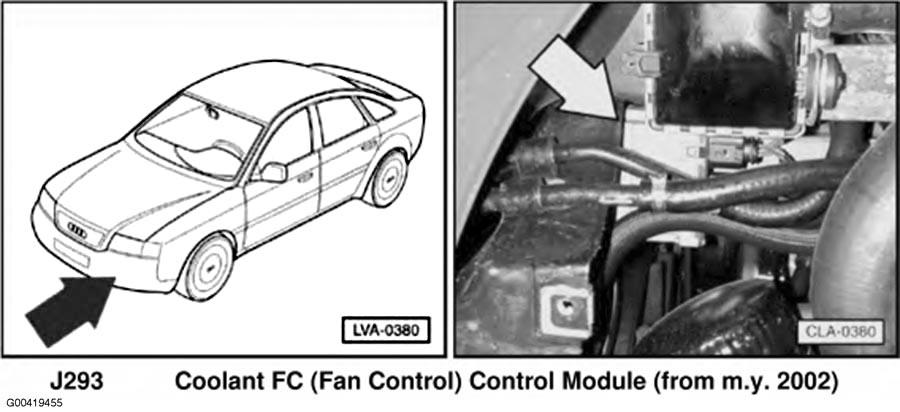

| Coolant Fan Control (FC) Control Module | Front of engine compartment. See Figure . |

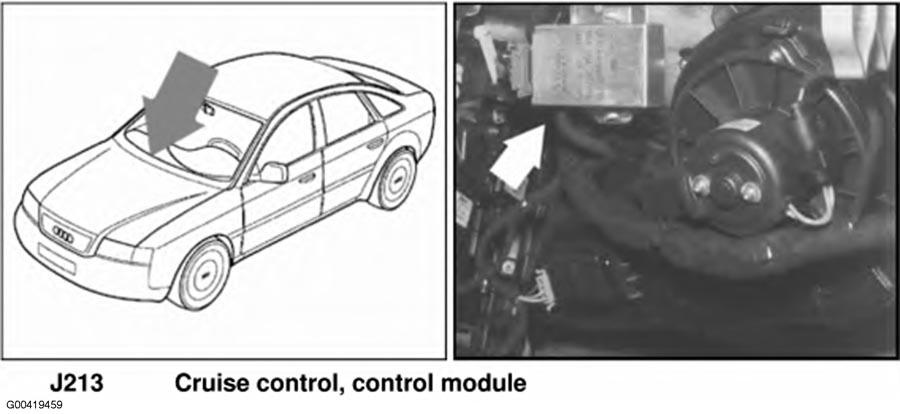

| Cruise Control Control Module | Behind right side of dash. See Figure . |

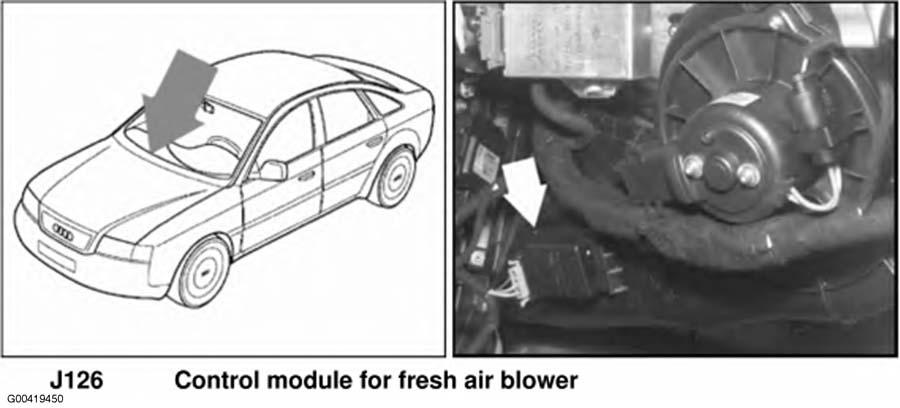

| Fresh Air Blower Control Module | On evaporator housing next to fresh air blower motor. See Figure . |

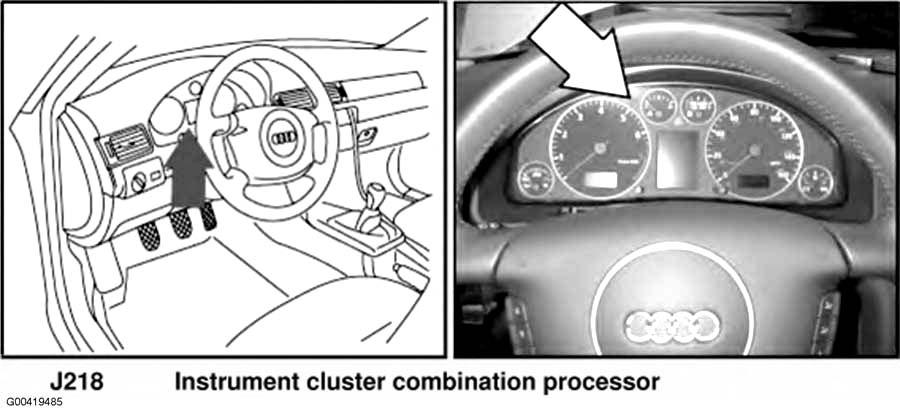

| Instrument Cluster Combination Processor | Part of instrument cluster. See Figure . |

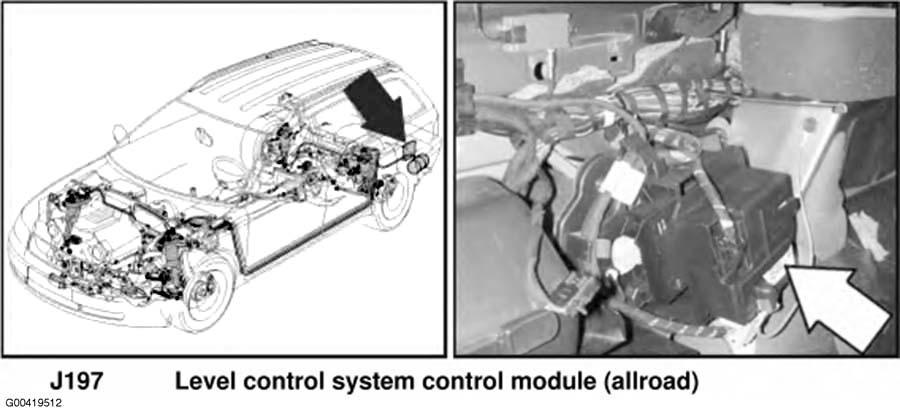

| Level Control System Control Module | Under rear of vehicle. See Figure . |

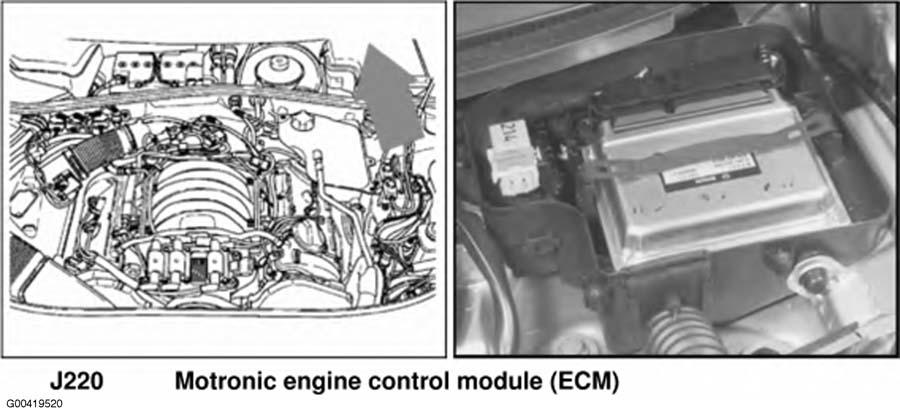

| Mototronic Engine Control Module (ECM) | Left rear of engine compartment, in plenum chamber. See Figure . |

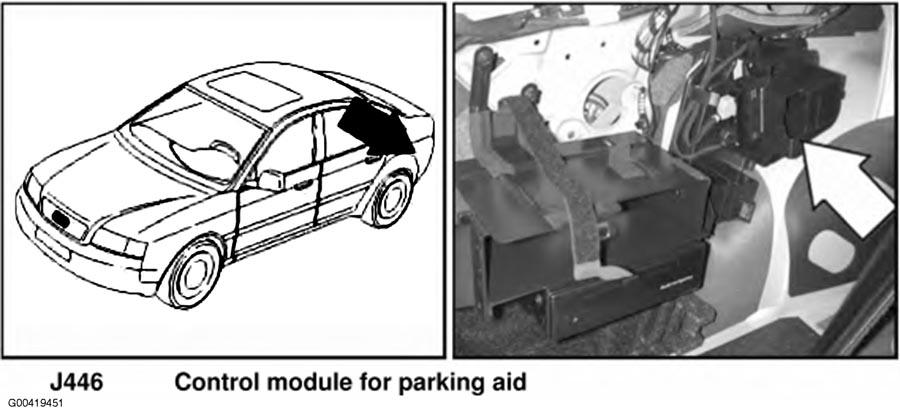

| Parking Aid Control Module | Left side of luggage compartment. See Figure . |
| Power Window Control Module (Driver's) | In driver's door. See Figure . |

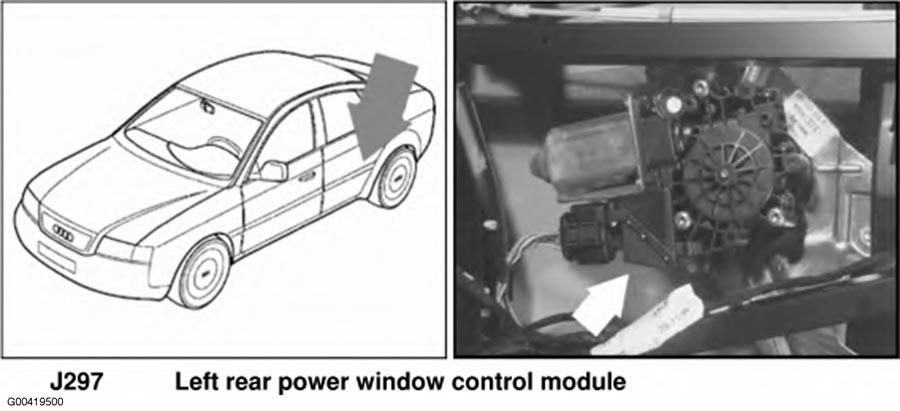

| Power Window Control Module (Left Rear) | In left rear door. See Figure . |

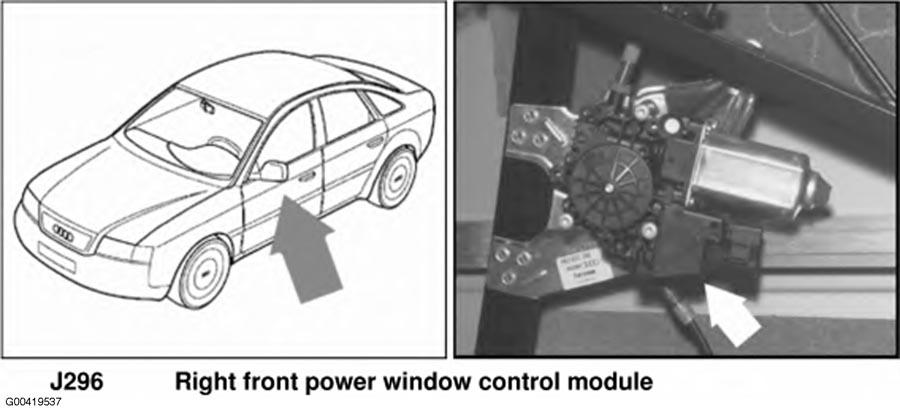

| Power Window Control Module (Right Front) | In right front door. See Figure . |

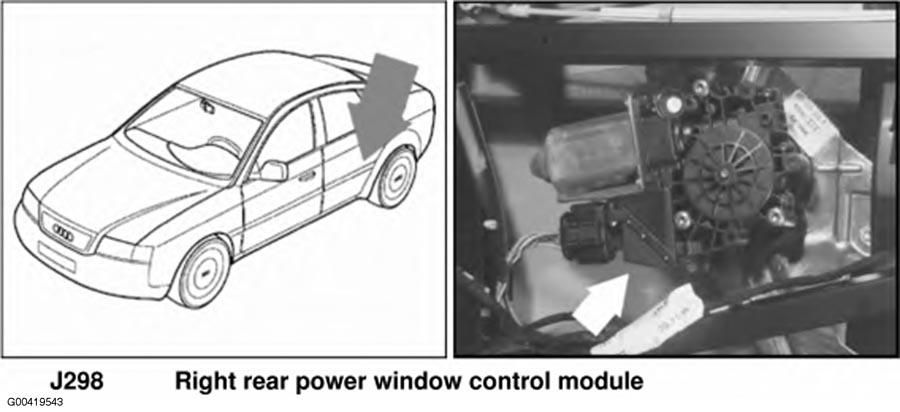

| Power Window Control Module (Right Rear) | In right rear door. See Figure . |

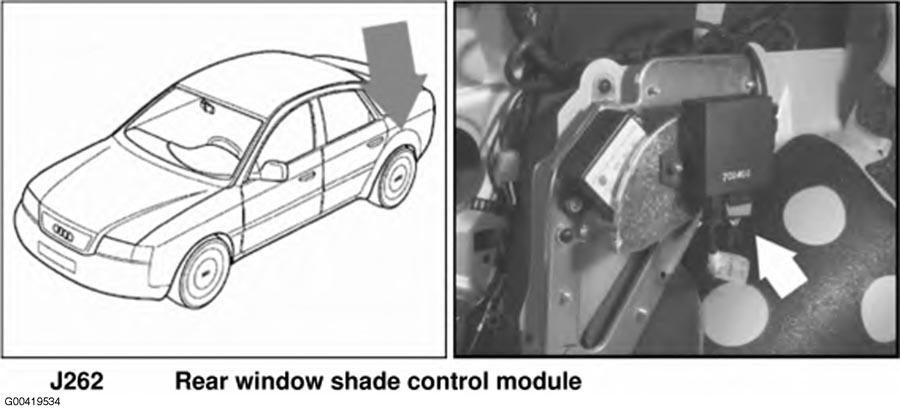

| Rear Window Shade Control Module | Left rear of vehicle. See Figure . |

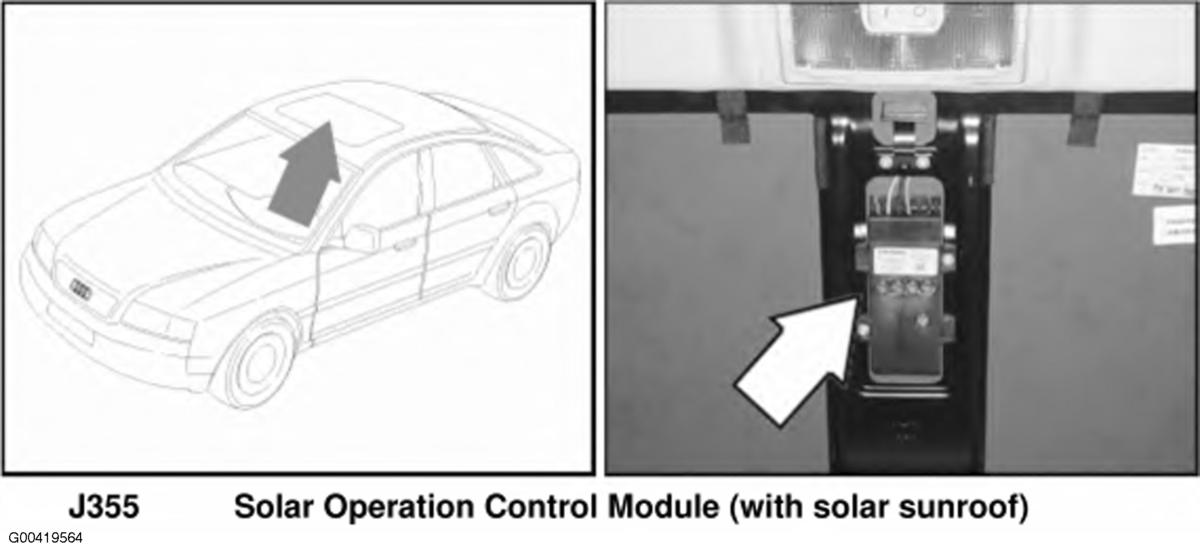

| Solar Operation Control Module | On underside of solar roof. See Figure . |

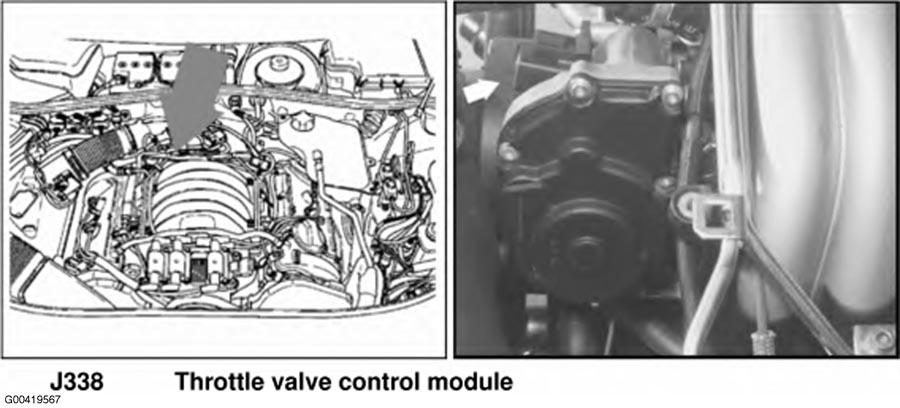

| Throttle Valve Control Module | At rear of engine. See Figure . |

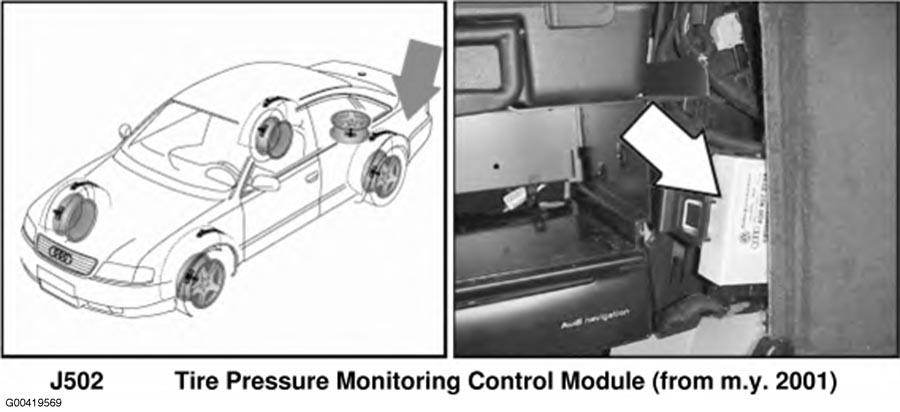

| Tire Pressure Monitoring Control Module | Left side of trunk. See Figure . |

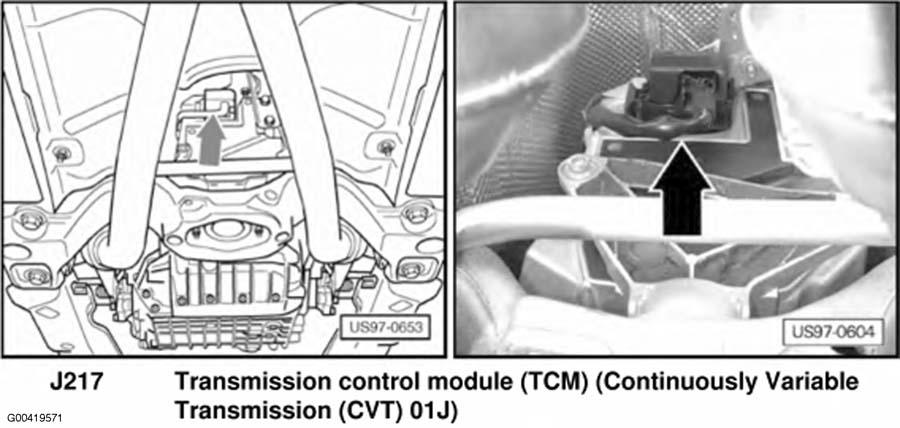

| Transmission Control Module (TCM) (CVT) | On transmission. See Figure . |

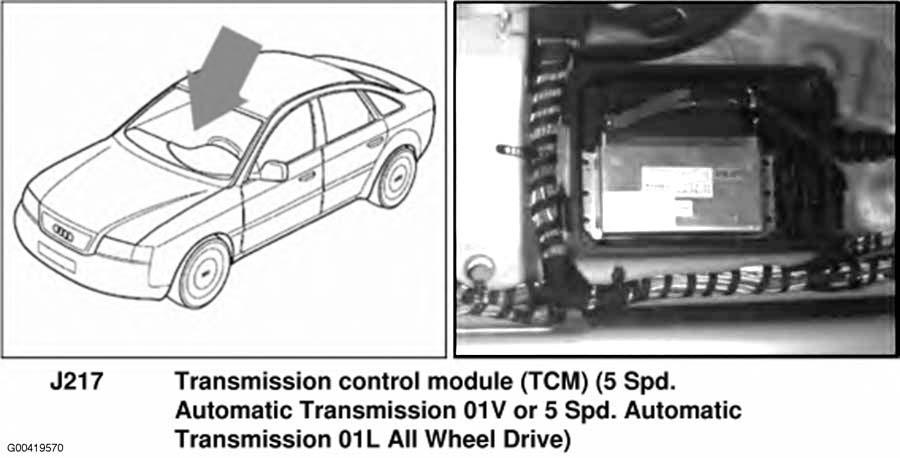

| Transmission Control Module (TCM) (Except CVT) | Under passenger's seat. See Figure . |

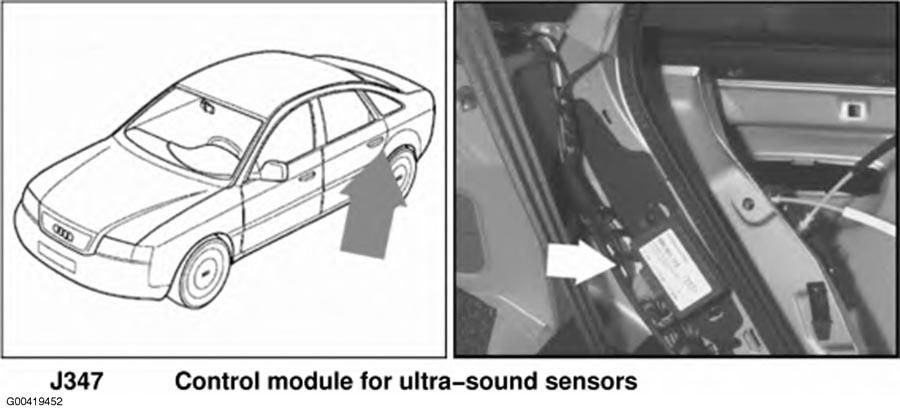

| Ultra-Sound Sensors Control Module | Near left "C" pillar. See Figure . |
