Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Module | At right rear of engine compartment. See Figure. |

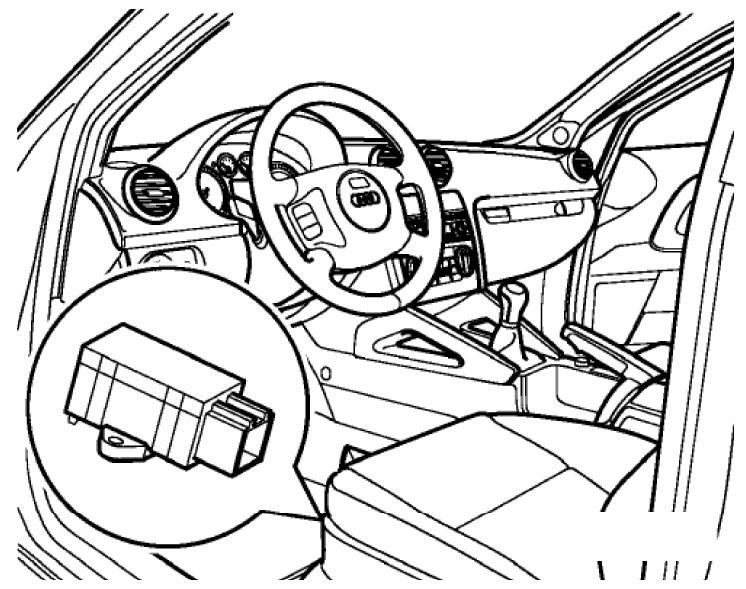

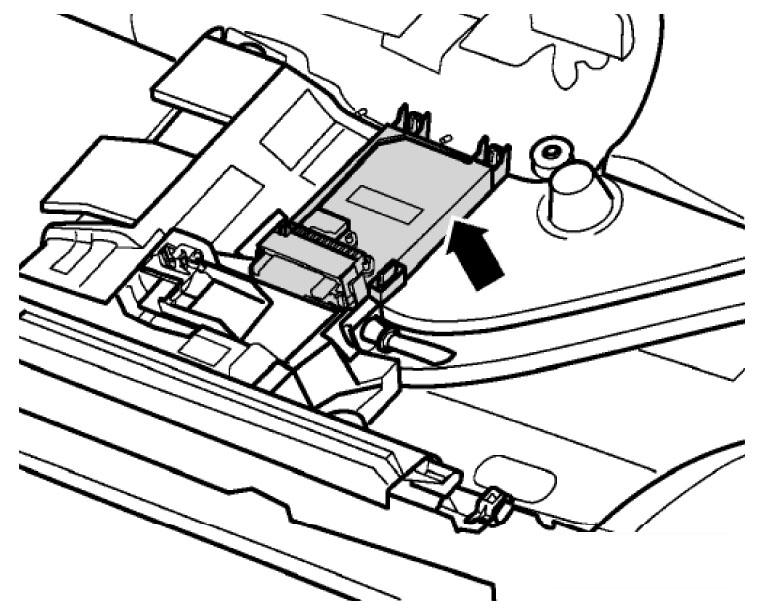

| Airbag Control Module | Under front of center console. See Figure. |
| All-Wheel Drive Control Module (A) | Left front of rear axle differential. See Figure. |
| Automatic Glow Time Control Module | On relay carrier under engine compartment E-box. |
| Comfort System Central Control Module (C) | Right side of luggage compartment. See Figure. |
| Coolant Fan Control (FC) Control Module (1) | Front of engine compartment. See Figure. |
| Direct Shift Gearbox (DSG) Mechatronic | On transmission housing. See Figure. |
| Door Control Module (Driver's) | Integrated in driver's door window regulator motor. See Figure. |
| Door Control Module (Front Passenger's) | Integrated in right front door window regulator motor. See Figure. |
| Door Control Module (Left/Right Rear) | Integrated in respective rear door window regulator motor. See Figure. |
| Driver's Seat Heater Control Module | Under driver's seat. See Figure. |
| Electronic Damping Control Module | Under front passenger's seat. See Figure. |

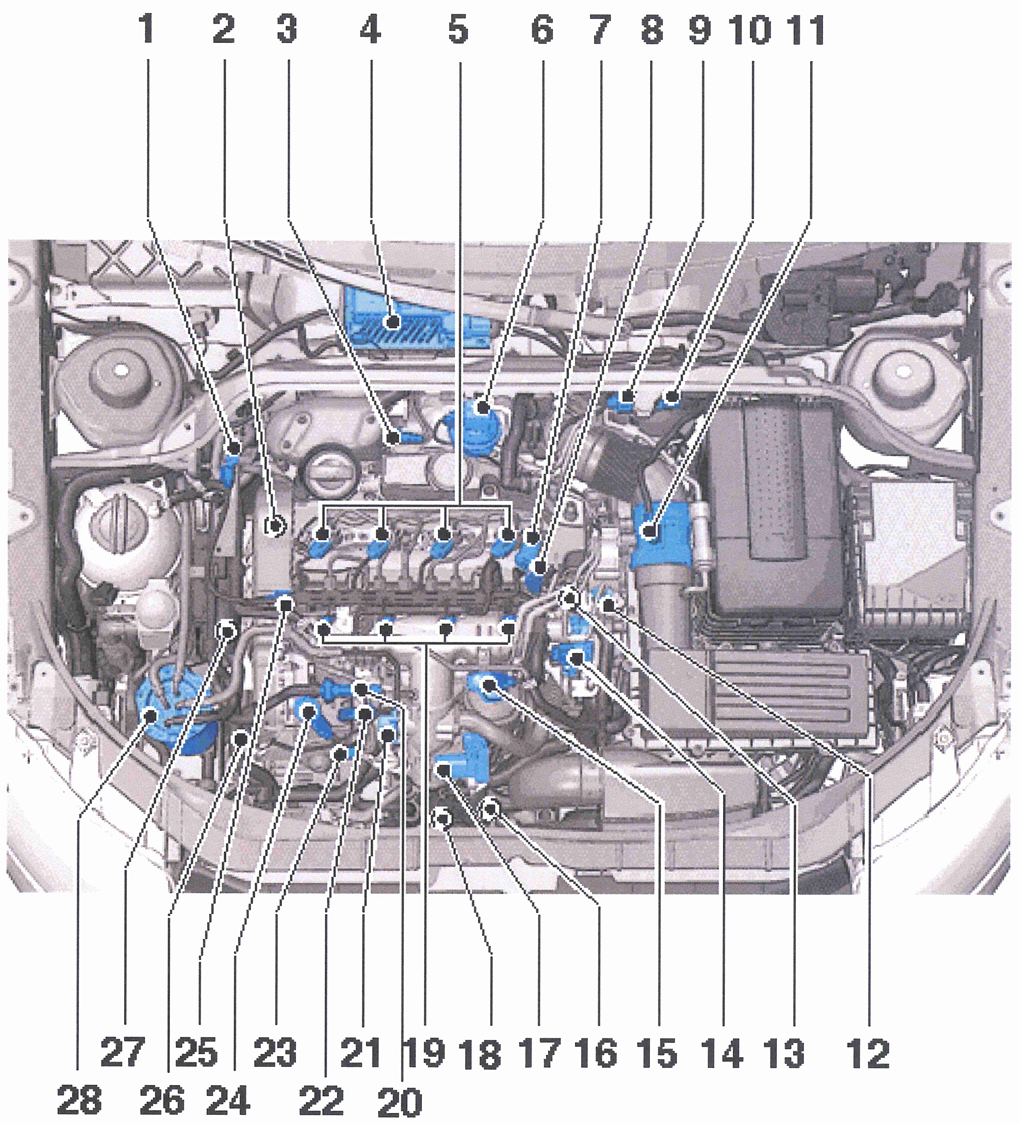

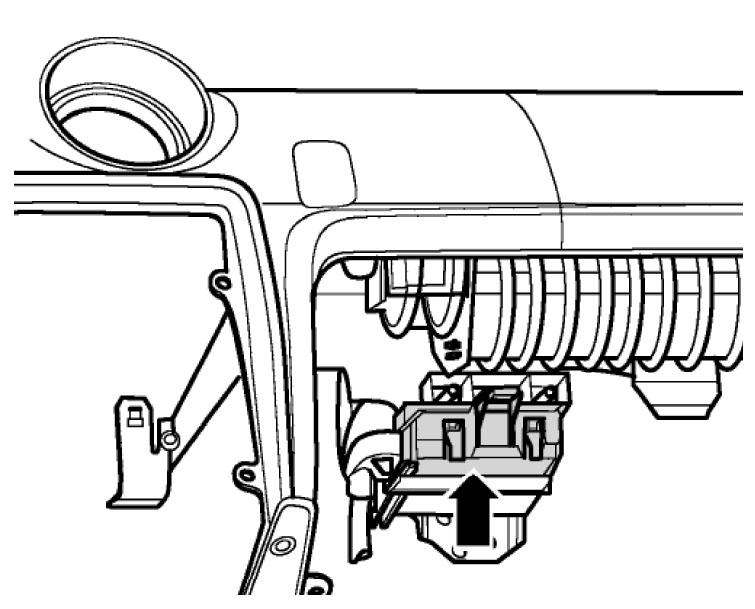

| Engine Control Module (4) | Rear of engine compartment. See Figure. |
| Fresh Air Blower Control Module (D) | Below right side of dash. See Figure. |
| Fuel Pump (FP) Control Module | Under right side of rear seat. See Figure. |
| Garage Door Opener Control Module (1) | Under front bumper. See Figure. |
| Headlight Range Control Module | Behind right center of dash. See Figure. |
| High Intensity Gas Discharge Light Control Module (Left/Right) | Behind respective headlight assembly. See Figure. |
| Instrument Cluster Control Module | Behind instrument cluster. See Figure. |
| Left Antenna Module | Left side of luggage compartment lid. See Figure. |
| Motronic Engine Control Module (ECM) | In center of plenum chamber. See Figure. |
| Multi-Function Steering Wheel Control Module | In steering wheel. |
| Navigation System W/CD Drive Control Module | Left side of luggage compartment. |
| NOX Sensor Control Module | Under vehicle, near NOX-catalyzer. |
| Parking Aid Control Module | Right side of luggage compartment. |
| Power Steering Control Module | Below steering rack. See Figure. |
| Power Sunroof Control Module | Front center of roof. See Figure. |
| Seat Heater Control Module (Driver/Front Passenger) | Under respective front seat. See Figure. |
| Seat Occupied Recognition Control Module | On base of front passenger's seat. See Figure. |
| Selector Lever Sensor System Control Module | Left side of selector lever base. See Figure. |
| Steering Column Electronic Systems Control Module | Under steering column. See Figure. |
| Throttle Valve Control Module (Diesel) (17) | On throttle body. See Figure. |
| Throttle Valve Control Module (Gas) | On throttle body. See Figure. |
| Tire Pressure Monitoring Control Module | Behind glove compartment. See Figure. |
| Towing Recognition Control Module | Right side of luggage compartment. |
| Vehicle Electrical System Control Module | Below left side of dash. See Figure. |
| Wiper Motor Control Module | Integral to windshield wiper motor. See Figure. |
