Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

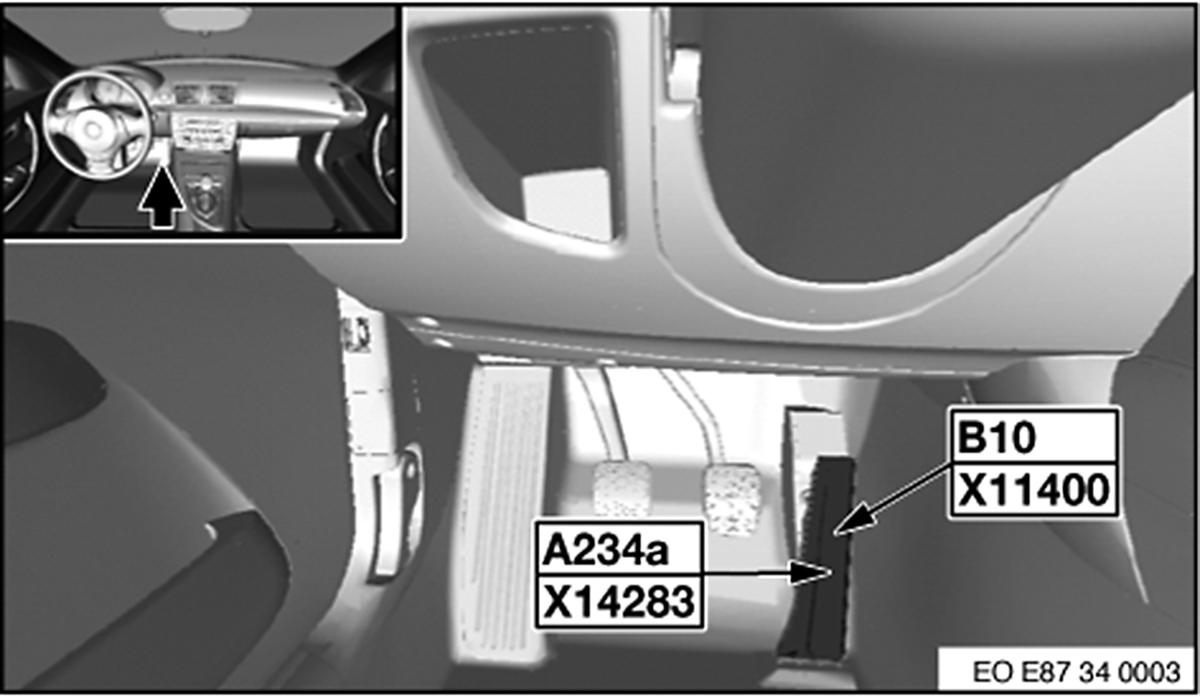

| Accelerator Pedal Module (A234a) | On accelerator pedal bracket. See Figure. |

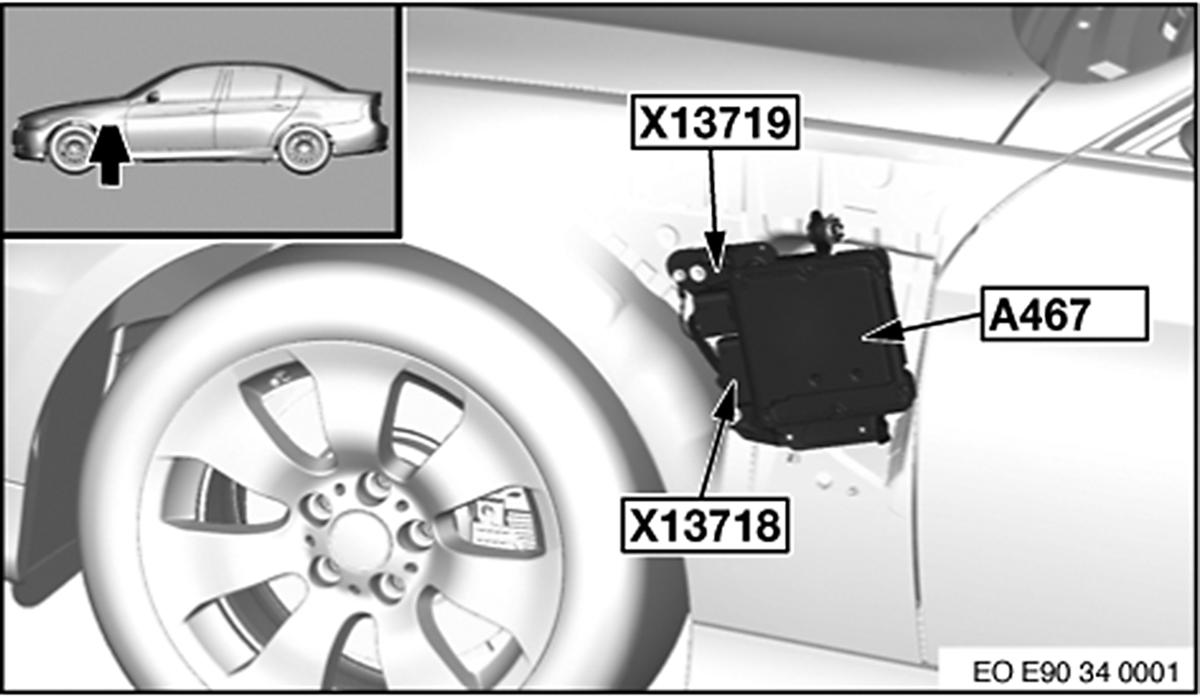

| Active Steering (A467) | Behind left front wheelwell. See Figure. |

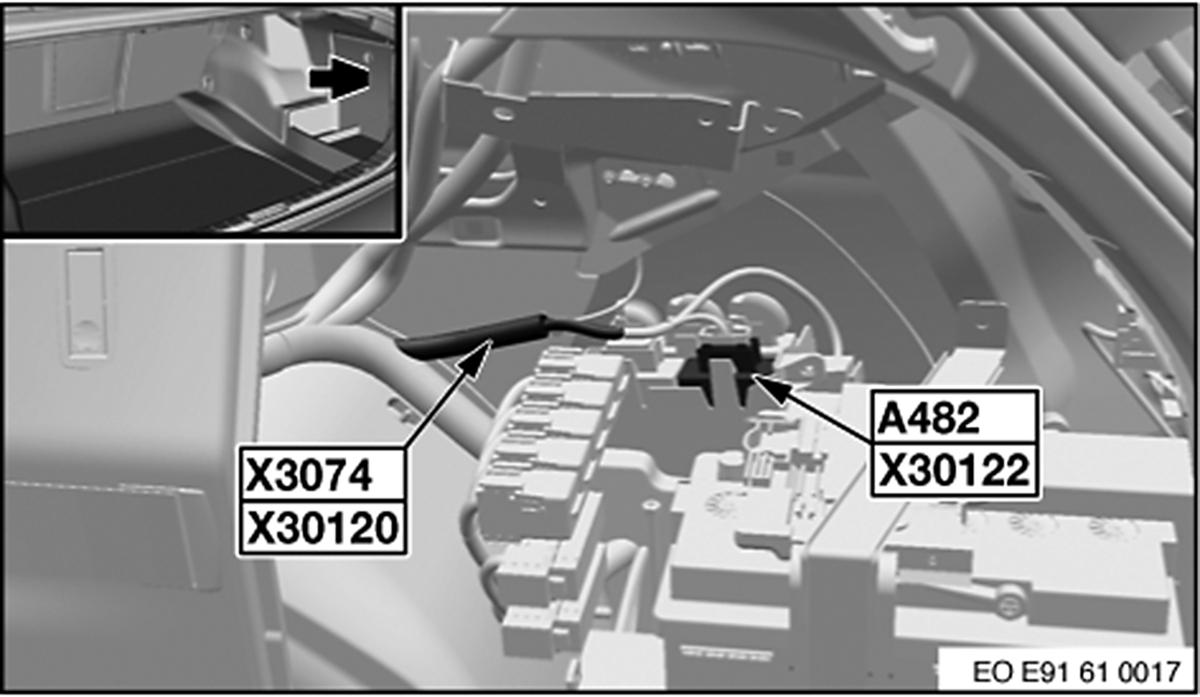

| Basic Deployment Control Module (A482) | Right rear of luggage compartment. See Figure. |

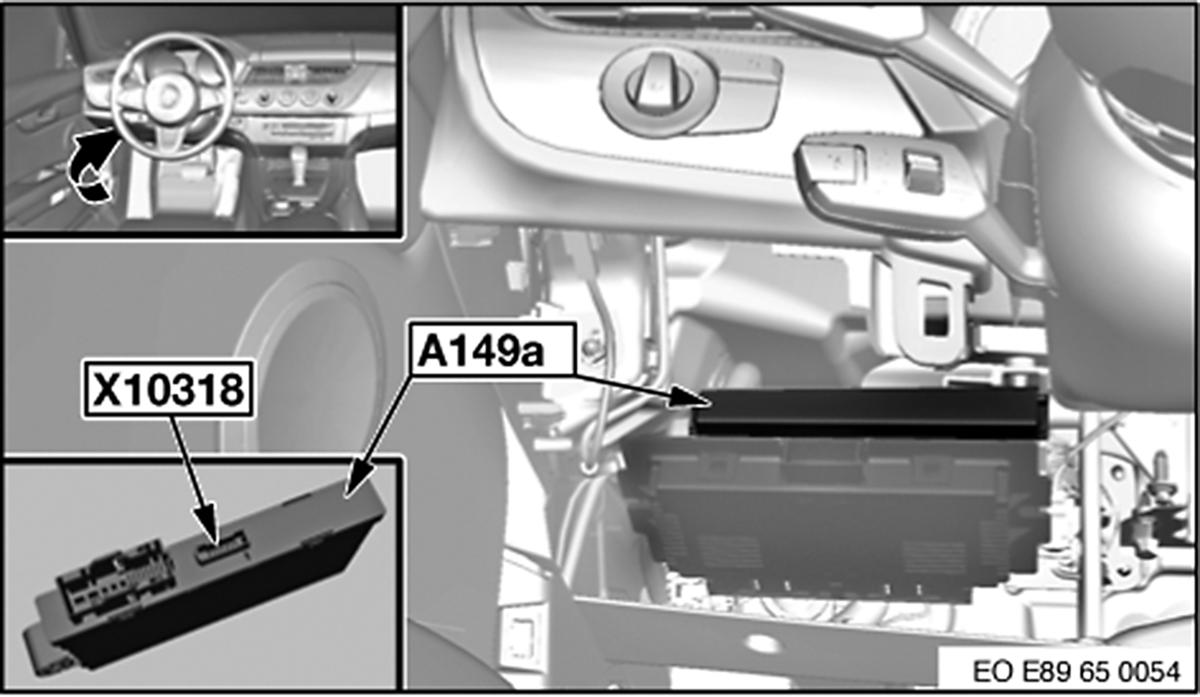

| Car Access System (A149a) | Under left side of dash. See Figure. |

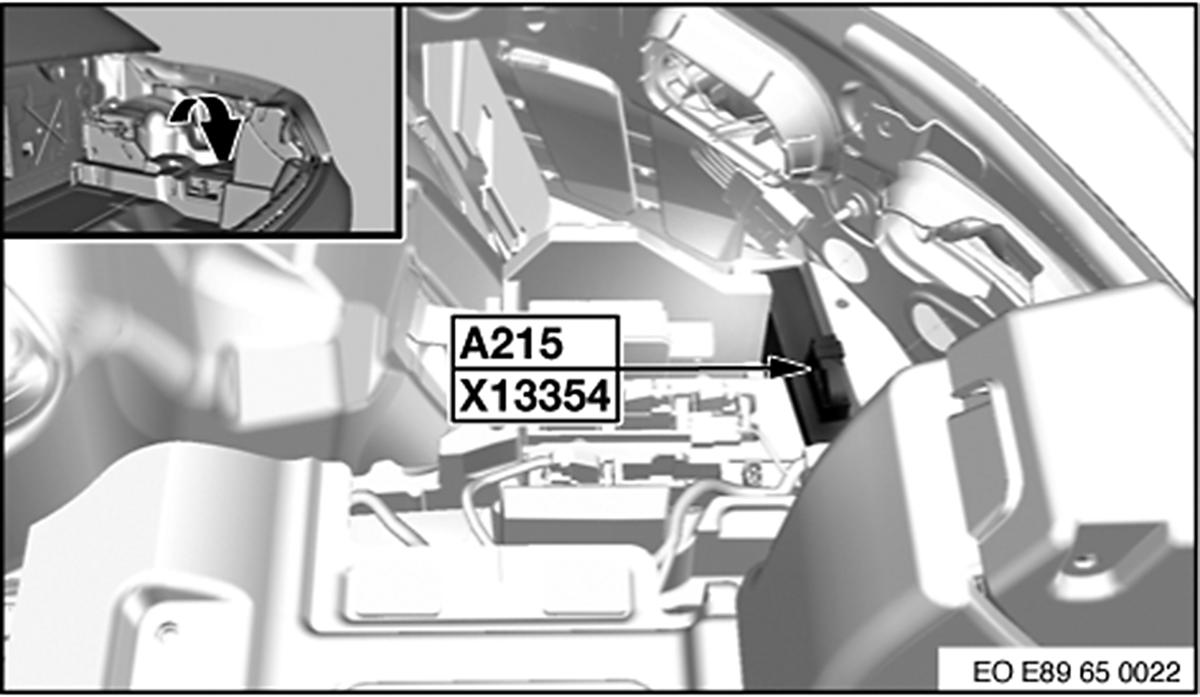

| Comfort Access Control Module (A215) | Right rear of luggage compartment. See Figure. |

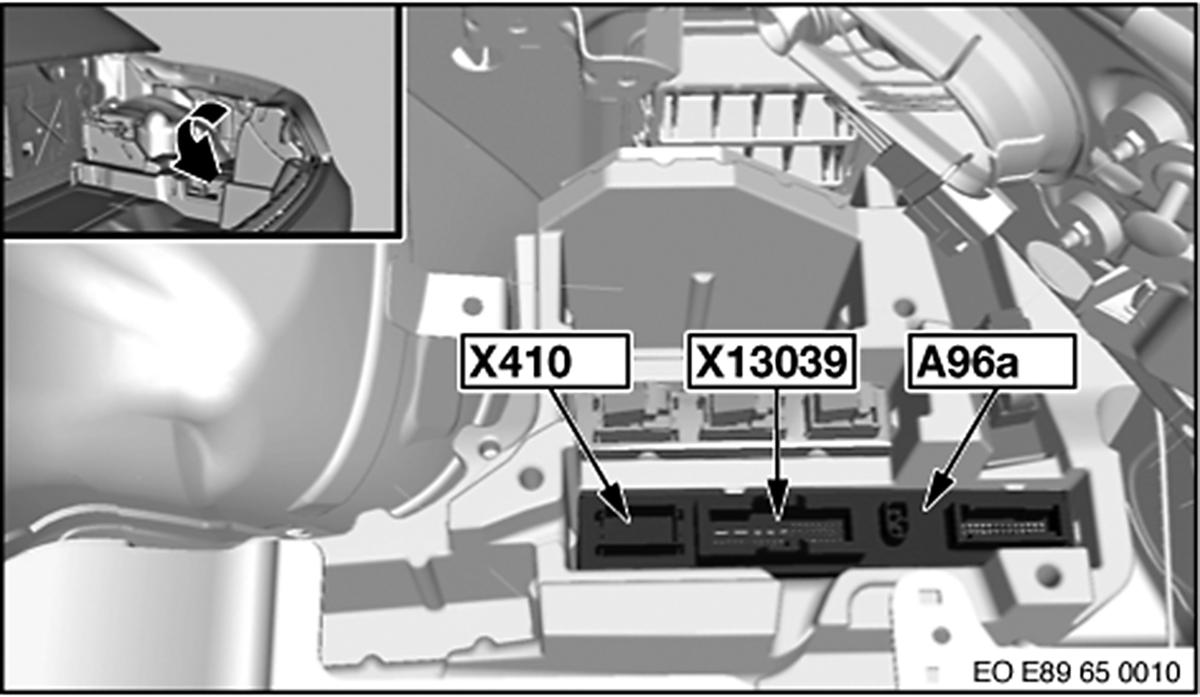

| Convertible Top Module (A96a) | Right rear of luggage compartment. See Figure. |

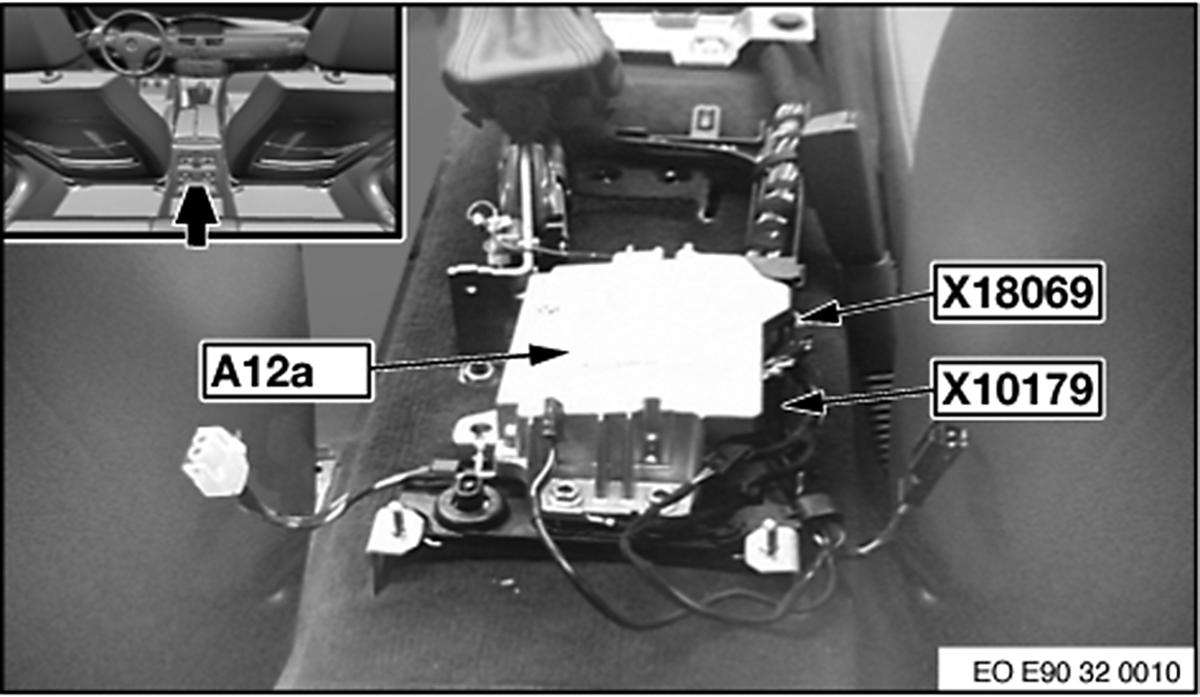

| Crash Safety Module (A12a) | Rear of center console. See Figure. |

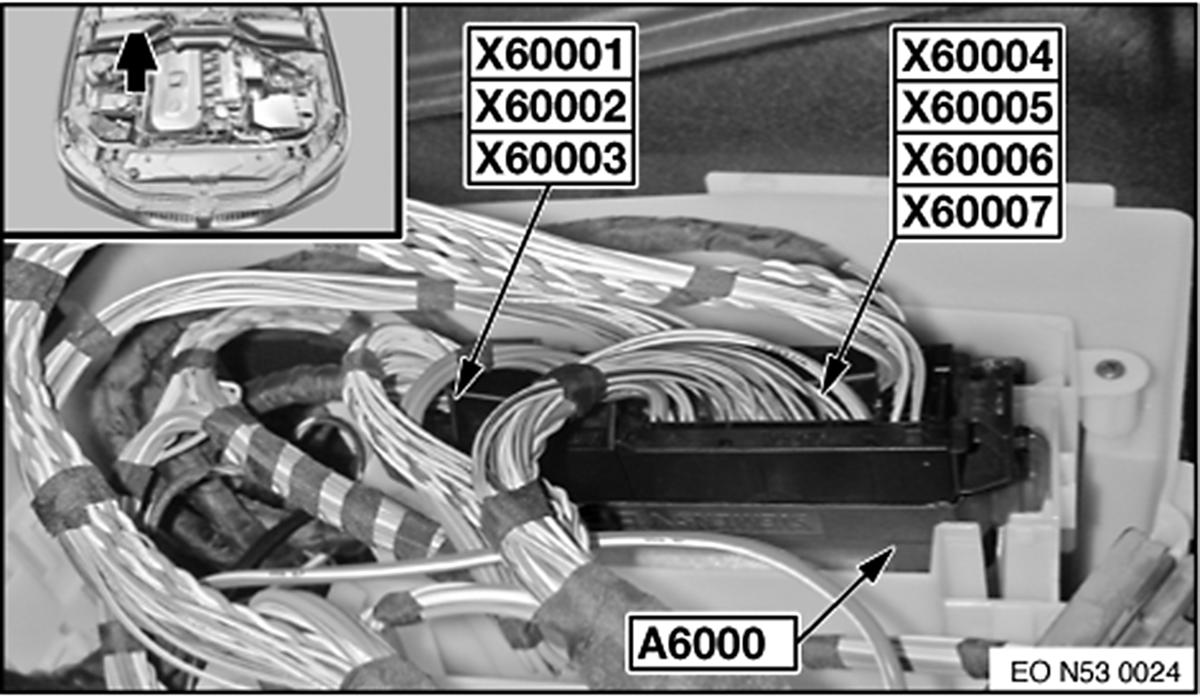

| DME Control Module (A6000) | Right rear of engine compartment. See Figure. |

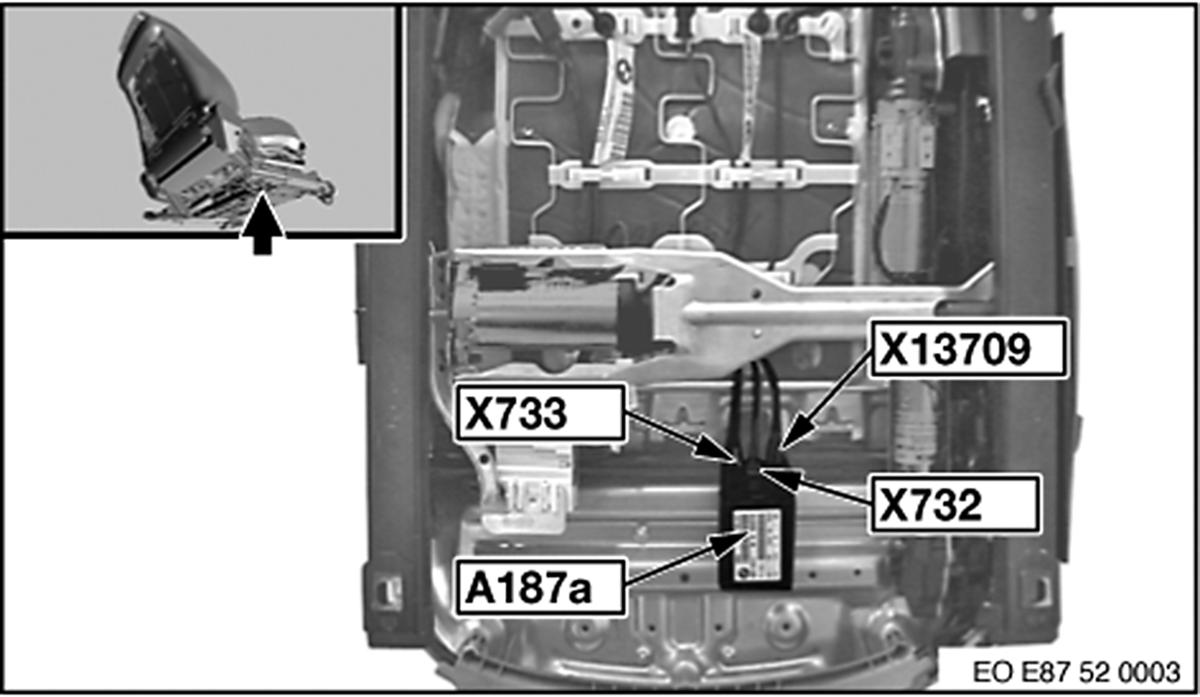

| Driver's Seat Heating Module (A187a) | Under driver's seat. See Figure. |

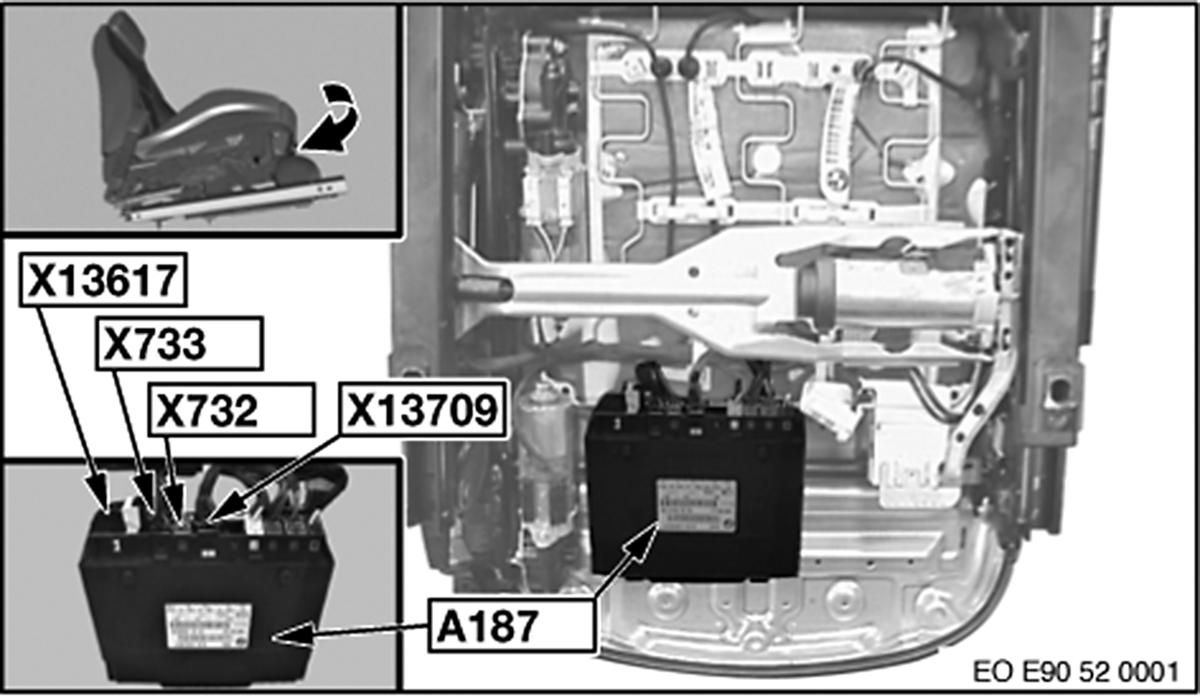

| Driver's Seat Module (A187) | Under driver's seat. See Figure. |

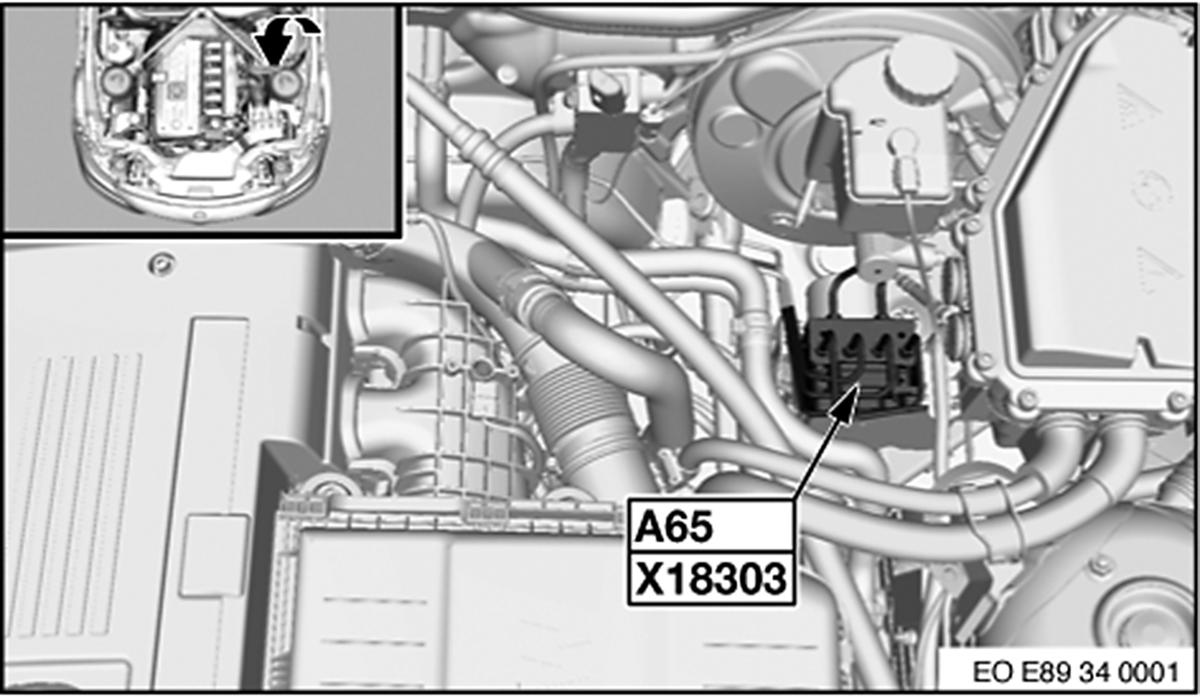

| Dynamic Stability Control (DSC) (A65) | Left side of engine compartment. See Figure. |

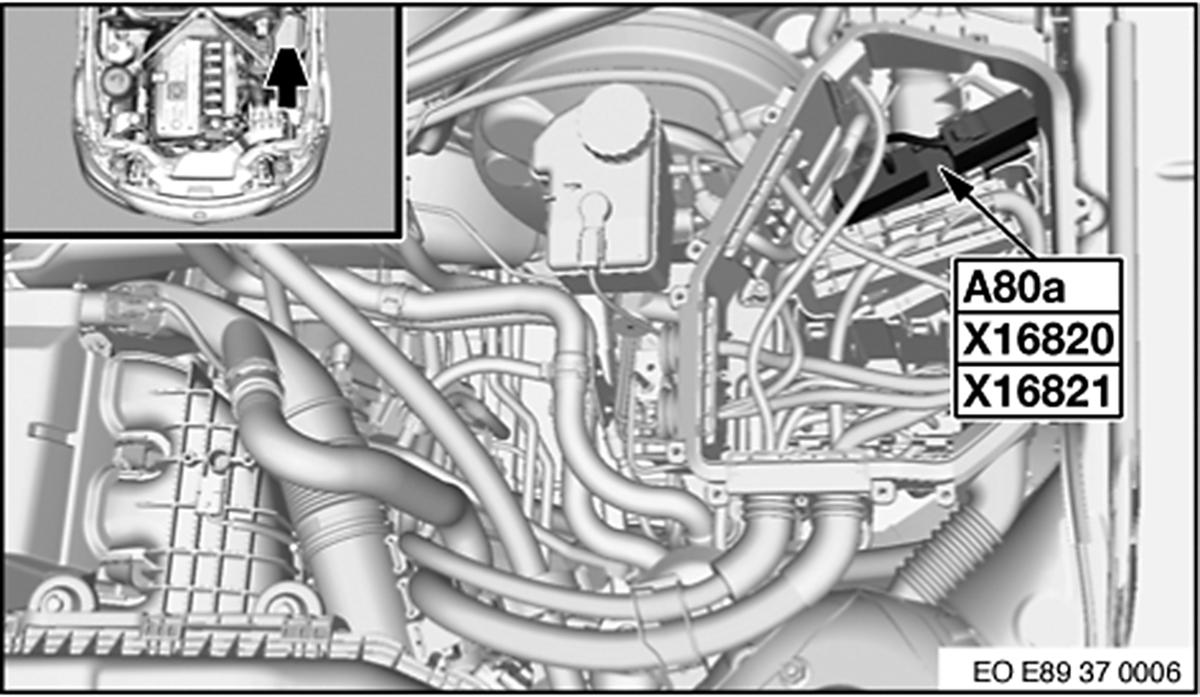

| EDC Electronic Damper Control (A80a) | Left rear of engine compartment. See Figure. |

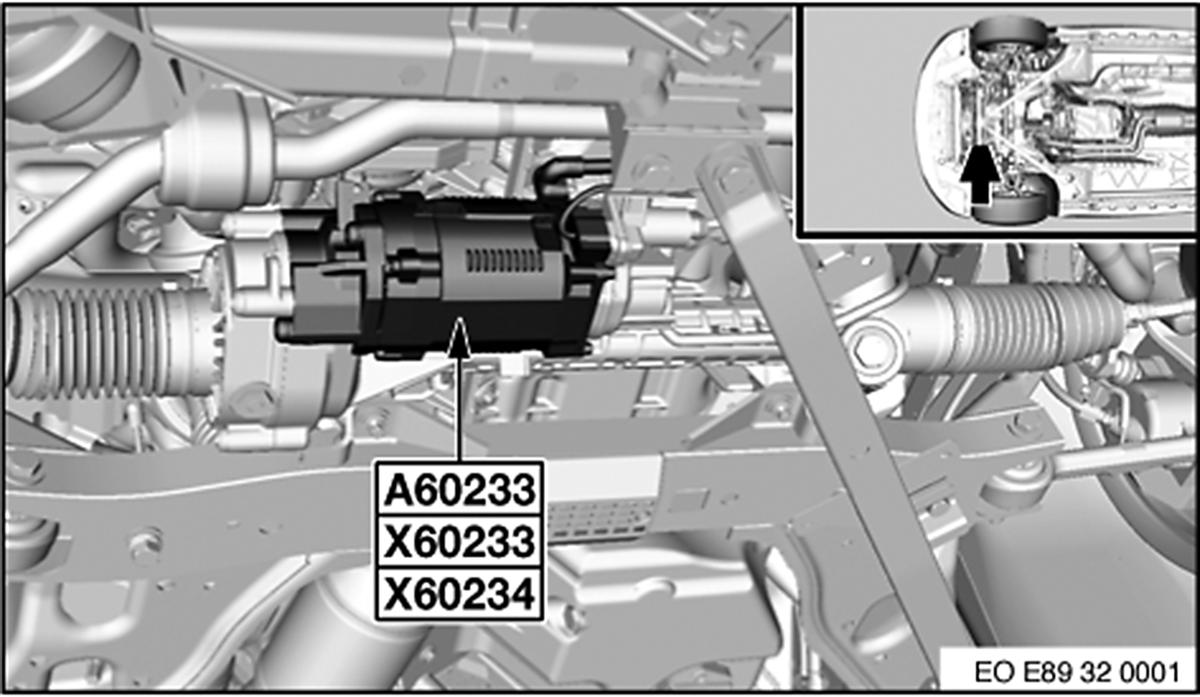

| Electronic Power Steering (EPS) (A60233) | On steering rack assembly. See Figure. |

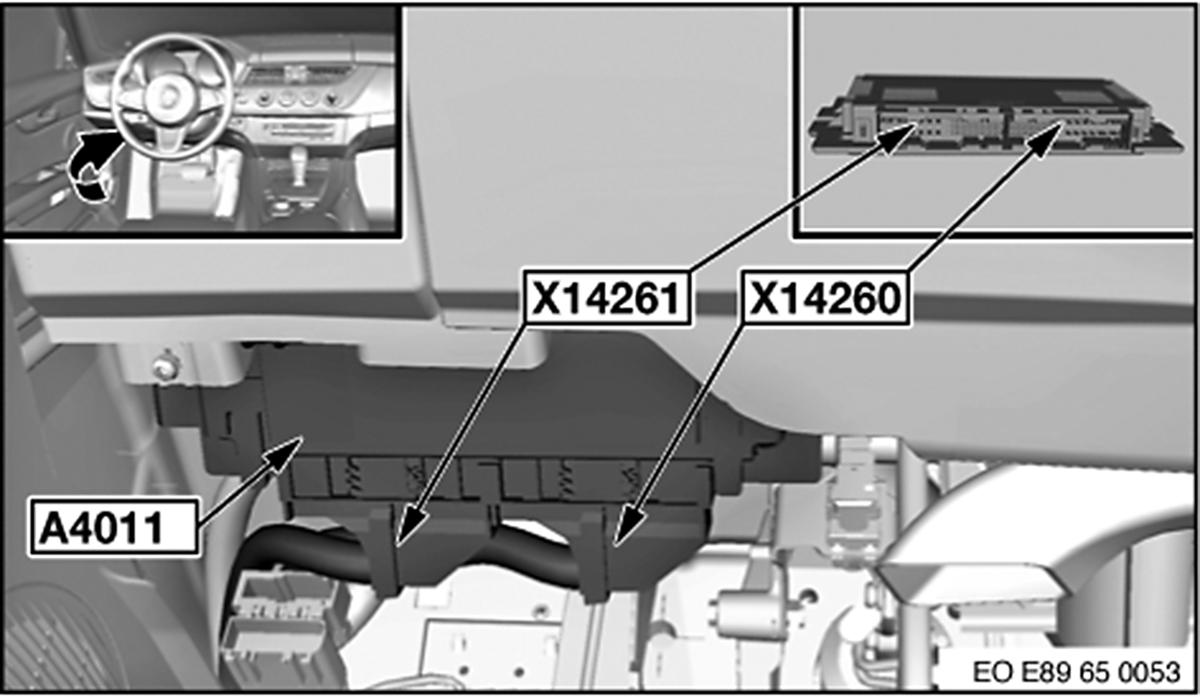

| Footwell Module (A4011) | Under left side of dash. See Figure. |

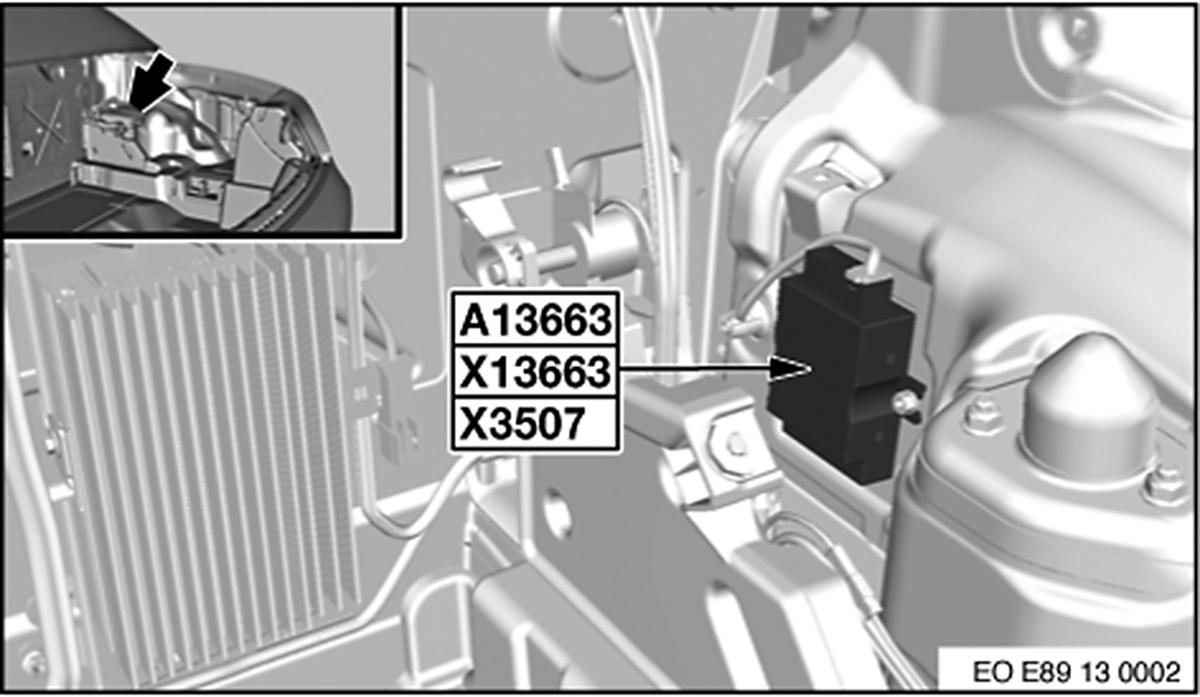

| Fuel Pump Control (EKPS) (A13663) | Right side of luggage compartment. See Figure. |

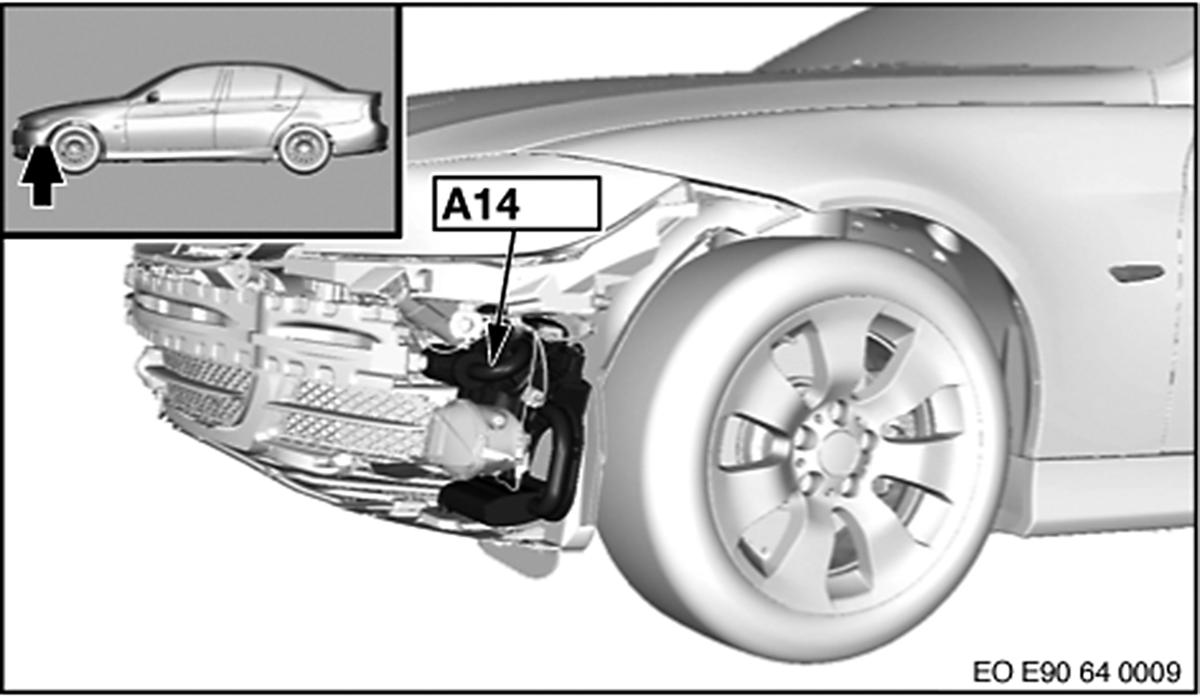

| Independent/Auxiliary Heating Control Module (A14) | Left front of engine compartment. See Figure. |

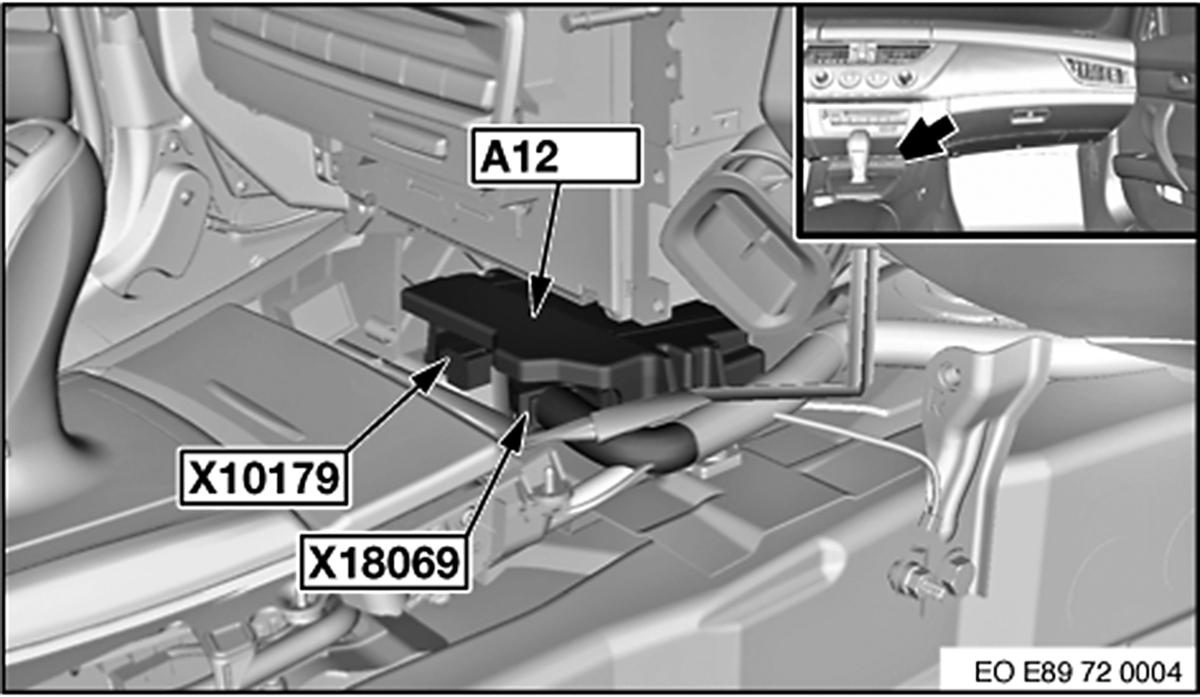

| Multiple Restraint System Control Module (A12) | Front of center console. See Figure. |

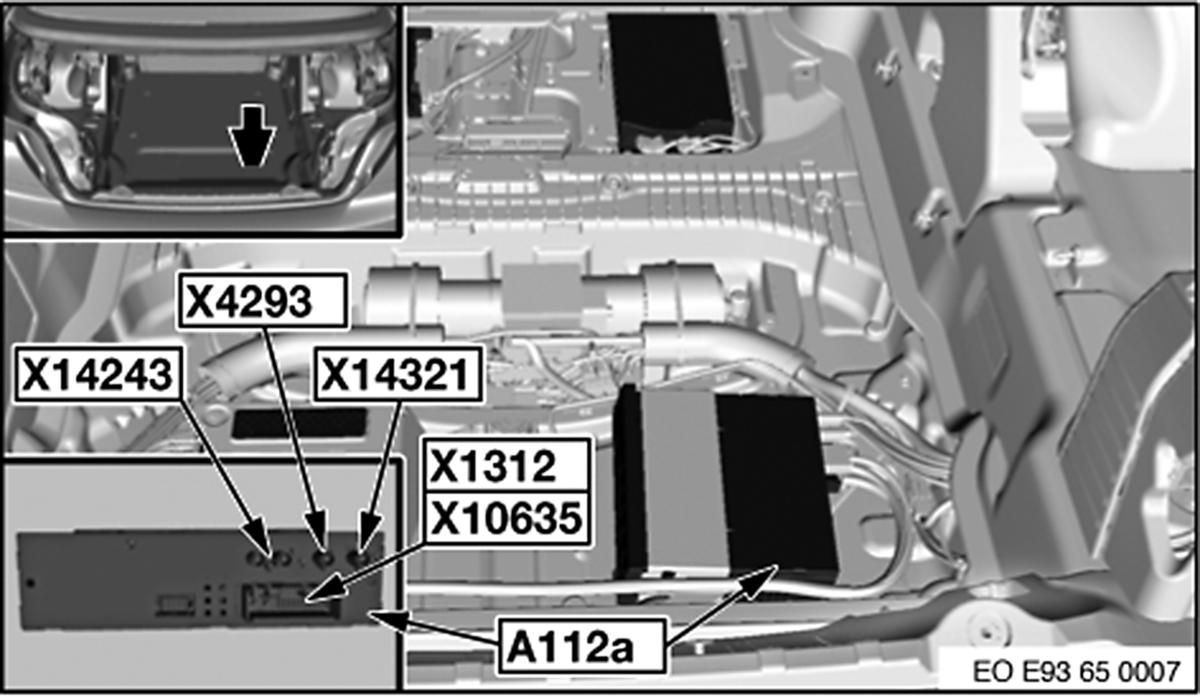

| Navigation System (A112a) | Right rear of luggage compartment. See Figure. |

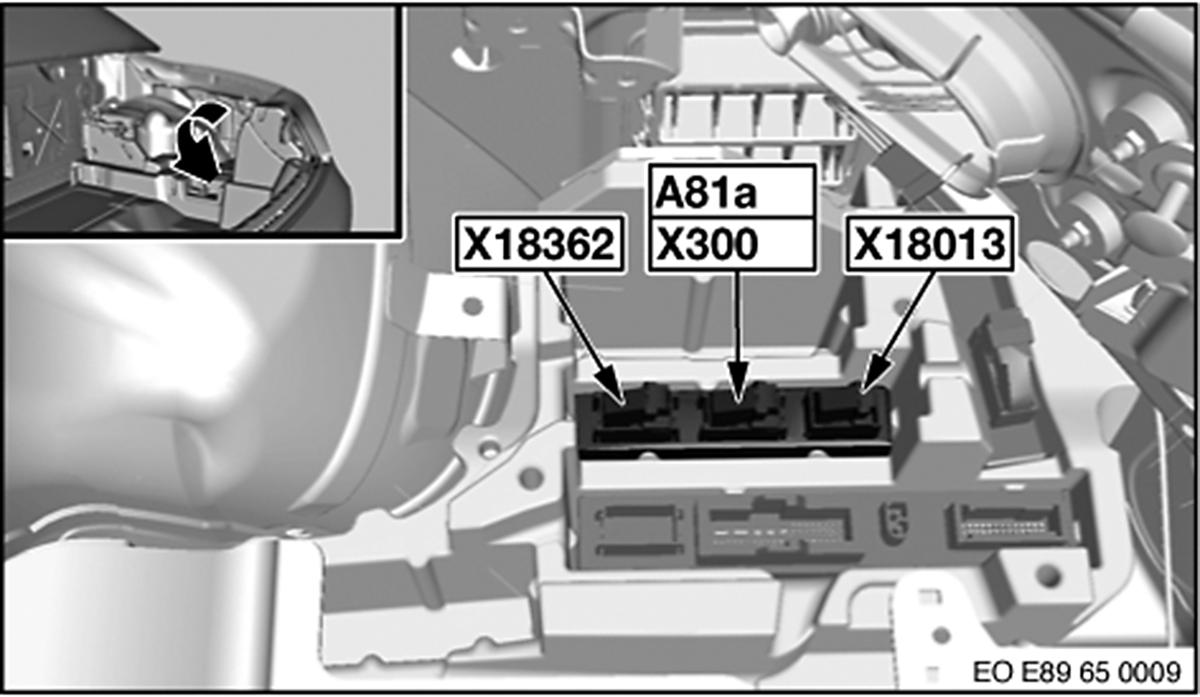

| Park Distance Control (PDC) (A81a) | Right rear of luggage compartment. See Figure. |

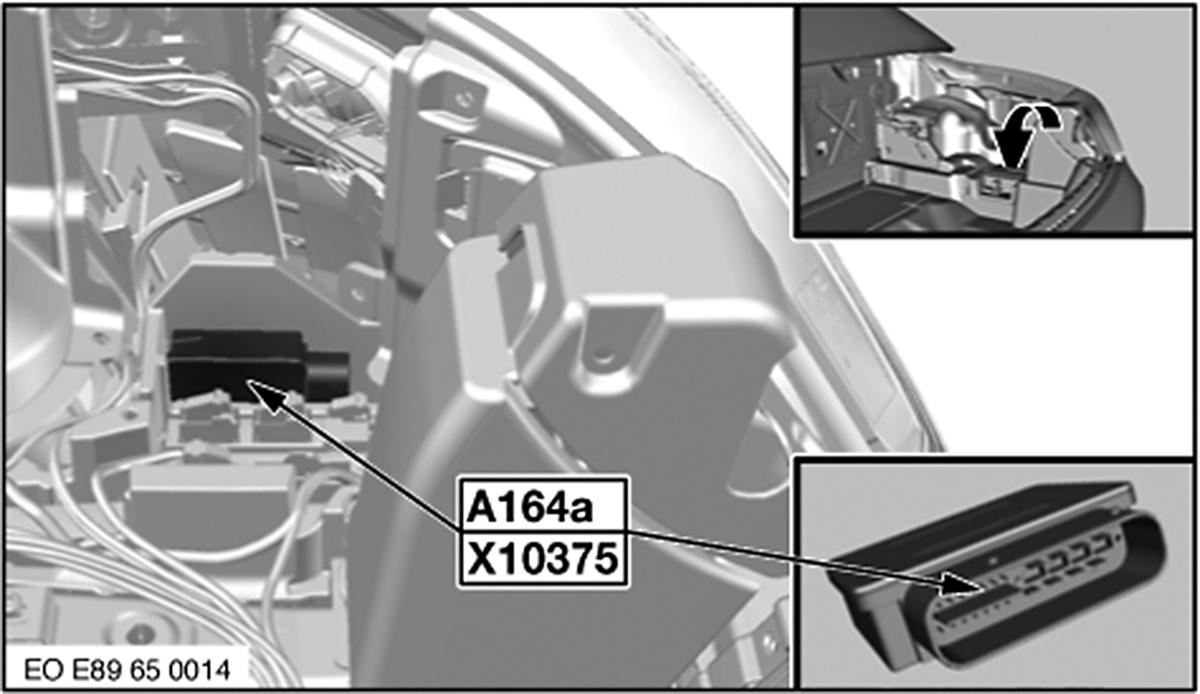

| Parking Brake Control Module (A164a) | Right rear of luggage compartment. See Figure. |

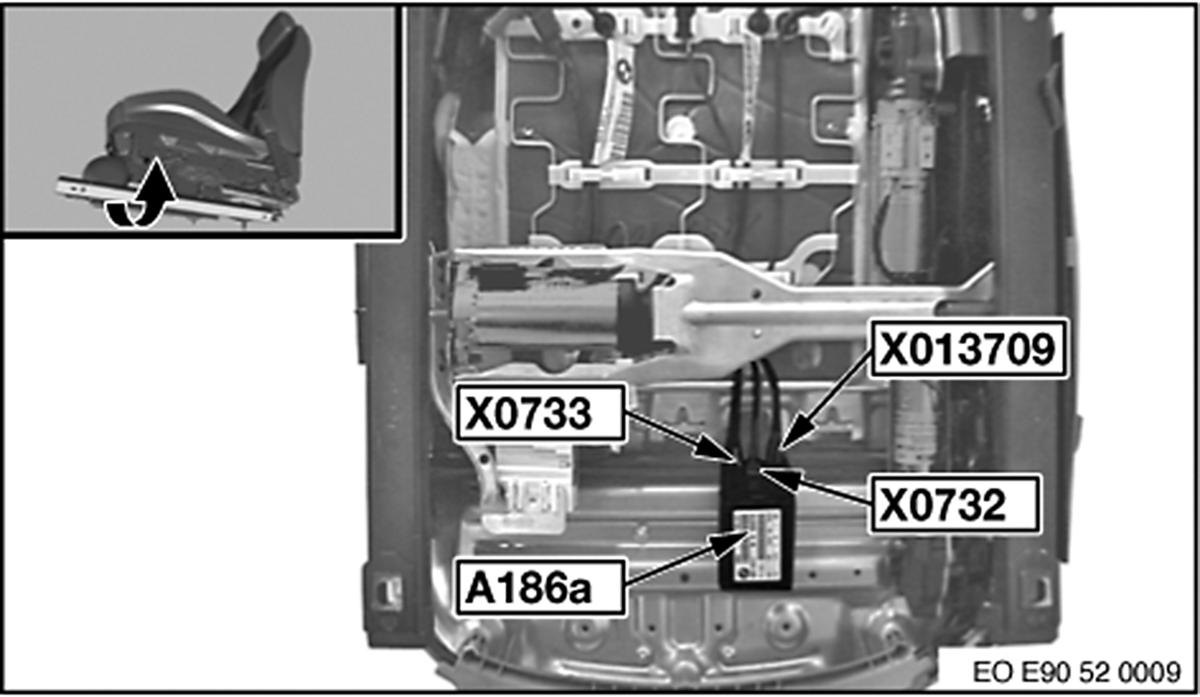

| Passenger's Seat Heating Module (A186a) | Under passenger's seat. See Figure. |

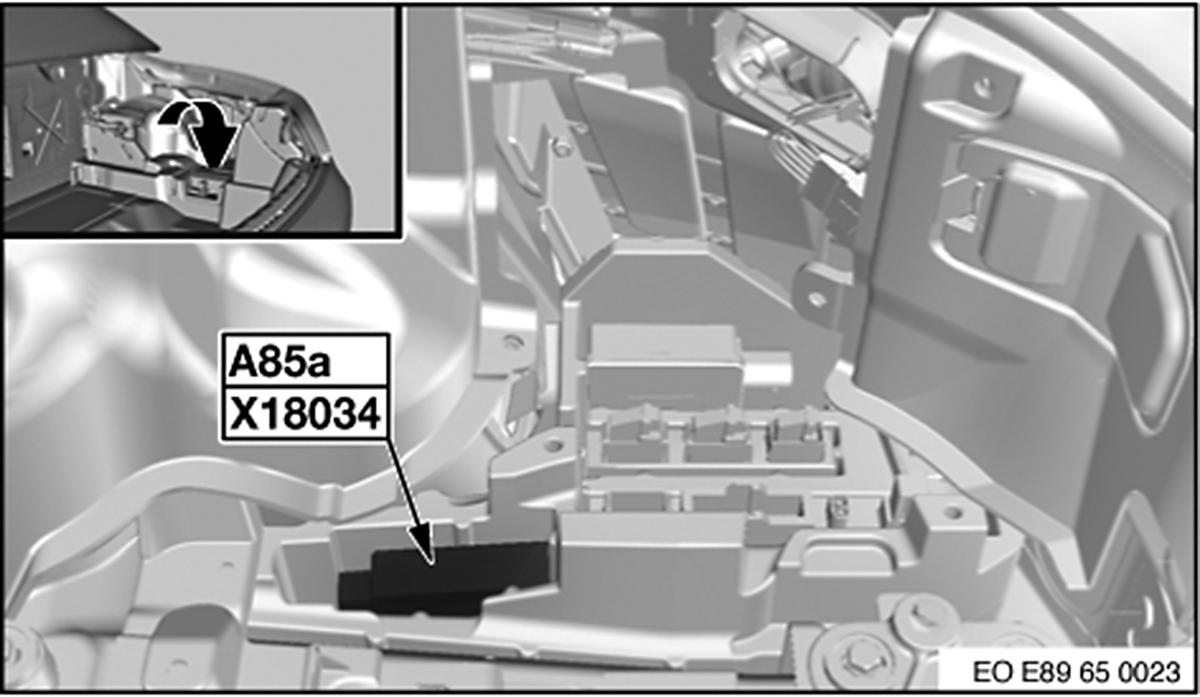

| Tire Pressure Control (RDC) (A85a) | Right rear luggage compartment. See Figure. |

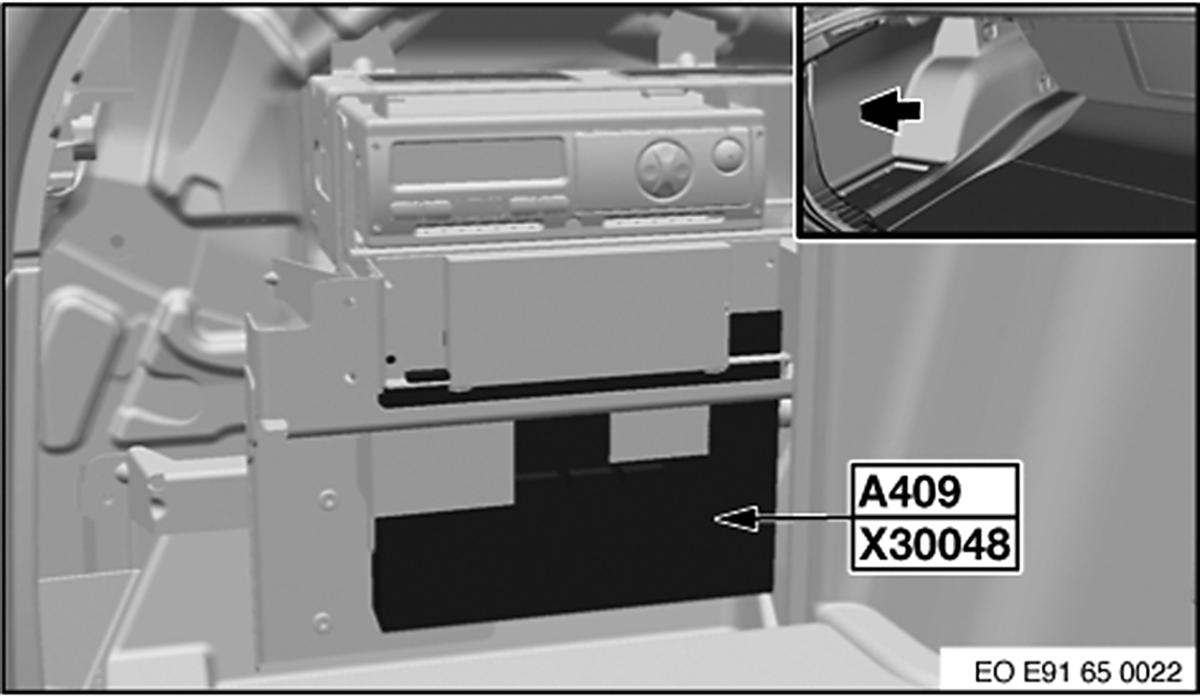

| Tone Sequence Control Module (A409) | Left rear of luggage compartment. See Figure. |

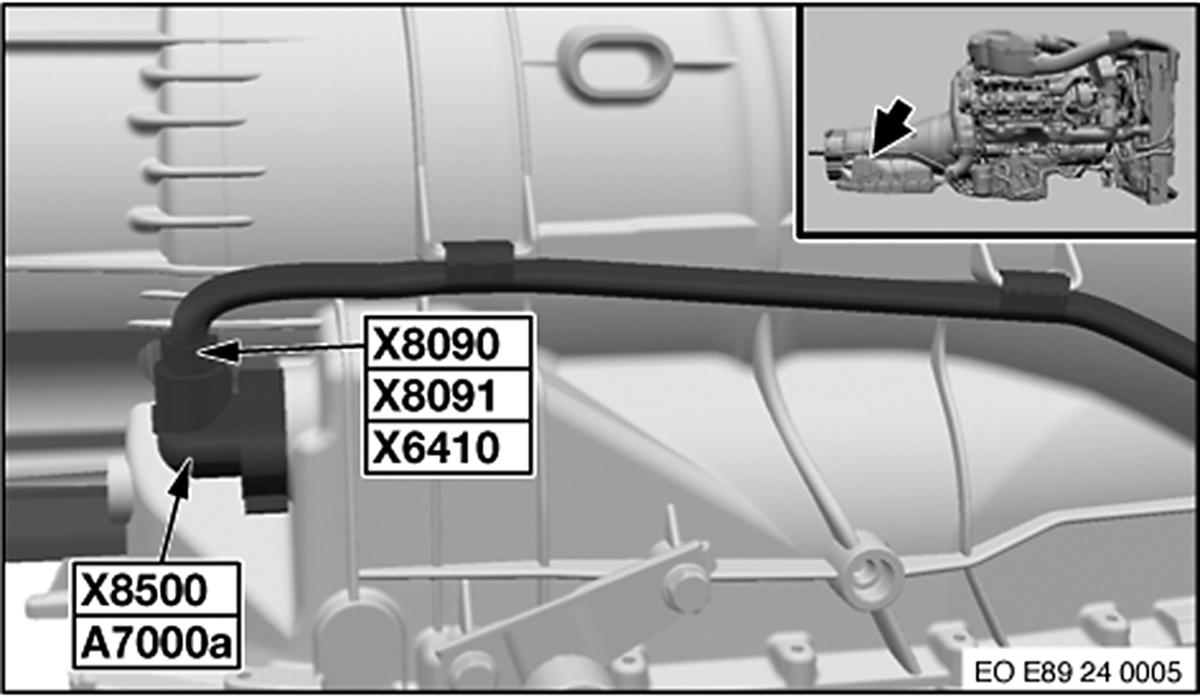

| Transmission Control (A7000a) | On transmission assembly. See Figure. |

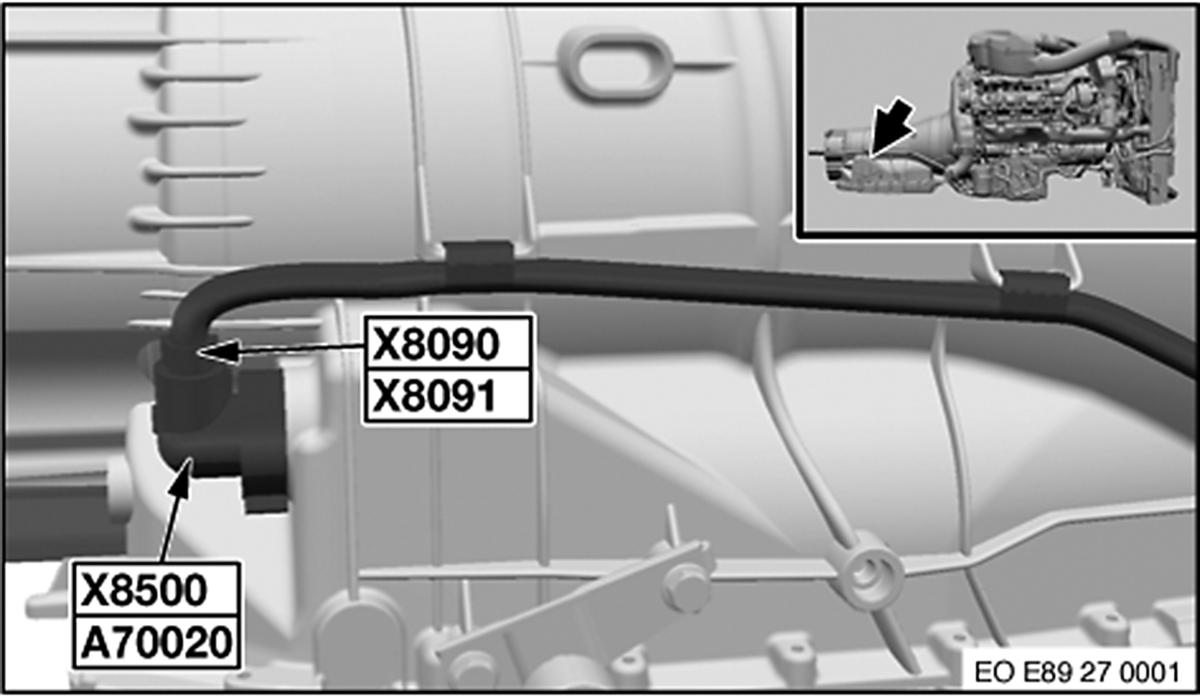

| Transmission Control DKG (A70020) | On transmission assembly. See Figure. |
