Electrical Component Locator
>>
Circuit Protection Devices
Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
Component
Location

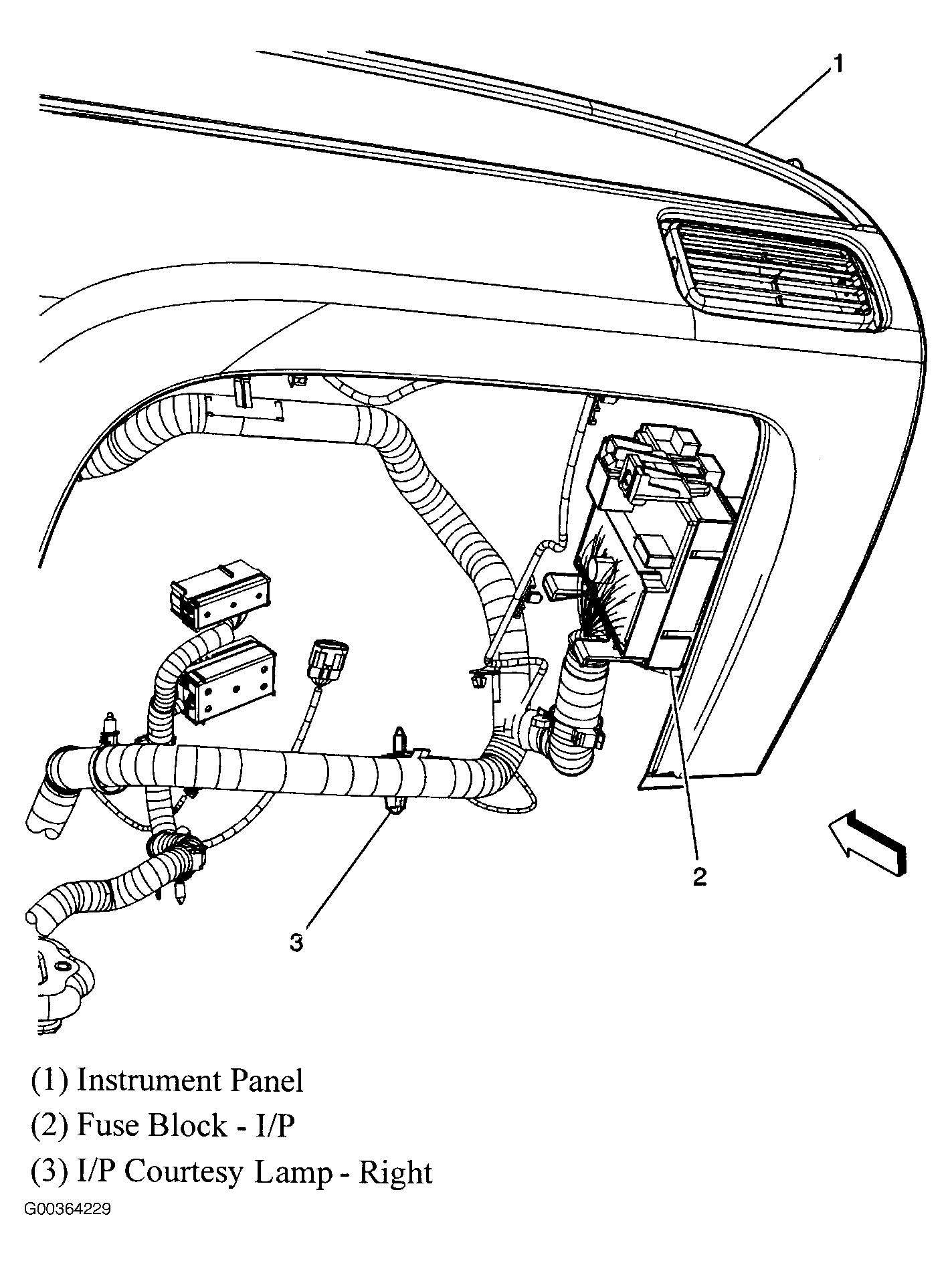

Fuse Block - I/P
Behind right side of dash. See
Figure
.

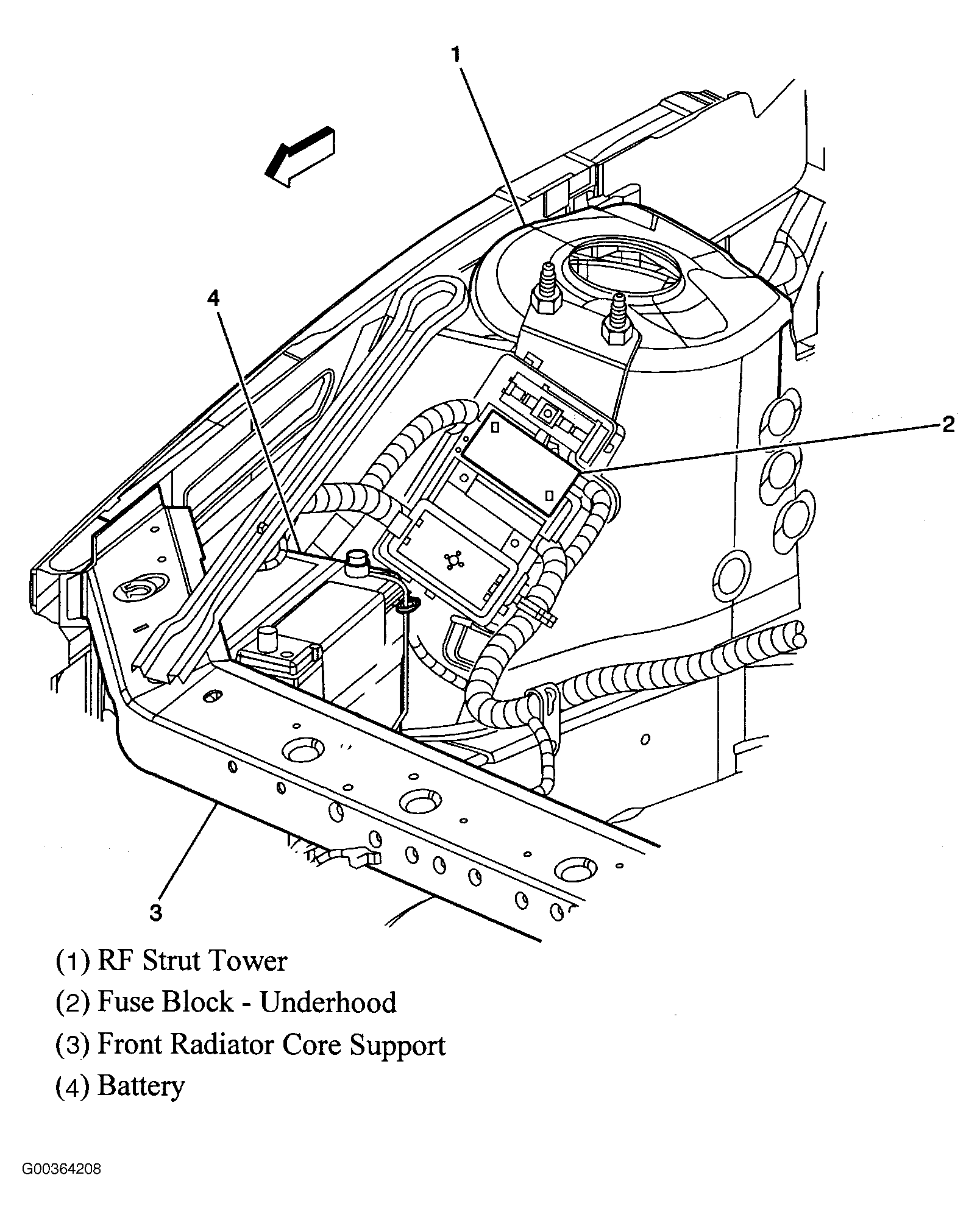

Underhood Fuse Block
Mounted to right strut tower. See
Figure
.
