Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

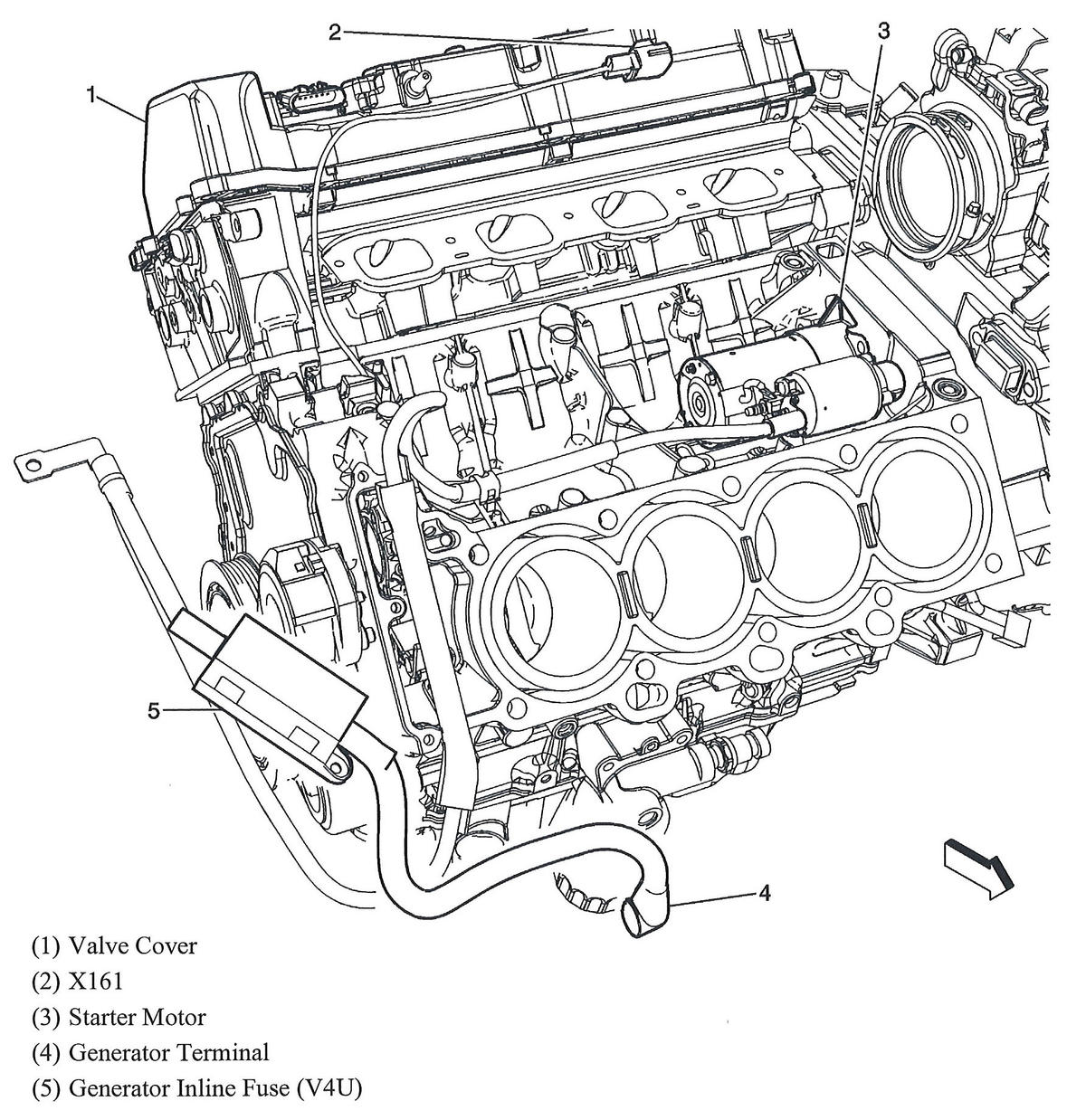

| Generator Inline Fuse | Left front of engine. See Figure. |

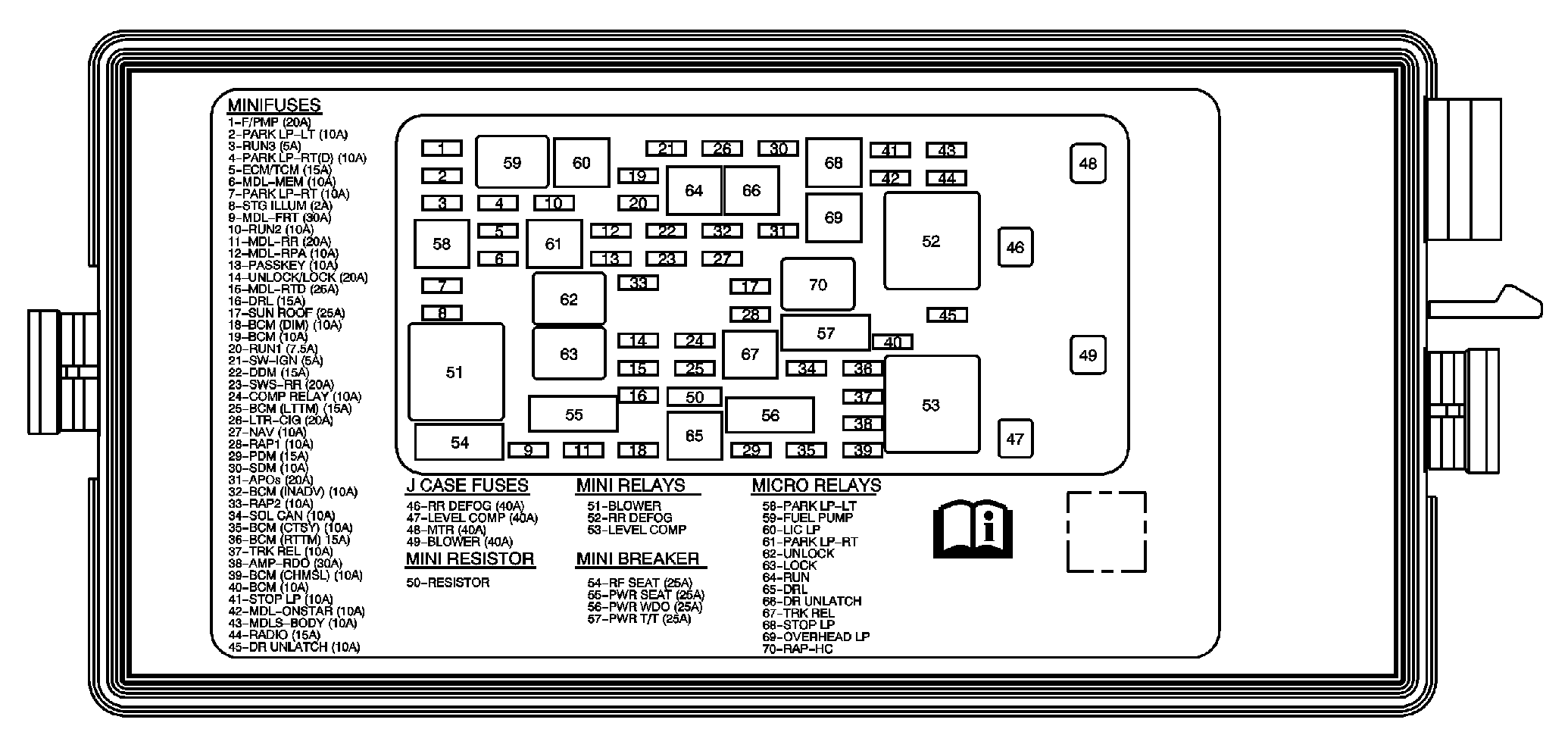

| PWR SEAT (Mini Breaker) | Rear fuse block. See Figure. |
| PWR T/T (Mini Breaker) | Rear fuse block. See Figure. |
| PWR WDO (Mini Breaker) | Rear fuse block. See Figure. |

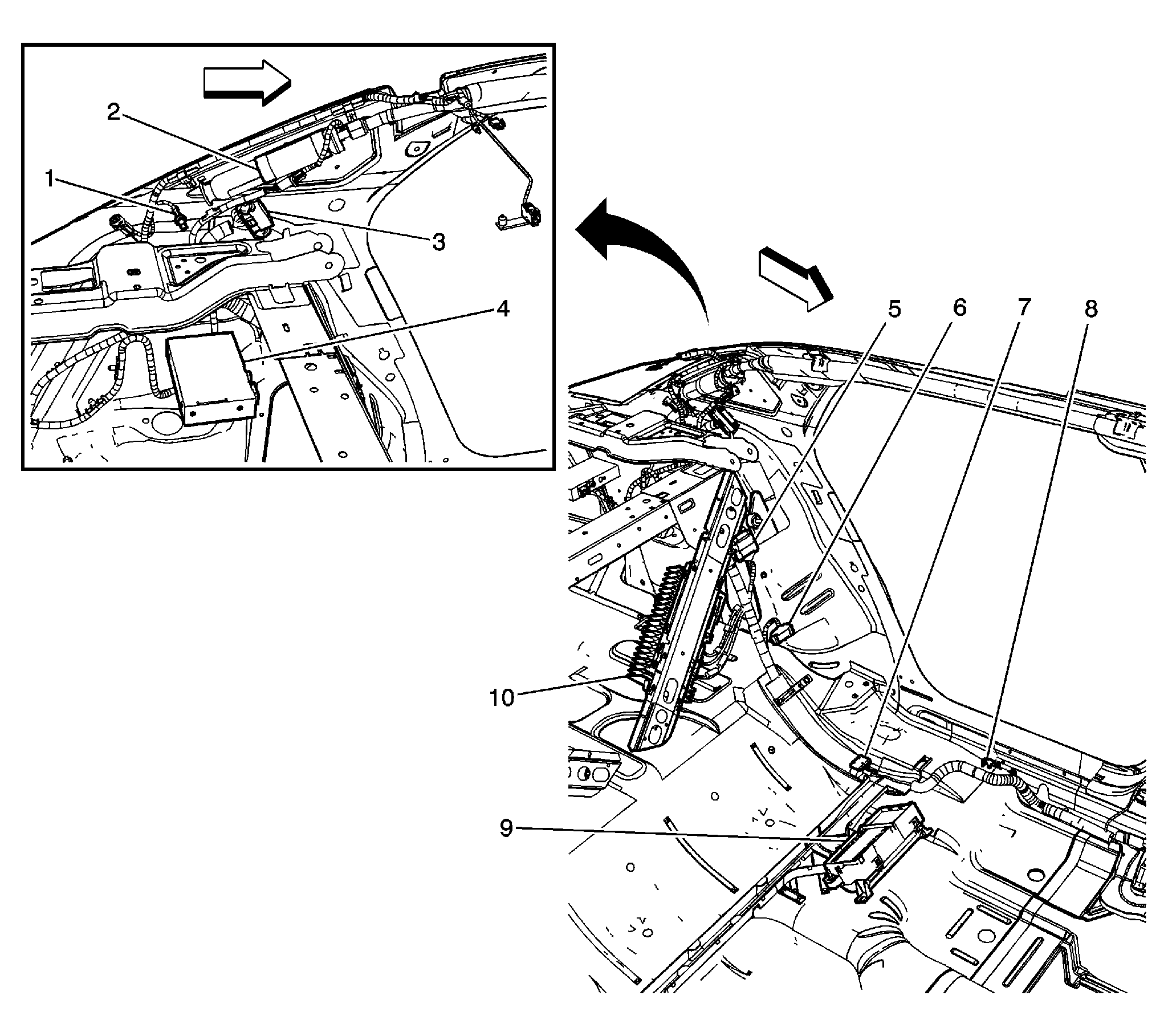

| Rear Fuse Block (9) | Under left rear seat. See Figure. |
| RF SEAT (Mini Breaker) | Rear fuse block. See Figure. |
| Underhood Fuse Block | Right side of engine compartment. See Figure. |
