Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Cruise Control Module | Under left side of dash, above accelerator pedal. |
| Diesel Elect. Control (DEC) Module | Behind right kick panel. |
| Electronic Control Module (ECM) | Behind right kick panel. |

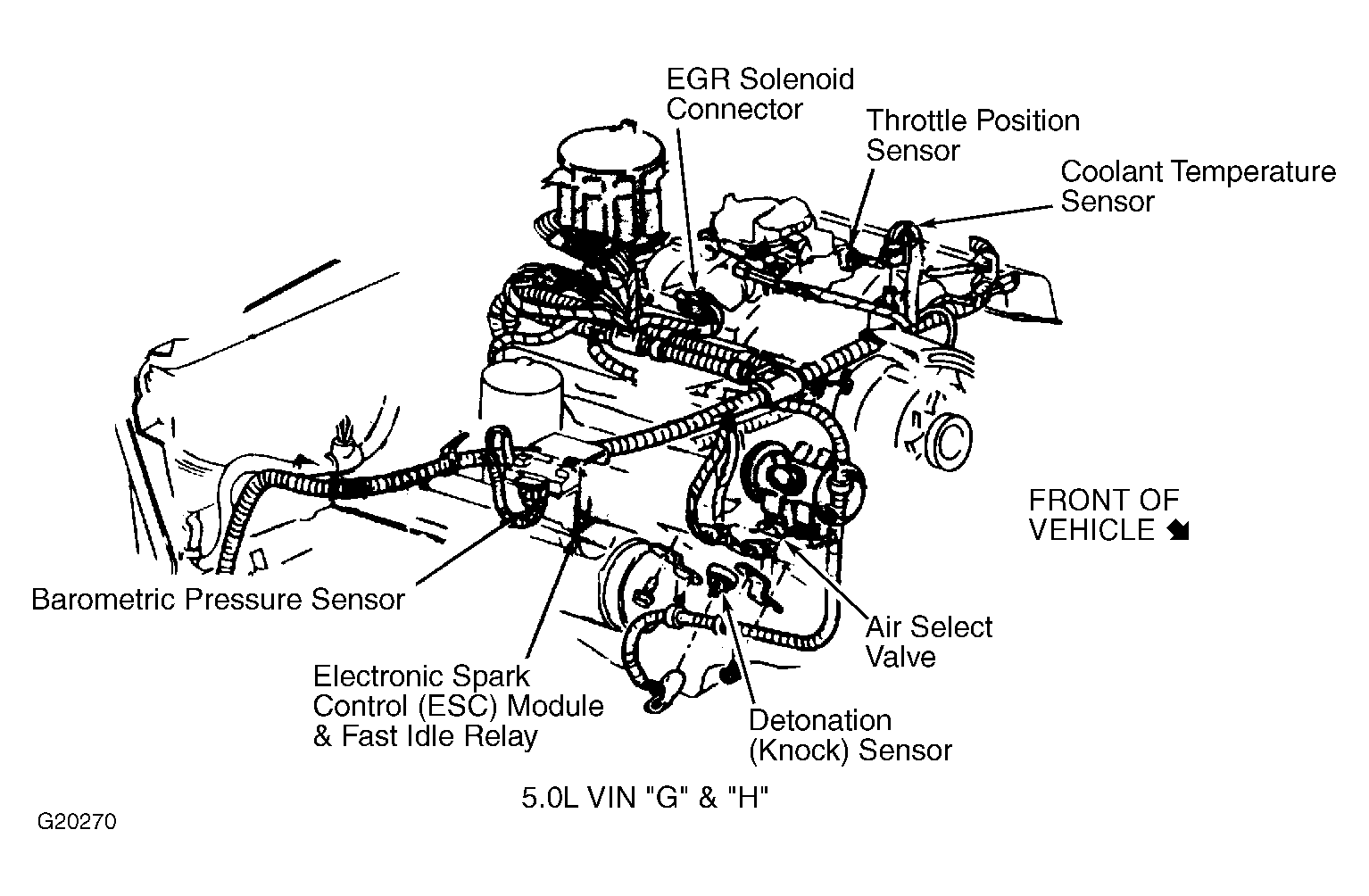

| Elect. Spark Control (ESC) Module | On bracket at top of right front wheelwell. See Figure & 5. |

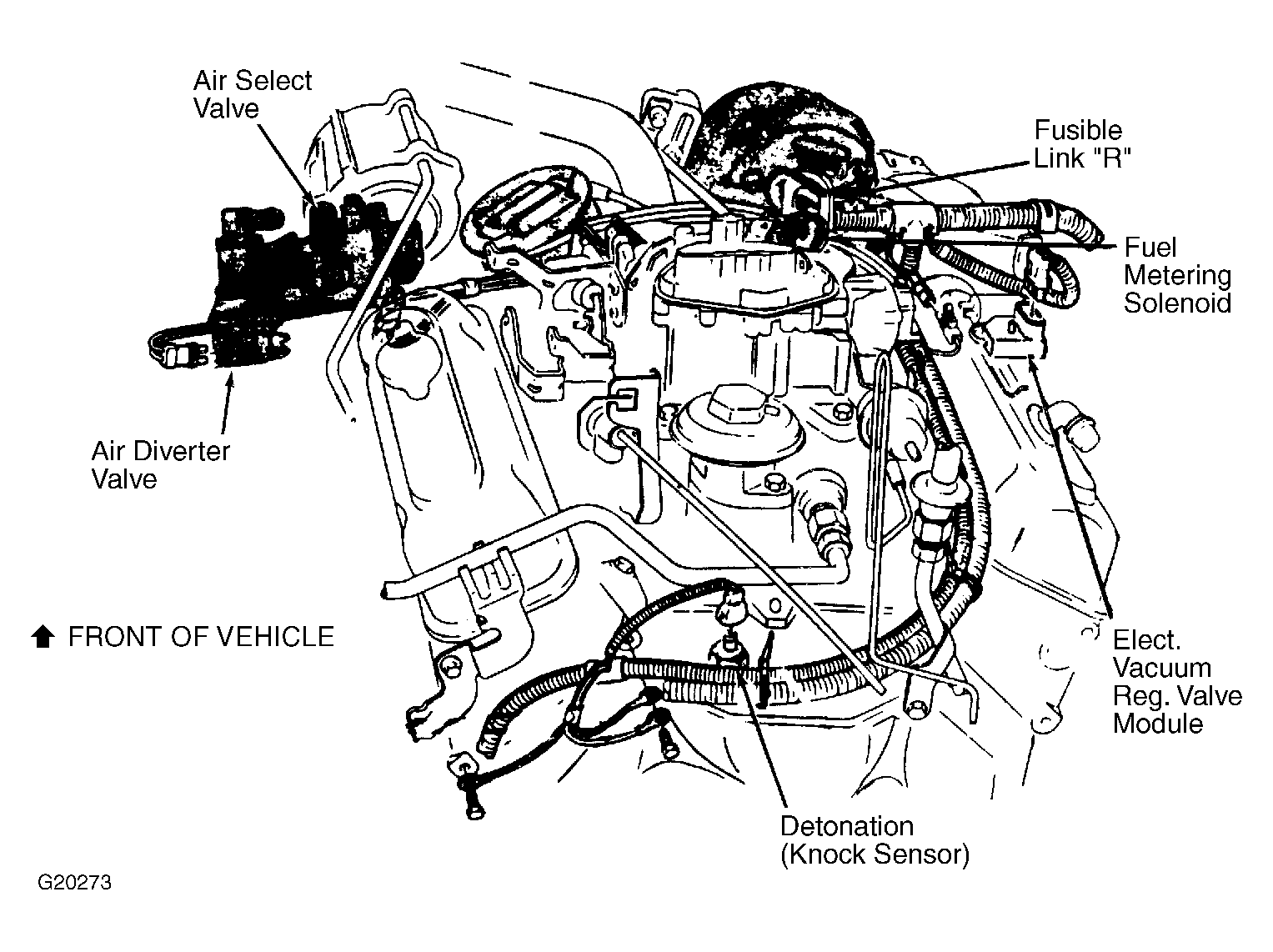

| Elect. Vacuum Reg. Valve Module | At top center of right valve cover. See Figure. |
| Glow Plug Controller/Relay | On top of right (left on Cutlass) valve cover. |
| Low Brake Vacuum Delay Module | Taped to instrument panel harness, above fuse block. |
| Multi-Function Chime Module | Behind left side of dash, at convenience center. |
| Theft Deterrent Controller | Under left side of dash, near kick panel. |

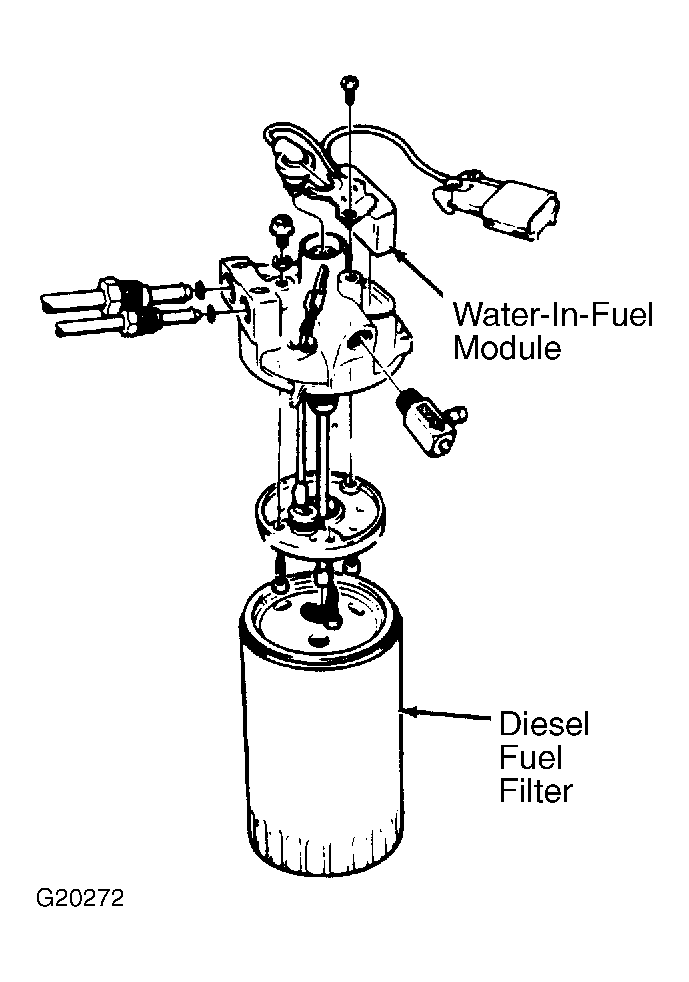

| Water-in-Fuel Module (Diesel) | At top rear of engine. See Figure. |

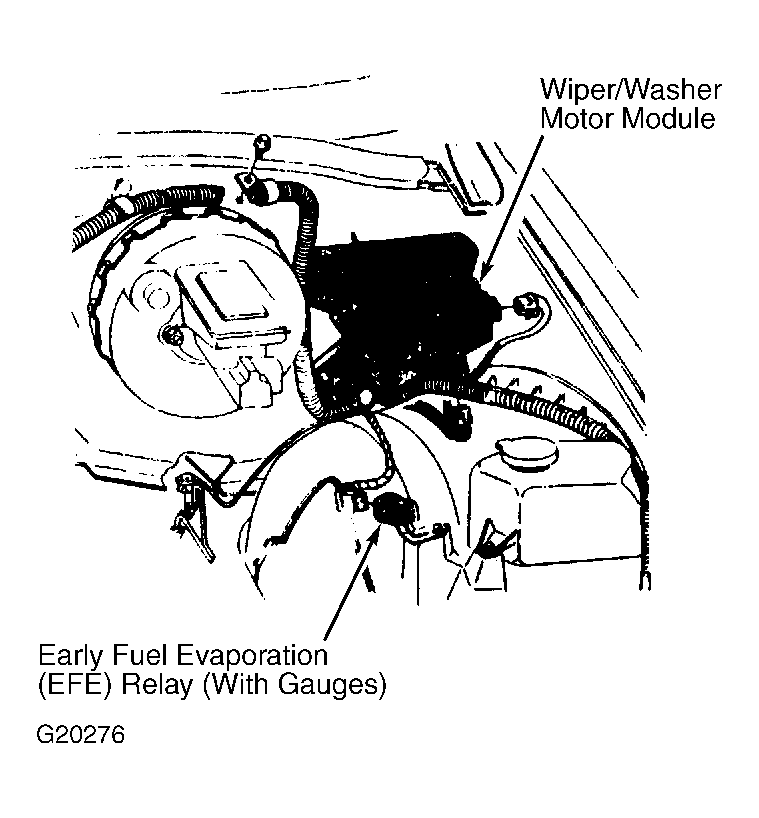

| Wiper/Washer Motor Module | On upper left corner of firewall in engine compartment. See Figure. |
