Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

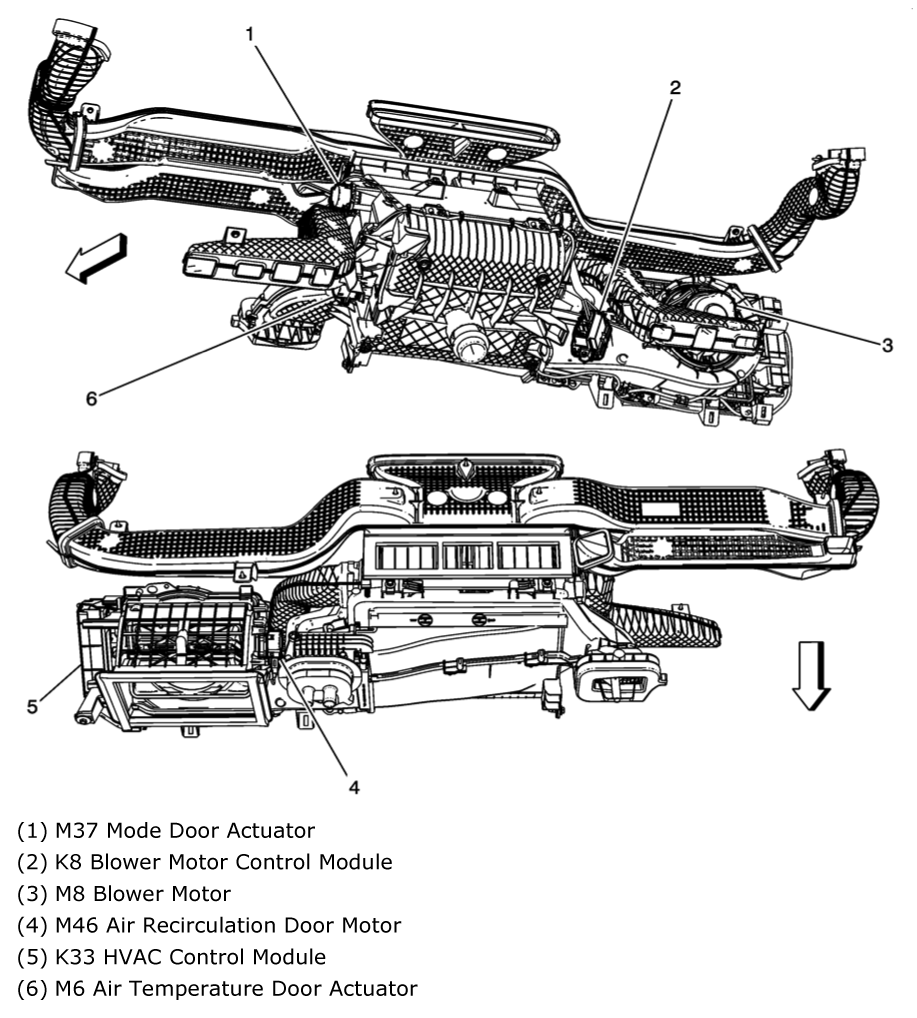

| Blower Motor Control Module | Right side of HVAC module. See Figure. |

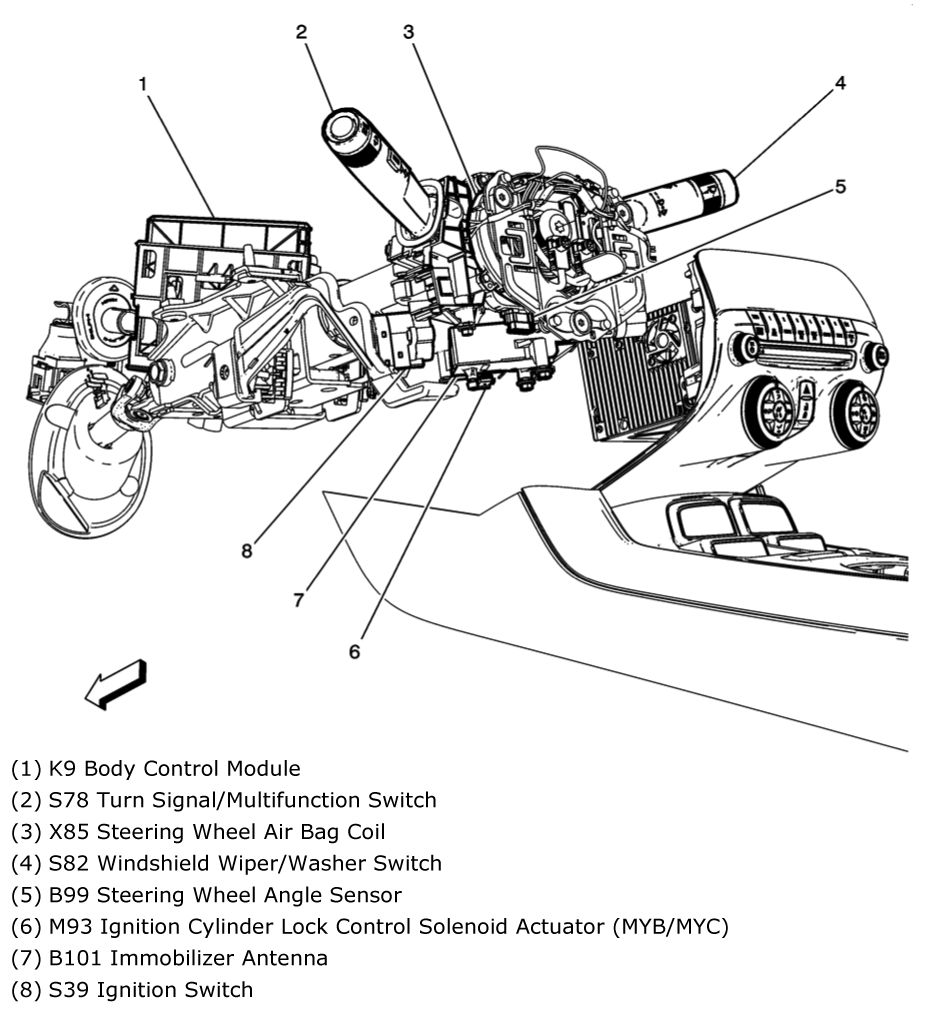

| Body Control Module | Left side of dash. See Figure. |

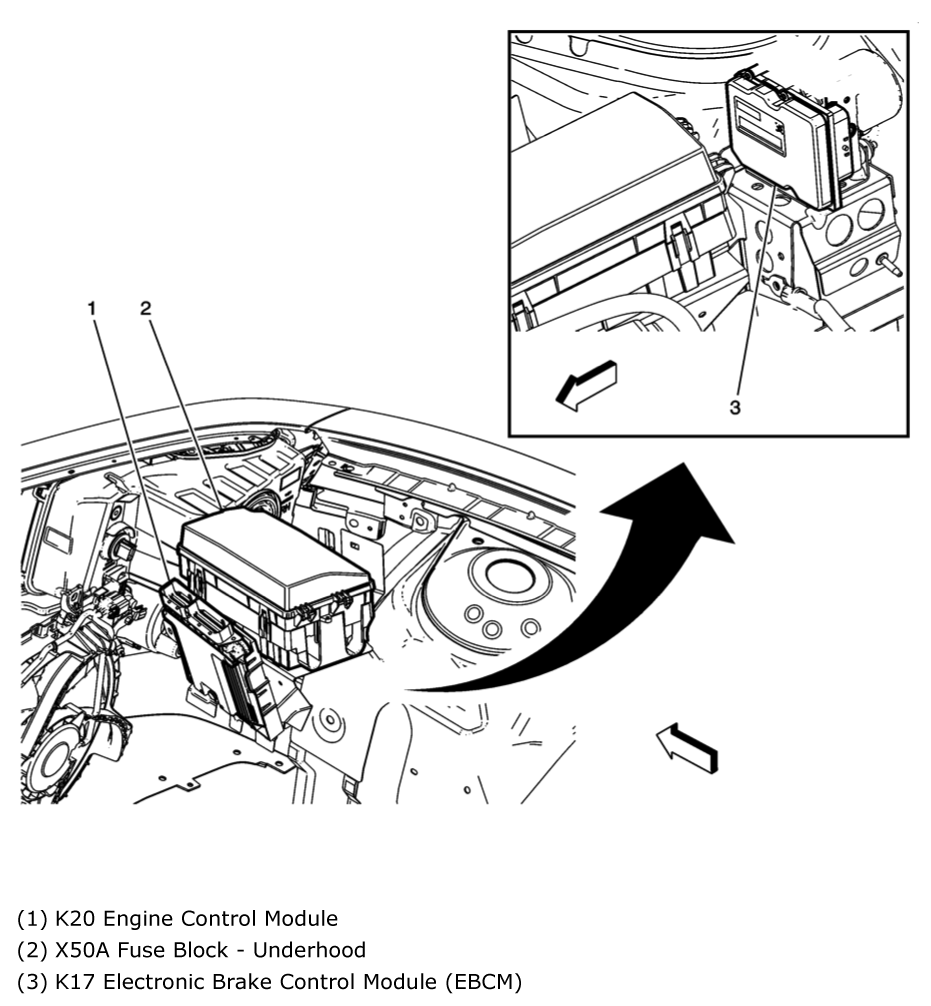

| Electronic Brake Control Module (EBCM) | Right front of engine compartment. See Figure. |
| Engine Control Module | Right front of engine compartment. See Figure. |

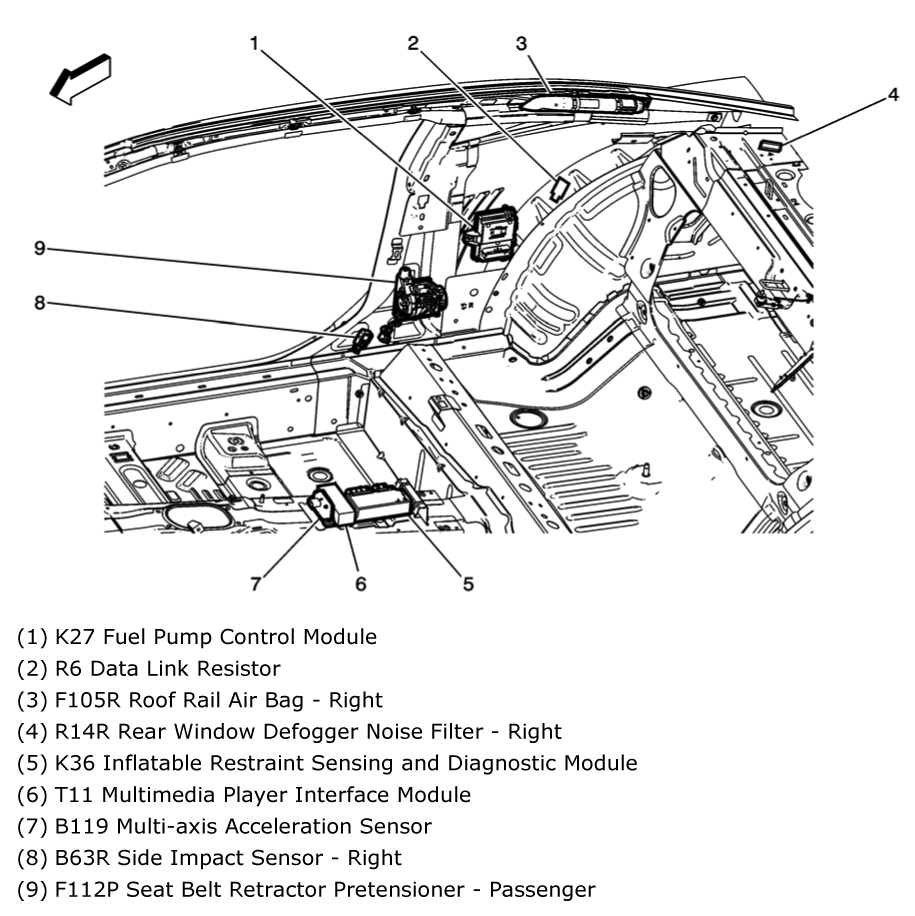

| Fuel Pump Control Module | Right quarterpanel. See Figure. |
| HVAC Control Module | Right side of HVAC module. See Figure. |
| Inflatable Restraint Sensing & Diagnostic Module | Under center console. See Figure. |
| Multimedia Player Interface Module | Under center console. See Figure. |

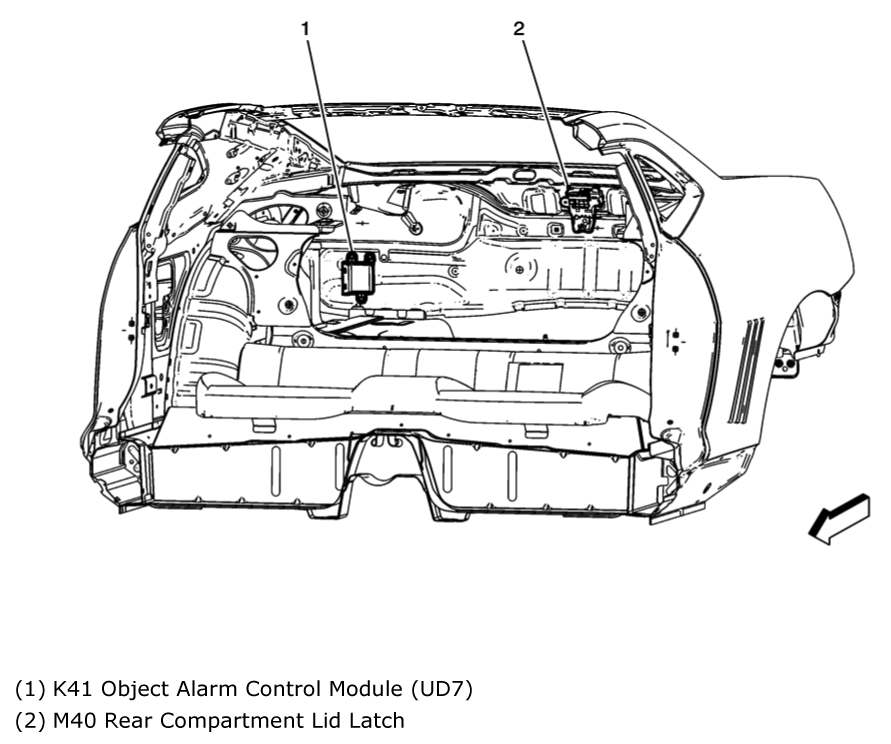

| Object Alarm Control Module | Right rear of luggage compartment. See Figure. |

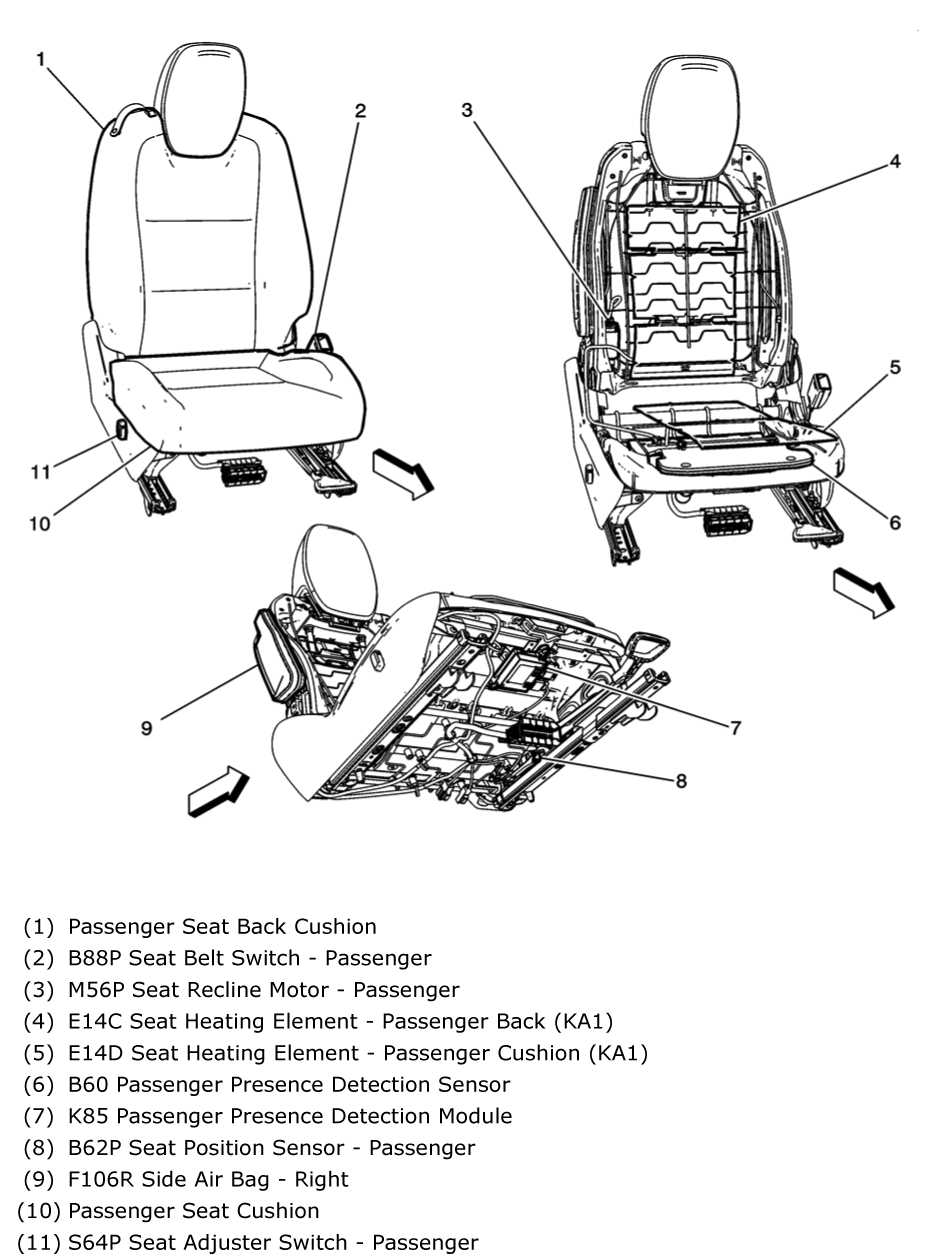

| Passenger Presence Detection Module | Under passenger's seat. See Figure. |

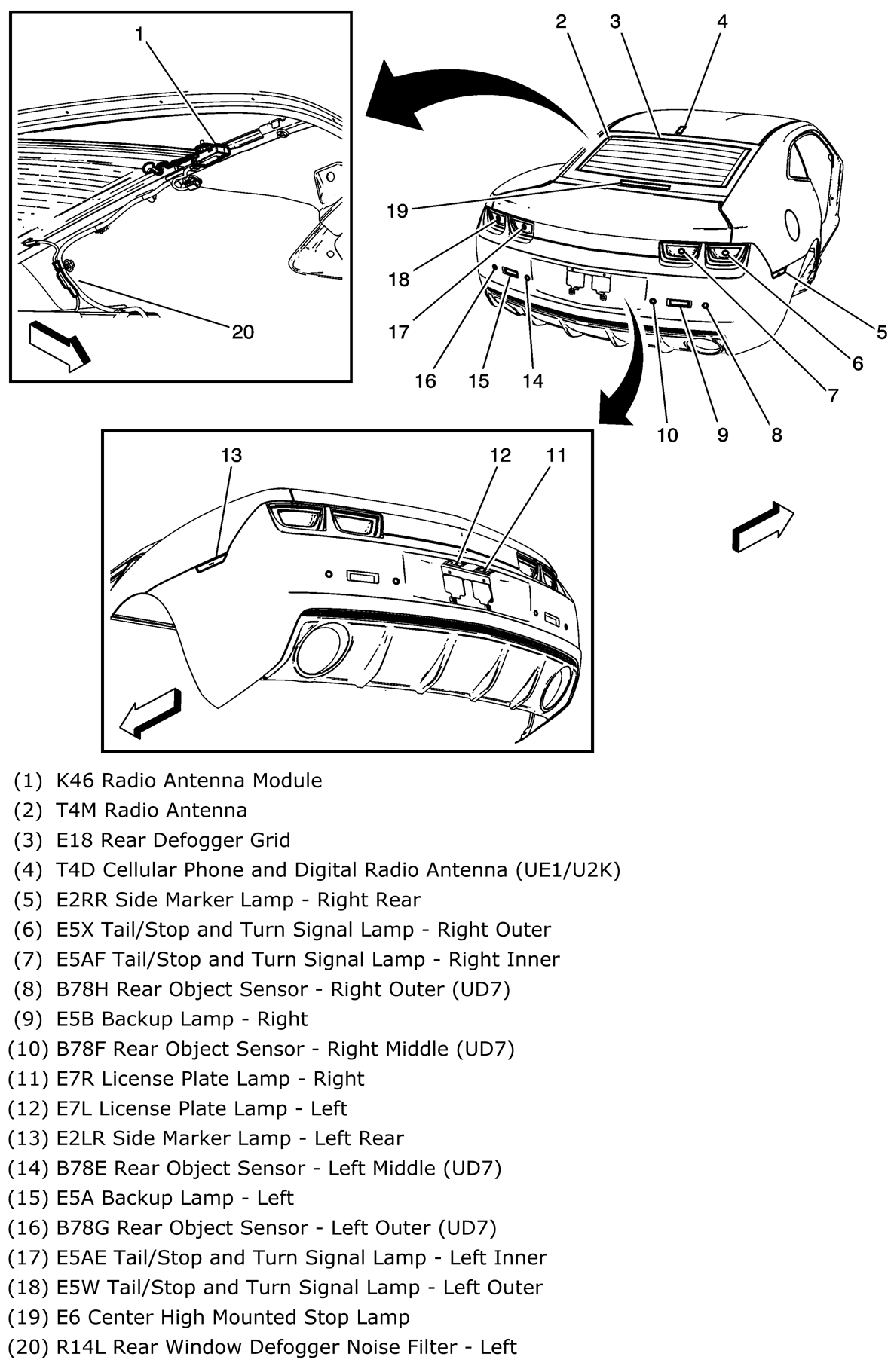

| Radio Antenna Module | Left "C" pillar. See Figure. |

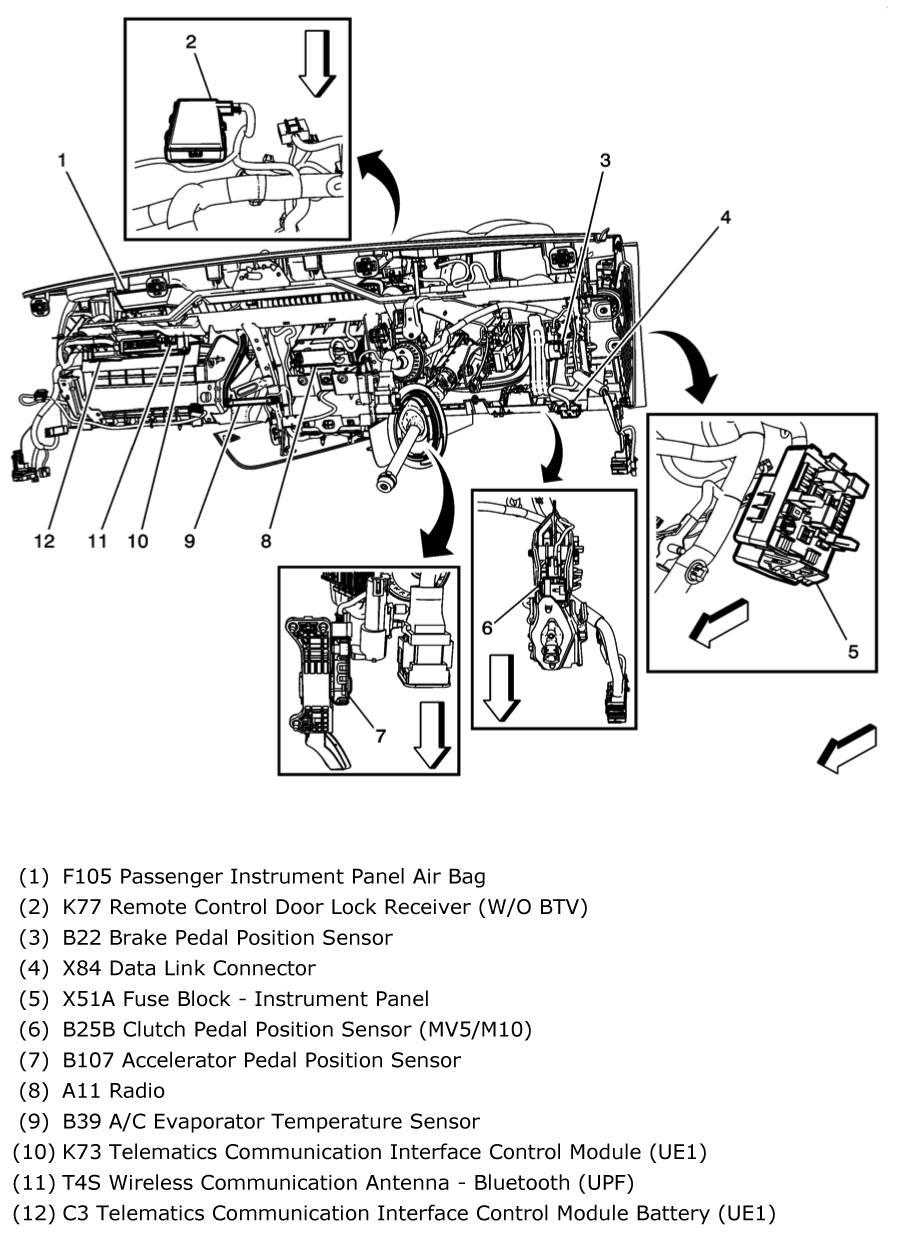

| Remote Control Door Lock Receiver | Center of dash. See Figure. |
| Telematics Communication Interface Control Module | Right side of dash. See Figure. |
