Component Locations

COMPONENT LOCATIONS

Component	Location
Data Link Connector	To Left Of Center Console. See Fig 2 .
Door Lock Actuator	Center Rear Of Respective Door
Door Lock Power Relay 1	Behind Center Console, Near Floor. See Fig 1 .
Door Lock Power Relay 2	Forward Of Left Rear Wheel Well. See Fig 1 or Fig 3 .
Engine Compartment Relay Box	Left Front Of Engine Compartment, Near Air Filter Housing
ETACS ECU	Behind Junction Block. See Fig 1 or Fig 4 .
Junction Block	Behind Lower Left Of Instrumnet Panel. See Fig 1 .
G300	Left Front Floor Upper Crossmember

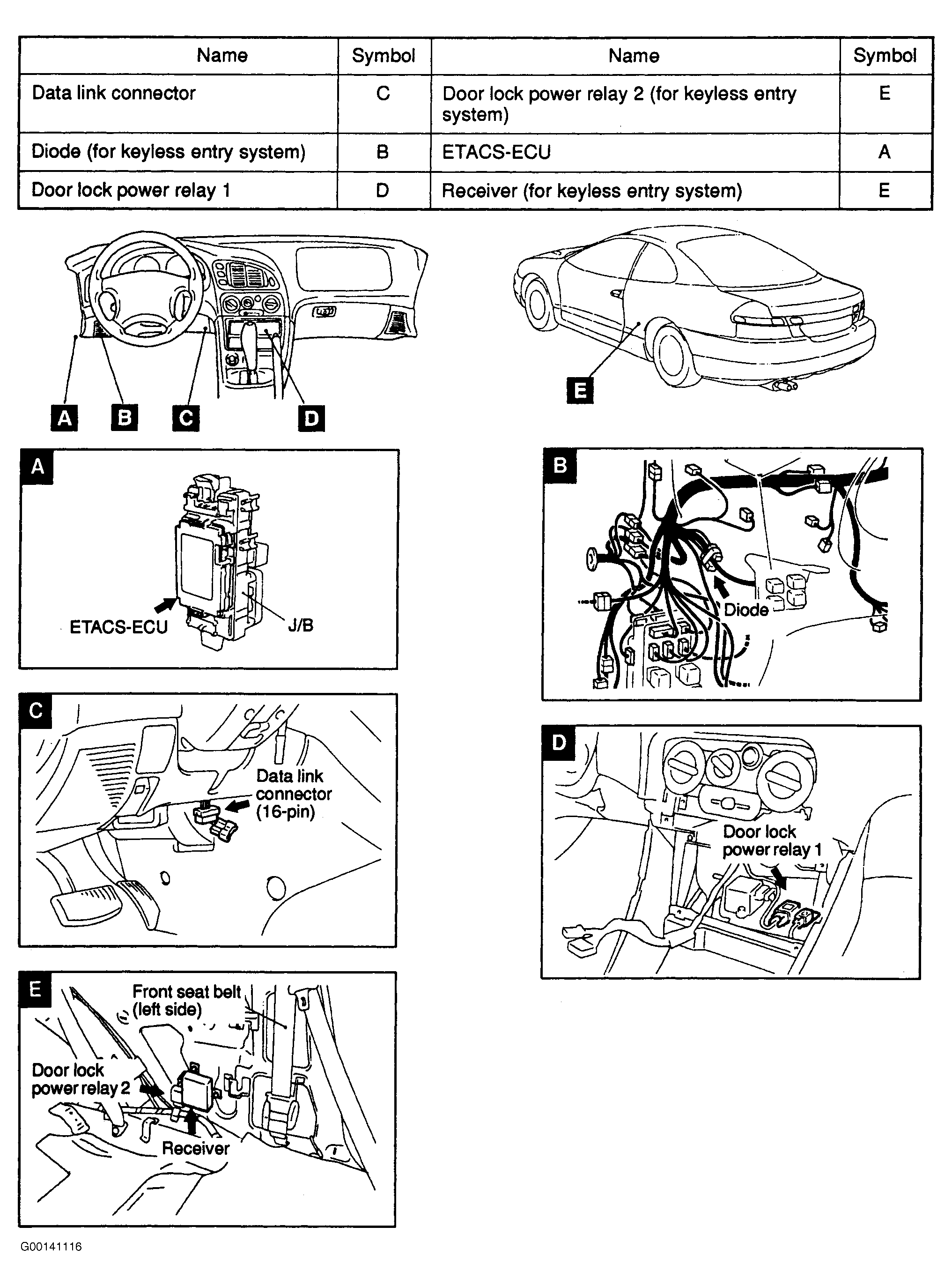

Fig 1: Locating Keyless Entry System Components

G00141116

Courtesy of DAIMLERCHRYSLER CORPORATION

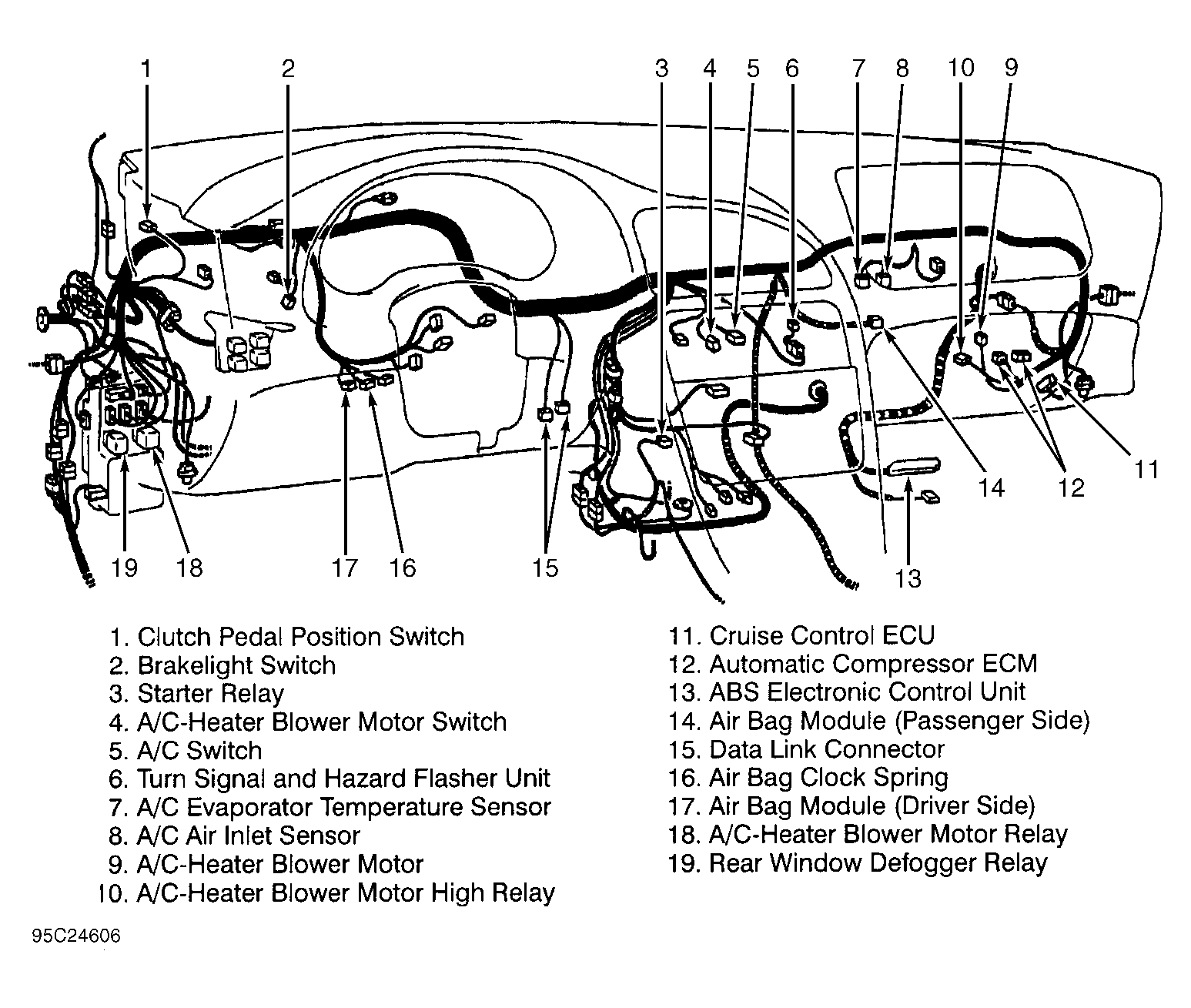

Fig 2: Locating Data Link Connector (DLC)

G95C24606

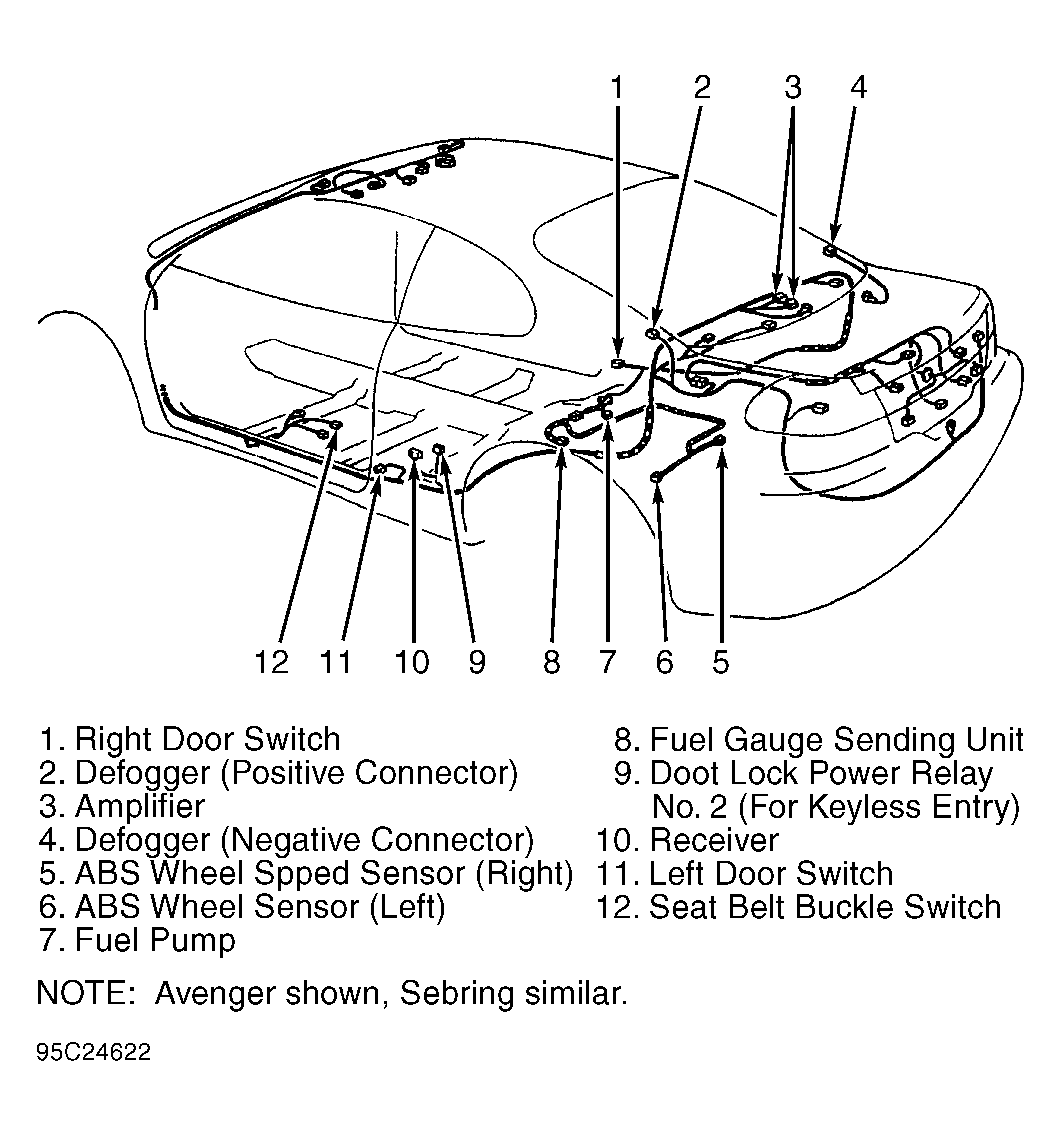

Fig 3: Locating Door Lock Power Relay 2

G95C24622

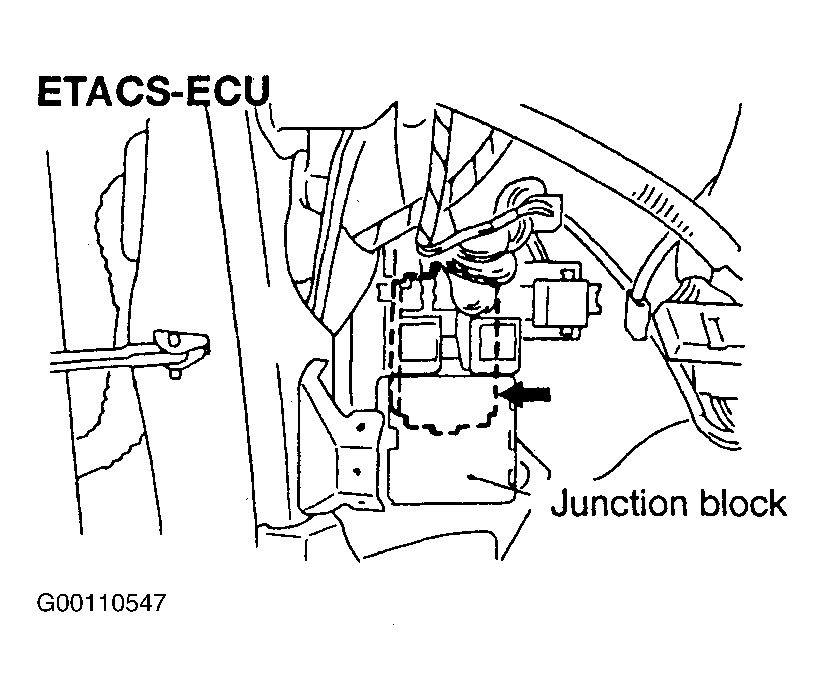

Fig 4: Locating ETACS-ECU

G00110547

Courtesy of CHRYSLER CORP.
