Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Air Bag Control Module | Under floor console, behind transmission selector. |
| Body Control Module | On junction block, under left side of dash. |

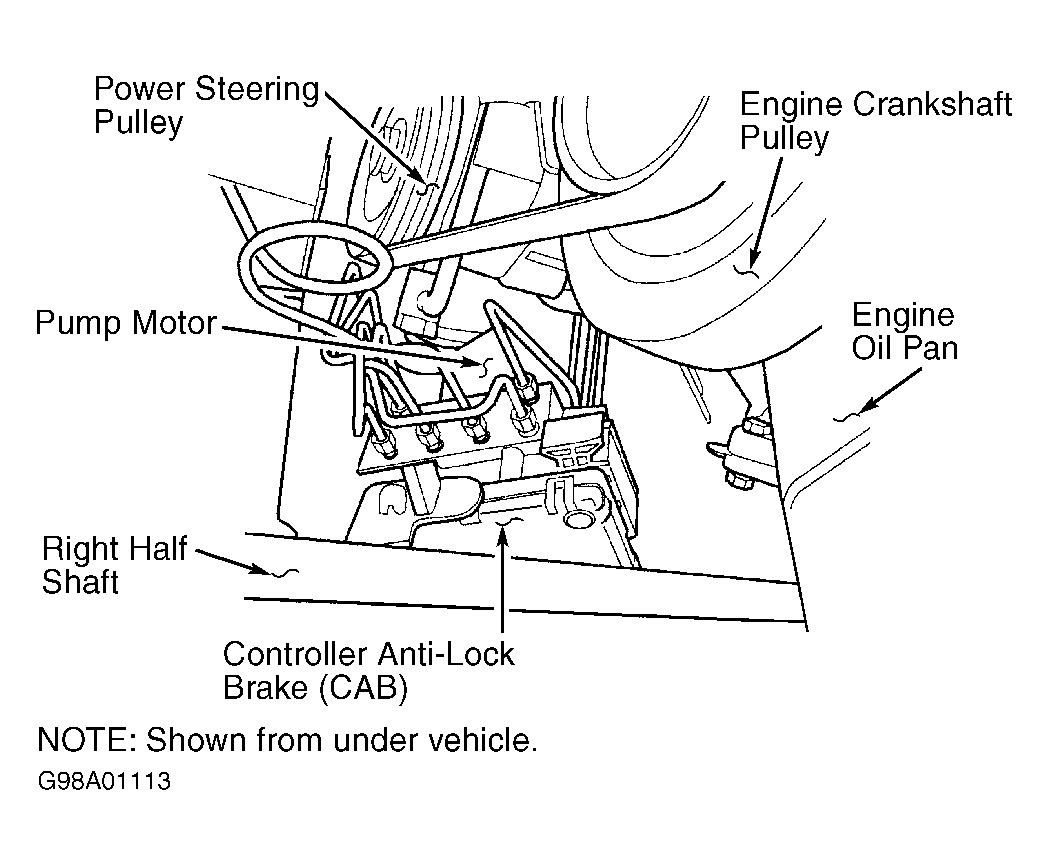

| Controller Anti-Lock Brake | At right front of engine compartment. See Figure . |
| Daytime Running Lamp (DRL) Module | On junction block. |
| Fuel Pump Module | On top of fuel tank. |
| Mode Door Actuator | At left end of HVAC housing. |

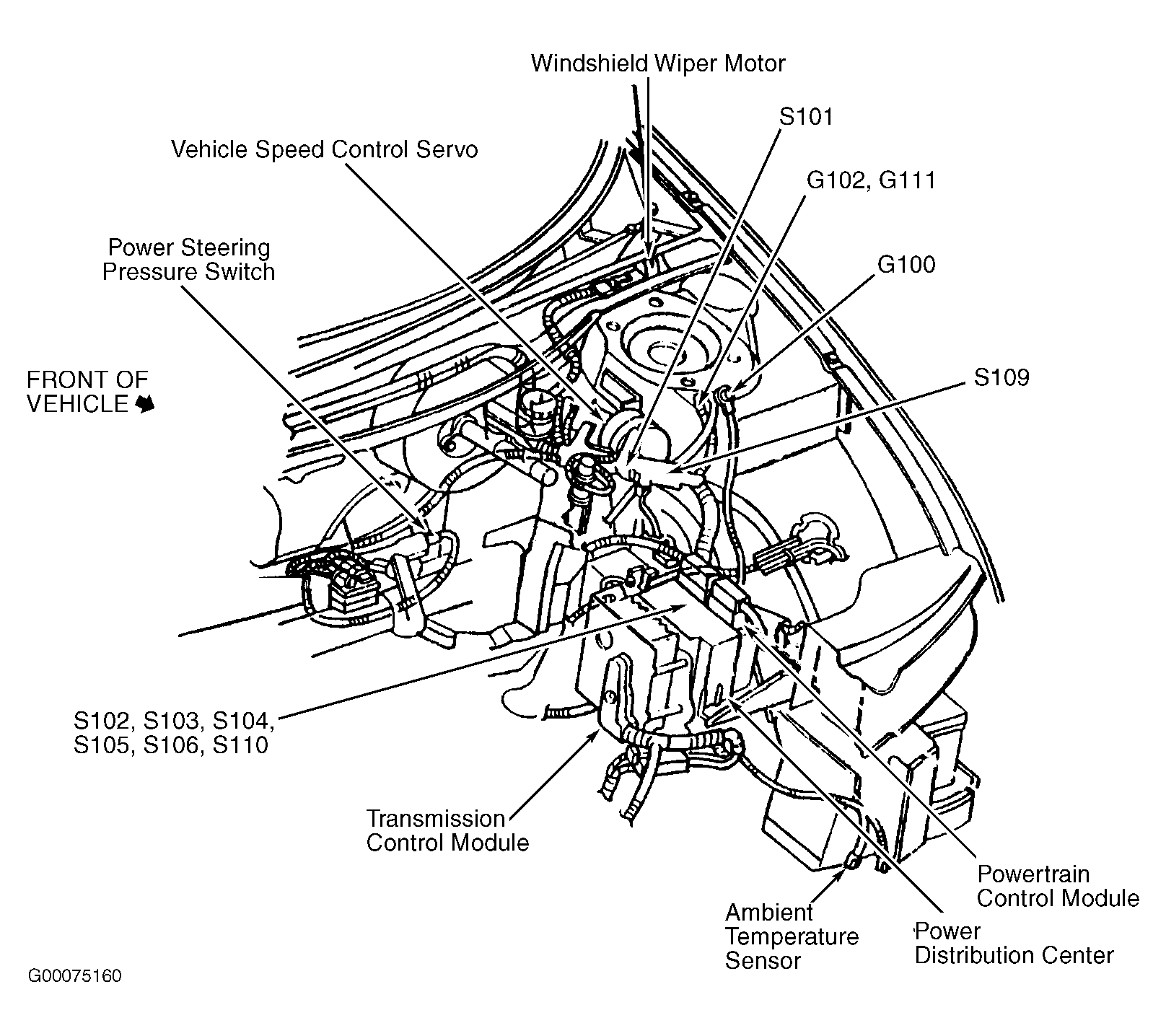

| Powertrain Control Module | Left fender side shield, attached to power distribution center. See Figure . |
| Sentry Key Immobilizer Module | On steering column, near ignition lock cylinder. |
| Sun Roof Control Module | At rear of sun roof. |
| Transmission Control Module | Left fender side shield, attached to power distribution center. See Figure . |
