Manual Transmissions: Differential: Disassembly

Remove differential bearing cones (ring gear and differential case side) using Tool C-293-PA, Adapters C-293-45, and Tool 4996. (Fig 1 and Fig 2 ).

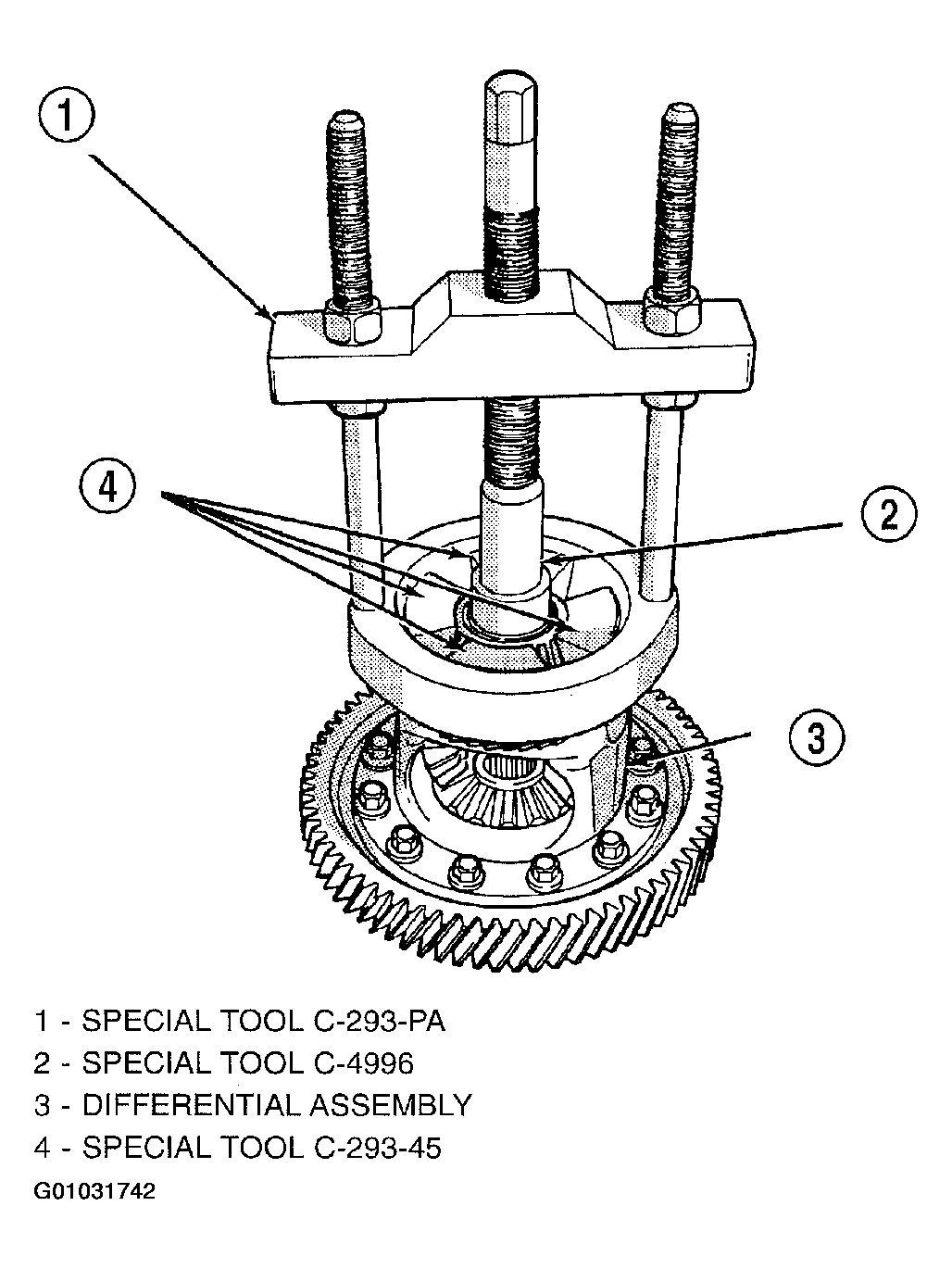

Fig 1: Removing Differential Bearing Cone From Differential Case Side
Courtesy of DAIMLERCHRYSLER CORP.

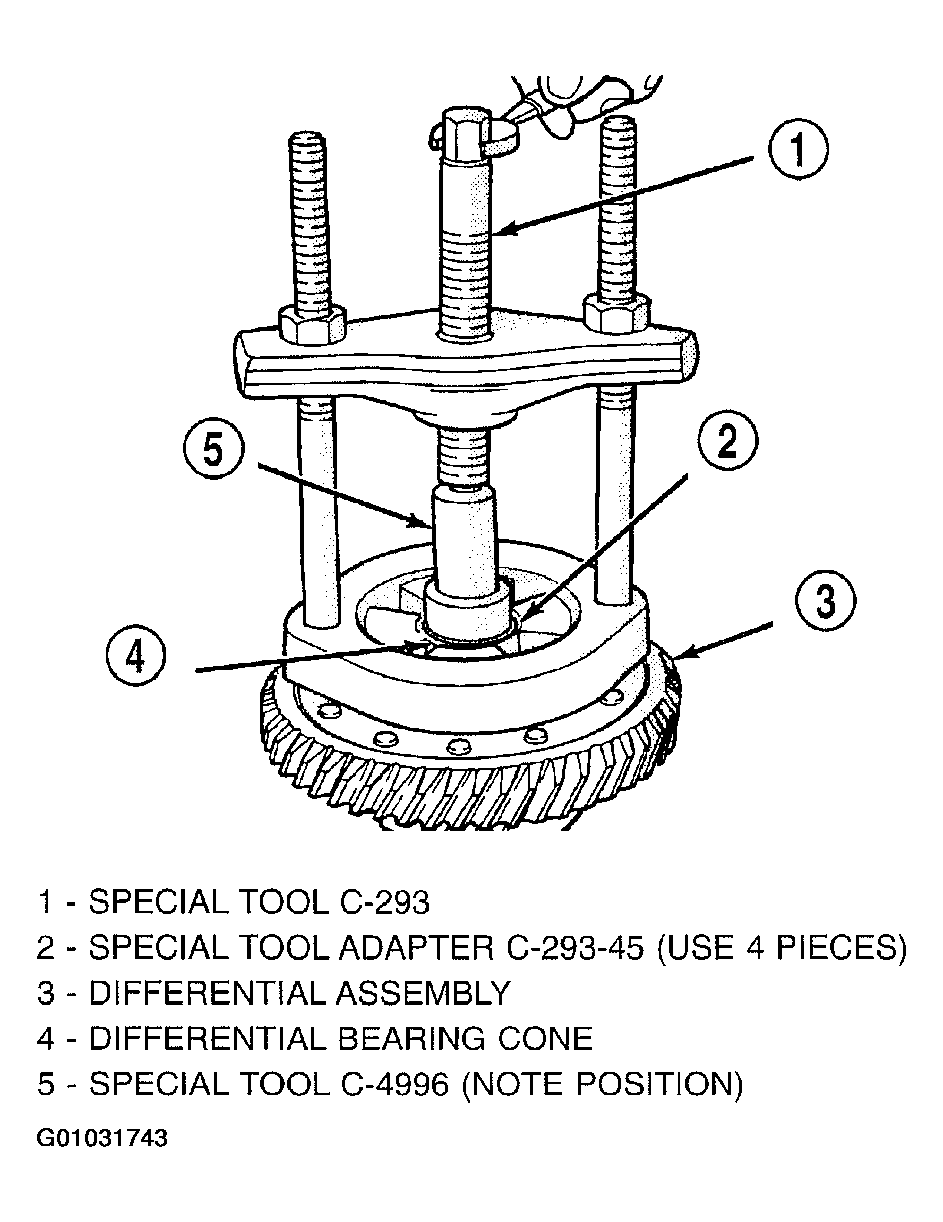

Fig 2: Removing Differential Bearing Cone From Ring Gear Side
Courtesy of DAIMLERCHRYSLER CORP.
Remove ring gear-to-case bolts. (Fig 3). Discard and use NEW bolts upon Assembly.

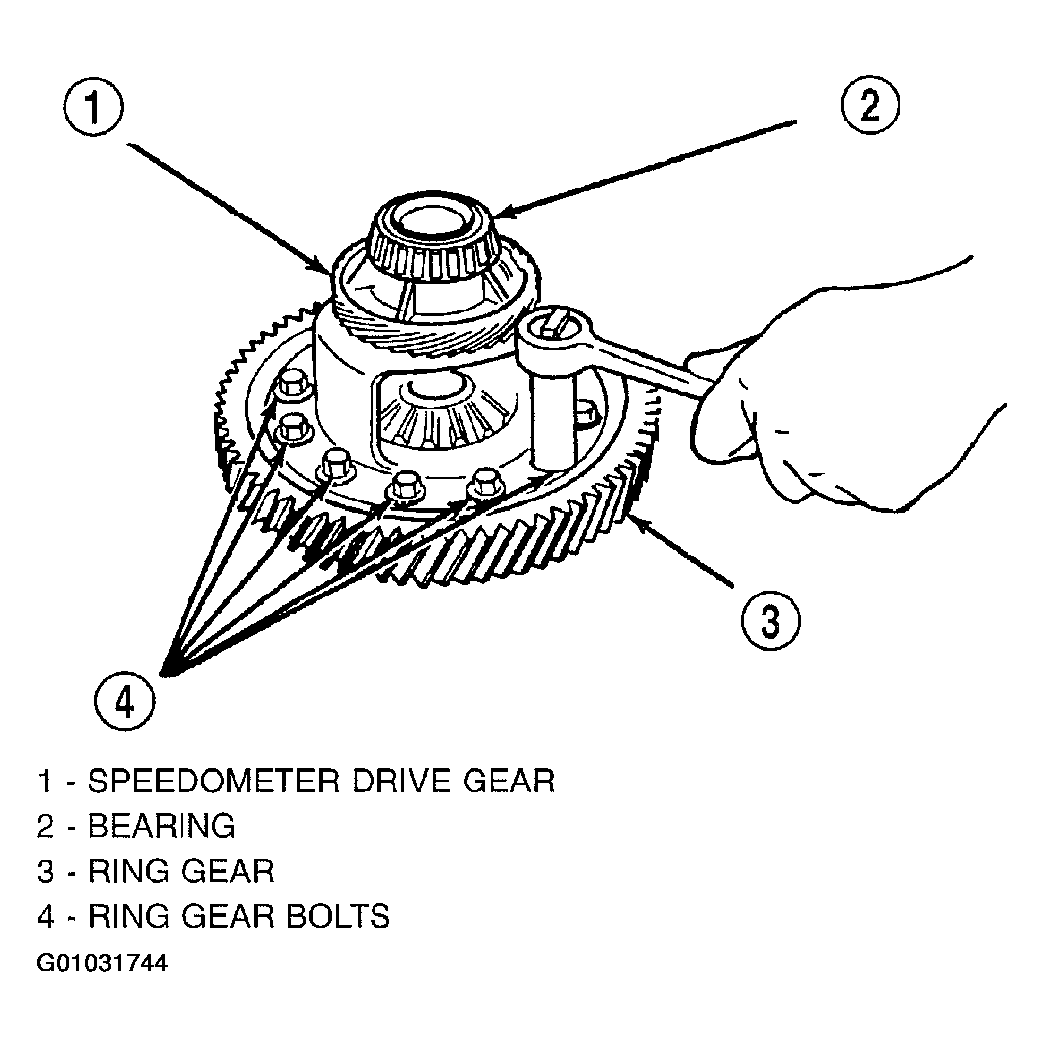

Fig 3: Removing Ring Gear Bolts & Ring Gear
Courtesy of DAIMLERCHRYSLER CORP.
Using a suitable screwdriver, pry off speedometer drive gear. (Fig 4 and Fig 5 ).

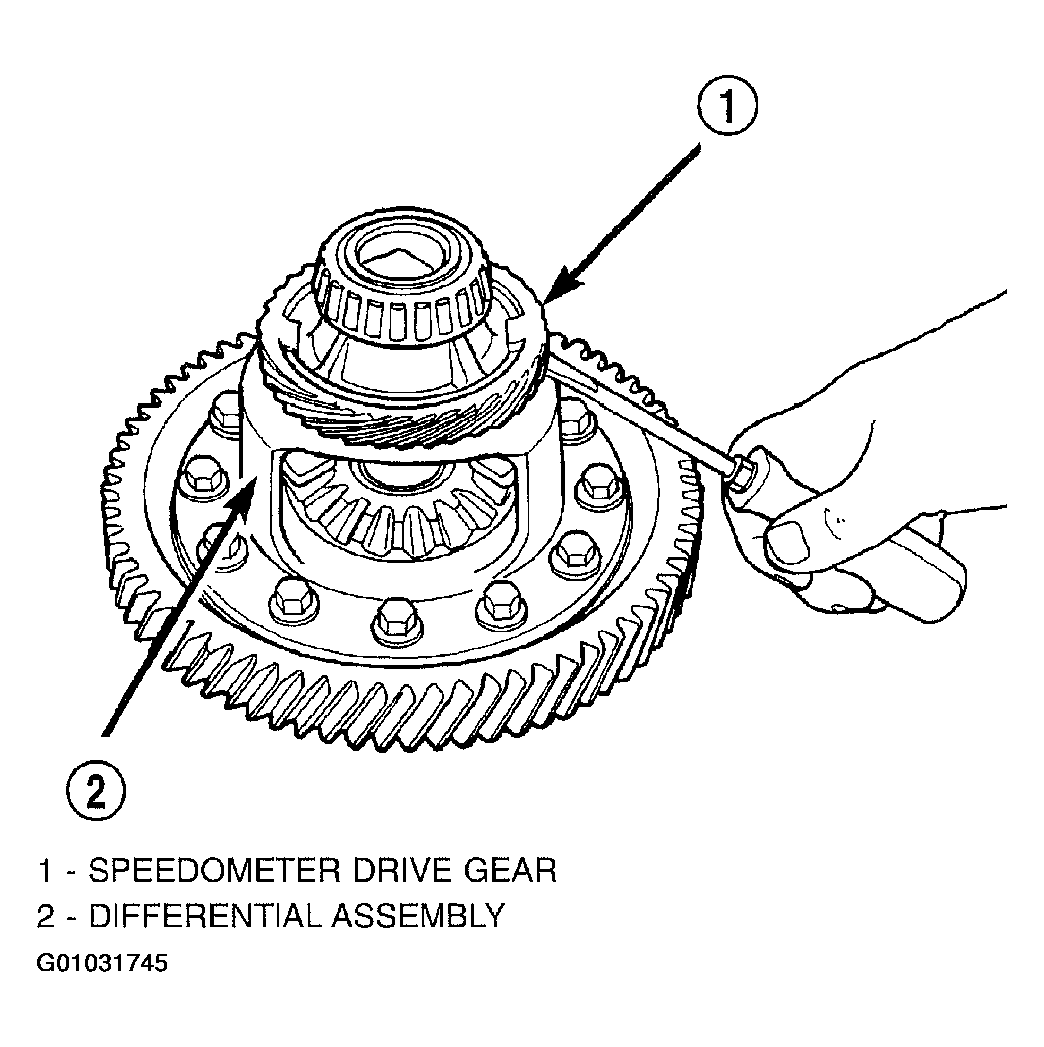

Fig 4: Prying Off Speedometer Drive Gear
Courtesy of DAIMLERCHRYSLER CORP.

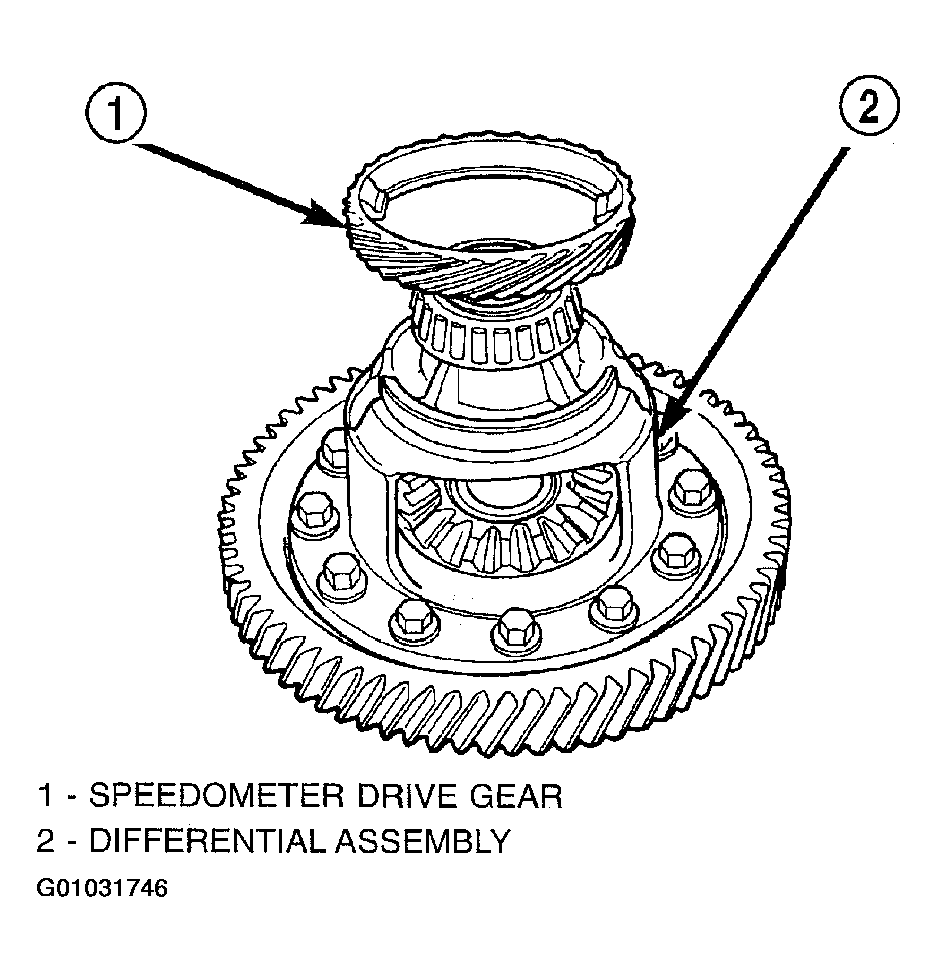

Fig 5: Removing Speedometer Drive Gear
Courtesy of DAIMLERCHRYSLER CORP.
Using hammer and suitable punch, remove pinion shaft retaining pin. (Fig 6, Fig 7 and Fig 9 ).

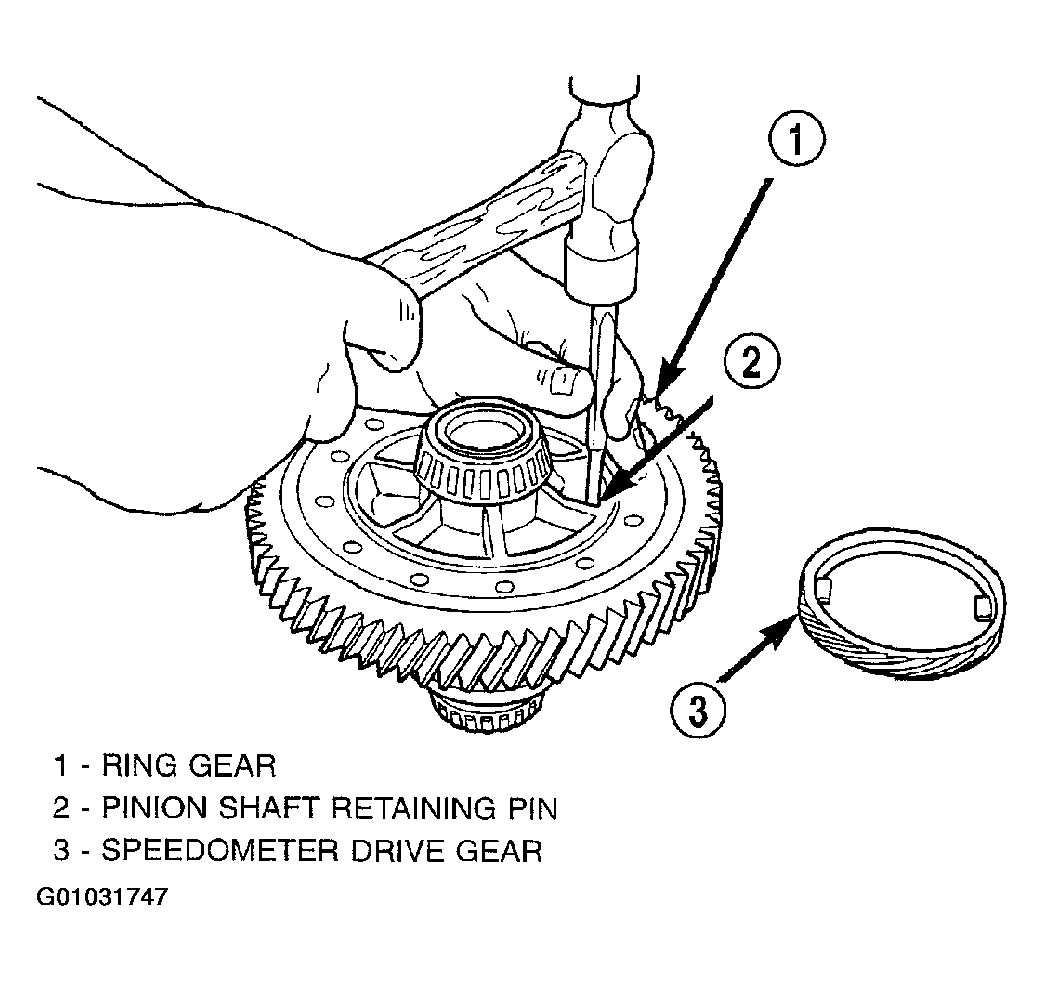

Fig 6: Removing Pinion Shaft Retaining Pin
Courtesy of DAIMLERCHRYSLER CORP.

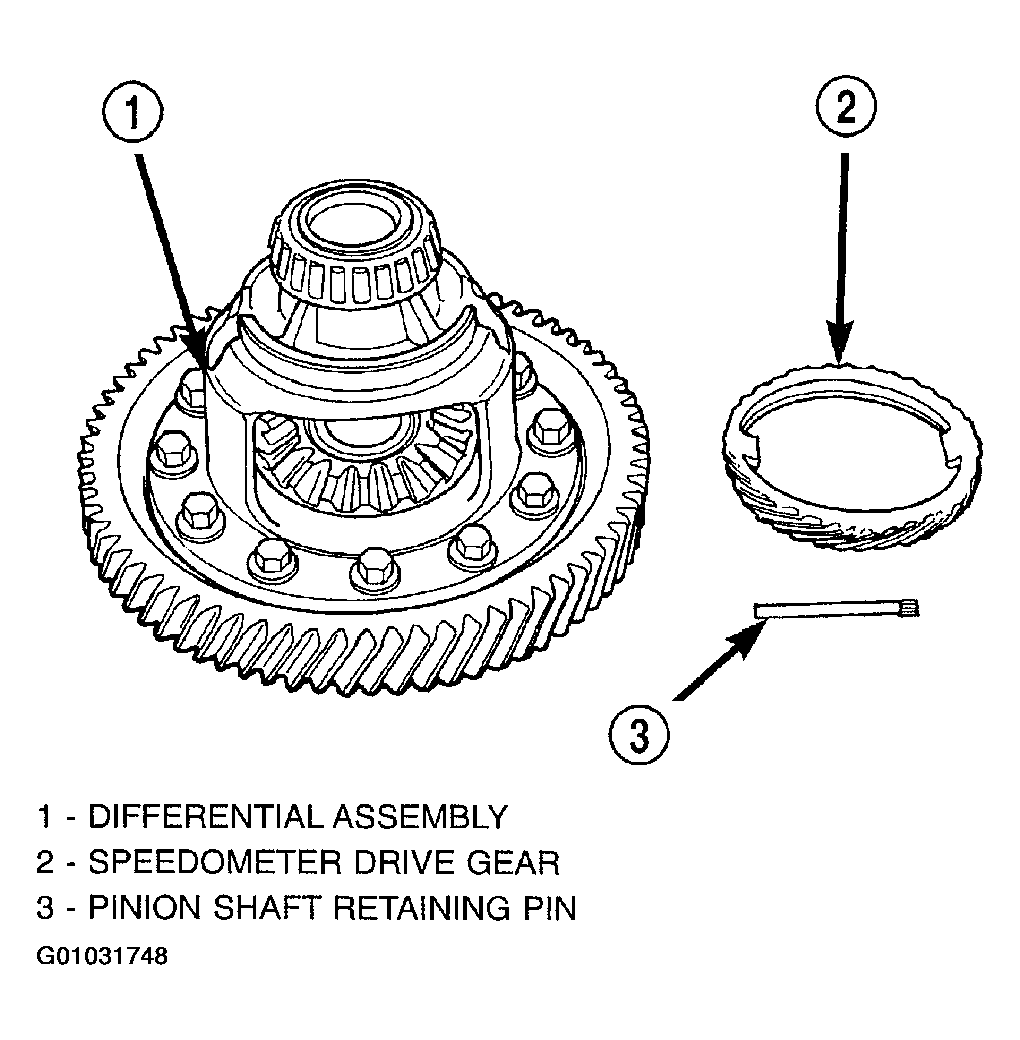

Fig 7: Identifying Retaining Pin
Courtesy of DAIMLERCHRYSLER CORP.
Remove pinion shaft. (Fig 8 and Fig 9 ).

Fig 8: Removing Pinion Shaft
Courtesy of DAIMLERCHRYSLER CORP.

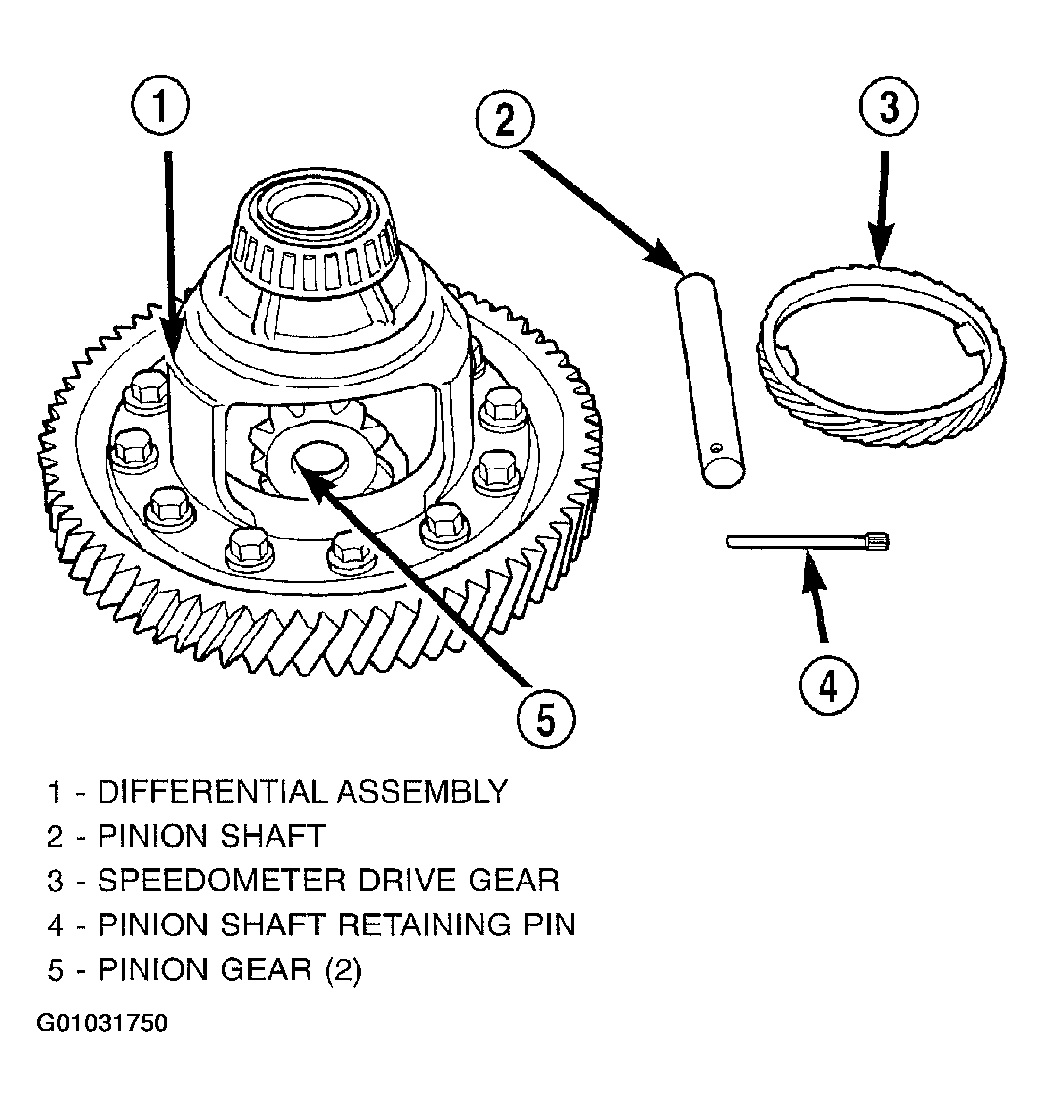

Fig 9: Identifying Differential Components
Courtesy of DAIMLERCHRYSLER CORP.
Remove pinion gears, side gears and thrust washers (Fig 10).

Fig 10: Identifying Side Gears, Pinion Gears & Thrust Washers
Courtesy of DAIMLERCHRYSLER CORP.
