Heat Shields: Installation

  1. Position heat shield(s) to underbody.

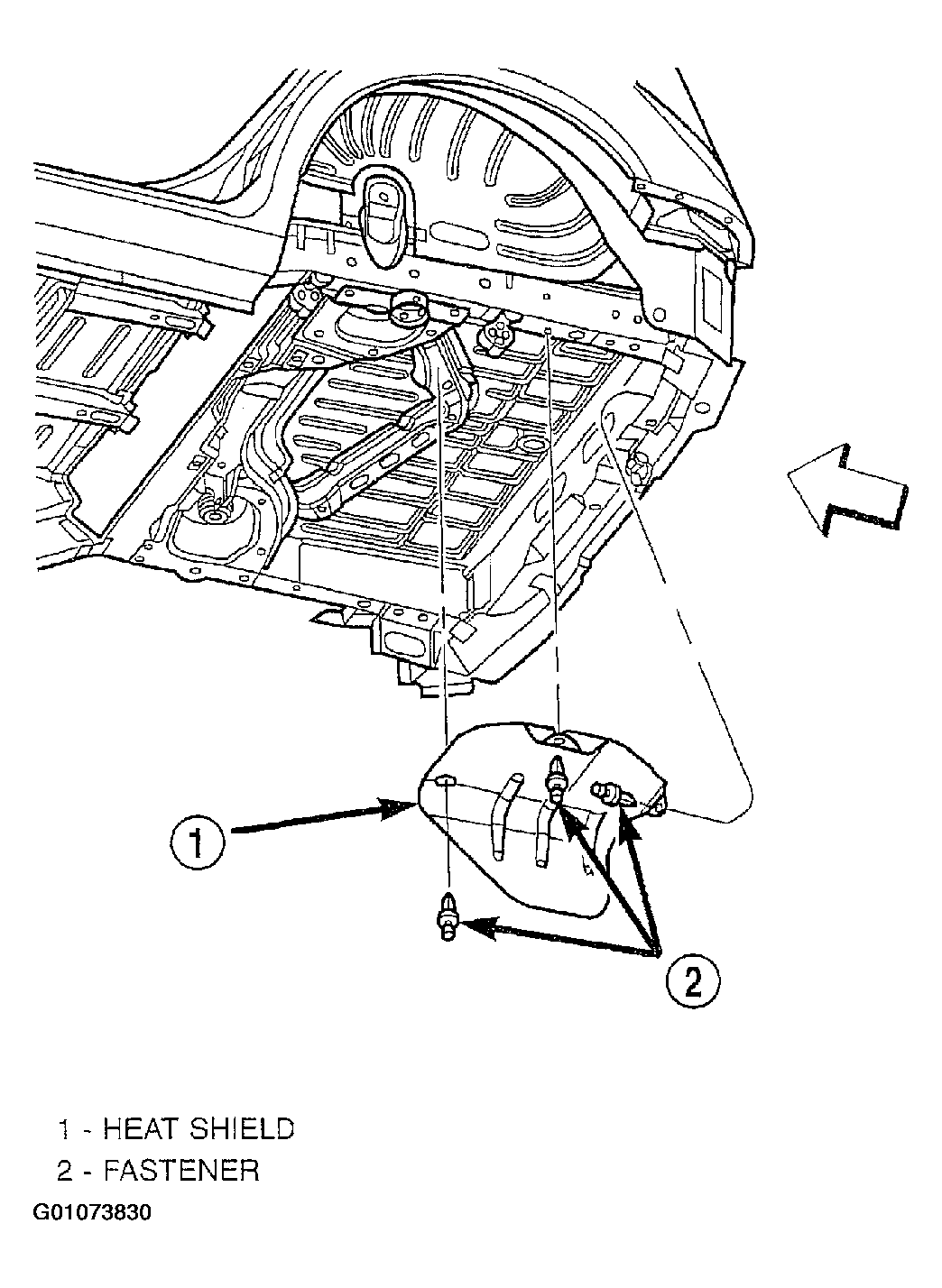

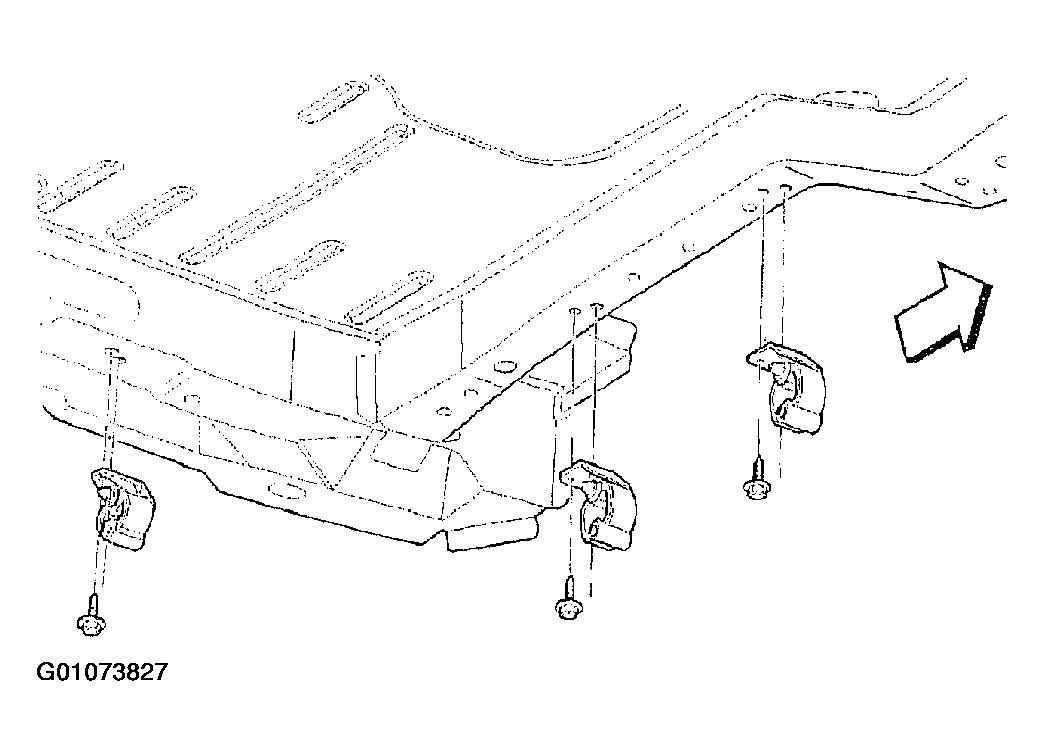

  2. Install heat shield fasteners. See Figure -Figure .
  3. Inspect heat shield to exhaust system clearances and adjust as necessary. See Figure . For clearance specifications, see SPECIFICATIONS  .
  4. Lower vehicle.
