Home >> Chrysler >> 2002 >> Prowler >> Repair and Diagnosis >> Electrical >> Charging Systems >> Battery System >> Battery Tray >> Removal

Battery Tray: Removal

  1. Remove battery (Refer to BATTERY - REMOVAL ).
  2. Remove nut and four bolts from battery tray (Fig. Fig 1).

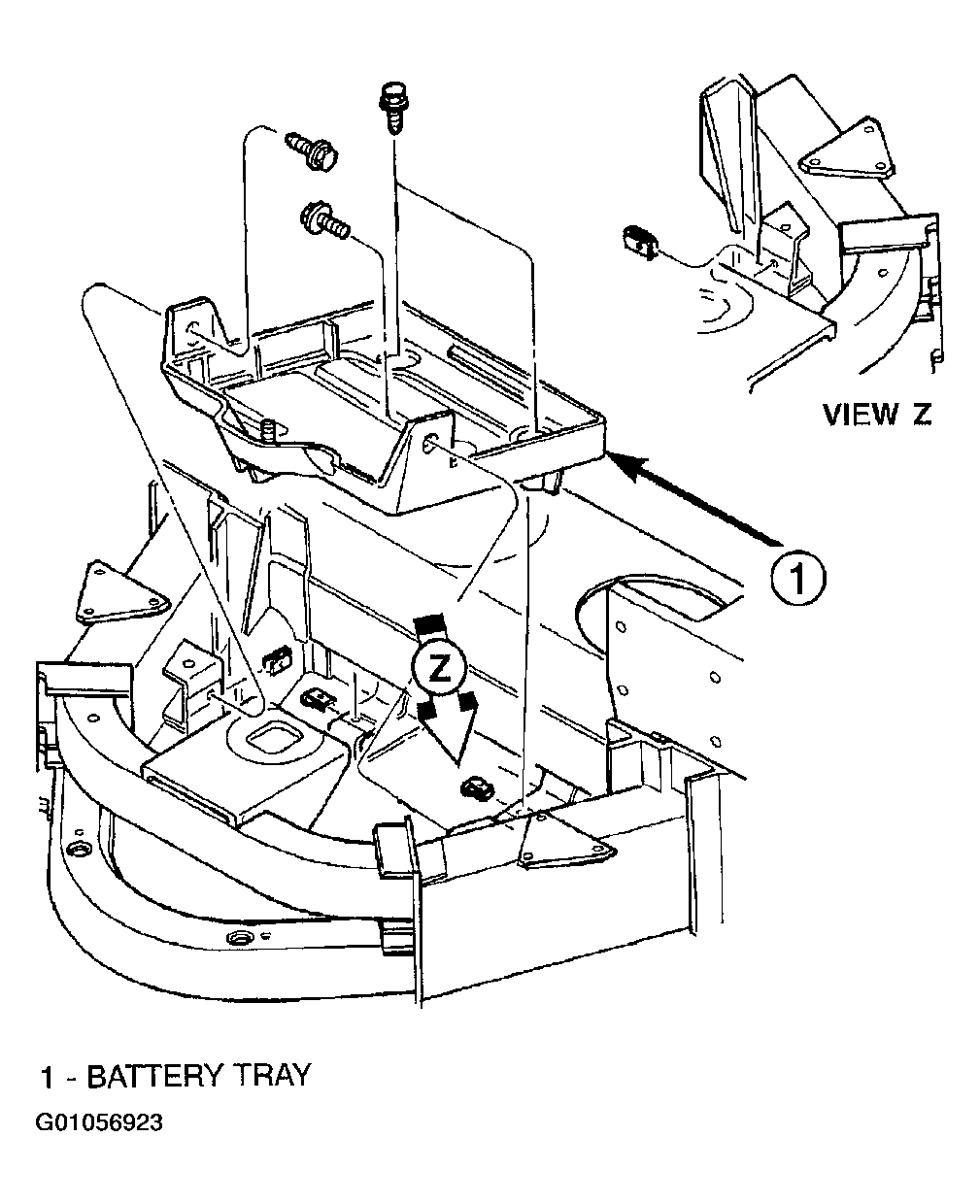

    Fig 1: Removing Battery Tray
    G01056923Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove battery tray from vehicle.
