Clutch System: Flywheel: Installation

  1. Clean the surfaces of the flywheel and pressure plate to make certain that all oil, grease, and rust have been removed.

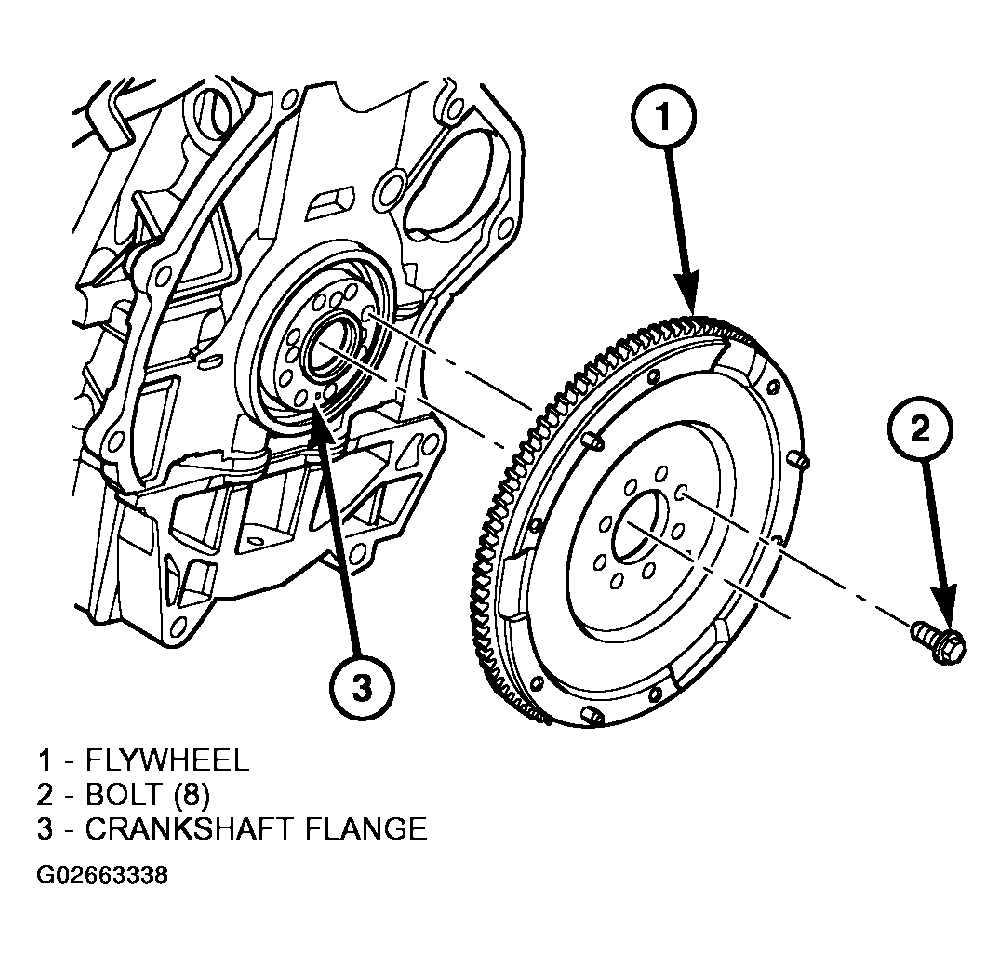

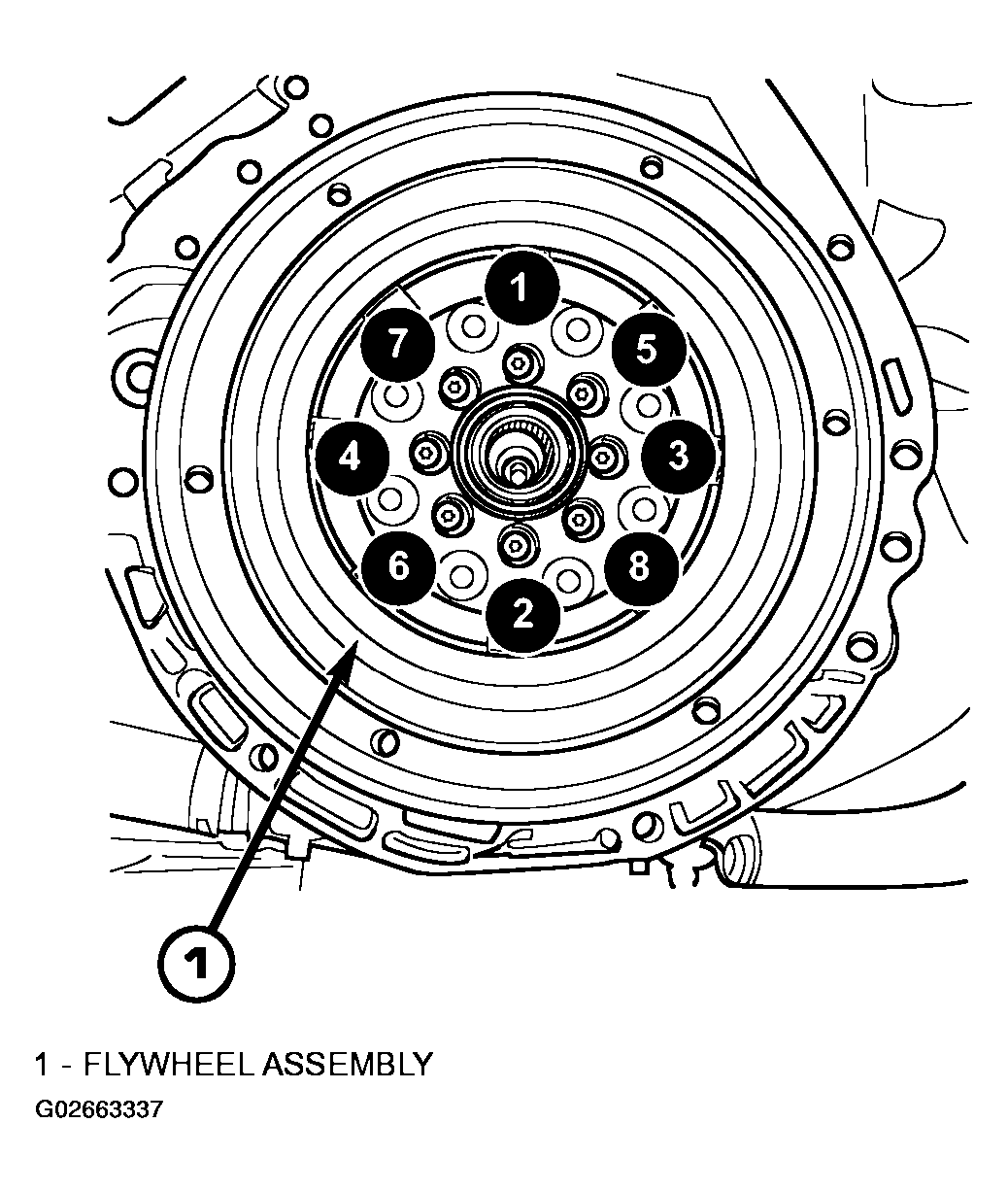

  2. 2.2L Diesel Engine Equipped Models ( Figure  ):  Install flywheel to crankshaft. Install eight (8) flywheel-to-crankshaft bolts and torque to 45 N.m (33 ft. lbs.) plus an additional 1/4 turn (90°).1.6L Engine Equipped Models ( Figure  ):  Install and torque the flywheel-to-crankshaft bolts to 95 N.m (70 ft.lbs.).
  3. Install clutch pressure plate and disc (Refer to CLUTCH/CLUTCH DISC - INSTALLATION  ).
  4. Install transaxle assembly (Refer to TRANSMISSION/TRANSAXLE/MANUAL - INSTALLATION ).
