DECKLID Security Switch: Installation

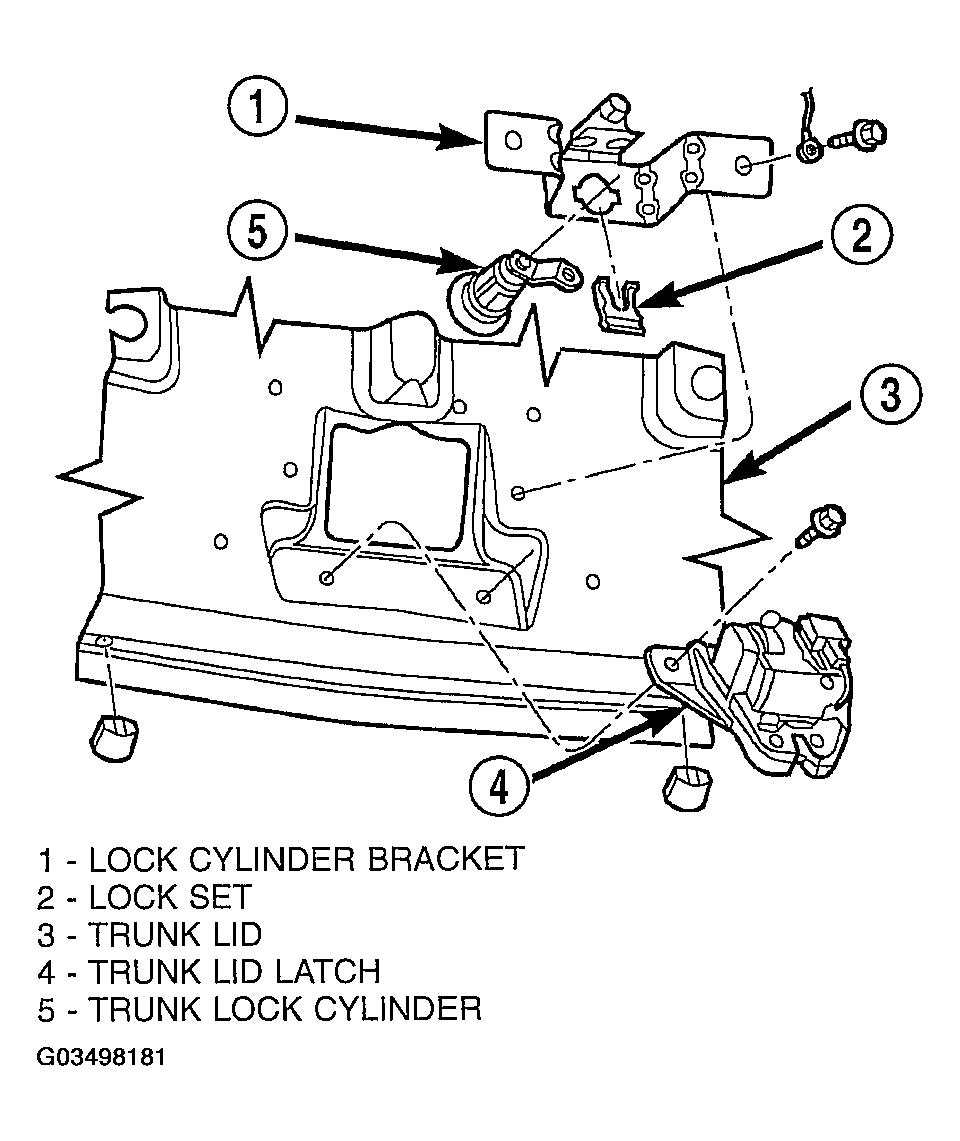

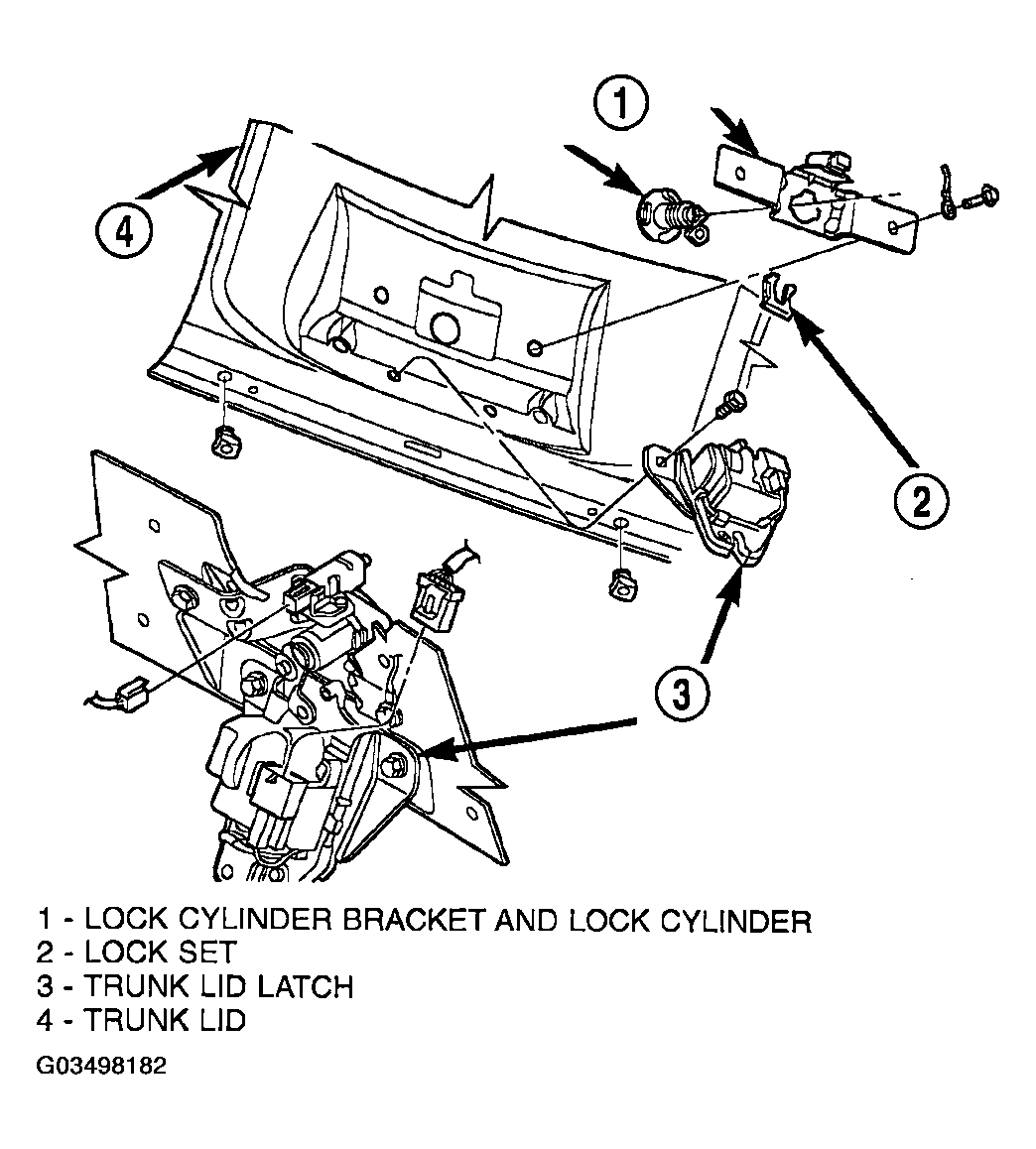

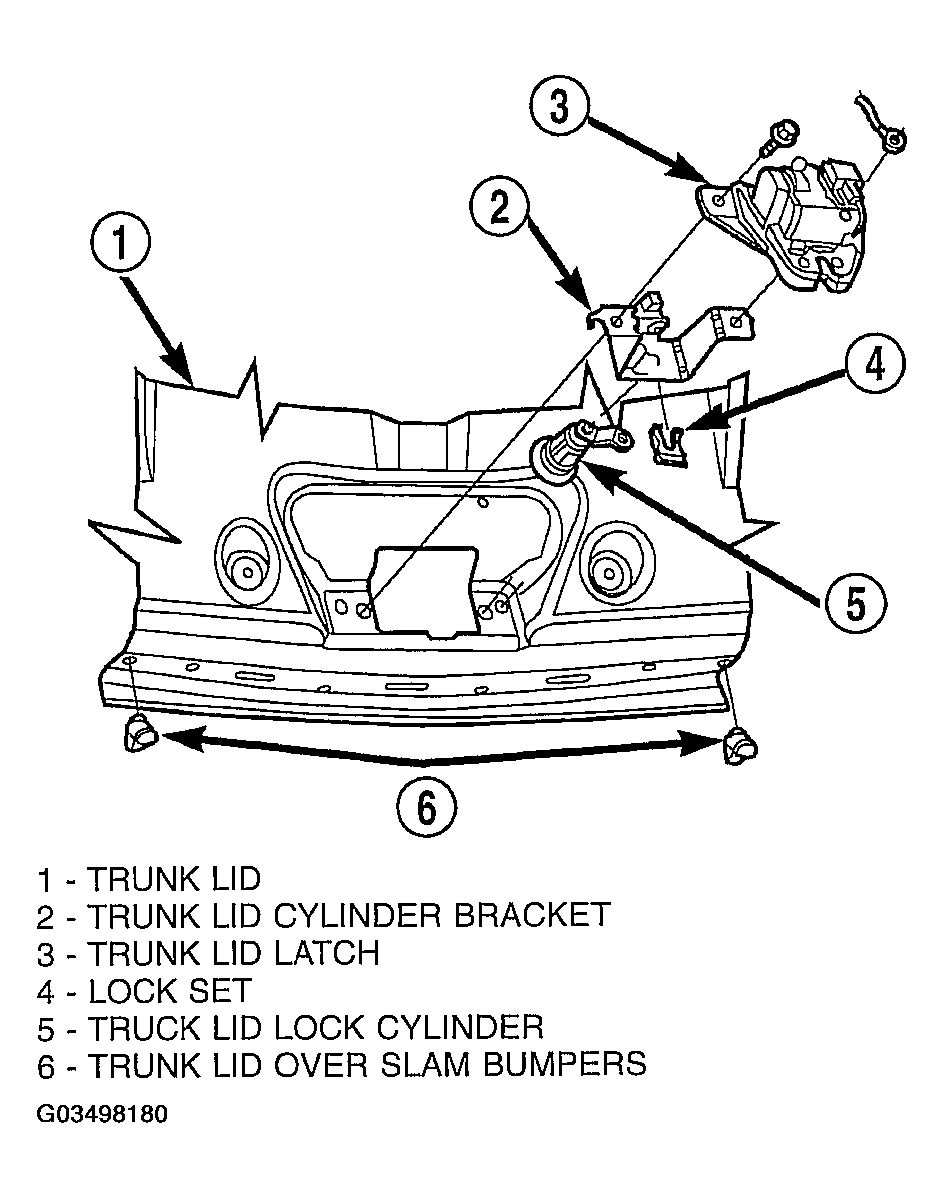

Connect connector and install the deck lid lock cylinder onto bracket (Figure ), (Figure ), and (Figure ).
Refer to LATCH .
Connect the negative battery cable remote terminal onto the remote battery post.
