Camshaft Position Sensor: Description

On 2.0/2.4L engines the camshaft position sensor is mounted to the rear of the cylinder head. See Fig 1 and Fig 2.

Fig 1: Camshaft Position Sensor -2.0/2.4L DOHC

Courtesy of DAIMLERCHRYSLER CORP.

1 - PCV VALVE

2 - EGR VALVE

3 - CAMSHAFT POSITION SENSOR

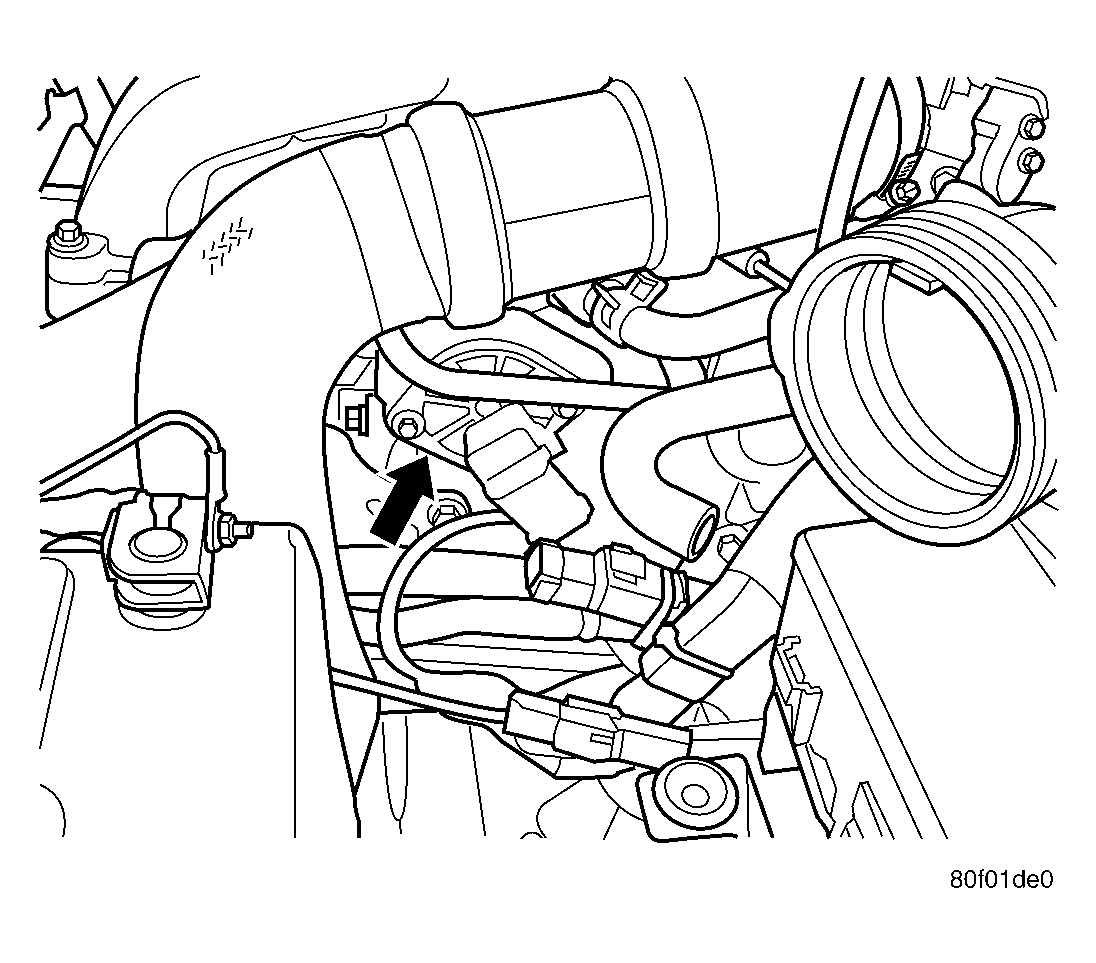

Fig 2: CAMSHAFT POSITION SENSOR - 2.4L TURBO

Courtesy of DAIMLERCHRYSLER CORP.
