Ignition Switch: Removal

The ignition switch attaches to the lock cylinder housing on the end opposite the lock cylinder. See Fig 1. For ignition switch terminal and circuit identification, refer to SYSTEM WIRING DIAGRAMS .

Fig 1: Ignition Switch-Viewed From Below Column

Courtesy of DAIMLERCHRYSLER CORP.

1. Remove the air cleaner lid, disconnect the inlet air temperature sensor and makeup air hose.
2. Disconnect negative cable from battery.
3. Place key cylinder in RUN position. Through the hole in the lower shroud, depress lock cylinder retaining tab and remove key cylinder. See Fig 2.

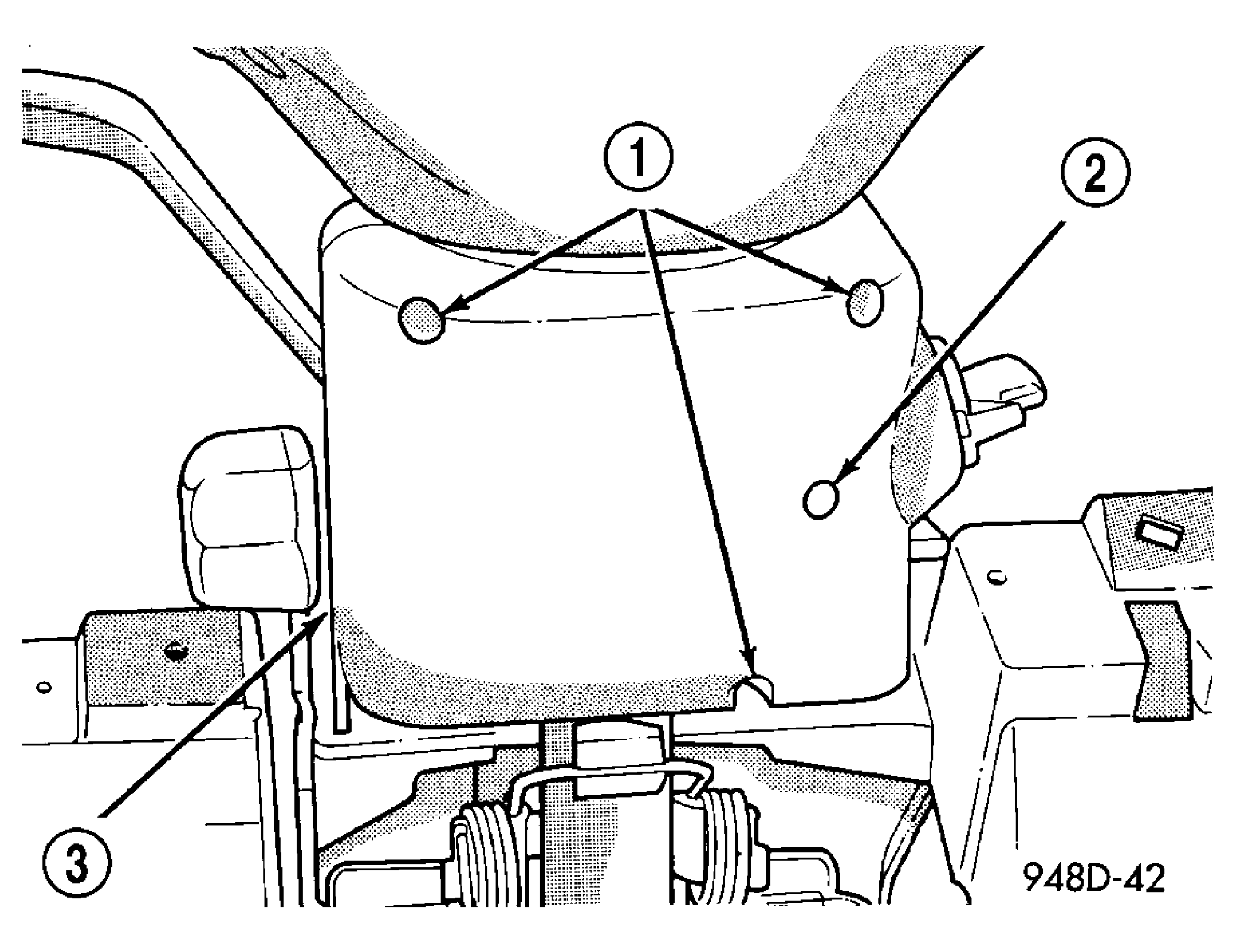

   Fig 2: Steering Column Shrouds

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - SCREW ACCESS HOLE

   2 - TAB ACCESS HOLE

   3 - LOWER SHROUD

4. Remove upper and lower shrouds from steering column.
5. Disconnect electrical connectors from ignition switch. See Fig 3.

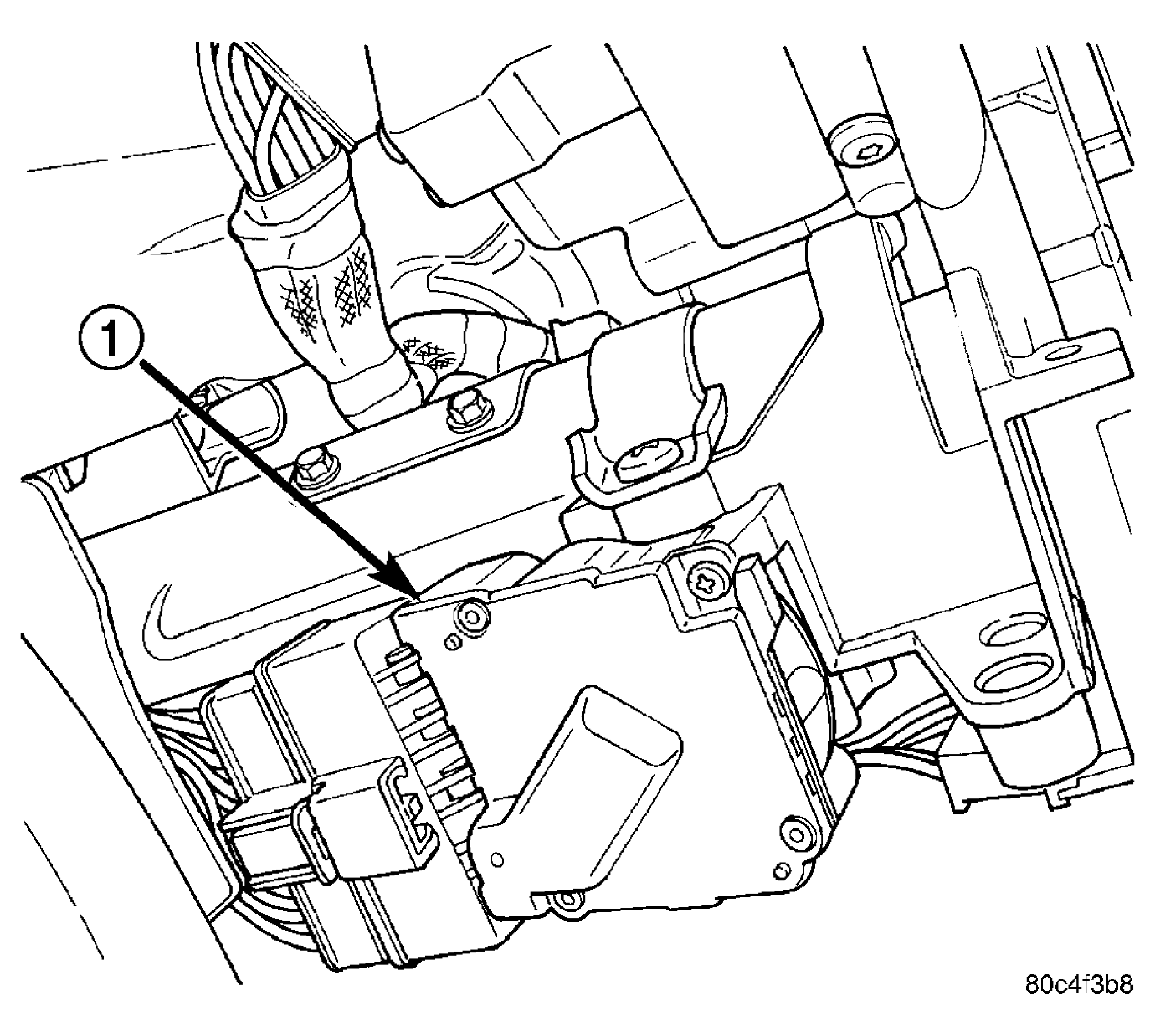

   Fig 3: Ignition Switch

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - IGNITION SWITCH

6. Remove the 2 screws on the top of the multi-function switch and relocate. See Fig 4 .

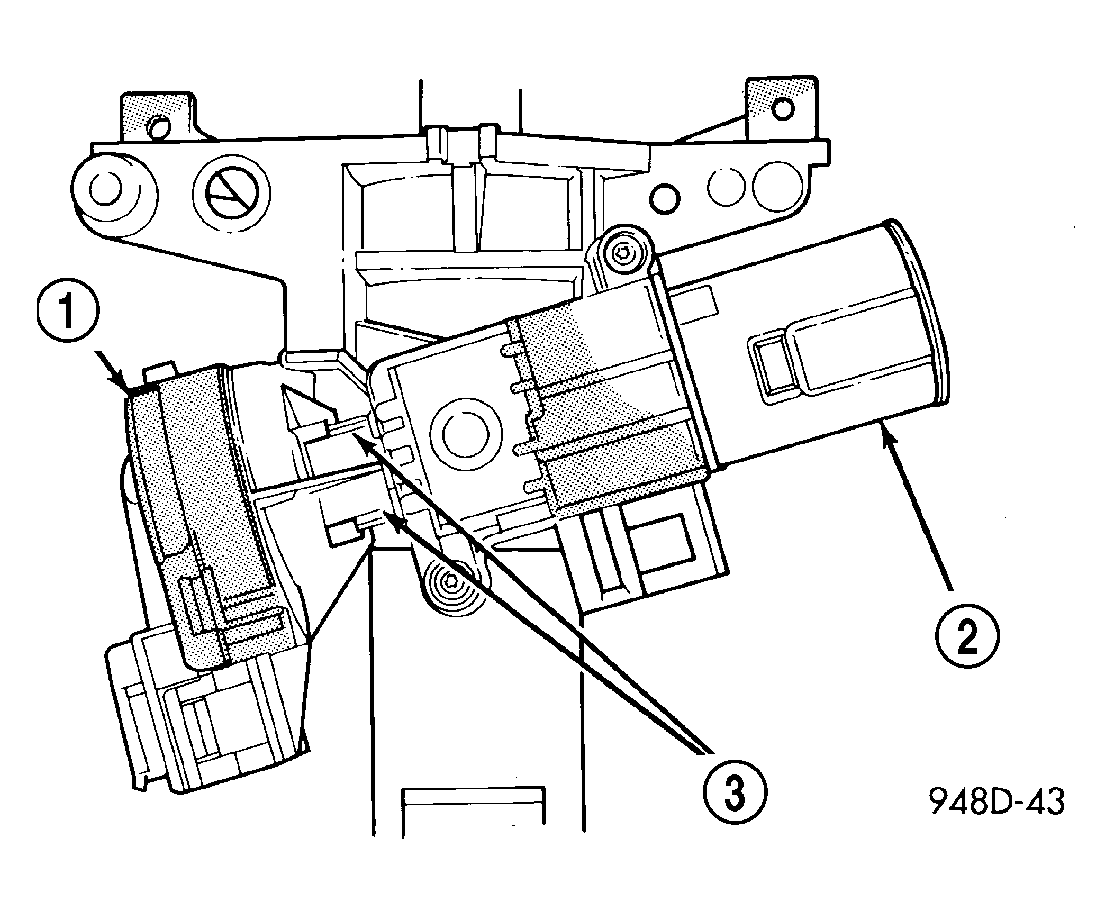

   Fig 4: Multi-Function Switch

   Courtesy of DAIMLERCHRYSLER CORP.
7. Remove ignition switch mounting screw with a #10 Torx(R) bit. See Fig 5.
   Fig 5: Ignition Switch Mounting Screw

   Courtesy of DAIMLERCHRYSLER CORP.
8. Pull ignition switch from steering column. See Fig 6 .

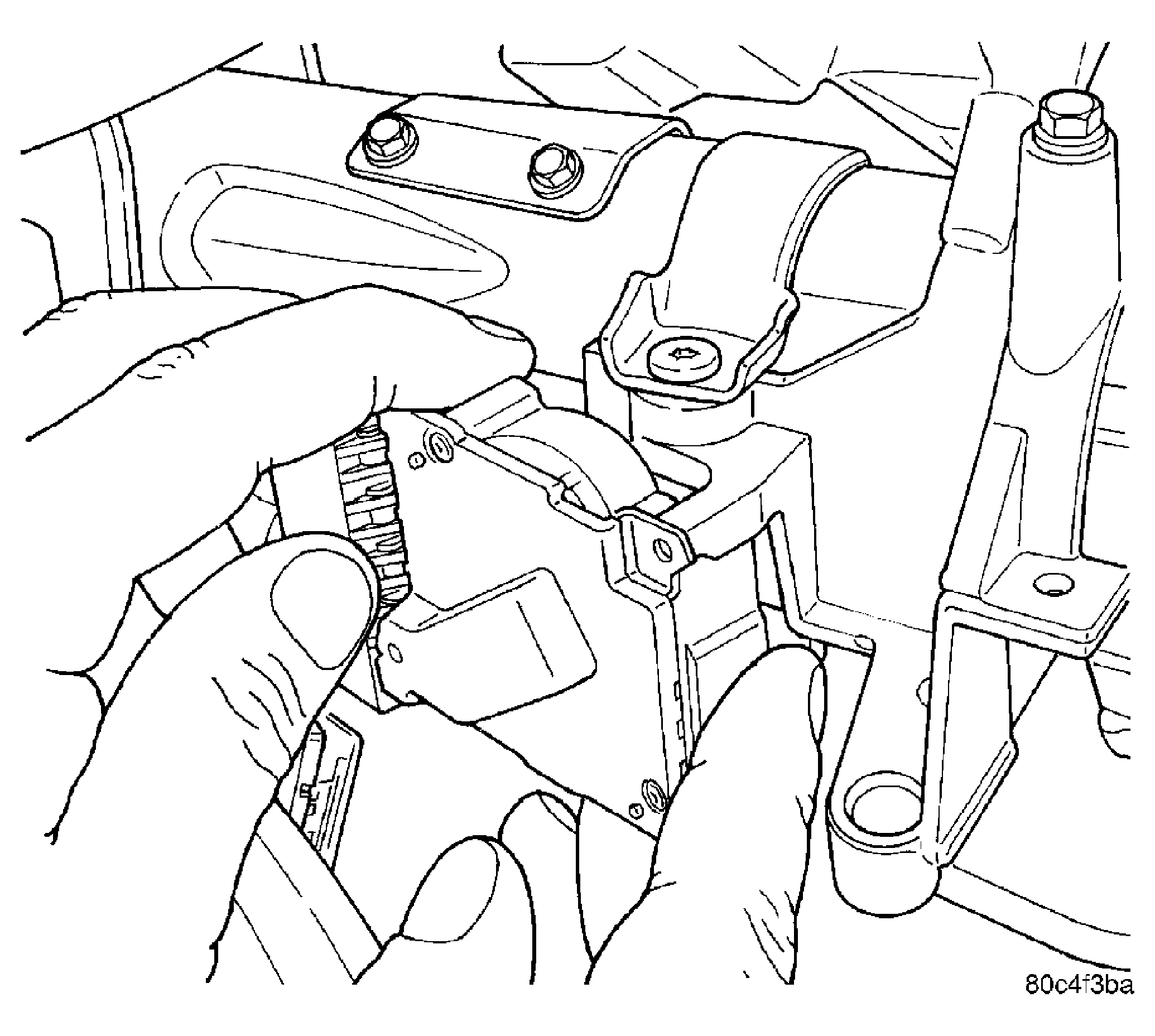

Fig 6: Removing Ignition Switch

Courtesy of DAIMLERCHRYSLER CORP.
