Occupant Restraint Controller: Installation

  1. Position ORC in vehicle.

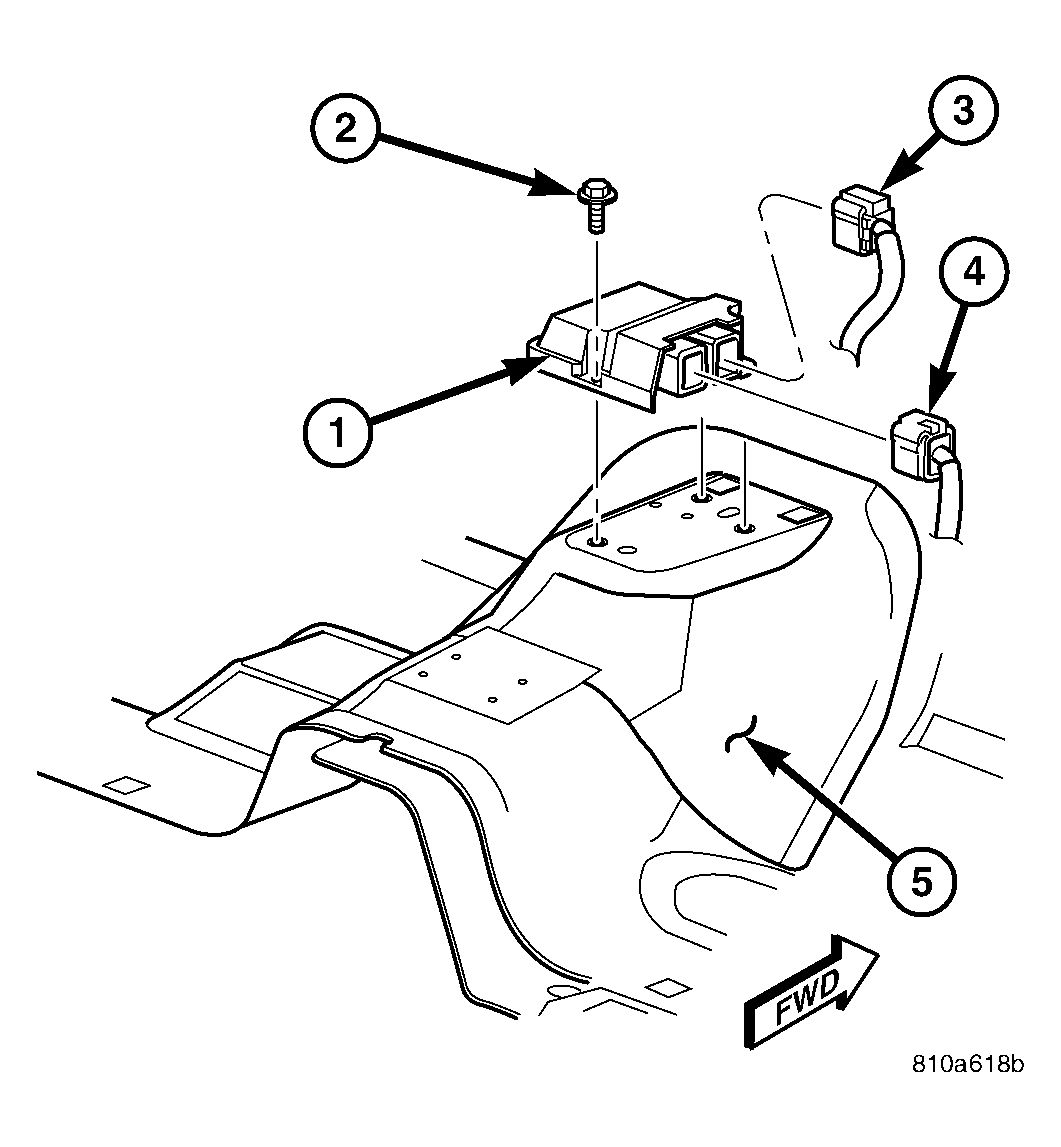

  2. Install the three retaining screws to the ORC. One on the left side of the floor tunnel, and one in front of (toward bulkhead) and behind (toward vehicle rear) the ORC unit. See Figure. Torque screws to 14.5 N.m (128 in. lbs.).

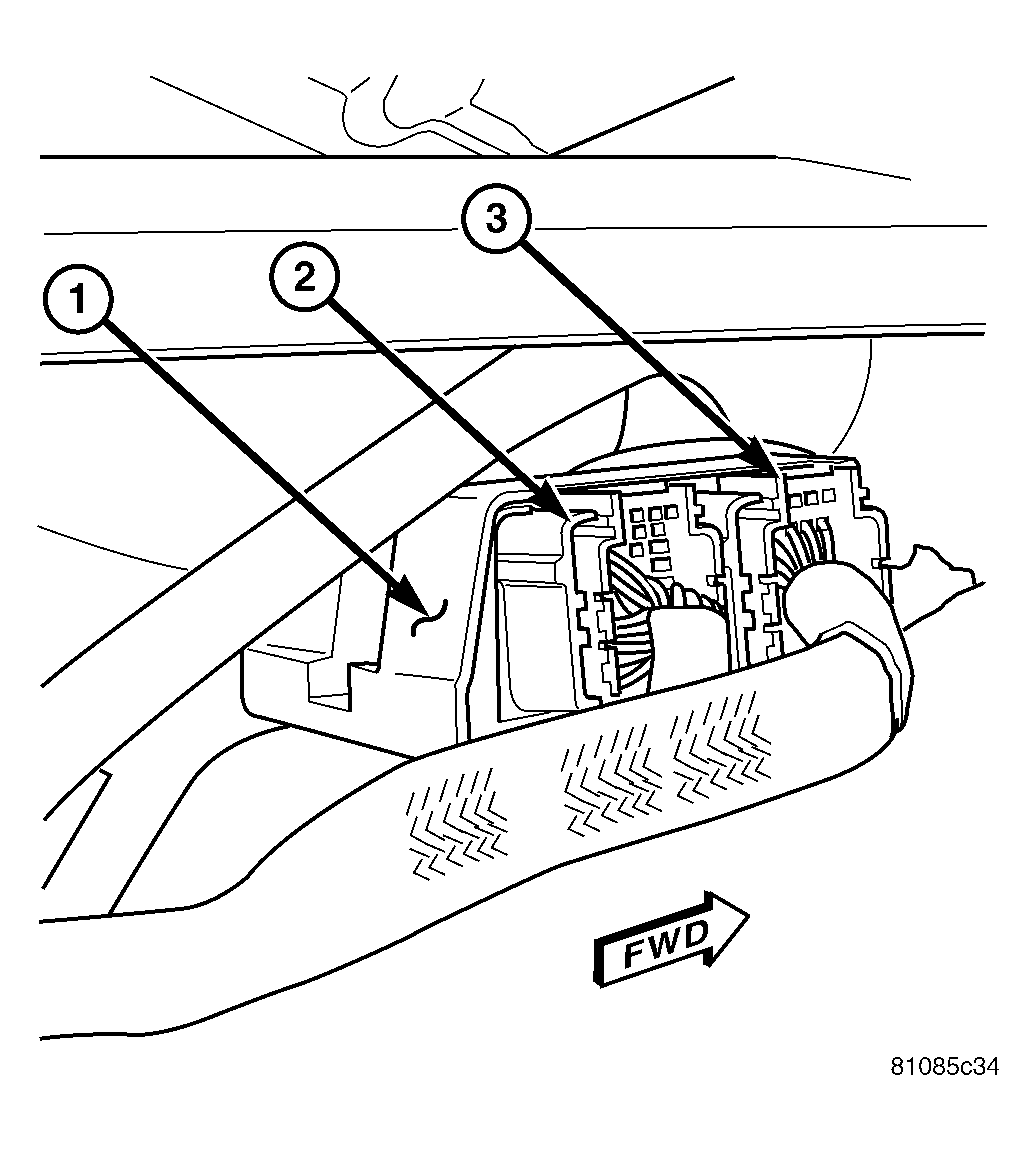

  3. From the right side of the vehicle, connect the two ORC electrical connectors. See Figure.

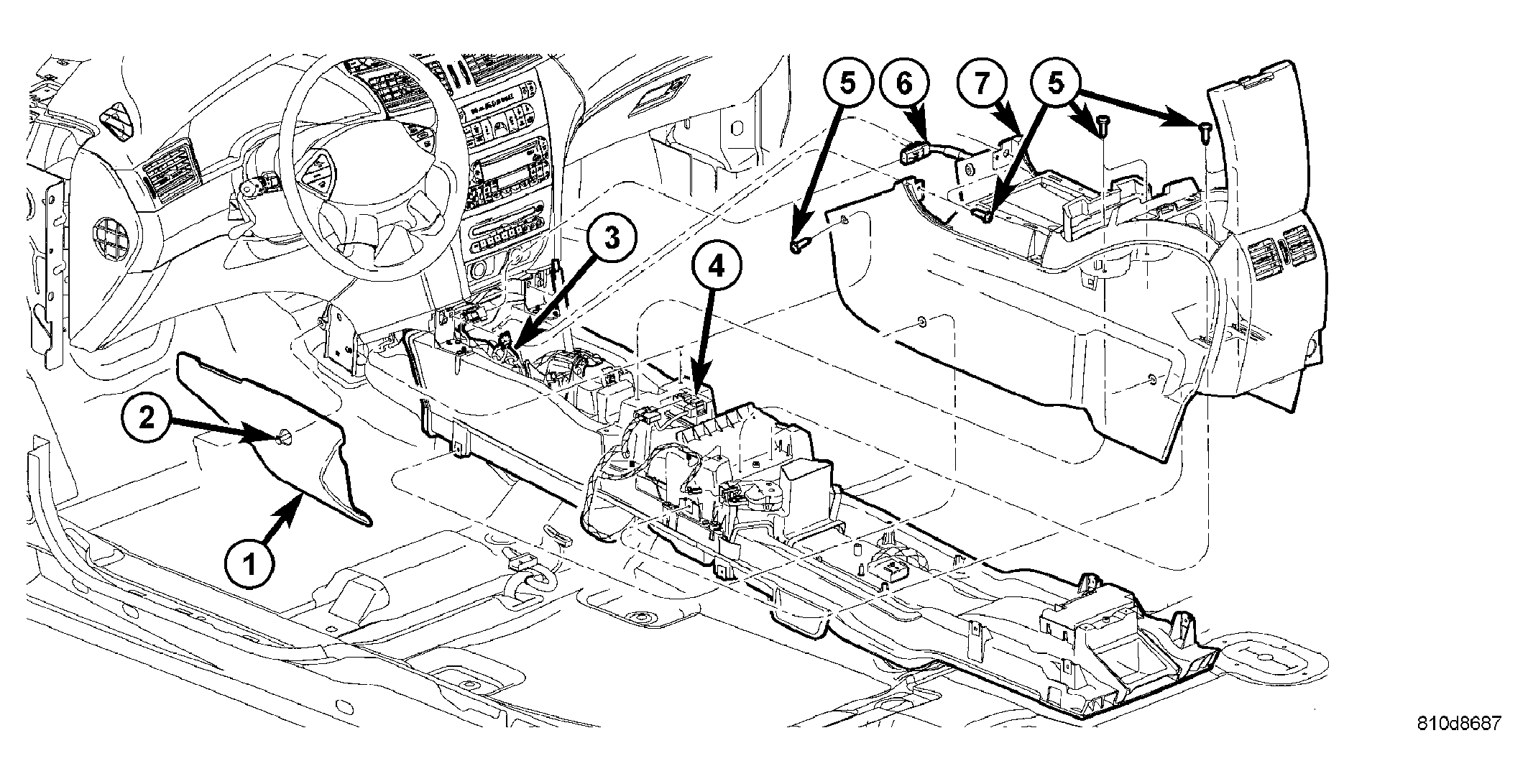

  4. Install the left and right forward console closeout panels. See Figure.
    WARNING: DO NOT CONNECT THE BATTERY NEGATIVE CABLE. (Refer to ELECTRICAL/RESTRAINTS - DIAGNOSIS AND TESTING - AIRBAG SYSTEM)  FIRST. FAILURE TO DO SO COULD RESULT IN OCCUPANT PERSONAL INJURY OR DEATH.
  5. Verify vehicle and system operation.
  6. Close hood.
