Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Analog Clock Module | Behind top center of dash. See Figure. |

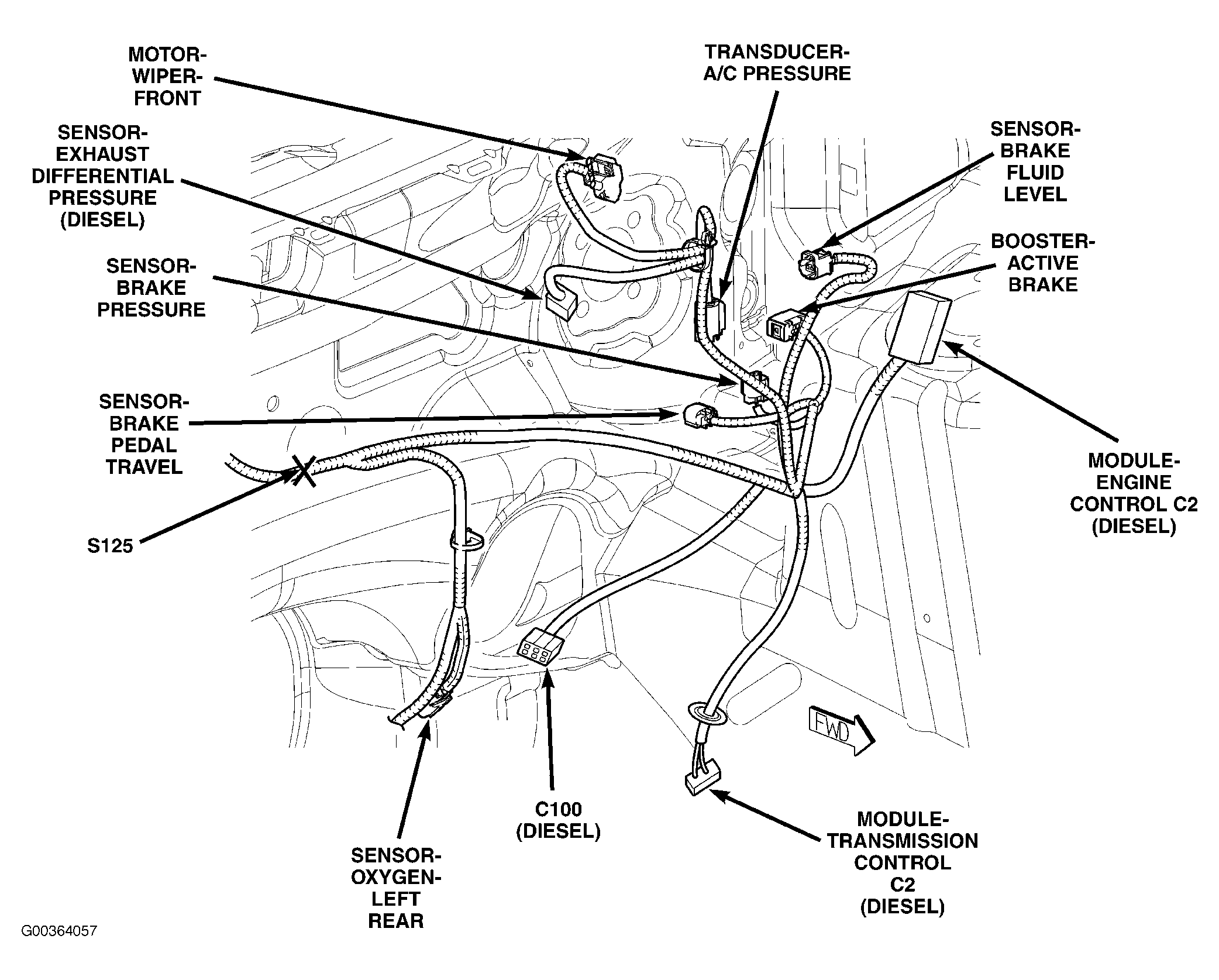

| Antilock Brakes Module | At right front of engine compartment. See Figure. |
| Brake Module (5.7L) | Behind left kick panel. See Figure. |
| Driver Door Module | At middle of driver door. See Figure. |

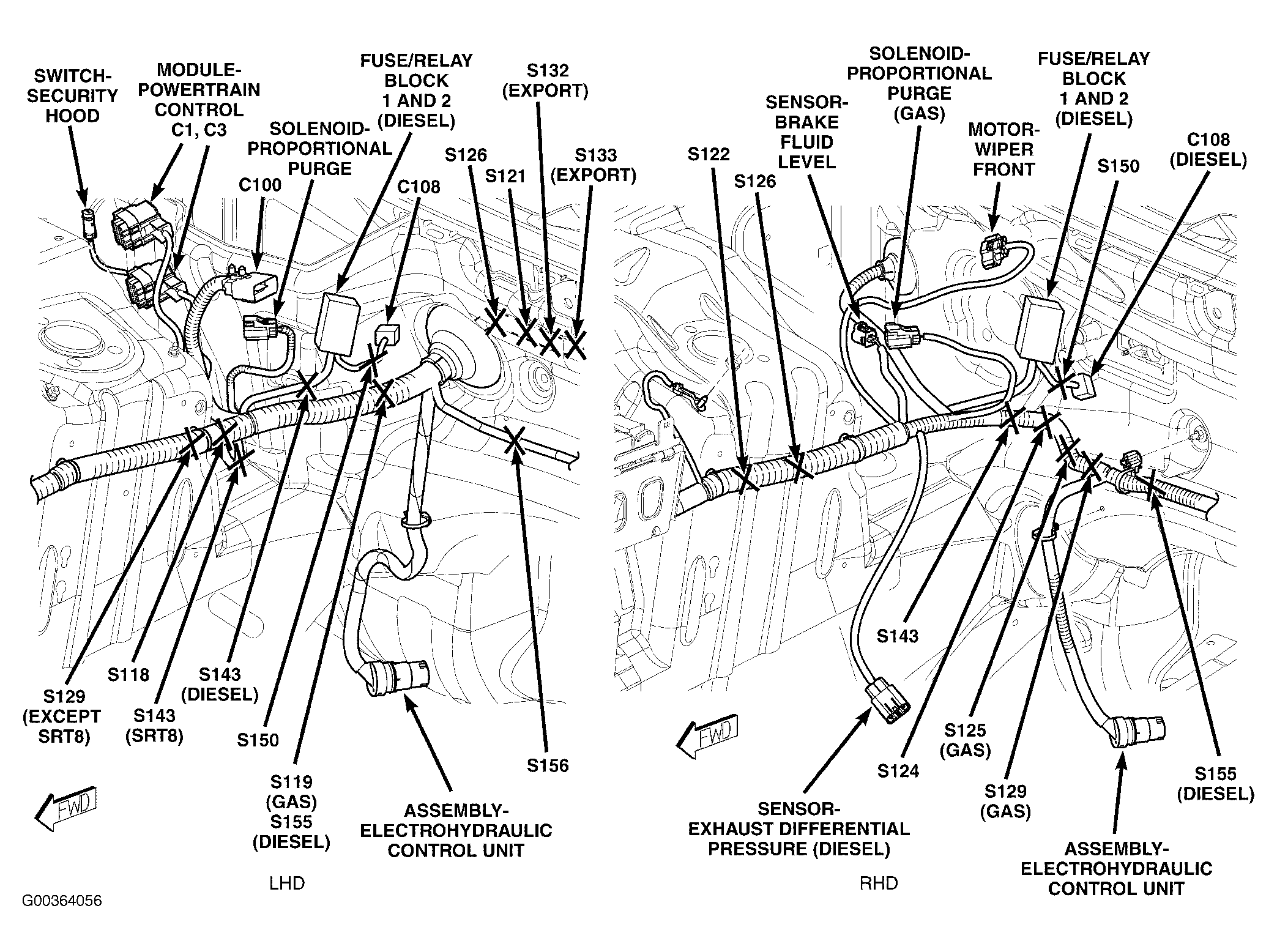

| Electrohydraulic Control Unit Assembly | Lower right side of firewall. See Figure. |
| Electronic Overhead Module | In overhead console. See Figure. |
| Engine Control Module C2 (Diesel) | Left rear of engine compartment. |
| Front Blower Power Module (ATC) | On center of HVAC unit. See Figure. |

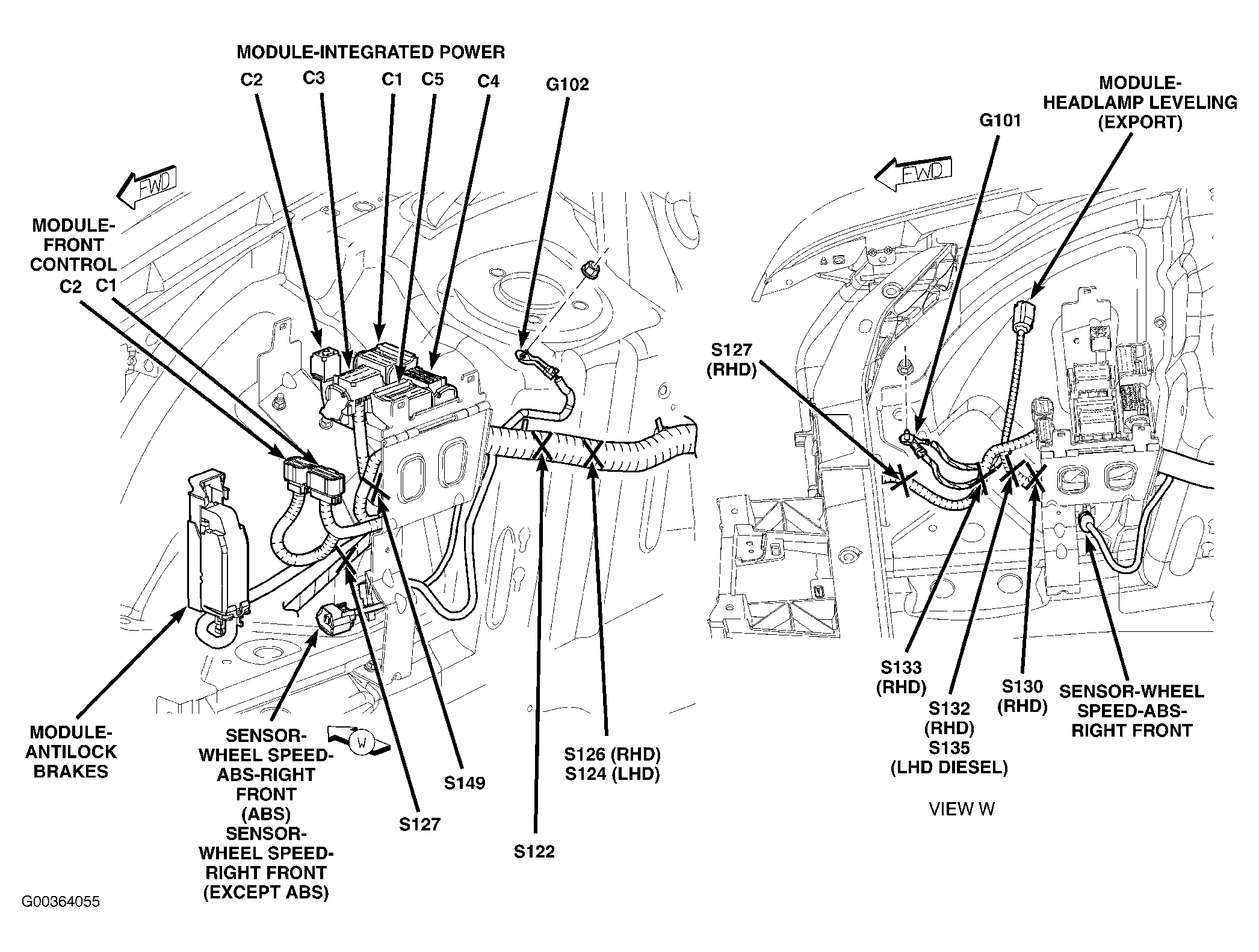

| Front Control Module | At right side of engine compartment. See Figure. |
| Hands Free Module | Behind right side of dash. See Figure. |
| Heated Seats Module | Below passenger seat. See Figure. |
| Integrated Power Module | At right side of engine compartment. See Figure. |
| Memory Seat Module | Below driver seat. See Figure. |
| Occupant Classification Module | Below passenger seat. See Figure. |
| Occupant Restraint Controller Module | In center console. See Figure. |
| Park Assist Module | Behind right rear seat. See Figure. |
| Park Display Module | At rear center of headliner. See Figure. |
| Powertrain Control Module | At right rear of engine compartment. See Figure. |
| Sentry Key Remote Entry Module | In steering column. See Figure. |
| Steering Control Module | In steering column. See Figure. |
| Tire Pressure Transponder (Left Front) | Left front of engine compartment. See Figure. |
| Tire Pressure Transponder (Right Front) | Right front of engine compartment. See Figure. |

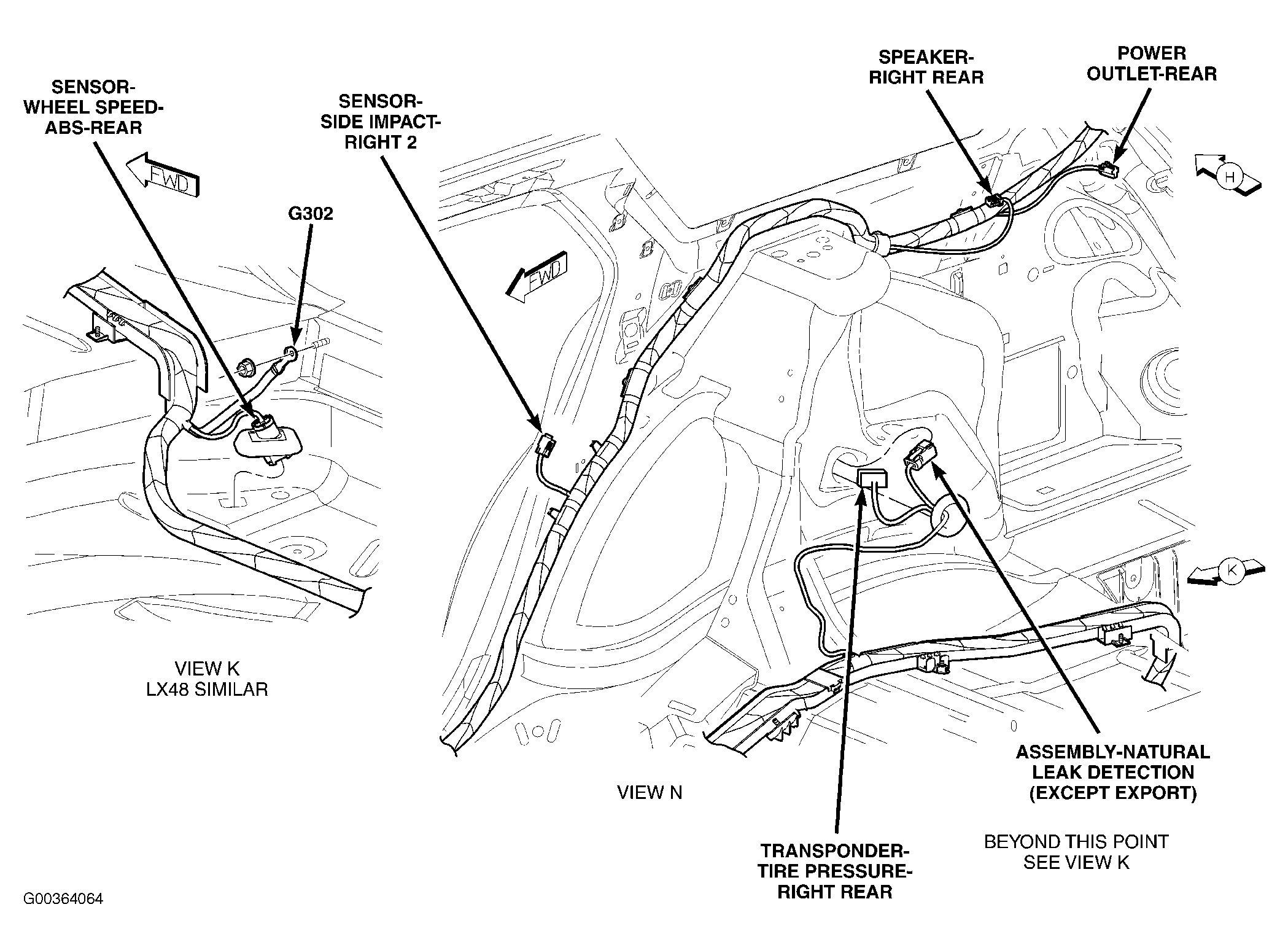

| Tire Pressure Transponder (Right Rear) | Right rear wheelwell. See Figure. |
| Transmission Control Module | Below steering column. See Figure. |
| Transmission Control Module C2 (Diesel) | Left rear of engine compartment. See Figure. |
