Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Adaptive Cruise Control Module | Left grille. See Figure. |
| Analog Clock Module | Top center of dash. See Figure. |
| Antilock Brakes Module | Right front of engine compartment. See Figure. |
| Brake Module (Trailer Tow) | Left kick panel. See Figure. |
| Driver Door Module | Middle of driver door. See Figure. |
| Electrohydraulic Control Unit Assembly (NAG1) | Right side of transmission. See Figure. |
| Electronic Overhead Module | Overhead console. See Figure. |
| Electronic Shift Module | Bottom of steering column. See Figure. |
| Front Blower Power Module (ATC) | Center of HVAC unit. See Figure. |
| Hands Free Module | Right side of dash. See Figure. |
| Heated Seats Module | Below passenger seat. See Figure. |
| Interface-Police/Taxi Module | In mini-console. See Figure. |
| Memory Seat Module | Below driver seat. See Figure. |
| Occupant Restraint Controller Module | In center console. See Figure. |
| Park Assist Module | Right rear seat. See Figure. |
| Passenger Door Module | Middle of passenger door. |
| Powertrain Control Module | Right rear of engine compartment. See Figure. |
| Satellite Video Module | Audio-video jumper. |
| Steering Control Module | Steering column. See Figure. |

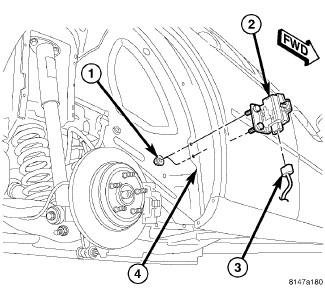

| Tire Pressure Monitoring Module | Behind right rear wheelhouse splash shield. See Figure. |
| Totally Integrated Power Module | Right side of engine compartment. |
| Transmission Control Module (NAG1) | Below steering column. See Figure. |
| Video Screen Module | In console. |
| Wireless Control Module | Steering column. |
