Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| ABS Module (EBCM) | At left rear corner of engine compartment. |

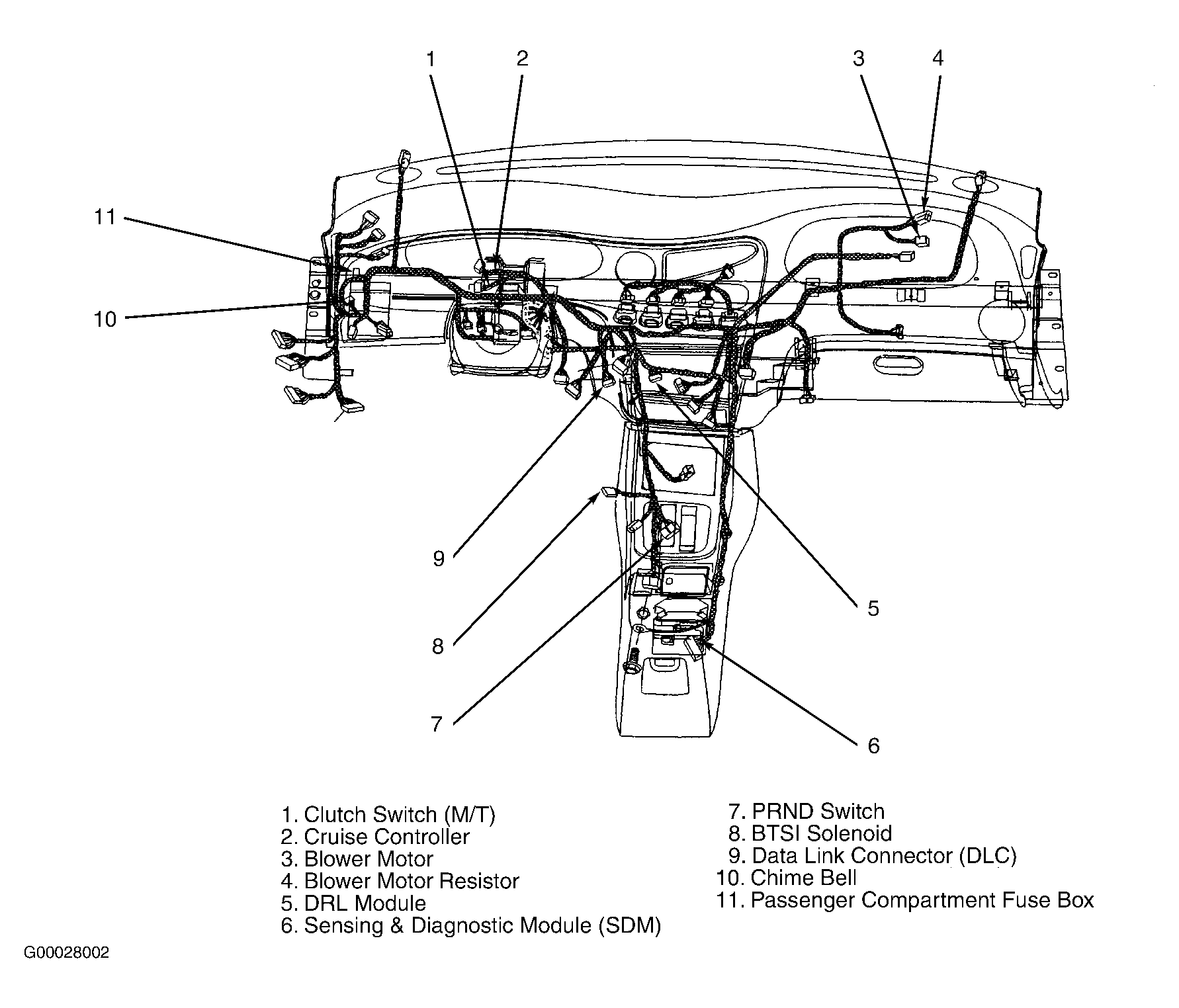

| Cruise Controller | Behind left side of dash. See Figure . |
| DRL Module | Behind lower center of dash. See Figure . |
| Engine Control Module (ECM) | Behind right kick panel. See Figure . |
| Sensing & Diagnostic Module (SDM) | Below center floor console. See Figure . |
| Transmission Control Module (TCM) | Behind left side of dash. |
