Control Units

CONTROL UNITS LOCATION

Component	Component Location
ECM/PCM	In right kick panel.

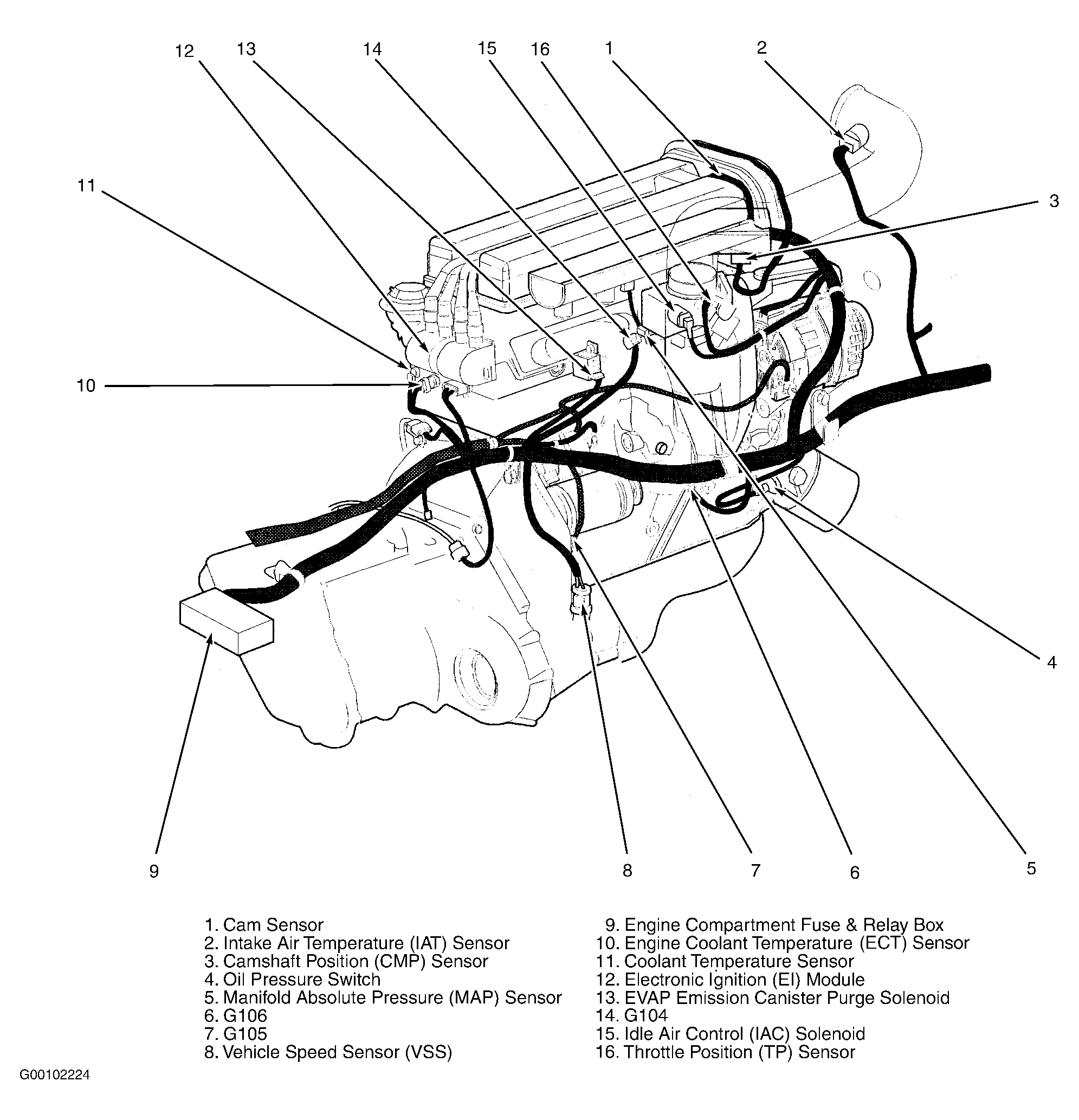

Electronic Ignition (EI) Module	On rear of cylinder head. See Figure .

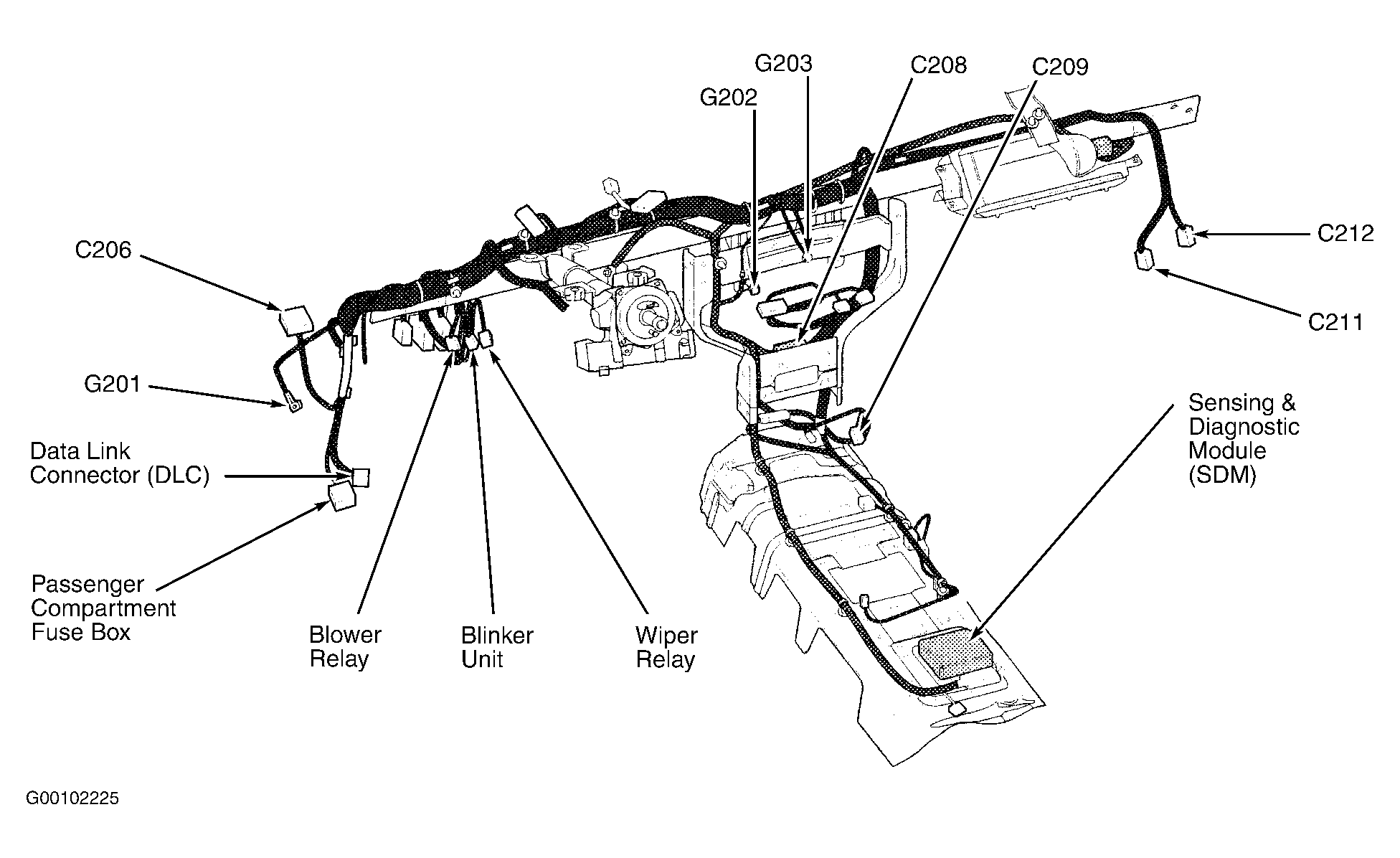

Sensing & Diagnostic Module (SDM)	Below center floor console. See Figure .
Sun Roof Module	Forward of sun roof opening.
