O2 Sensor: Removal

  1. Disconnect the negative battery cable.
  2. Remove the exhaust heat shield. See Fig 1.
  3. Disconnect the O2 sensor harness connector. See Fig 1.
  4. Remove the O2 sensor. See Fig 2.

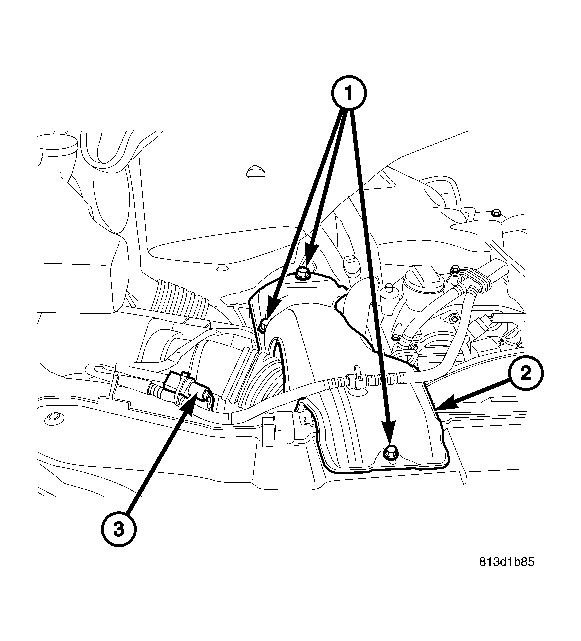

Fig 1: HEAT SHIELD
GC0037177Courtesy of DAIMLERCHRYSLER CORP.
1 - FASTENERS
2 - SHIELD
3 - O2 SENSOR HARNESS CONNECTOR

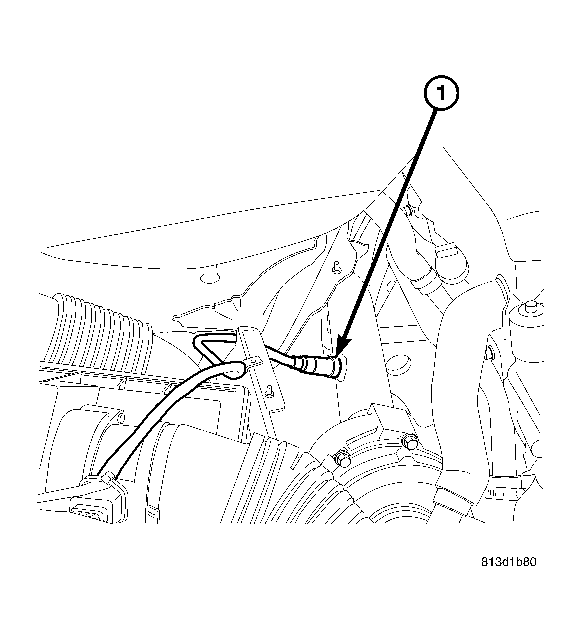

Fig 2: OXYGEN SENSOR
GC0037176Courtesy of DAIMLERCHRYSLER CORP.
1 - OXYGEN SENSOR
