Component Locations

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For component locations, refer to illustrations. See Fig 1 and Fig 2 .

COMPONENT LOCATIONS

Component	Location
Instrument Panel Fuse Block	Right Side Of Instrument Panel, In Glove Box
Underhood Junction Block	Mounted To Right Front Strut Tower
Washer Fluid Container	Behind Right Wheel Liner
Washer Pump	In Washer Fluid Container
Wiper Crank Arm	On Wiper Motor
Wiper Motor	Under Cowl, Below Windshield
Wiper/Washer Switch	Part Of Multifunction Switch In Steering Column

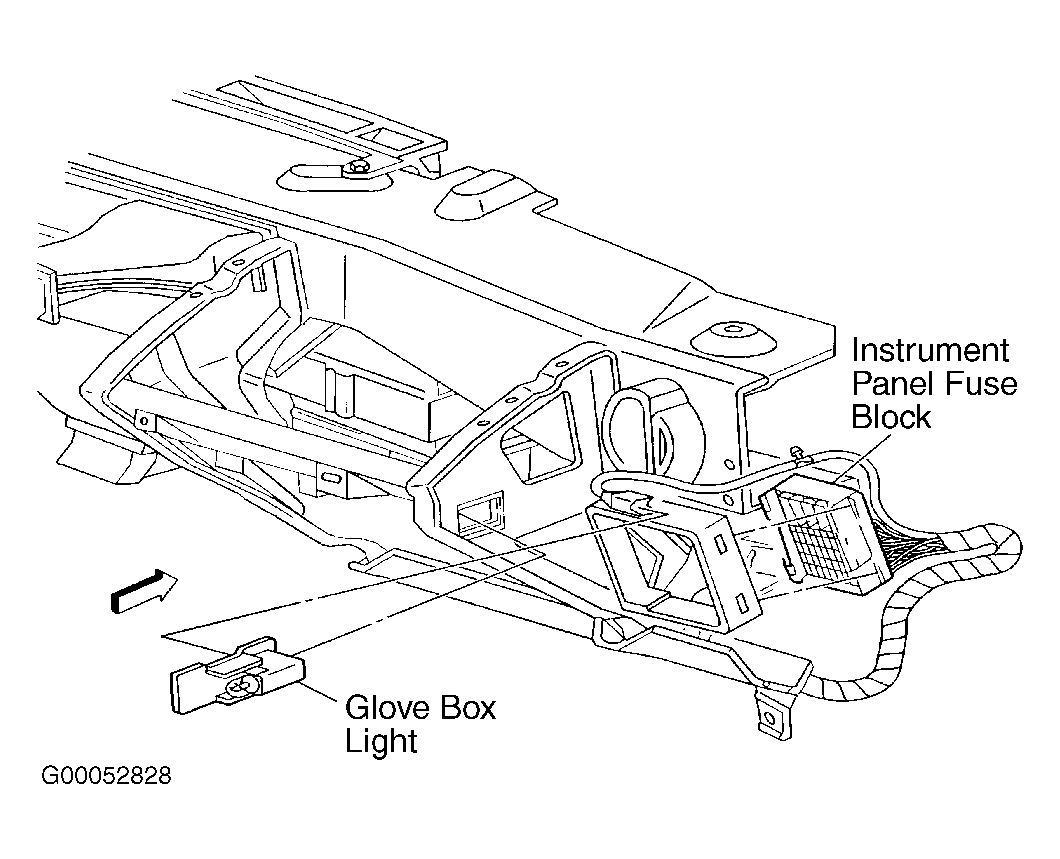

Fig 1: Locating Instrument Panel Fuse Block

Courtesy of GENERAL MOTORS CORP.

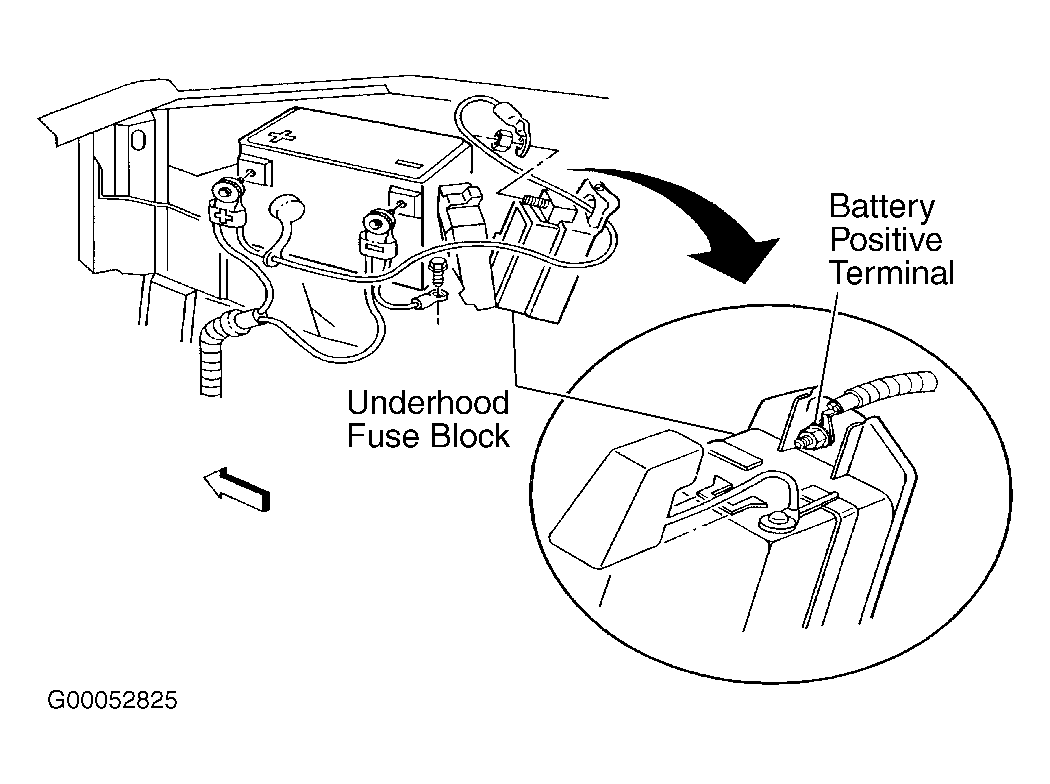

Fig 2: Locating Underhood Fuse Block

Courtesy of GENERAL MOTORS CORP.

Fig 3: Identifying Instrument Panel Fuse Block Fuses

Courtesy of GENERAL MOTORS CORP.
