Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| ABS Control Unit | On right side of luggage compartment, behind trim panel. | |

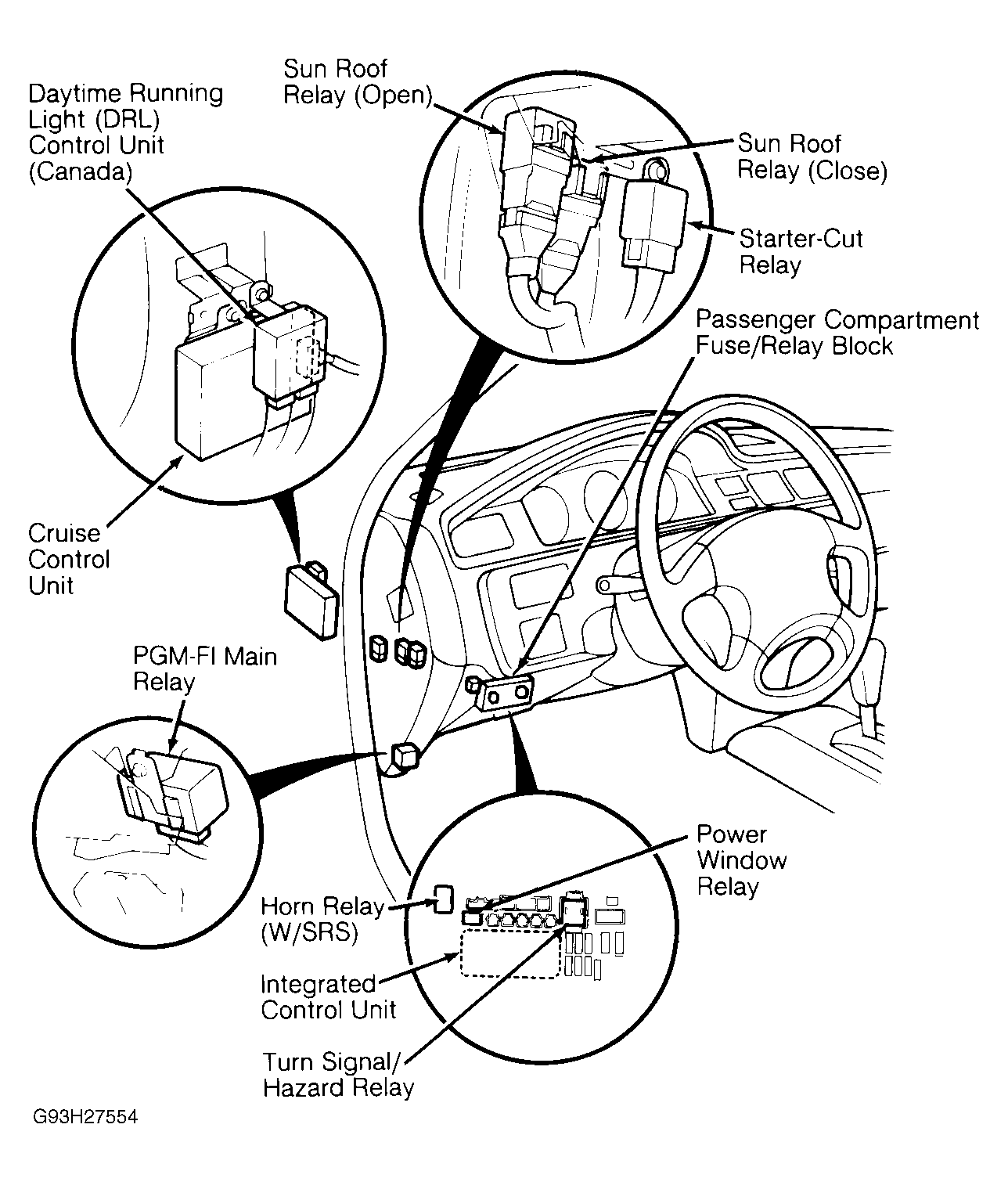

| Cruise Control Unit | Behind left side of dash. See Figure . | |
| Daytime Running Light (DRL) Control Unit (Canada) | Behind left side of dash. See Figure . | |
| Electric Load Detector (ELD) Unit | ||

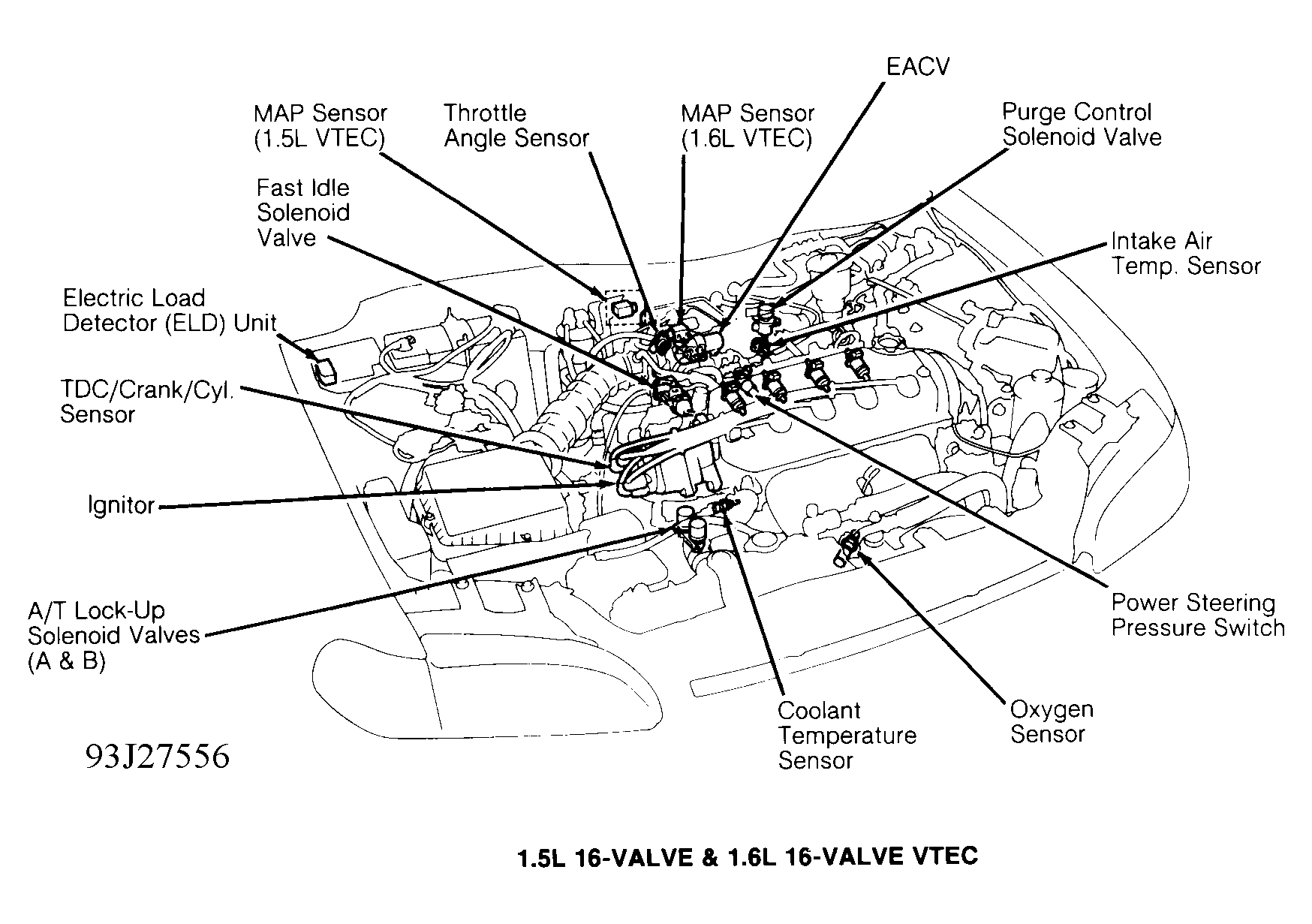

| 1.5L 16-Valve & 1.6L 16-Valve VTEC | Integrated with engine compartment fuse/relay block. See Figure . | |

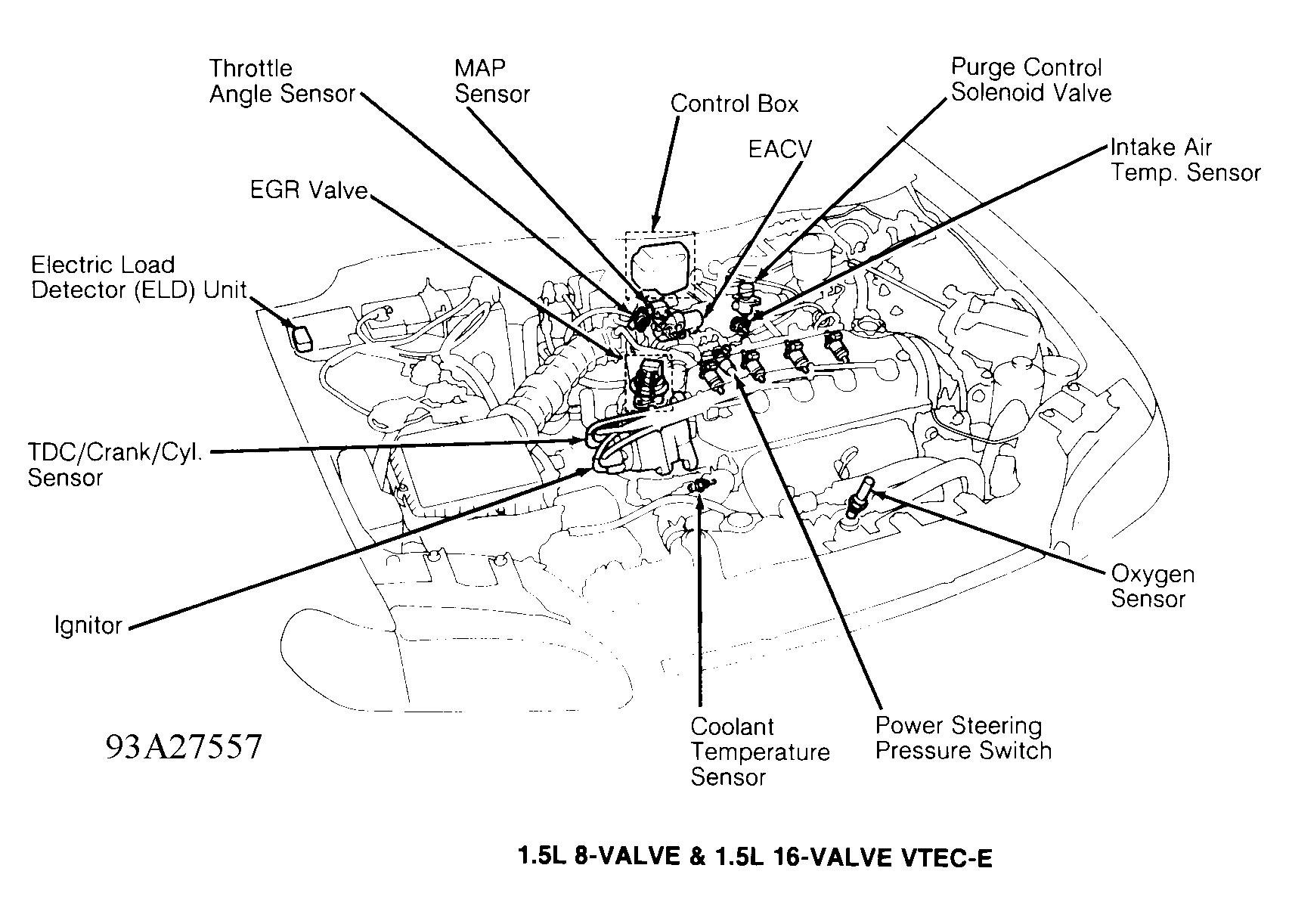

| 1.5L 8-Valve & 1.5L 16-Valve VTEC-E | Integrated with engine compartment fuse/relay block. See Figure . | |

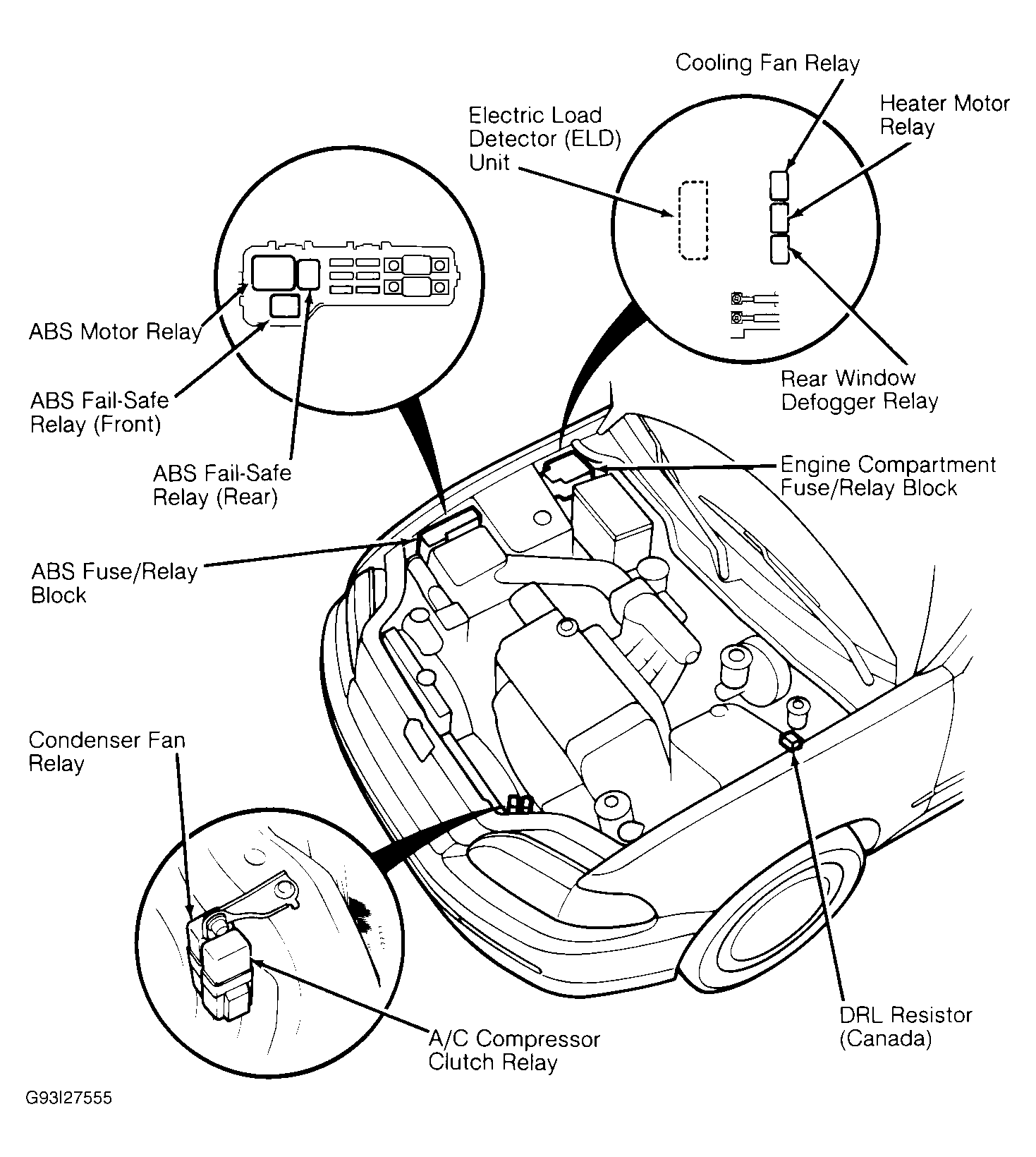

| Overhead View of Engine Compartment | Integrated with engine compartment fuse/relay block. See Figure . | |
| Integrated Control Unit | In passenger compartment fuse/relay block. See Figure . | |
| Interlock Control Unit | Behind left side of dash. | |
| PGM-FI Control Unit | Behind right side of dash, above kick panel. | |
| Power Door Lock Control Unit | In left front door, behind door panel. | |

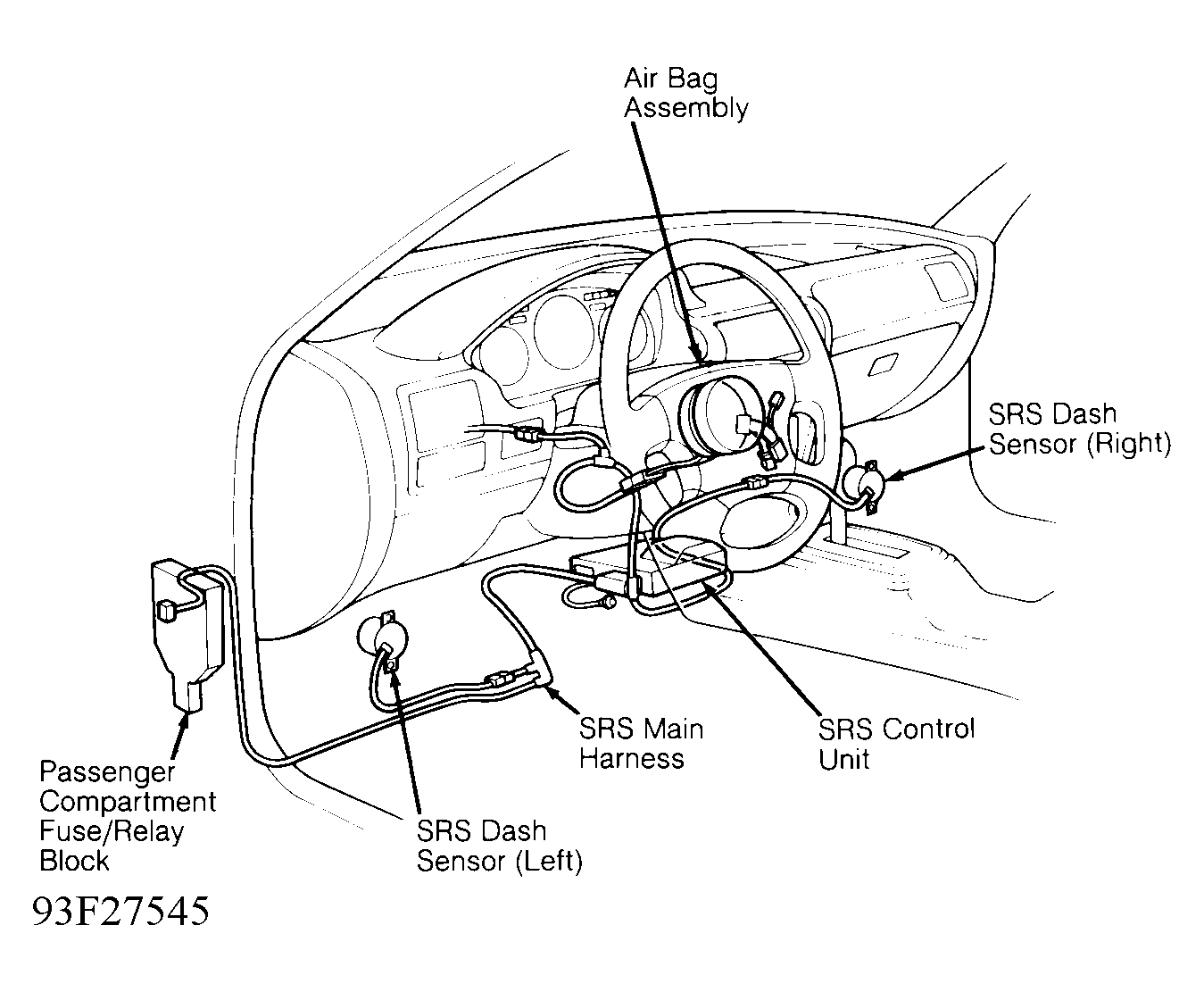

| SRS (Air Bag) Control Unit | Under center of dash, forward of floor console. See Figure . | |
