Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component |
Component Location |

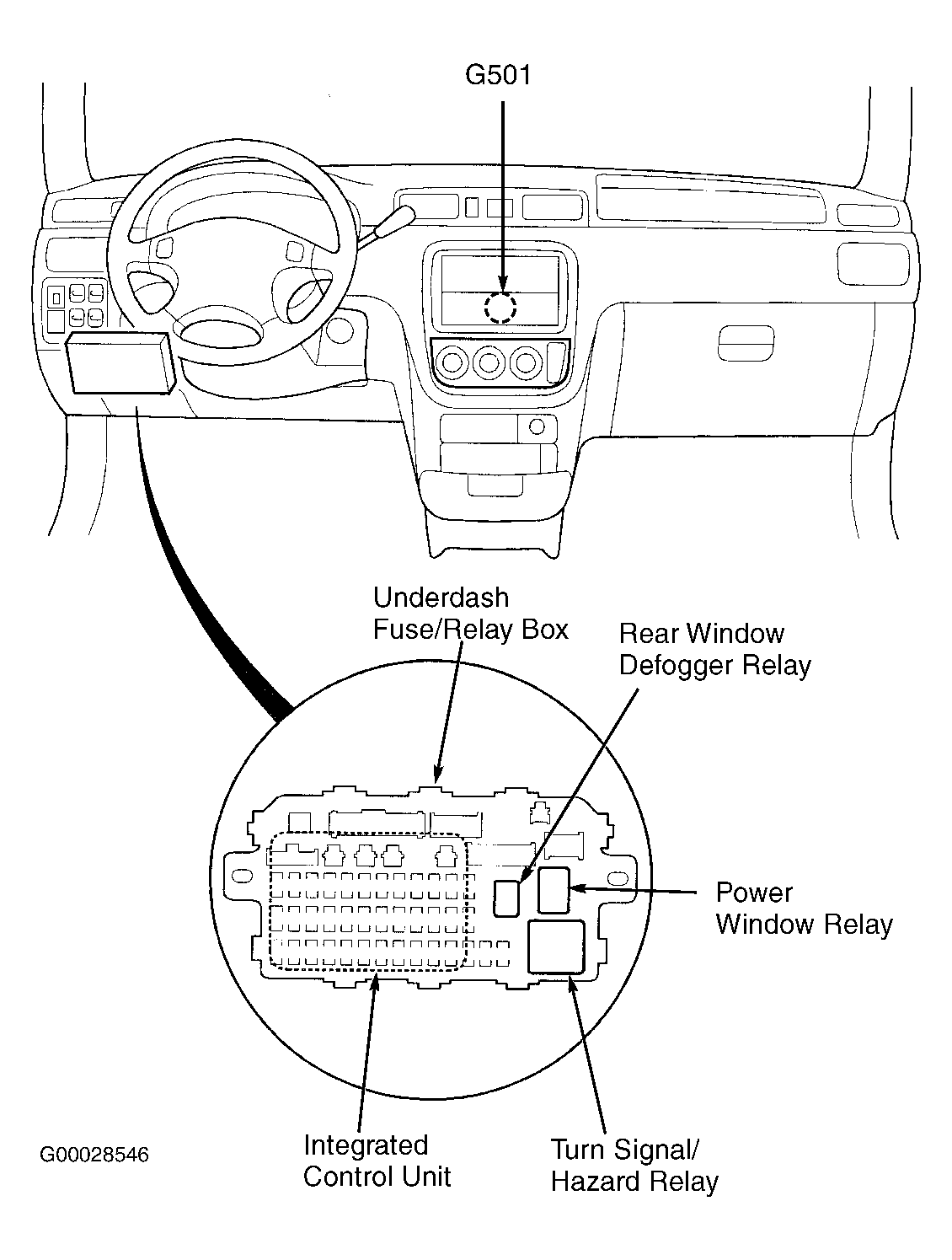

| Underdash Fuse/Relay Box |
Behind dash, left of steering column. See Figure
. |

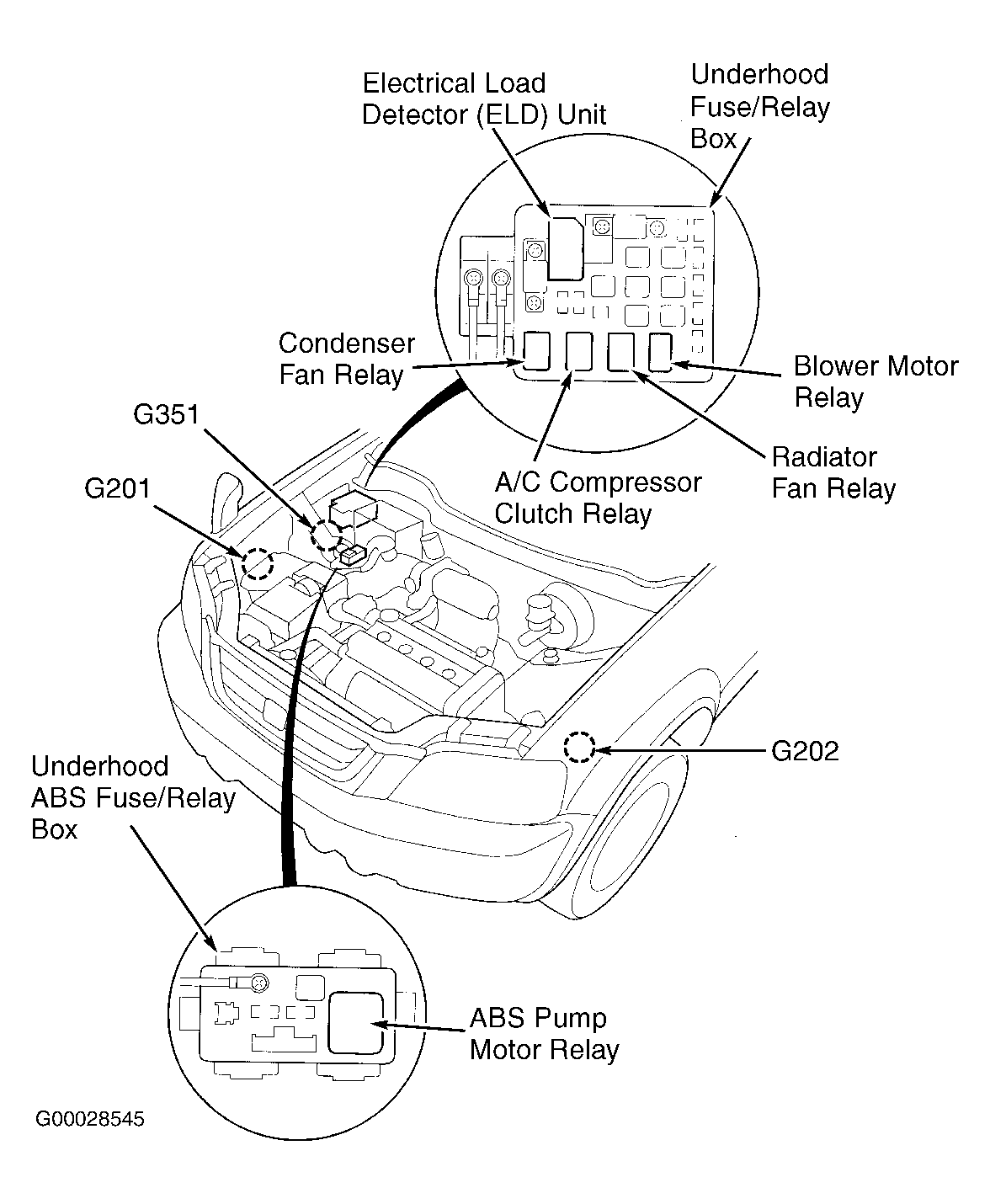

| Underhood ABS Fuse/Relay Box |
On right rear corner of engine compartment. See Figure
. |
| Underhood Fuse/Relay Box |
On right rear corner of engine compartment. See Figure
. |
