Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

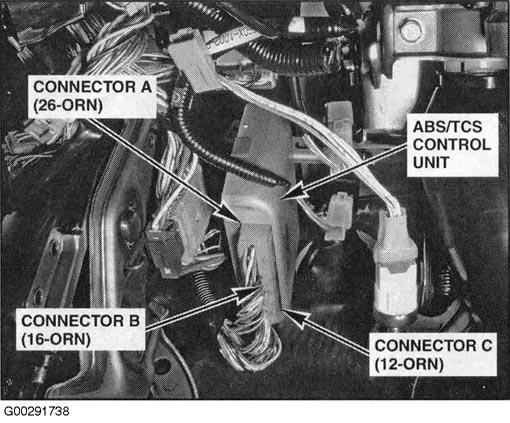

| ABS/TCS Control Unit | Below left side of dash. See Figure. |

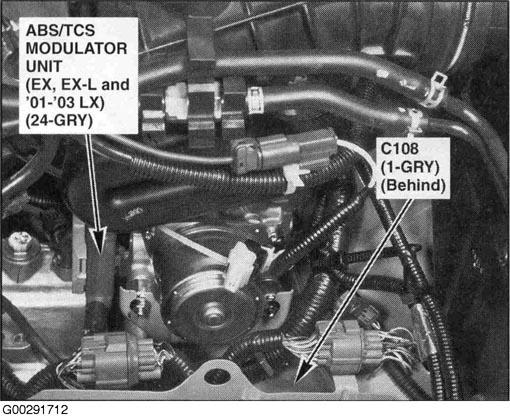

| ABS/TCS Modulator Unit | Left side of engine compartment. See Figure. |

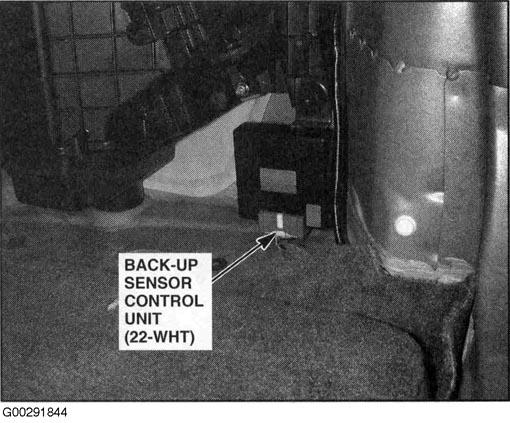

| Back-Up Sensor Control Unit | Right rear of vehicle. See Figure. |
| Cruise Control Unit | Under dash, right of steering column. See Figure. |

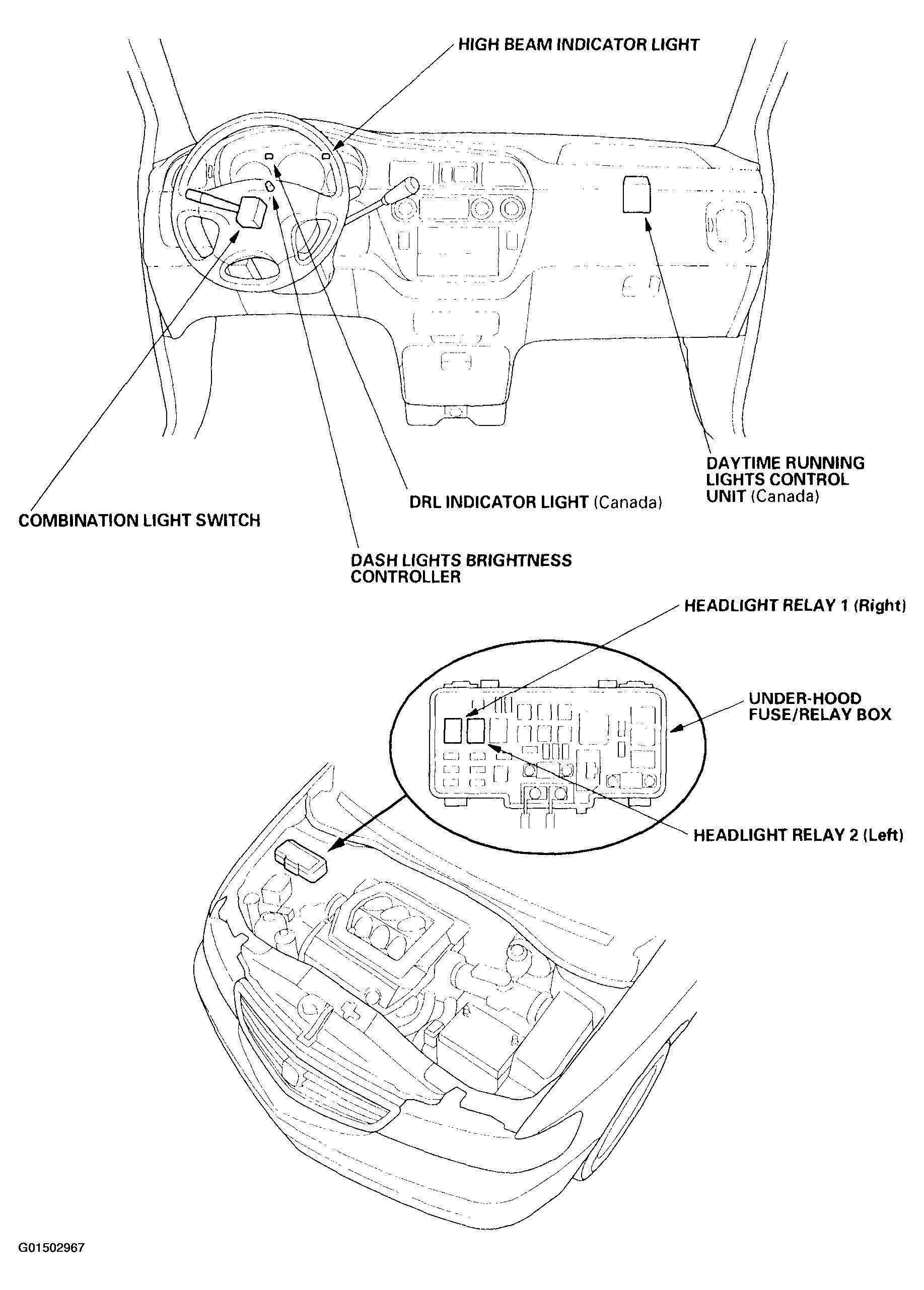

| Daytime Running Lights (DRL) Control Unitt | Behind glove box. See Figure. |

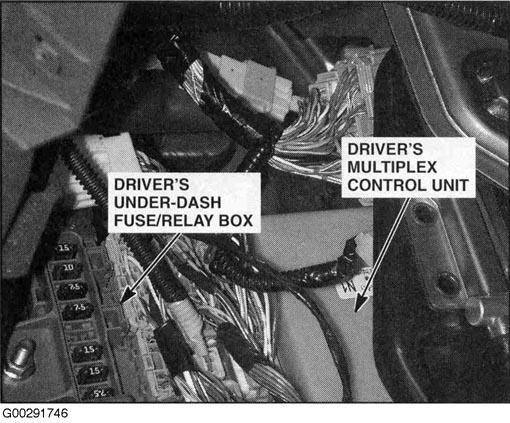

| Driver's Multiplex Control Unit | Under left side of dash. See Figure. |

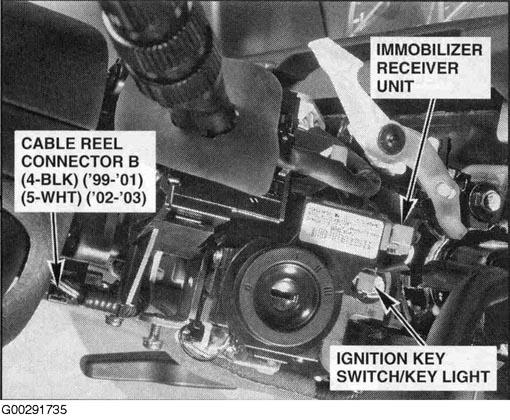

| Immobilizer Receiver Unit | On steering column, near steering lock. See Figure. |
| Keyless Control Unit | Behind dash, right of steering column. See Figure. |

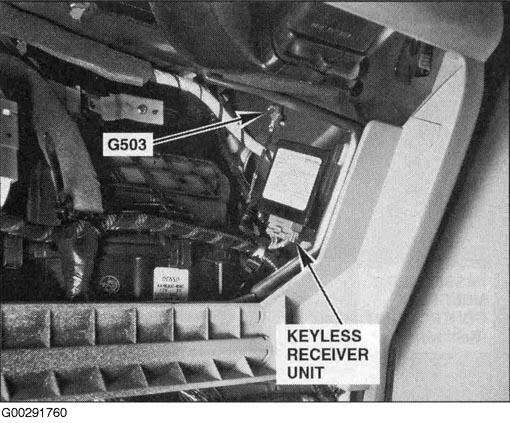

| Keyless Receiver Unit | Behind right end of dash. See Figure. |

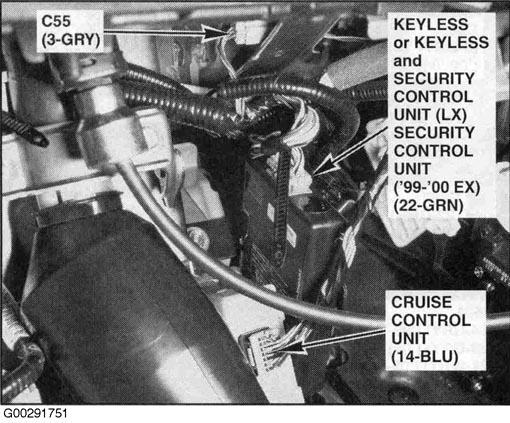

| Keyless & Security Control Unit | Behind dash, right of steering column. See Figure. |

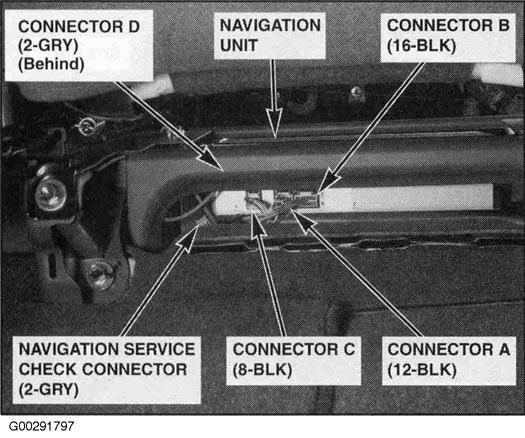

| Navigation Unit | Under front passenger's seat. See Figure. |

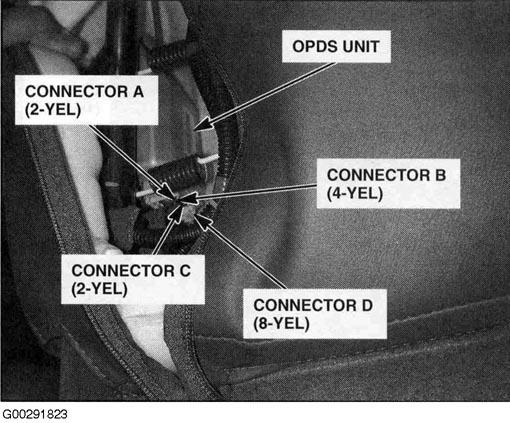

| OPDS Unit | Inside passenger seat. See Figure. |

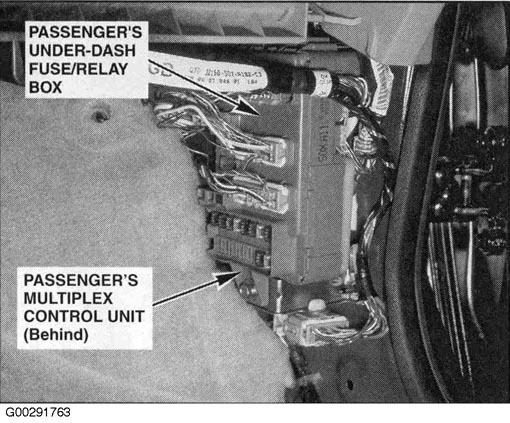

| Passenger Multiplex Control Unit | In passenger underdash fuse/relay box. See Figure. |

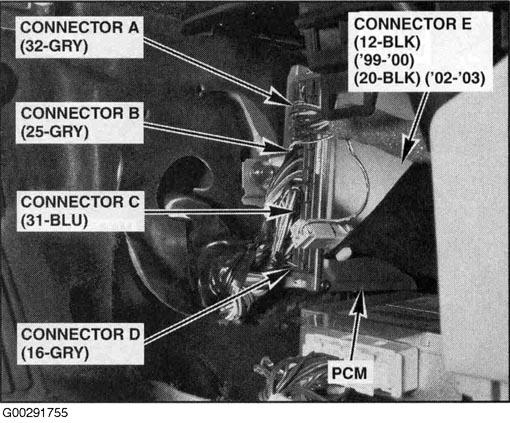

| PCM | Behind lower center of dash. See Figure. |

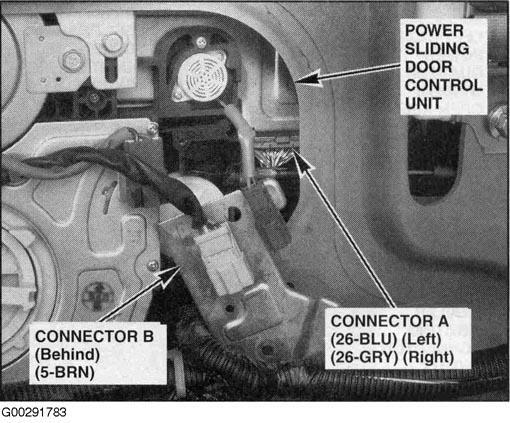

| Power Sliding Door Control Unit (Left) | Behind left rear side trim panel. See Figure. |
| Power Sliding Door Control Unit (Right) | Behind right rear side trim panel. See Figure. |

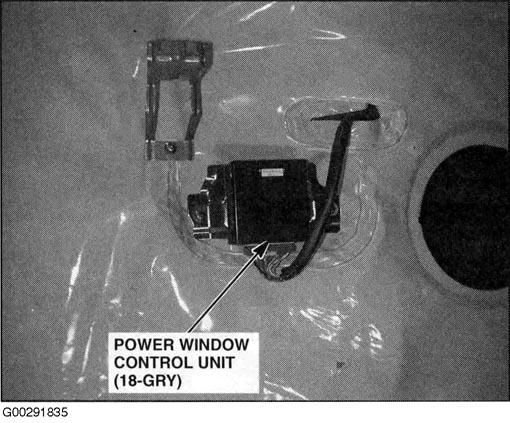

| Power Window Control Unit | In driver's door. See Figure. |

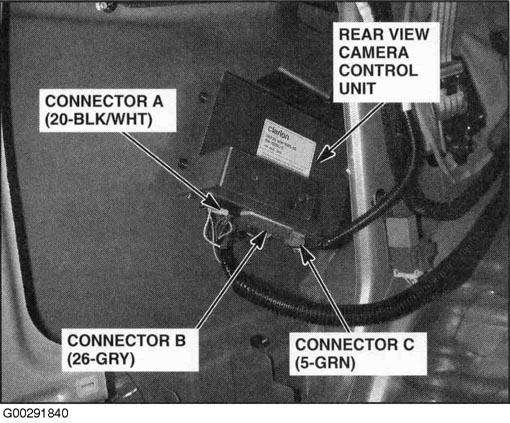

| Rear View Camera Control Unit | Left rear of vehicle. See Figure. |

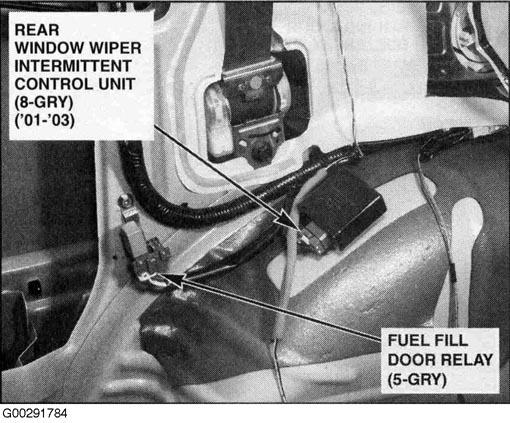

| Rear Window Wiper Intermittent Control Unit | On left rear fenderwell, in cargo area. See Figure. |

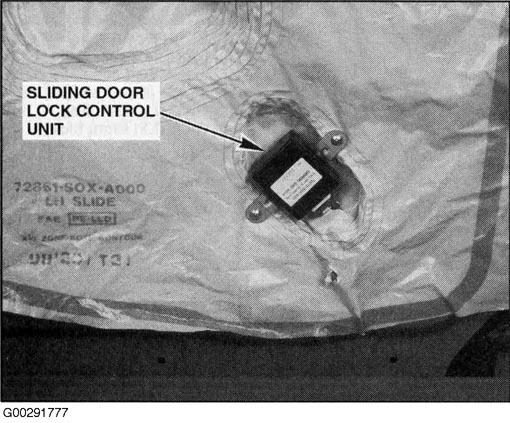

| Sliding Door Lock Control Unit | In left sliding door. See Figure. |

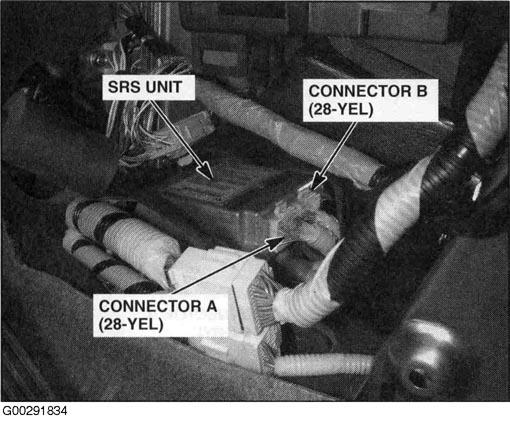

| SRS Unit | Behind lower center of dash. See Figure. |
